40x40x10 Fan Shroud For LGX™ FF

40x40x10 Fan Shroud For LGX™ FF

Download and 3D print it

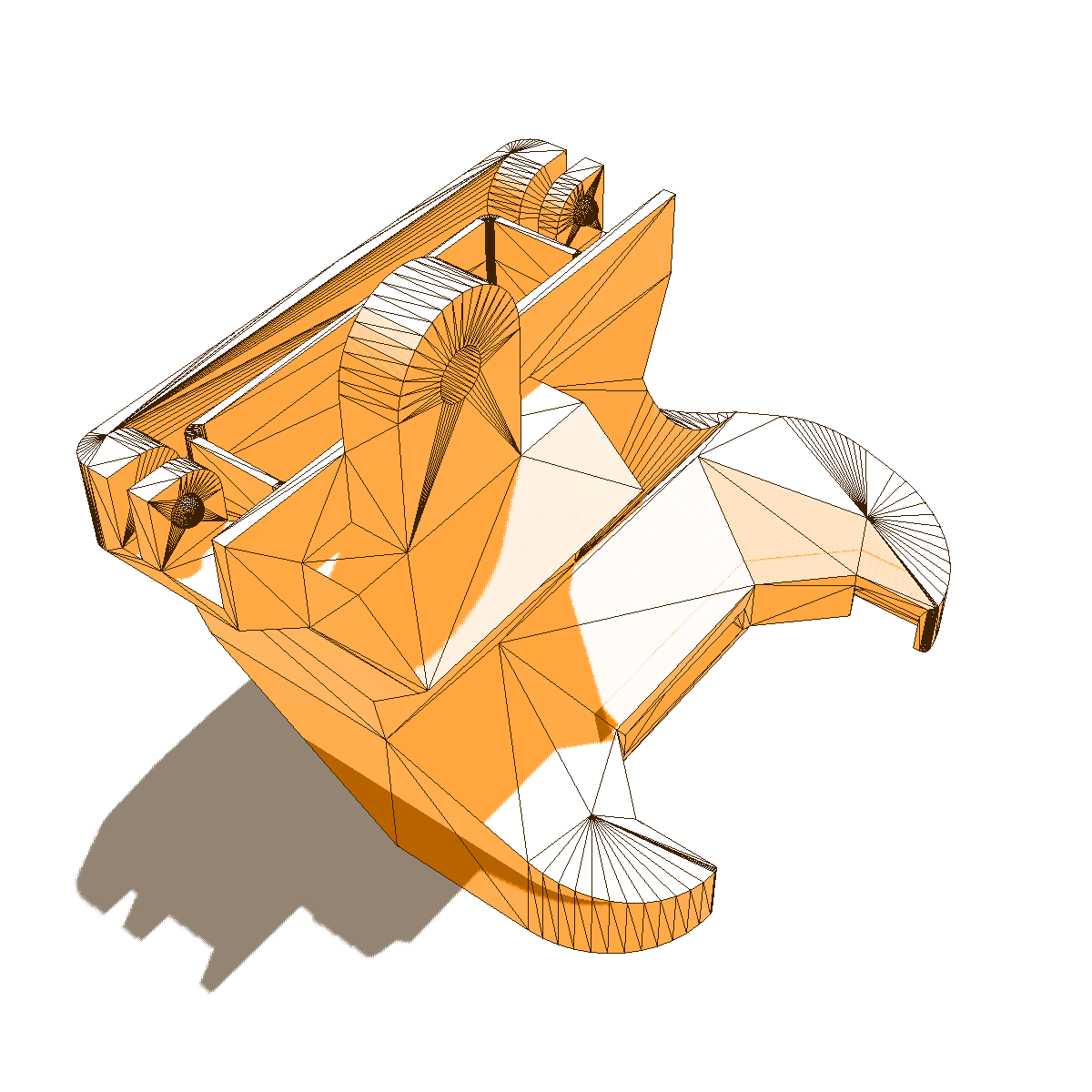

Bondtech is sharing a fan shroud design to use with the LGX™ extruder and tuned for the FF (For Flexibles) version.

It features a fan snap-in function and mounts on the right-hand side of the extruder using a single screw.

This model is shared in 2 different formats:

  • STL
  • STEP

With the STEP file you are able to make adjustments to the geometry, either to make it more printable or to fit the fan shroud to other setups.

The files may only be downloaded and used if you agree they:

  • are non transferable (you download them for your use only);
  • are supplied as they are (without the right for technical support);
  • grant you no rights to any of its intellectual property;
  • and are licensed only for non-commercial application.

Download The STL File Download The STEP File

The STL file supplied may be 3D printed with filament or with any powder based additive manufacturing processes like Laser Sintering or Multi Jet Fusion.


The side mounting holes are 5mm deep. Use a M3 screw from 4 up to 6mm in length.

The model above is related to the following Bondtech Products:
