STL & STEP Models For Download : LGX FF on Prusa

STL & STEP Models For Download : LGX FF on Prusa



Notice

The files may only be downloaded and used if you agree they:

  • are supplied as they are (without the right for technical support);
  • grant you no rights to any of its intellectual property;
  • and are licensed only for non-commercial application.

We reserve the right to legally pursue any infringement to any of these terms.



Download and 3D print it

Bondtech is sharing the STEP and STL files of the plastic parts in the LGX™ Accessories for FF Prusa MK3S

This set includes 6 plastic parts:

  • X-Carriage Front
  • X-Carriage Rear
  • Mount Plate
  • Fan Shroud
  • Filament Sensor Box
  • Pinda Holder

All files supplied were adapted to be 3D printed with filament from the models we use on our powder based additive manufacturing processes like Laser Sintering or Multi Jet Fusion.

The STEP and STL models below are related to the following Bondtech Products:

If you agree with the terms above, click each image to download a ZIP file containing the STL model.

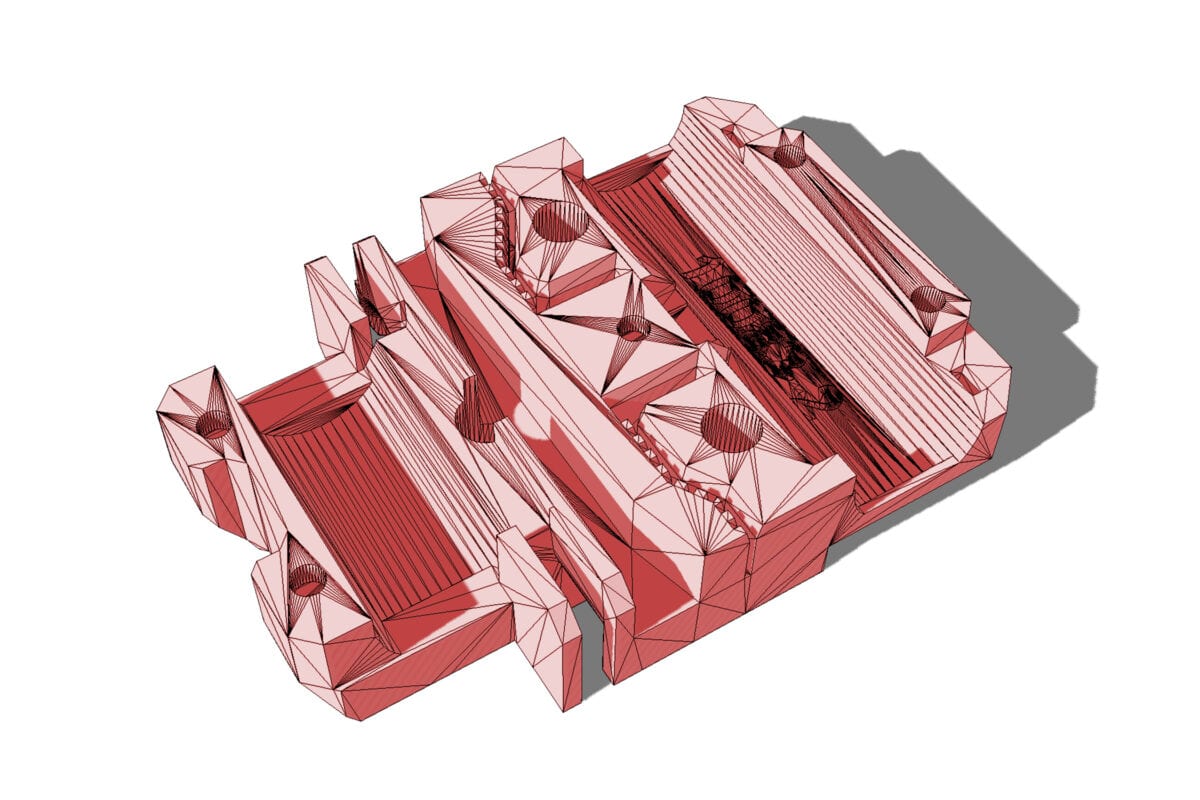

X-Carriage Front

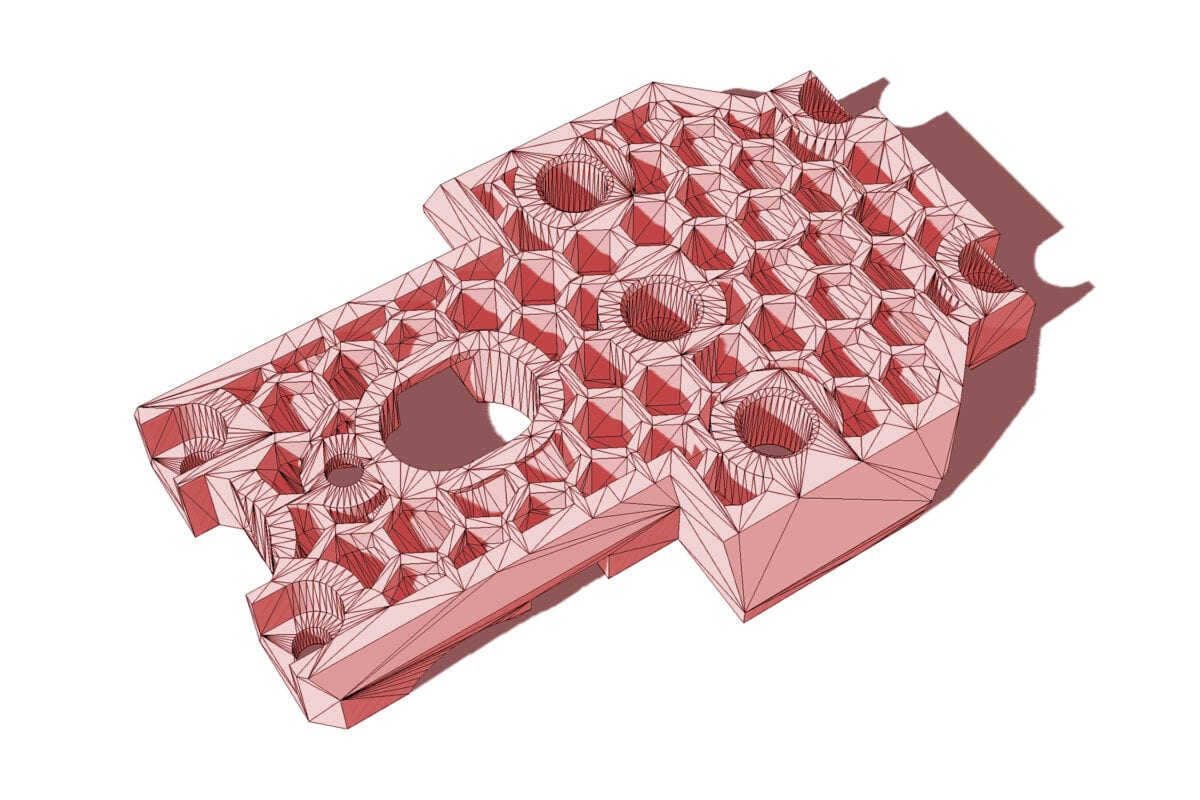

X-Carriage Rear

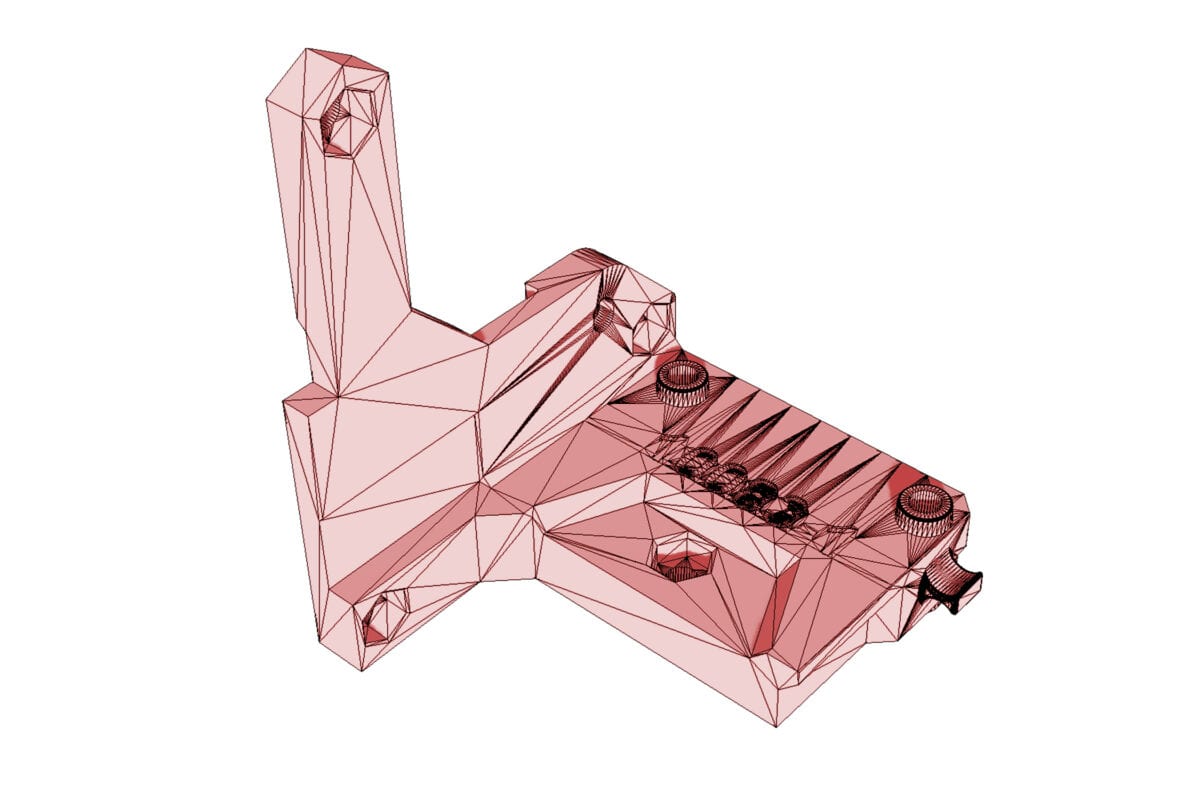

Mount

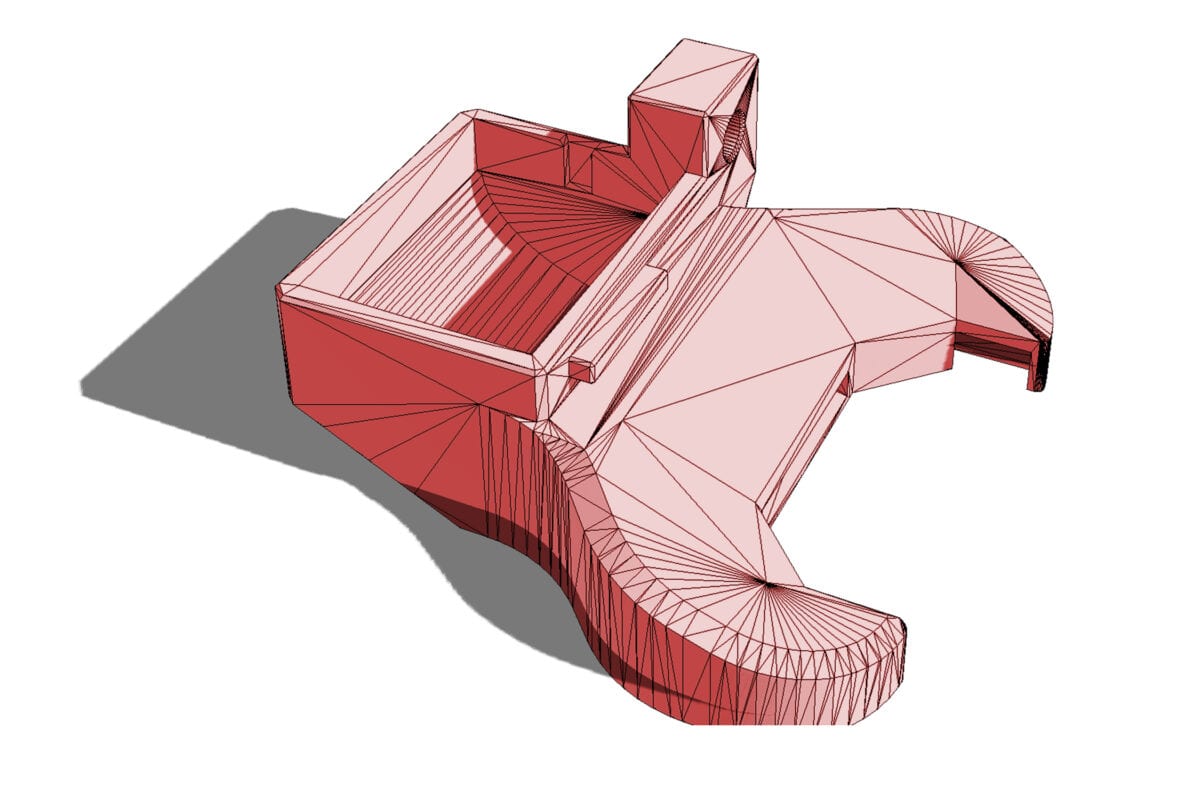

Fan Shroud

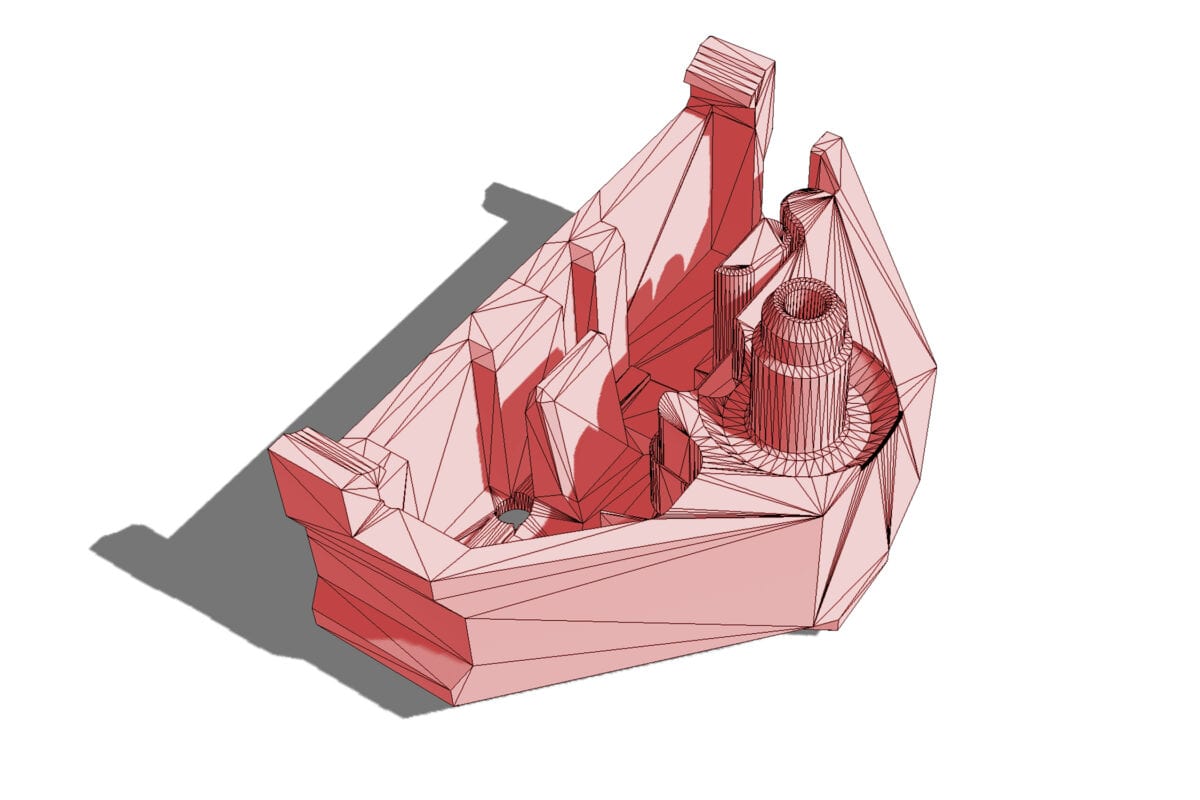

Filament Sensor Box

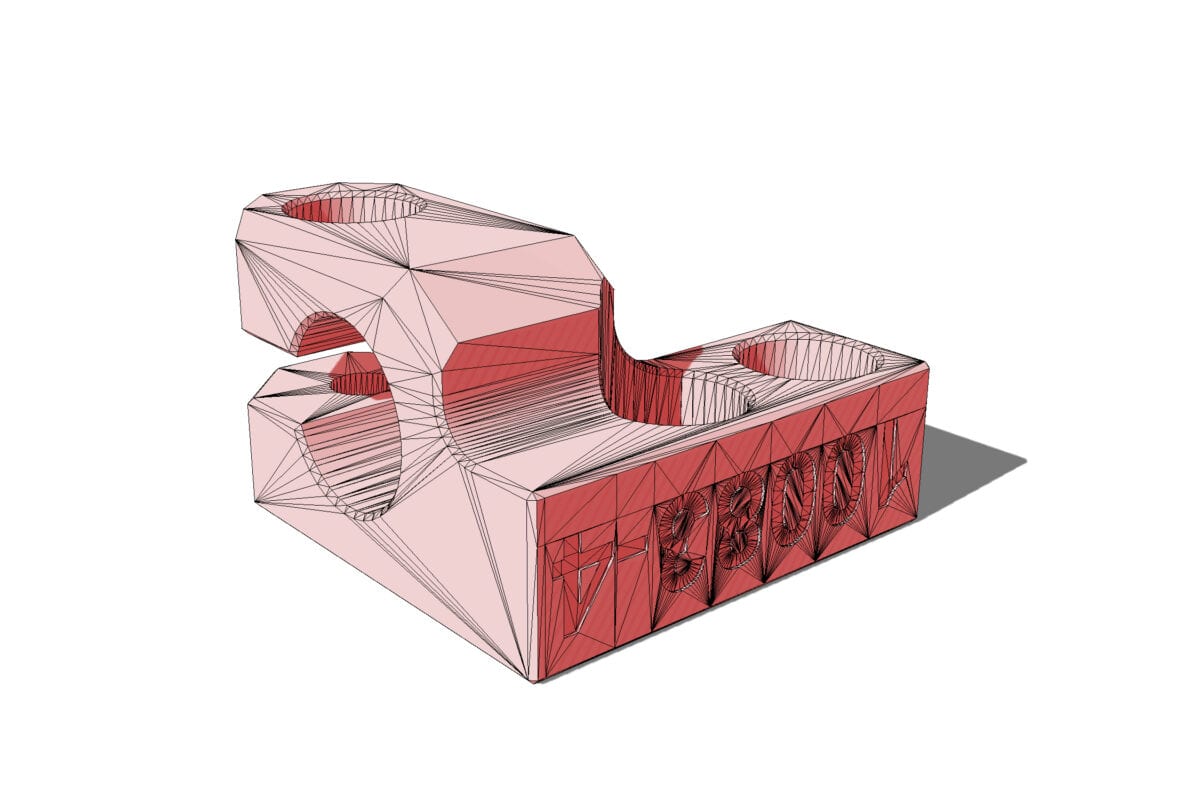

Pinda Holder
Click The Button To Download The STEP File

Check this video to see how it is assembled.

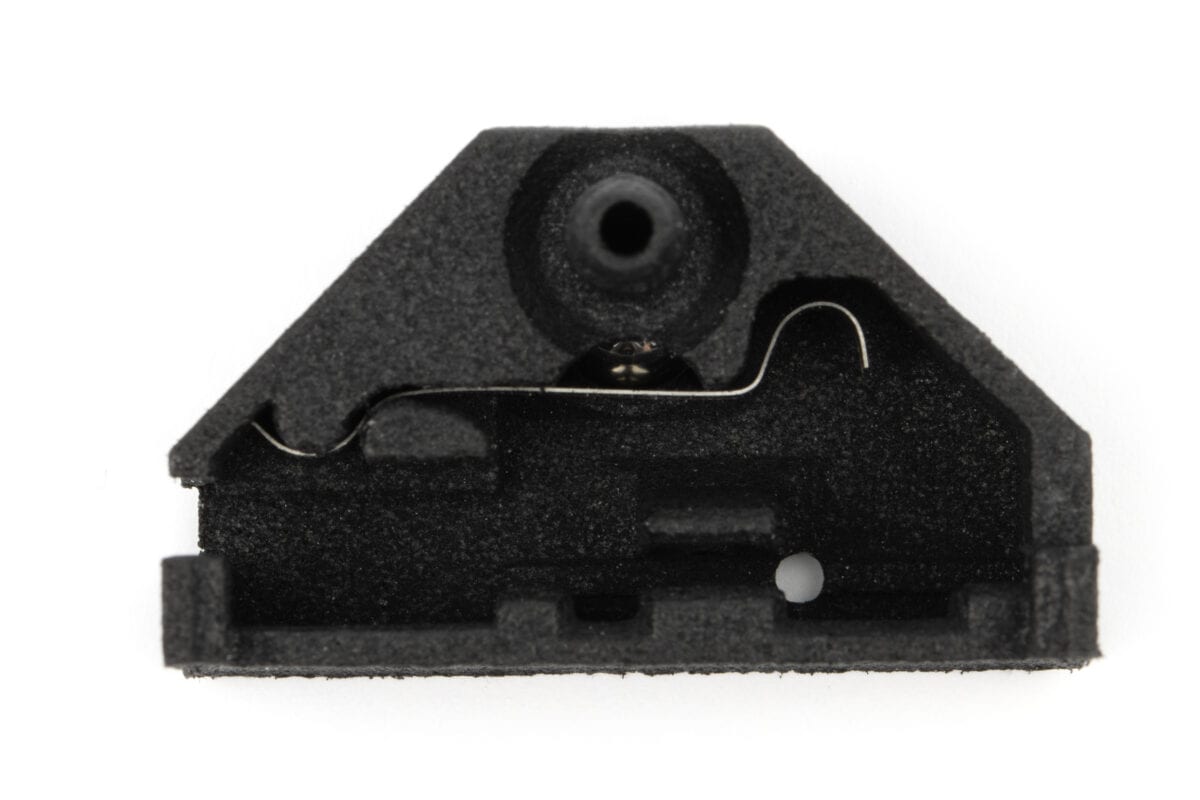

Filament Sensor Box Detail

For the LGX filament sensor box to work properly you will need to source the components mentioned in the list below. We are not supplying them separately.

  • 1x 7mm steel sphere
  • 1x steel spring with the following features and design (check picture):
    • 4.4mm in width;
    • 28.86 mm in length;
    • 0.15mm in thickness.

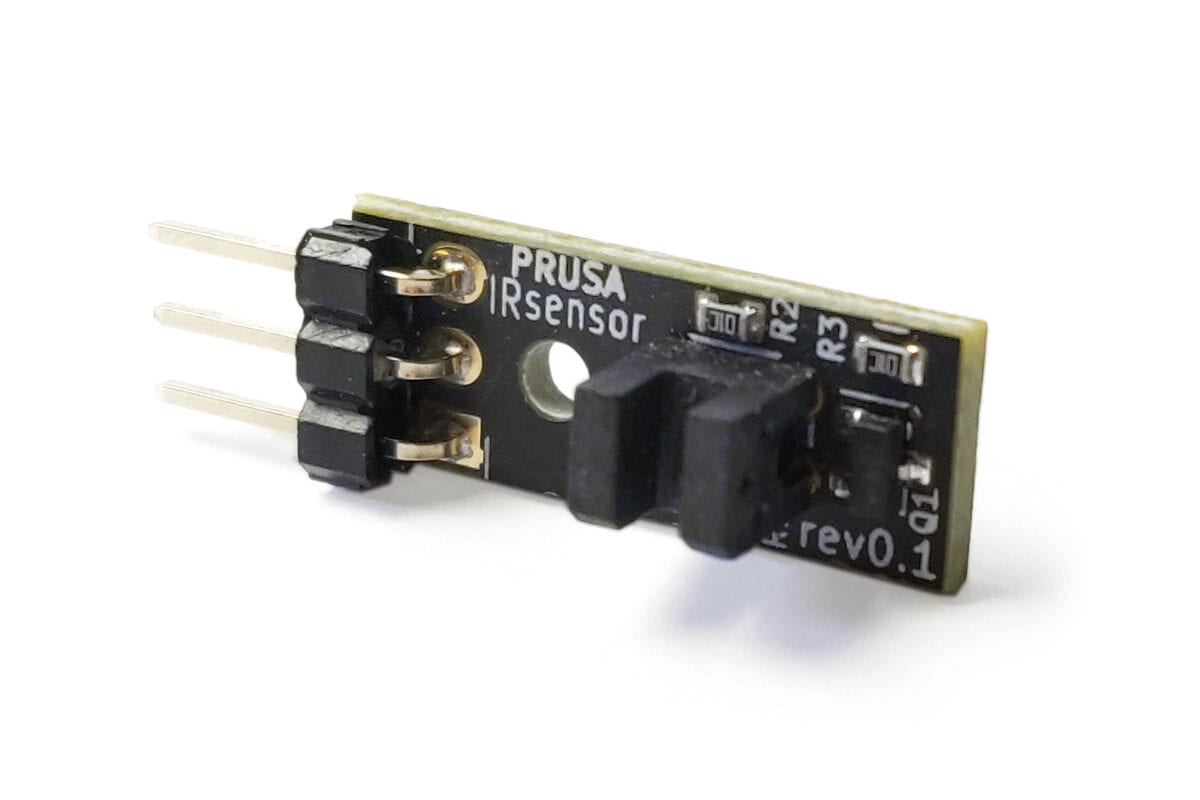

  • The Prusa MK3S IR filament sensor

Check this video to see how the filament sensor box is installed.
