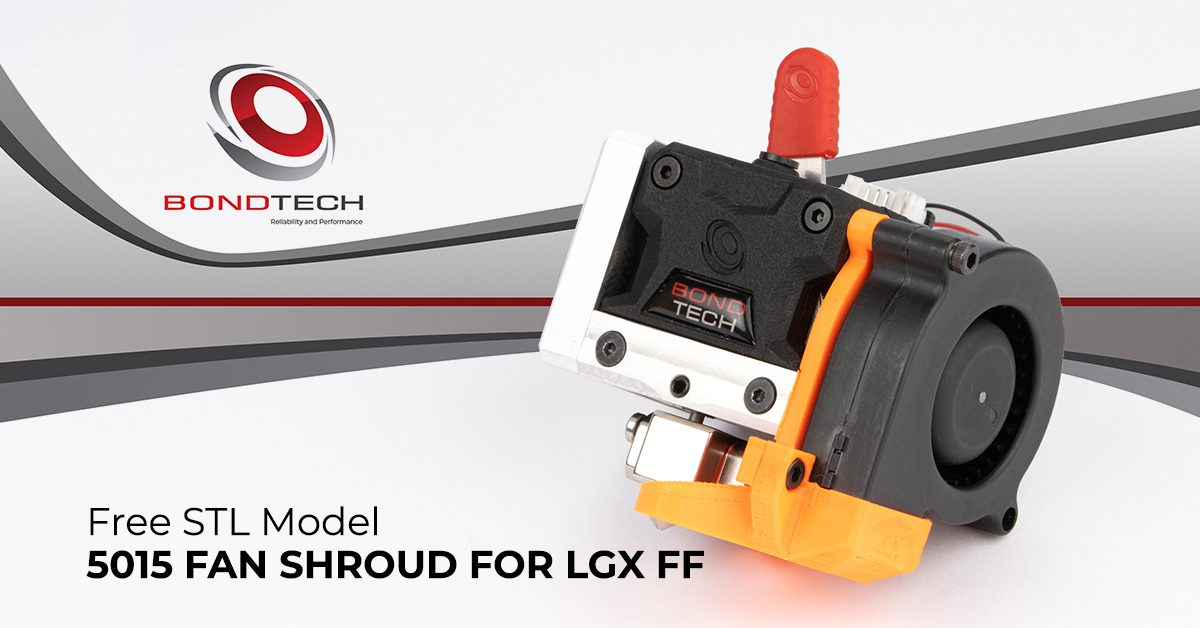

Free 5015 Fan Shroud For LGX Shortcut
Notice
The files may only be downloaded and used if you agree they:
- are supplied as they are (without the right for technical support);
- grant you no rights to any of its intellectual property;
- and are licensed only for non-commercial application.
Download and 3D print it
Bondtech is sharing the STL files of the plastic parts required to mount a 5015 fan on the LGX Shortcut Copperhead, previously known as LGX FF
This set includes 2 plastic parts:
- Fan Mount
- Fan Shroud
These models were designed to be used on the left-hand side of the LGX.
All files supplied were adapted to be 3D printed with filament from the models we use on our powder based additive manufacturing processes like Laser Sintering or Multi Jet Fusion.
The STL models below are related to the following Bondtech Products:
If you agree with the terms above, click the buttons below to download a ZIP file containing the STL model.
Fan Mount
Roll back and forth to zoom in and out.
Click and drag to rotate the view.
Fan Shroud for Copperhead
Roll back and forth to zoom in and out.
Click and drag to rotate the view.
Check this video to see how the 5015 fan shroud and mount are installed.
Please note that in the video we are using a LGX (DD) extruder, but this 5015 fan shroud and mount may only be used on the LGX Shortcut Copperhead printhead.
Now also available for LGX Shortcut Mosquito
If you agree with the terms above, click the buttons below to download a ZIP file containing the STL model.
The same Fan Mount
Roll back and forth to zoom in and out.
Click and drag to rotate the view.
A Fan Shroud for Mosquito
Roll back and forth to zoom in and out.
Click and drag to rotate the view.
Want to know more?
Register yourself or login to leave a Question, Reply or Comment in the section below.
If you didn't already, you can also subscribe to our newsletter to receive the short updates about our new products, updates or technology on your mailbox.
Thank you : )
Would it be possible to get STEP files for this mount? That would make it easier to include it in my custom printer mount designs.
Hi Scramsby : )
We updated the post just now with links to download a STEP file of each part.
Enjoy!
Thank you!
Hello, I too would like the STEP files, but I’m not seeing them. Can you please advise where I can get them?
Thanks!
Hey Mr Dust =)
You can now find the STEP file links below the respective STL links.
