LGX Lite PRO eXtruder

  • High torque;
  • More Pre-tension presets;
  • V2 style housing build;
  • increased resistance to heat;
  • micro form factor, featherweight and small footprint;
  • and large drive wheels for enhanced filament grip;

Includes full size LGX Steel Drive Train, maintenance windows and filament tension lever with 5 presets (open, rigid, hard rigid/semi flexible, flexible, soft flexible ).



This extruder only supports 1.75 mm size filament.

Price:

$119.90

Only 12 left in stock (can be backordered)

Select Currency

Select Country

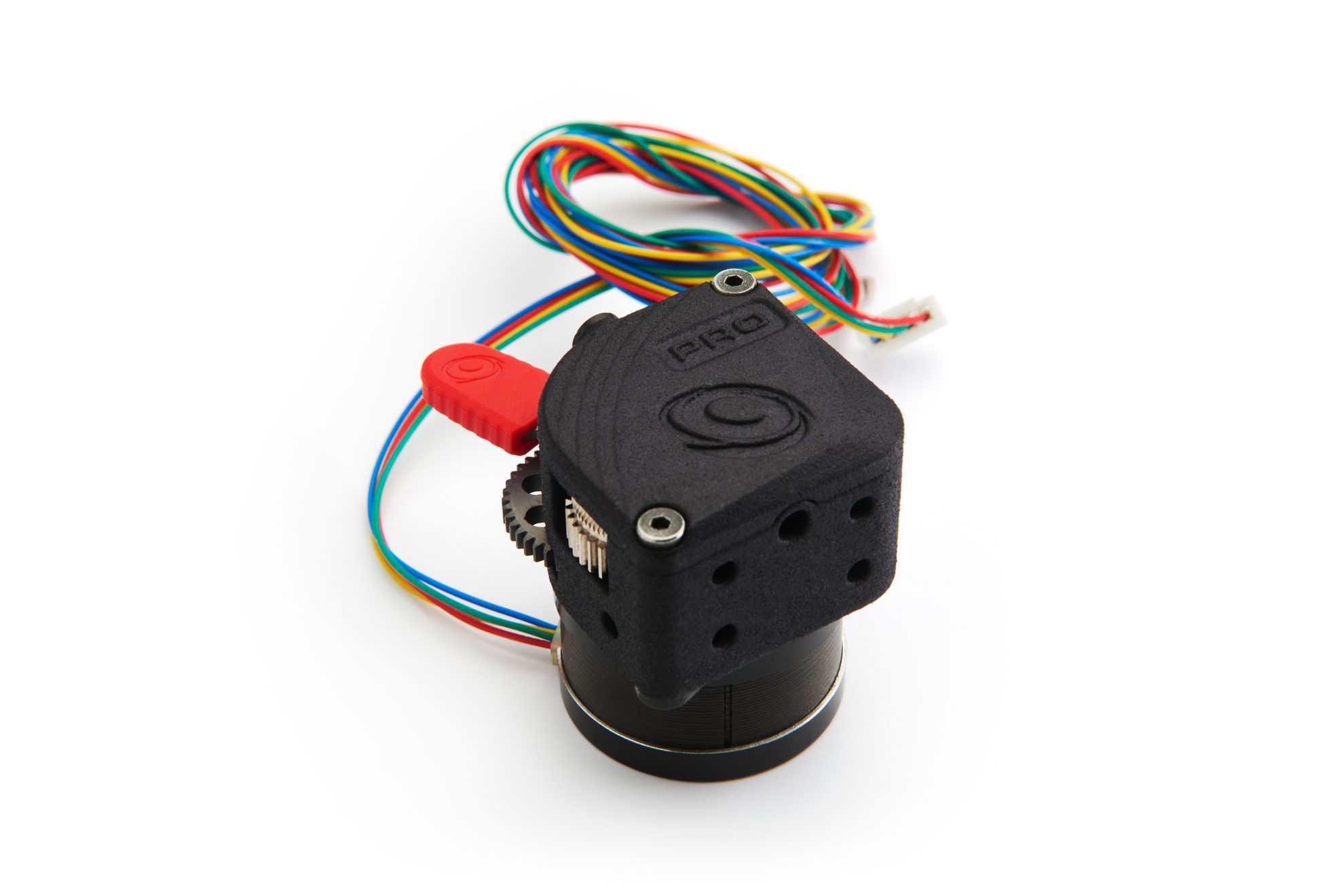

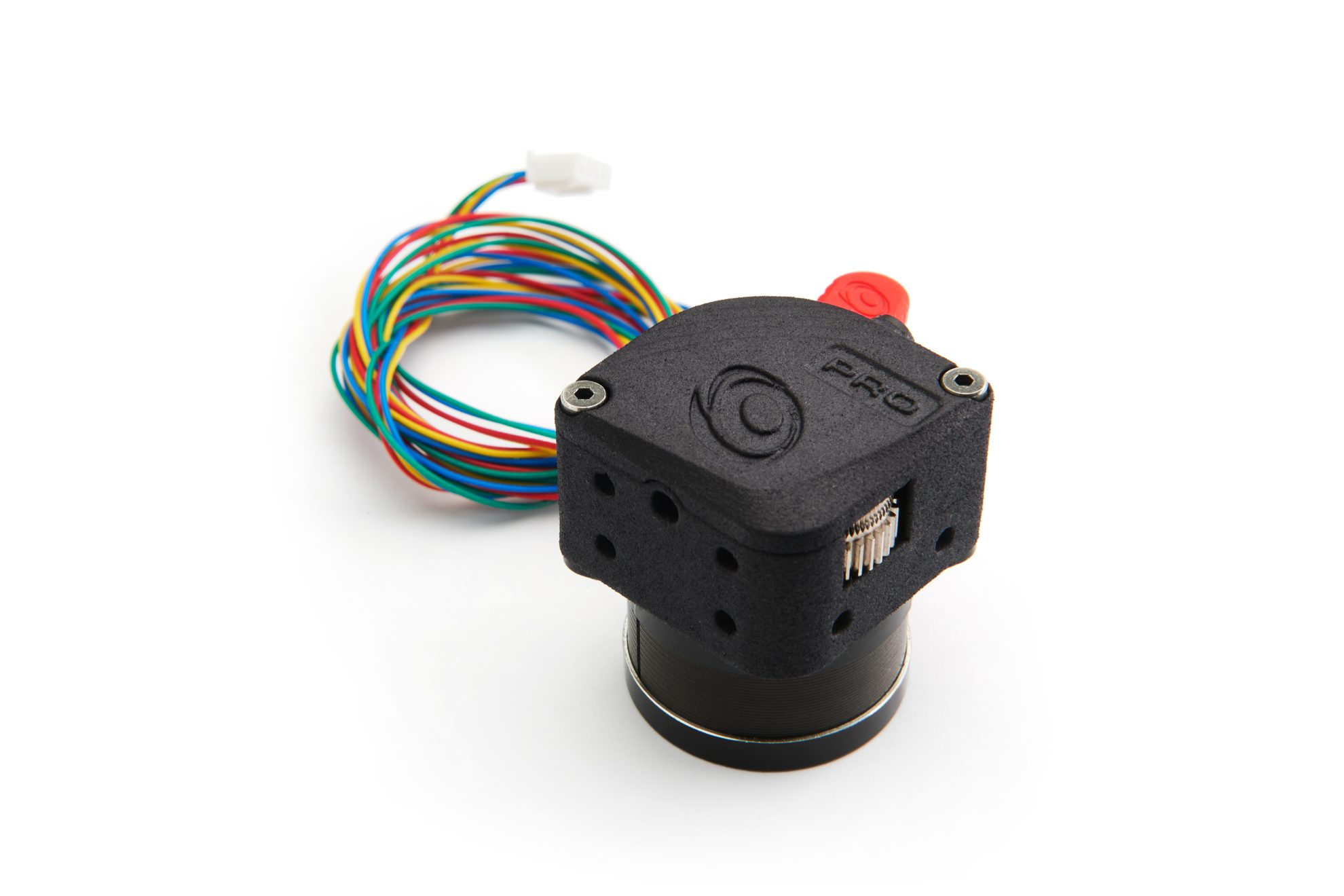

The Bondtech LGX Lite PRO is a filament feeder based on the LGX® Large Gears eXtruder and uses
Bondtech's Dual Drive Technology based on larger drive gears.

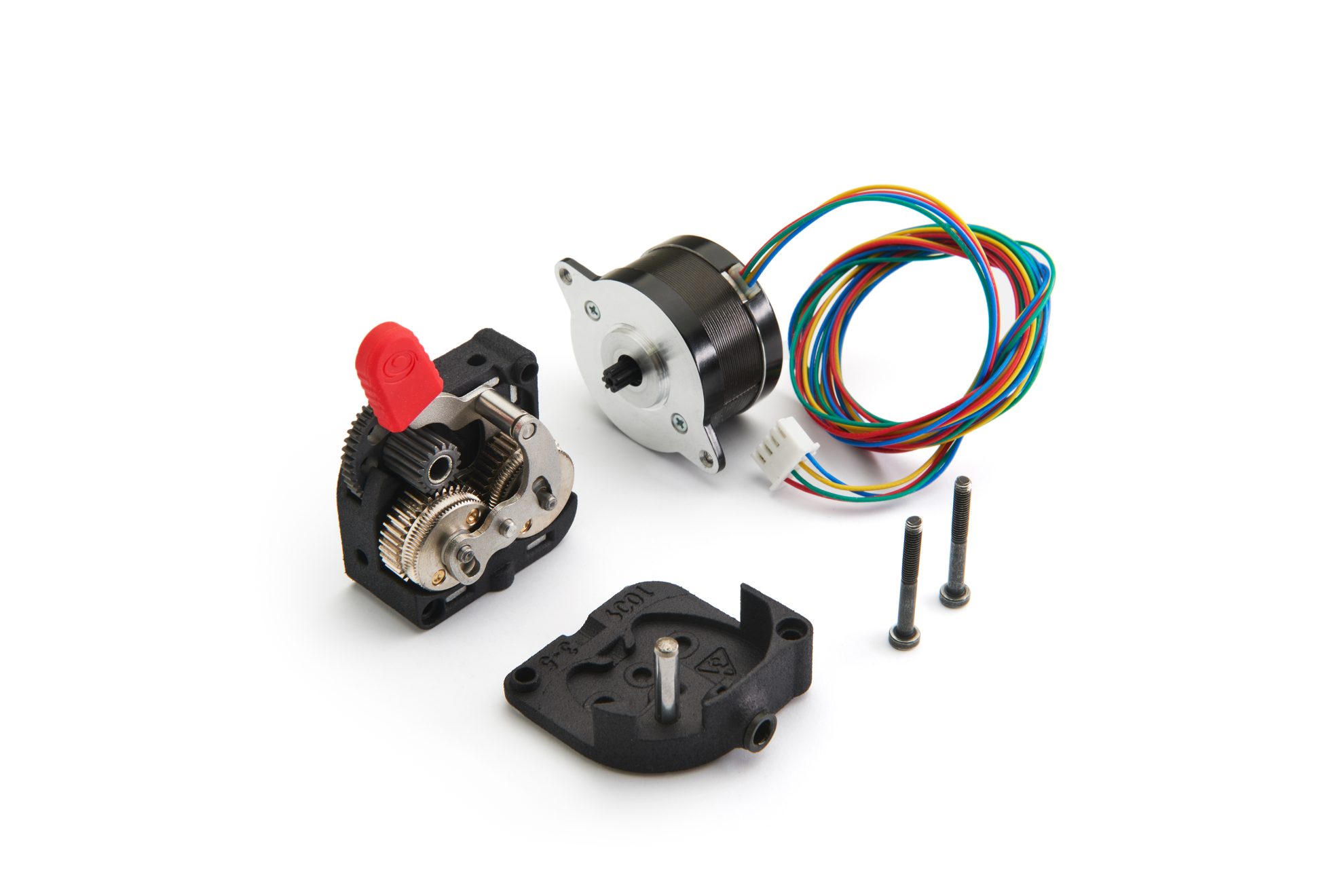

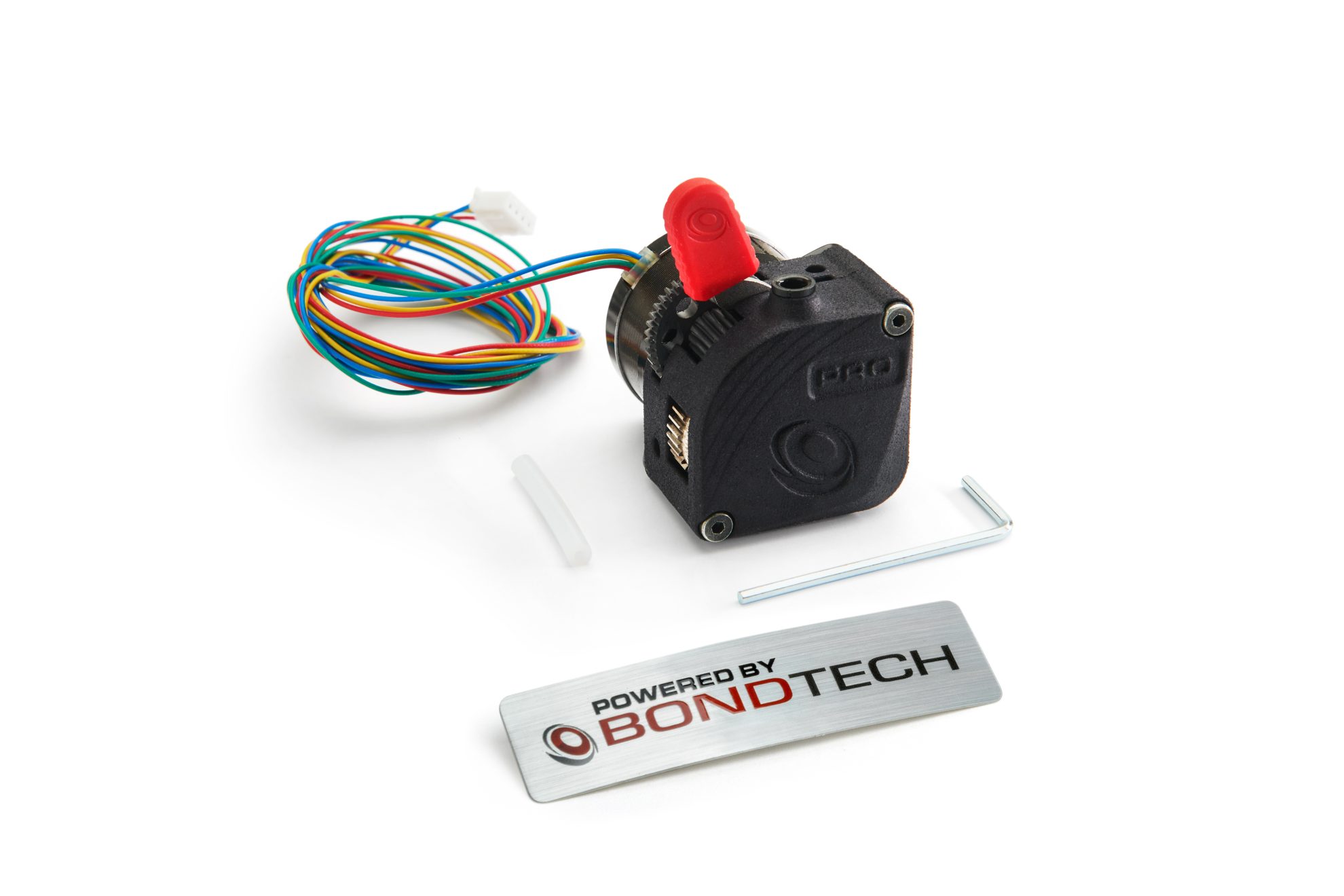

Each LGX Lite PRO extruder is supplied with:
  • 1x LGX Lite PRO feeder;
  • 1x Nema14 Round 22mm pancake stepper motor (mounted on extruder)
    • 1m long lead cable
    • with JST-XH 4-pin connector
  • 1x 2mm Hex Key (recommended tool)
  • 1x Powered By Bondtech sticker
Also shipping with additional accessories:
  • 1x Push-fit collar (inserted)
  • 1x 30mm PTFE tube to use in the PTFE Tube Adapter
  • 8x M3 square nuts for reinforcing mounting holes (inserted)
Freight Weight 192 g
Dimensions 10 × 7 × 7.5 cm

Product Alerts

1. This extruder does not allow a mount plate between the motor and the extruder.

2. Use at most 0.65A (RMS) of current to feed the stepper motor.

Technical Data Sheet

Quick Start and Maintenance Guides

Click one image below to open/download a PDF file with the step by step guide that best fits your case or need.
Quick Start Guide
How to perform the regular maintenance
Watch a video instead

STEP Files to Download

Click the links below to download a STEP file with simplified geometry.

Introduction Video
