LGX Lite V2 Large Gears eXtruder (no motor)

  • Tighter tolerances;
  • improved build quality:
    • sturdier 2 parts housing design;
    • precise stepper motor centering.
  • extra mounting point;
  • increased resistance to heat;
  • micro form factor, featherweight and small footprint;
  • enhanced filament grip;
  • Use your own motor (check product alerts);
  • and that Bondtech black Look : )

Includes full size LGX Large Gears, maintenance windows and filament tension lever with 3 presets (open; rigid; flexible).

This extruder only supports 1.75 mm size filament.

Price:

$57.90

Only 8 left in stock (can be backordered)

Select Currency

Select Country

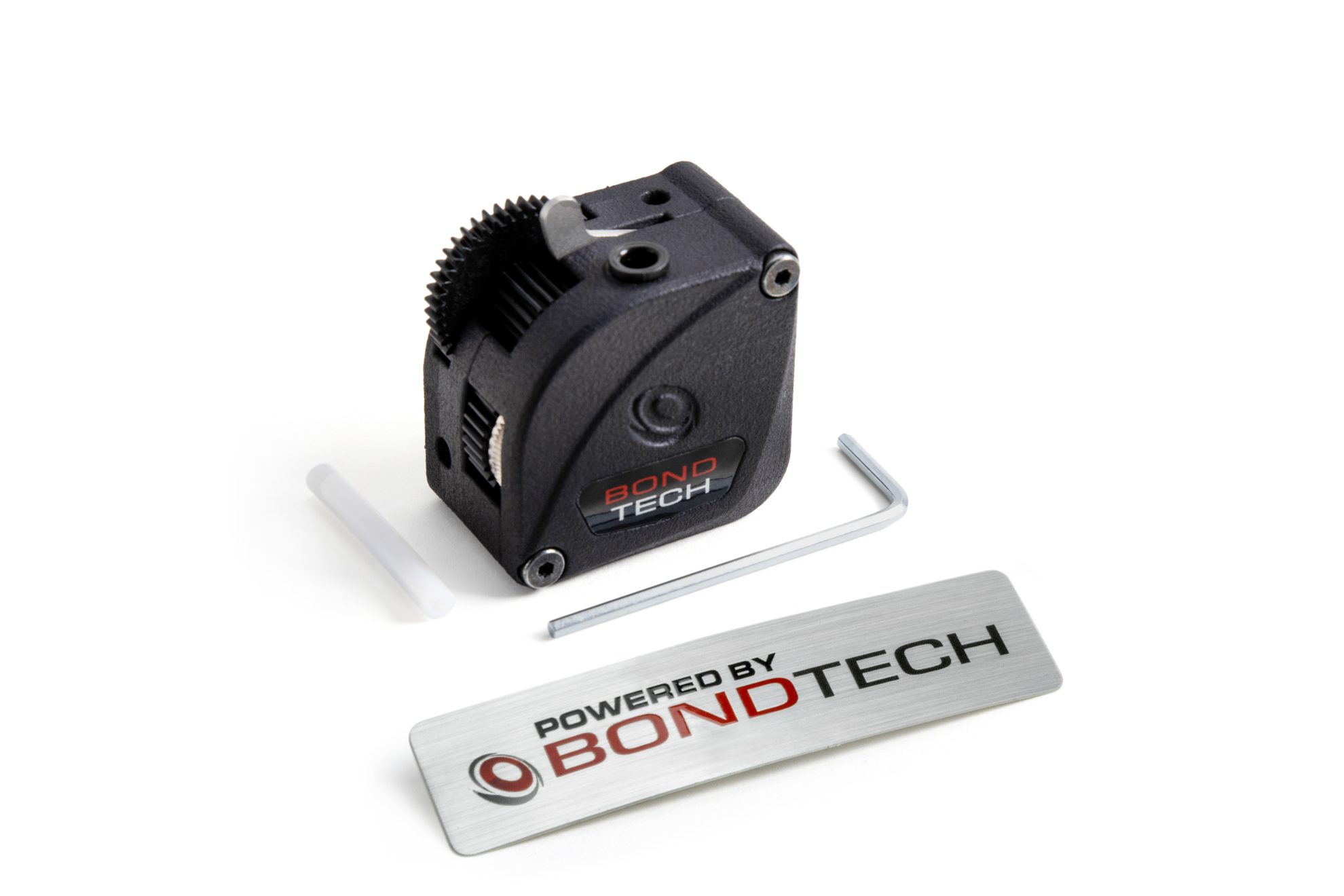

Each LGX Lite V2 extruder is supplied with:

  • 1x LGX Lite V2 feeder;
  • 1x 2mm Hex Key (recommended tool)
  • 1x Powered By Bondtech sticker

Also shipping with additional accessories:

  • 1x Push-fit collar (inserted)
  • 1x 30mm PTFE tube to use in the PTFE Tube Adapter
  • 8x M3 square nuts for reinforcing mounting holes (inserted)

8 features of this Bondtech eXtruder:

  • Larger drive wheels, for increased filament grip;
  • Filament pre-tension lever, for repeated results;
  • Drive wheels’ maintenance windows, for easy cleaning;
  • Compact, light & centered filament path, for increased performance and compatibility;
  • Multiple mounting hole patterns, for easy and flexible setup;
  • Compatible with Nema14 round stepper motors;
  • Craft boxes without bleaching & no coating.
3D Printed Housing using PA12 GF

The housing parts are professionally printed with polyamide 12 Glass Filled for maximum strength, precision and higher temperature resistance.

To lower our ecological impact we are reducing our use of chemical dyes. This part is supplied with a wax protective coating to lower sensitivity to moisture and grease, while remaining fully functional.

Freight Weight 105 g
Dimensions 10 × 7 × 7.5 cm

Product Alerts

IMPORTANT NOTICES

1. This extruder does not allow a mount plate between the motor and the extruder.

2. Use the LGX Lite only with a Ø36mm round stepper motor featuring a 10 teeth motor gear like this:

10 teeth motor gear

Otherwise you may cause damages in the extruder that are NOT covered by warranty.

Technical Data Sheet

Quick Start Guide

Click one image below to open/download a PDF file with the step by step guide that best fits your case or need.

Quick Start Guide

STEP Files To Download

Click the button below to download the STEP file

Download STEP file
