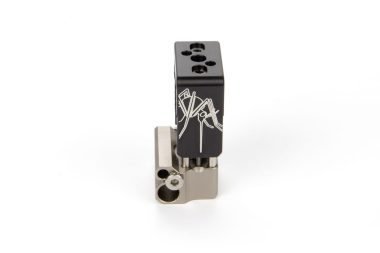

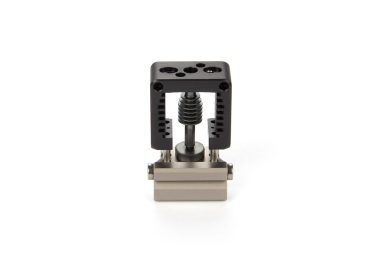

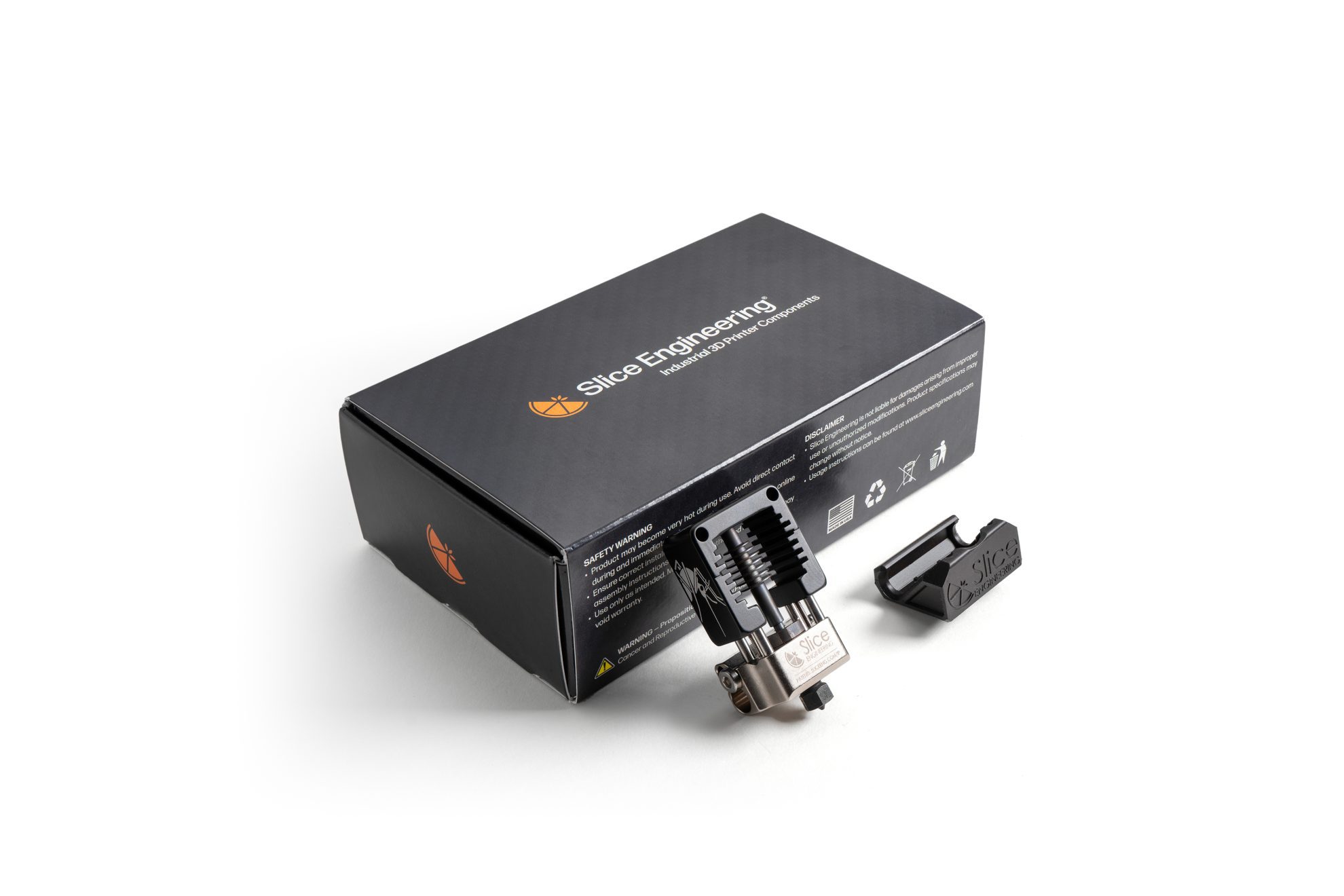

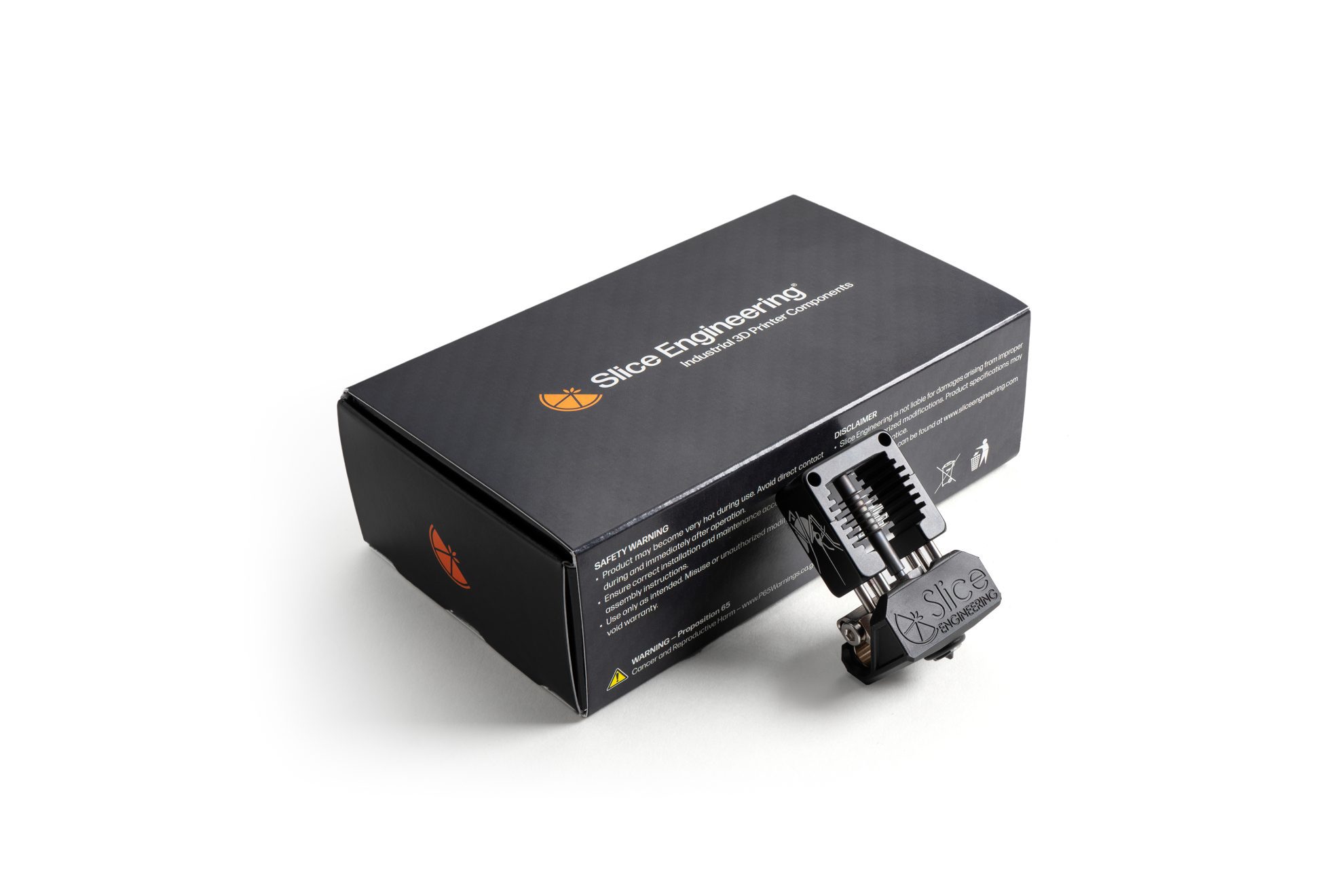

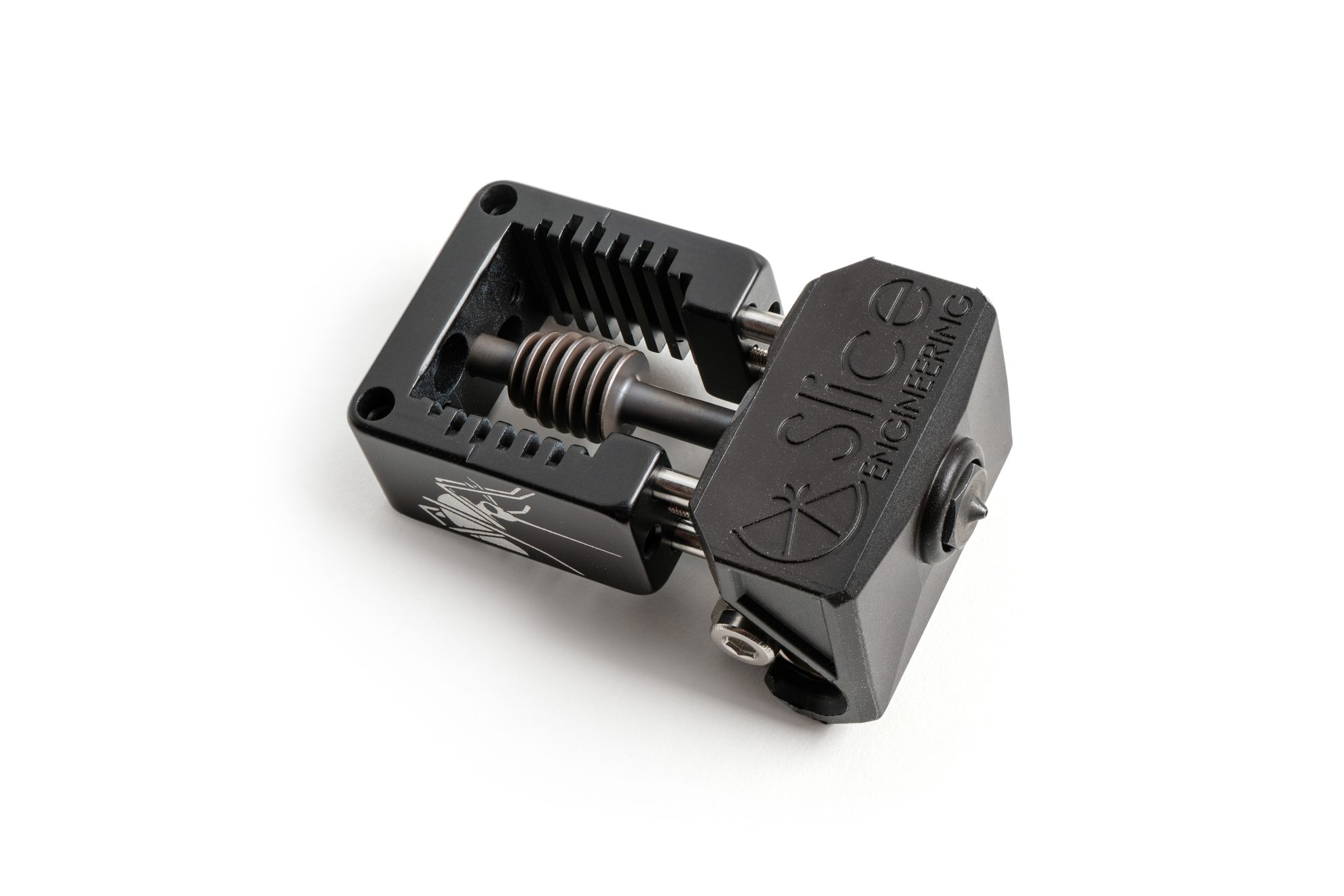

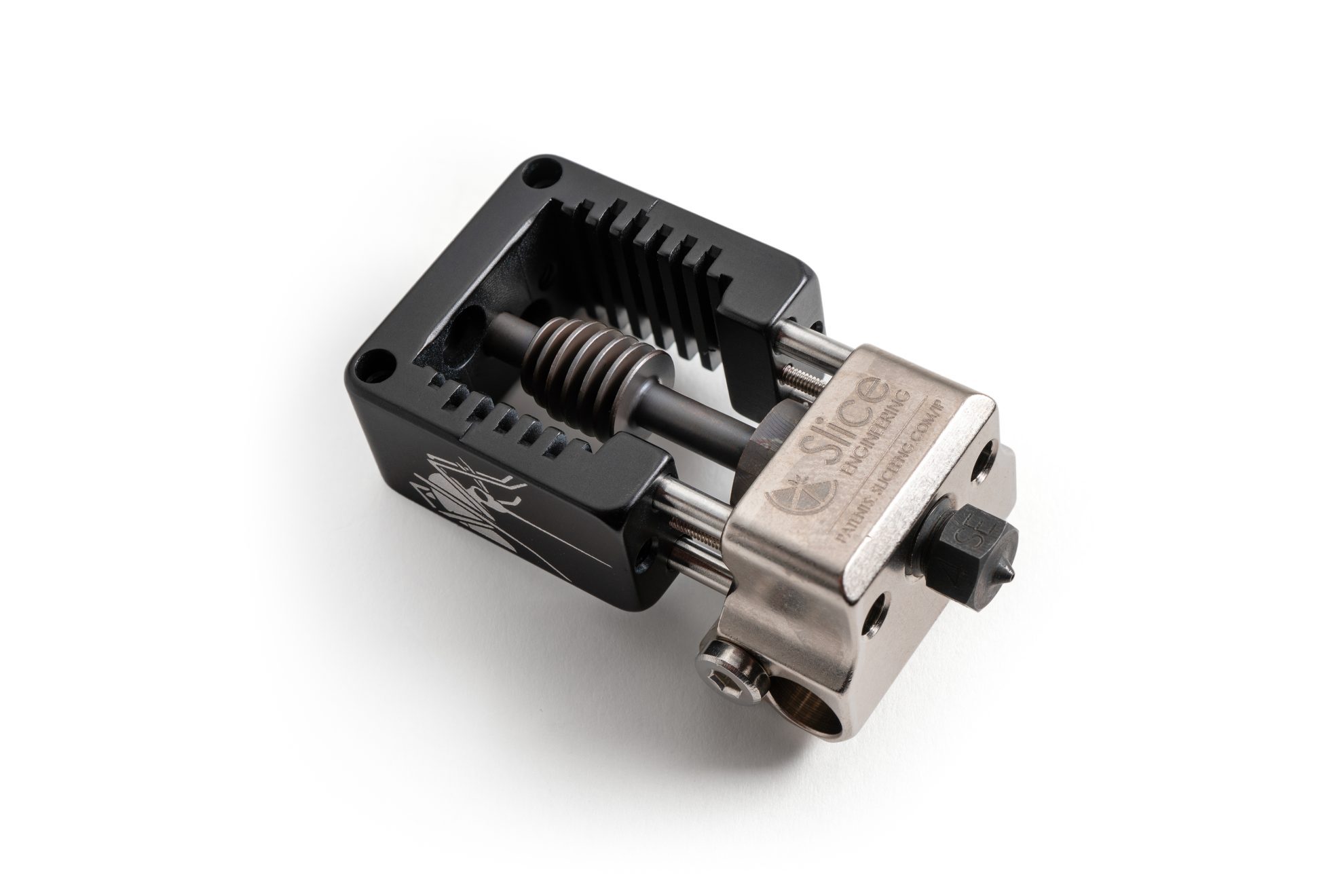

Mosquito hotend

EAN13: 085005423102 SKU: 14200 Categories: , , Brand:

Mosquito hotend

— Now with new version —

Revised Features

  • New heat break with reinforced throat and revised radiator to prevent damage during installation and repairs
  • New heat sink with wider opening for the filament path to more readily accept multi-material setups like the Prusa MMU or Mosaic Palette.

Not compatible with DDX. Hotends for DDX are here.

Mosquito is only available for 1.75 mm filament at this time.

Price:

From: $149.90

PT1000 RTD 500°C Temperature Sensor

  • Accurate from freeze-your-butt-off cold (-50°C) to instantly-boil-your-innards hot (500°C)
  • Totally linear temperature response improves sensing accuracy across the range
  • Virtually eliminates lead measurement error inherent in Pt100 sensors
  • Highly accurate, IEC 60751 Class B tolerance (+/- 0.3 +0.005 |t| °C)
  • 15 mm long. 3 mm diameter sensor cartridge
  • 2 m long bare leads allow for easy adaptation to any 3D printer build
  • 300 series stainless steel cartridge to boost durability
  • Robust, thin-film construction sensor
  • Made in USA

This RTD Temperature Sensor is better suited for high amperage mainboards like:

  • Duet 3;
  • SKR PRO V1.x;
  • GTR V1.0
  • Other...

None of the above is a Bondtech product. Please do your due diligence and verify with the manufacturer.

Slice 300°C Thermistor

Now shipping with 2m long bare leads.

High Quality Component

  • Capable of reading from room temperature up to 300°C.
  • 15mm long, 3 mm diameter cartridge. A standard for sleeved thermistors.
  • 2m long bare leads.
  • 5mm long filler shaft.

Mosquito® 24V 50W heater

Now shipping with 1.2m long leads.

  • Cartridge length: 22 mm;
  • Cartridge diameter: sized to fit into a 6mm H7 tolerance hole.
  • leads with 1.2m in length and Ferrules connector.

Mosquito® 12V 50W heater

  • Cartridge length: 22 mm;
  • Cartridge diameter: sized to fit into a 6mm H7 tolerance hole;
  • heater is 12cm in length and has Molex Micro-Fit male connector;
  • Extension cable is 1m in length;
  • Molex Micro-Fit female connector on one end;
  • Ferrules connector on the other end.

Mosquito® 24V fan

  • High-quality 25 mm box fan with Japanese bearings
  • 3.64 CFM
  • Genuine Molex Micro-Fit 3.0 connector
  • Mounts directly to Mosquito or Mosquito Magnum hotend with included hardware
  • Available in 12V or 24V configurations
  • 1 m extension cable included.

Mosquito® 12V fan

  • High-quality 25 mm box fan with Japanese bearings
  • 3.64 CFM
  • Genuine Molex Micro-Fit 3.0 connector
  • Mounts directly to Mosquito or Mosquito Magnum hotend with included hardware
  • Available in 12V or 24V configurations
  • 1 m extension cable included.

Slice Engineering Thermal Paste

  • Boron Nitride thermal paste for improving conduction
  • Acts as a release agent
  • Unlike anti-seize compounds, Boron Nitride is not electrically conductive, which eliminates the risk of shorting out your heater cartridge or thermistor
  • Use the included applicator to coat the cartridge heater hole in your 3d printer heat block. Insert the cartridge heater while the paste is still wet, then let dry. The boron nitride boosts dissipation of heat from the hot section of the cartridge heater, improving its life.
  • Retails in 5 cc syringes with luer lock fittings.
  • Stable to 850 °C in air, 1800 °C in a vacuum.

In stock (can be backordered)

Select Currency

Select Country

Main Benefits

  • Superior heat break performance
  • Increased structural rigidity
  • Larger temperature operating range
  • Modular/adaptable to almost any FFF/FDM printer
  • Ideal for multi-extrusion systems
  • Lightweight

Oh yeah, and you can change the nozzle with one hand.

Compatible nozzles

The hot block included in this product is compatible with the RepRap standard of nozzles. Below is a list of compatible versions.
Click each link to open the related product page.

About the revised version

In January 2020 Slice Engineering released a brand new version of the Mosquito™! This new versions include a revised heat break and heat sink with cool new features. The new heat break has a reinforced throat and revised radiator to prevent damage during installation or repairs. It also features the same WS2 anti-stick coating found on our line of Vanadium™ Nozzles for even better performance with PLA. The new heat sink has a wider opening for the filament path to more readily accept spliced filament from multi-material setups, like the Prusa MMU or Mosaic Palette.

The old-style heat breaks and heat sinks will not be compatible with the new ones. However, customers that desire to upgrade can retrofit their Mosquito™ to take advantage of the new features by acquiring both the heat sink and heat break together.

The Mosquito Versatility

The Mosquito is adaptable to virtually any printer, so by swapping one component, you gain the high performance benefits of a printer worth thousands more. Since the Mosquito (designed for beauty) and Mosquito Magnum (designed for speed) are the same length, any combination of these hotends can be mounted to one carriage. So you can switch between high-flow and high-precision in the same print.

Oh yeah, and you can change the nozzle with one hand.

Are you ready to see your vision fully realized?

Built For Engineering-grade Plastics

Seasoned hobbyists, innovators, and creators take it in stride when they’re struck with a vision of what they could build. Especially when they know that with the Mosquito hotend, their 3D printer can deliver the highest resolution and take on engineering-grade plastics that other desktop printers can’t come close to. With minimal layer lines and extreme precision, your vision is about to become reality. A beautiful reality.

By engineering-grade plastics, we’re talking printing at temperatures up to 450°c. That means you can print car parts, medical devices, and whatever else you can dream up, and you don’t have to buy an over-sized (and overpriced) printer to do the job.

How did we accomplish this?

Re-imagined Hotend

By re-imagining how a hotend is designed and structured from the ground up. The materials in each part of the Mosquito have been hand selected to perform a specific task to optimize your printer’s performance with three goals in mind: lightning speed, beautiful resolution, and increased durability.

Additional Details

  • The heat break conducts 85% less heat into the heat sink than a typical threaded heat break.
  • Allows for hotend to be mounted with a printed, plastic adapter, without raising safety concerns.
  • Composite construction of the heat break allows for the use of materials optimized for heat transfer in each section of the heat break.
  • Reduced heat transmission removes the need for a large heat sink.
  • Steep temperature gradient at the heat break reduces the likelihood of jamming.
  • High tolerances along the filament path allow for better transmission of fine motor movements, resulting in beautiful, higher resolution prints.
  • The heat break has been separated from the structural components of the hotend, allowing for a heat break that is not load bearing, and can be very thin walled. This allows for a reliable, rigid exterior structure.
  • No components are prone to loosening at the mounting points.
  • Nozzles can be changed with one hand (one tool), without grasping the hot block.
  • In the case of a severe crash, an entirely new hotend is not necessary, parts can be easily swapped out.
  • Specially-engineered high temperature copper alloy in the hot block will not soften at high temperatures in excess of 550C.
  • Threads in the hot block will not deform at high temps, allowing removal of nozzles even after multiple high temp heat cycles.
  • Nickel plating on the hot block reduces radiative heat loss and prevents galling of threads.
  • Compact, flat, ambidextrous form factor.
  • 5 different hole mounting patterns to allow for adaptation to virtually any printer.
  • Printable adapters can be created to diversify mounting options.
  • The Mosquito’s tiny form factor makes it ideal for multi extrusion systems. Since the Mosquito (designed for precision) and Mosquito Magnum (designed for flow) are the same length, any combination of these hotends can be mounted to one carriage. So a typical multi-extrusion system equipped with Mosquito(s) and Mosquito Magnum(s) can switch between high-flow and high-precision extrusion in the same print. In the blink of an eye. With one-handed nozzle changes.
  • Small form factor and light mass allows for back-to-back mounting with small (14 mm) nozzle-nozzle distance.
  • Small mass allows for rapid motion of the carriage.
Freight Weight 100 g

PT1000 RTD 500°C Temperature Sensor

Freight Weight 24 g
Dimensions 8 × 8 × 2 cm

Slice 300°C Thermistor

Freight Weight 22 g
Dimensions 17.5 × 10 × 0.5 cm

Mosquito® 24V 50W heater

Freight Weight 34 g
Dimensions 17.5 × 10 × 0.5 cm

Mosquito® 12V 50W heater

Freight Weight 10 g

Mosquito® 24V fan

Freight Weight 25 g

Mosquito® 12V fan

Freight Weight 25 g

Slice Engineering Thermal Paste

Freight Weight 10 g
