LGX Pro Metal 2.85 eXtruder

A full metal stronger and more robust LGX Large Gears eXtruder for industrial and high temperature applications with 2.85mm filaments.

  • Harder : steel drive train;
  • Faster : higher max feed rate;
  • Stronger : more push force;
  • Tougher : Aluminum housing;
  • Cleaner : sober design.
  • Even Better!

Price:

$249.90

Only 6 left in stock (can be backordered)

Select Currency

Select Country

Each LGX® Pro Metal extruder is supplied with:

  • 1x LGX® Pro Metal 2.85mm feeder;
  • 1x Custom Nema17 30mm pancake stepper motor;
  • 1x Metal Push-in fitting M7 6mm;
  • 1x 2mm Hex Key (recommended tool);
  • 1x Powered By Bondtech sticker.

Also shipping with additional accessories:

  • 4x M3x23 mm Stud with 5mm Hex with M3x4 thread;
  • 30mm PTFE tube to use in the Direct Drive Interface Plug.

This extruder only supports 2.85 mm size filament.

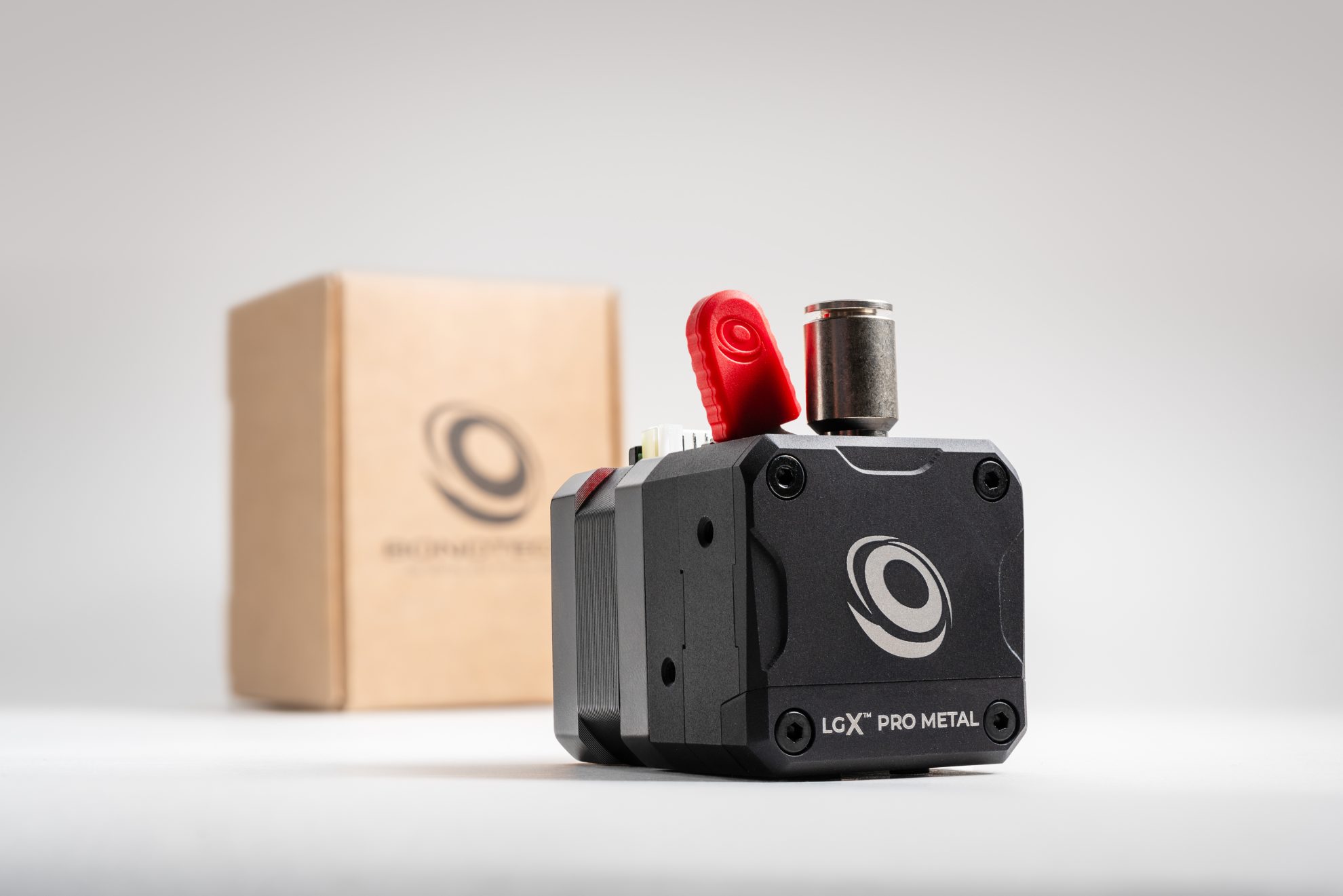

LGX Pro Metal 2.85 and its packaging

The LGX® Pro Metal eXtruder uses Bondtech’s new Dual Drive Technology based on large drive gears.

10 cool features of the Bondtech LGX Pro Metal :

  • Aluminum housing
  • Strong 30mm stepper motor
  • Larger drive wheels, for increased filament grip;
  • New filament pre-tension lever – open + 4 positions – for repeated results;
  • Multi-function interface socket, for tool or application quick swap;
  • Compact, light & symmetric design, for increased performance and compatibility;
  • Multiple mounting hole patterns, for easy and flexible setup;
  • Full Hardened Steel Drive Train;
  • Support longer hotends with the Aluminum Interface Plug;
  • More protection against dust or particle saturated industrial environments.
Freight Weight 378 g
Dimensions 7.5 × 7.8 × 10.2 cm

Product Alerts

1. This extruder does not allow a mount plate between the motor and the extruder.

2. Use at most 1A (RMS) of current to feed the stepper motor.

Quick Start & Maintenance Guides

Click one image below to open/download a PDF file with the step by step guide that best fits your case or need.

Quick Start Guide

Technical Data Sheet

STEP Files To Download

Click the links below to download STEP files with simplified geometries of each available setup.

LGX™ Interface Plug geometry.
