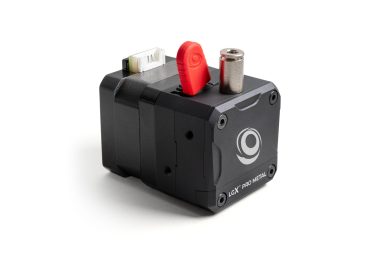

LGX Pro Metal 1.75 eXtruder
Price:
$249.90
Only 9 left in stock (can be backordered)
A full metal stronger and more robust LGX Large Gears eXtruder for industrial and high temperature applications with 1.75mm filaments.
- Harder : steel drive train;
- Faster : higher max feed rate;
- Stronger : more push force;
- Tougher : Aluminum housing;
- Cleaner : sober design.
- Even Better!
Always check below if we have Product Alerts you should be aware of before buying.
You may need
Each LGX® Pro Metal 1.75 extruder is supplied with:
- 1x LGX® Pro Metal 1.75mm feeder;
- 1x Custom Nema17 30mm pancake stepper motor;
- 1x Metal Push-in fitting M7 4mm;
- 1x 2mm Hex Key (recommended tool);
- 1x Powered By Bondtech sticker.
Also shipping with additional accessories:
- 4x M3x23 mm Stud with 5mm Hex with M3x4 thread;
- 30mm PTFE tube to use in the Direct Drive Interface Plug.
This extruder only supports 1.75 mm size filament.

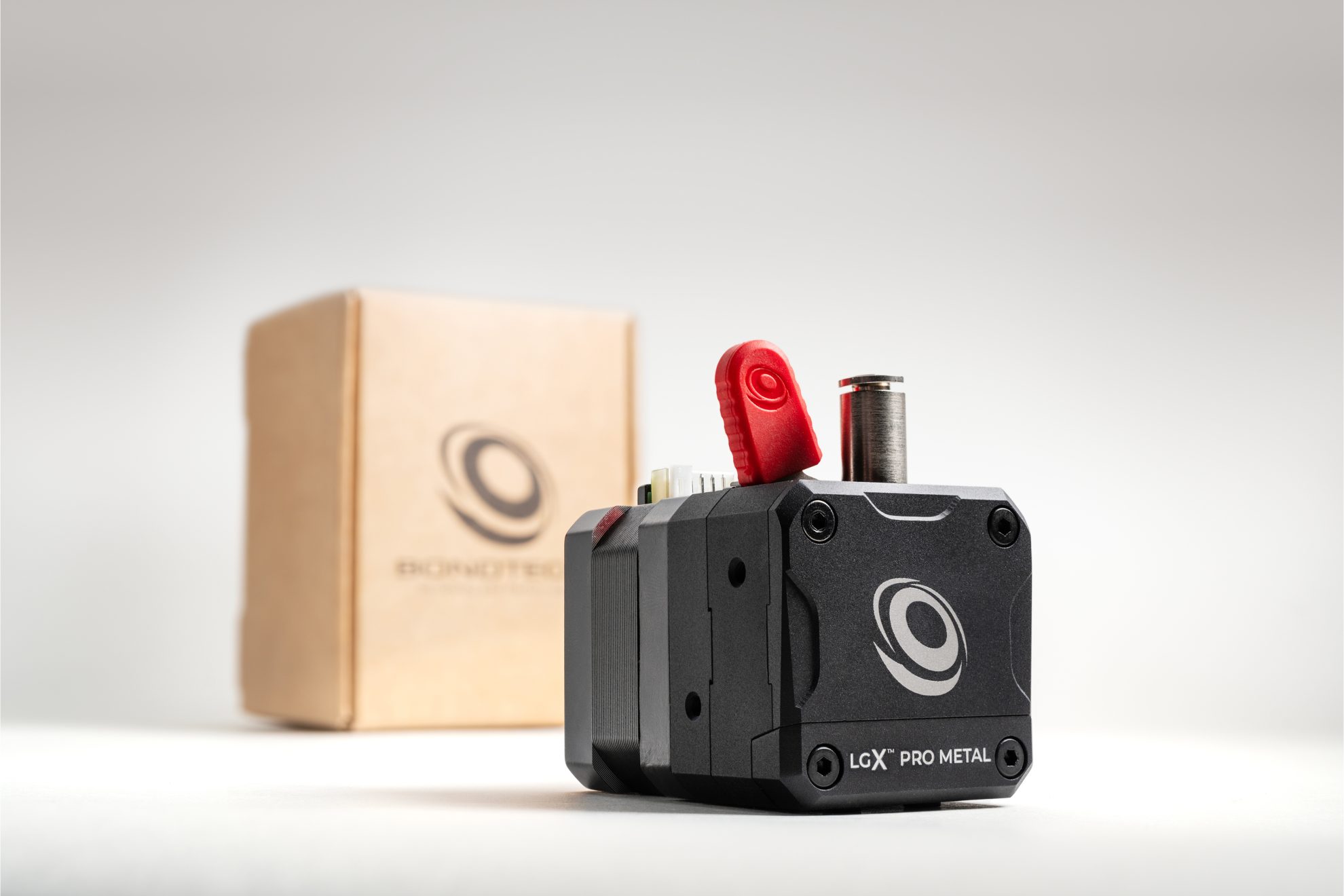

LGX Pro Metal 1.75 and its packaging
The LGX® Pro Metal eXtruder uses Bondtech’s new Dual Drive Technology based on large drive gears.
10 cool features of the Bondtech LGX Pro Metal :
- Aluminum housing
- Strong 30mm stepper motor
- Larger drive wheels, for increased filament grip;
- New filament pre-tension lever – open + 4 positions – for repeated results;
- Multi-function interface socket, for tool or application quick swap;
- Compact, light & symmetric design, for increased performance and compatibility;
- Multiple mounting hole patterns, for easy and flexible setup;
- Full Hardened Steel Drive Train;
- Support longer hotends with the Aluminum Interface Plug;
- More protection against dust or particle saturated industrial environments.
| Freight Weight | 378 g |
|---|---|
| Dimensions | 7.5 × 7.8 × 10.2 cm |
Product Alerts
1. This extruder does not allow a mount plate between the motor and the extruder.
2. Use at most 1A (RMS) of current to feed the stepper motor.
Quick Start & Maintenance Guides
Click one image below to open/download a PDF file with the step by step guide that best fits your case or need.
Quick Start Guide
Technical Data Sheet
STEP Files To Download
