Mosquito Magnum+ Liquid-cooled Hotend for 1.75mm filament

Bondtech

/

Shop

/

Hotends

/

Mosquito Magnum+ Liquid-cooled 1.75mm

Mosquito Magnum+ Liquid-cooled 1.75mm

The Mosquito Magnum+ Liquid is the High Flow Mosquito hotend for industrial and high temperature applications.

Mosquito Magnum+ supports up to 2 heater cartridges and 2 temperature sensors.

Bondtech nozzle NOT included.

Eisele elbows NOT included.

Price:

From: $374.99

Nozzle Insulator for Mosquito Magnum+

This Nozzle Insulator is only compatible with:

  • Mosquito Magnum+ Liquid Cooled 1.75mm
  • Mosquito Magnum+ Liquid Cooled 2.85mm
  • Mosquito Magnum+ Air Cooled 1.75mm
  • Mosquito Magnum+ Air Cooled 2.85mm

Out of stock

Eisele Elbow fitting 2pc 8mm OD (pair)

This product reached EOL and will be discontinued after reaching end of stock./b>

#gap-480044898 { padding-top: 30px; }

These Eisele Elbow Fittings are compatible with:

  • Mosquito Liquid
  • Mosquito Magnum+ Liquid Cooled 1.75mm
  • Mosquito Magnum+ Liquid Cooled 2.85mm

Last opportunity. Save 30%

Eisele Elbow fitting 2pc 6mm OD (pair)

These Eisele Elbow Fittings are compatible with:

  • Mosquito Liquid
  • Mosquito Magnum+ Liquid Cooled 1.75mm
  • Mosquito Magnum+ Liquid Cooled 2.85mm

Mosquito® 24V 50W heater

Now shipping with 2.0m long leads.

  • Cartridge length: 22 mm;
  • Cartridge diameter: sized to fit into a 6mm H7 tolerance hole.
  • leads with 2.0 meter in length and Ferrule ends.
#gap-2077325245 { padding-top: 30px; }

Mosquito® 12V 50W heater

  • Cartridge length: 22 mm;
  • Cartridge diameter: sized to fit into a 6mm H7 tolerance hole;
  • heater is 12cm in length and has Molex Micro-Fit male connector;
  • Extension cable is 1.2 meter in length;
  • Molex Micro-Fit female connector on one end;
  • Ferrules connector on the other end.
#gap-370446486 { padding-top: 30px; }

PT1000 RTD 500°C Temperature Sensor

#gap-809149533 { padding-top: 30px; }

  • Accurate from freeze-your-butt-off cold (-50°C) to instantly-boil-your-innards hot (500°C)
  • Totally linear temperature response improves sensing accuracy across the range
  • Virtually eliminates lead measurement error inherent in Pt100 sensors
  • Highly accurate, IEC 60751 Class B tolerance (+/- 0.3 +0.005 |t| °C)
  • 15 mm long. 3 mm diameter sensor cartridge
  • 2 m long bare leads allow for easy adaptation to any 3D printer build
  • 300 series stainless steel cartridge to boost durability
  • Robust, thin-film construction sensor
  • Made in USA

This RTD Temperature Sensor is better suited for high amperage mainboards like:

  • Duet 3;
  • SKR PRO V1.x;
  • GTR V1.0
  • Other...

None of the above is a Bondtech product. Please do your due diligence and verify with the manufacturer.

Slice 300°C Thermistor

Now shipping with 2m long bare leads.

High Quality Component

  • Capable of reading from room temperature up to 300°C.
  • 15mm long, 3 mm diameter cartridge. A standard for sleeved thermistors.
  • 2m long bare leads.
  • 5mm long filler shaft.

Only 7 left in stock (can be backordered)

Select Currency

Select Country

Assembling the Mosquito Magnum+ Liquid

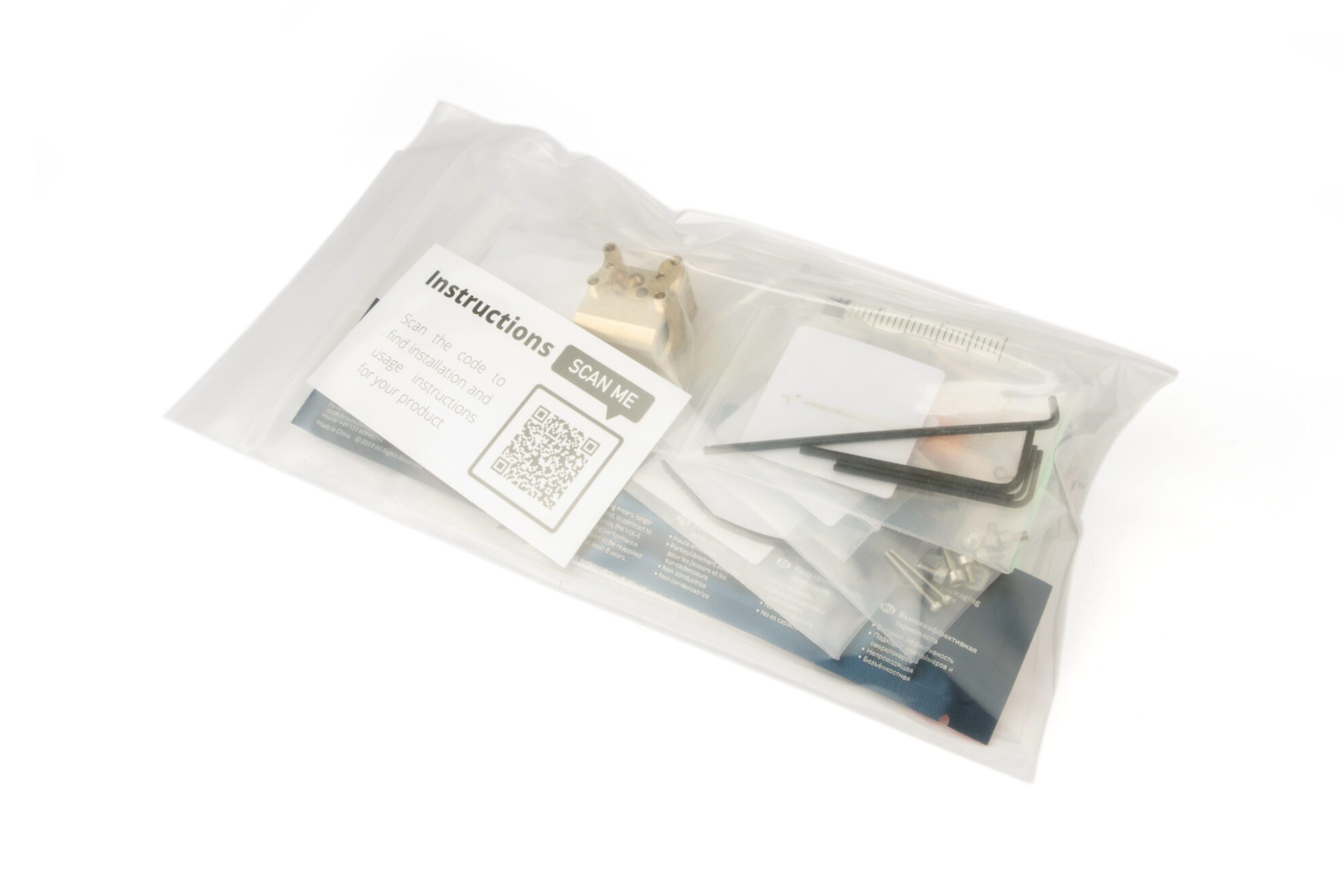

The Mosquito Magnum+ Liquid is delivered as a bundle of parts.
You may find instructions on how to assemble it here:
mosquito-magnum-assembly-instructions-1-75-mm-liquid-cooled

Industry Leading Hotend

Includes all of the industry-leading benefits of the Mosquito® product line, such as Bimetallic Heat Break™ technology, a 500 °C temperature rating, ability to print all filaments from basic PLA to medical-grade PAEK, and the rigid roll cage structure that enables our famous One-Handed Nozzle Change™…

Thermally Optimized

  • Filament contacts the hot block directly for maximum heat transfer efficiency
  • Enhanced structural strength, ideal for large format printers, and non-planar printing
  • Print PLA up to 88 mm3/s and ABS up to 91 mm3/s*
  • Boost speed without losing resolution†
  • Tips the scales at just 30% heavier than a standard Mosquito, but with 3.5x the output

Highly Configurable

  • Expandable heater capacity, up to 100W
  • Redundant temperature sensor sockets
  • Optional 500 °C-rated nozzle insulator
  • Uses standard-length (12.5 mm) Vanadium™ and Bridgemaster™ nozzles for both Ø1.75 or Ø2.85 filament sizes
Included in the “Mosquito Magnum+ Liquid 1.75mm” hotend kit:
  • Mosquito® Base Liquid – Magnum+ (x1)
  • Hot Block Magnum+ – 1.75 (x1)
  • Mosquito® Heat Break – Conduction (x1)
  • Hot Block Hardware – Magnum+ (x1)
  • Hotend Wrench Set (x1)
  • Hotend Mounting Hardware (x1)
  • Boron Nitride Paste (x1)
  • Arctic MX-4 Thermal Compound Paste – 0.8 g (x1)
Freight Weight 181 g
Dimensions 15 × 10 × 4 cm

Nozzle Insulator for Mosquito Magnum+

Freight Weight 7 g
Dimensions 8 × 6 × 2 cm

Eisele Elbow fitting 2pc 8mm OD (pair)

Freight Weight 84 g
Dimensions 8 × 6 × 2 cm

Eisele Elbow fitting 2pc 6mm OD (pair)

Freight Weight 49 g
Dimensions 8 × 6 × 2 cm

Mosquito® 24V 50W heater

Freight Weight 33 g
Dimensions 15 × 10 × 1 cm

Mosquito® 12V 50W heater

Freight Weight 43 g
Dimensions 15 × 10 × 2 cm

PT1000 RTD 500°C Temperature Sensor

Freight Weight 22 g
Dimensions 15 × 10 × 1 cm

Slice 300°C Thermistor

Freight Weight 22 g
Dimensions 15 × 10 × 1 cm
