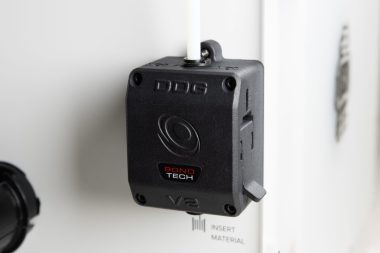

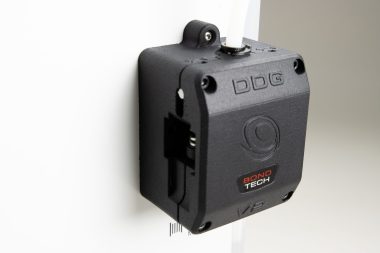

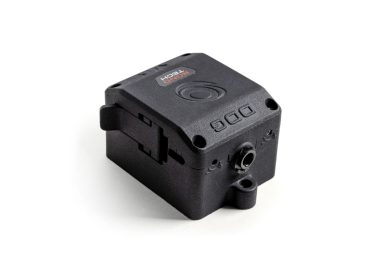

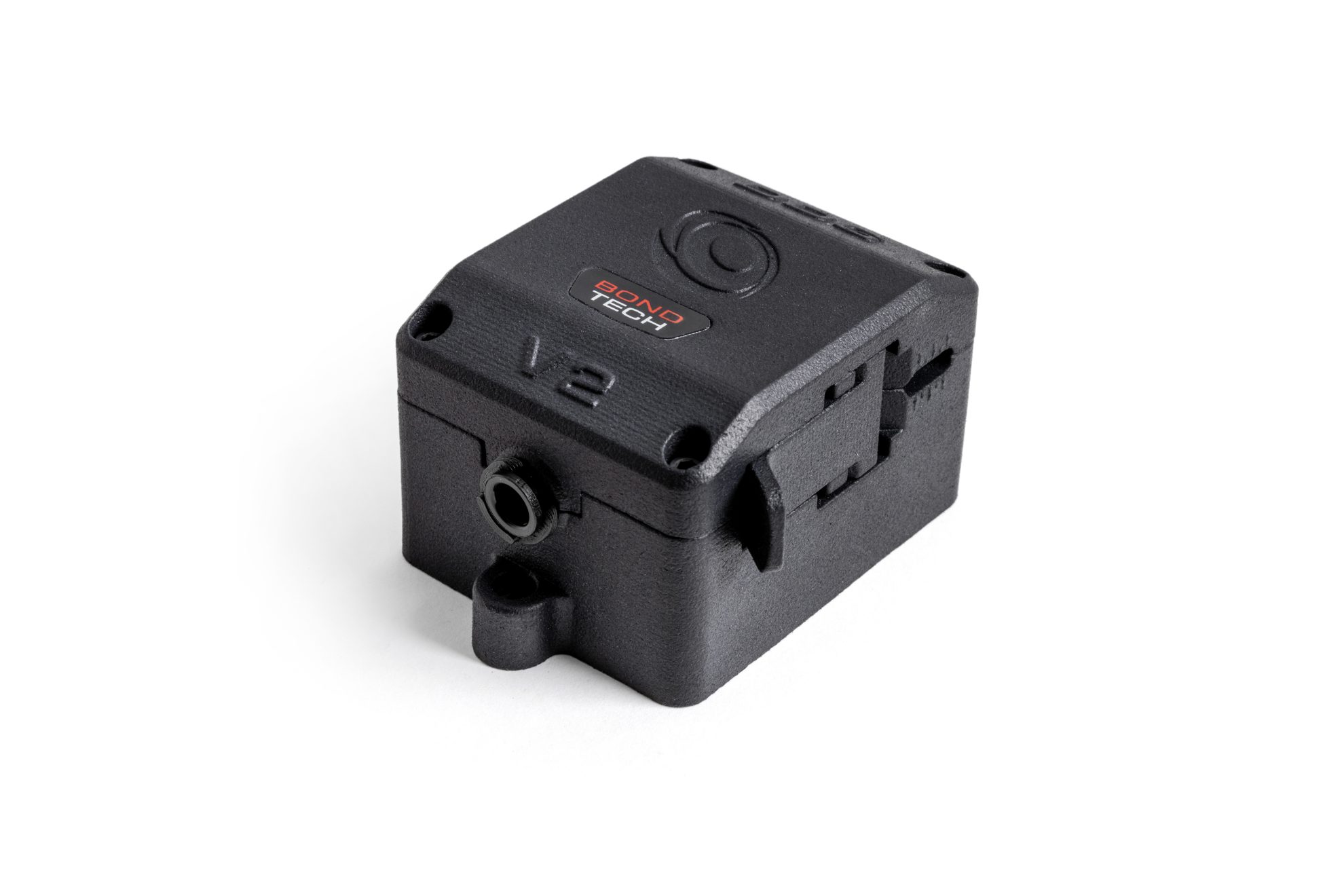

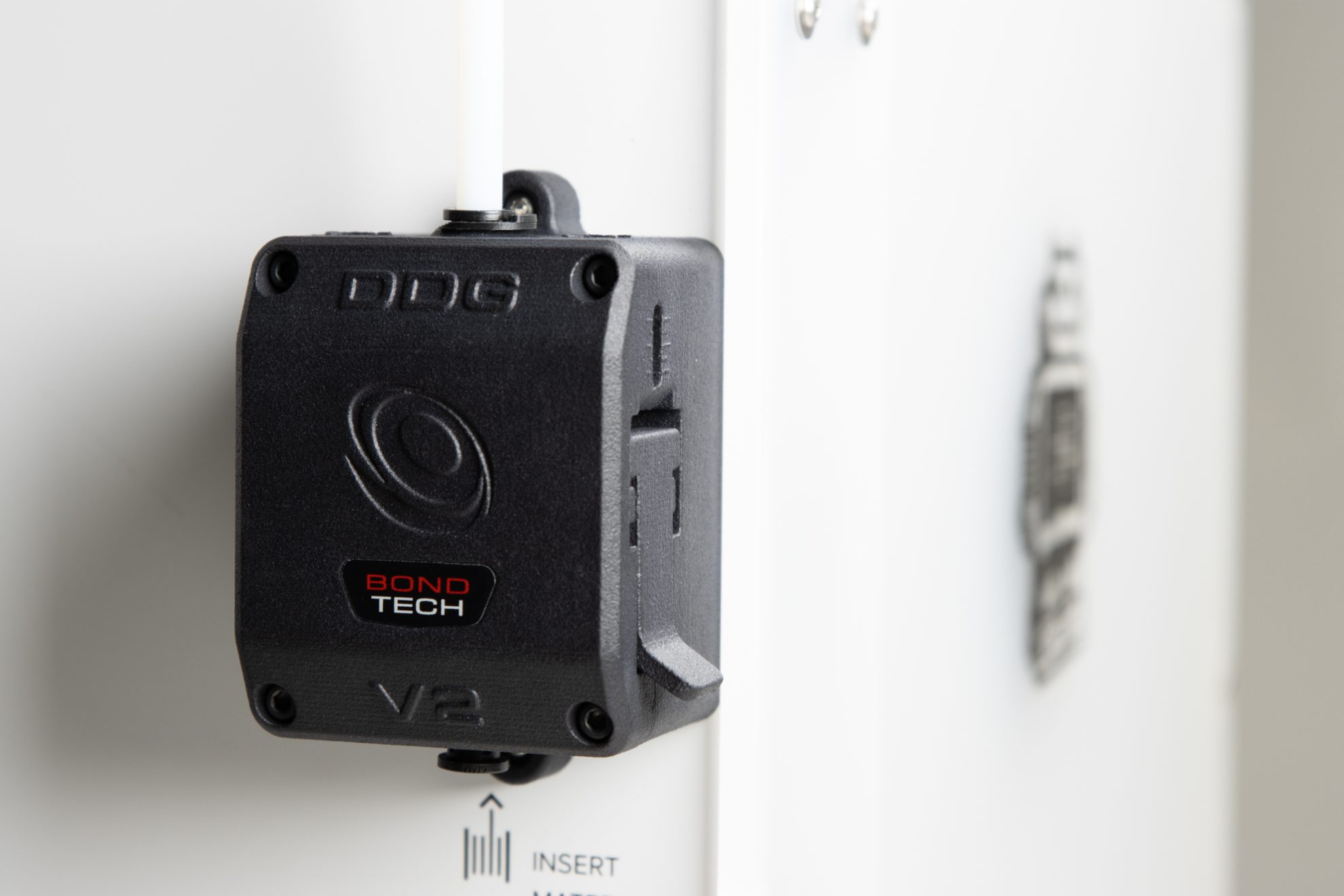

DDG V2 Upgrade Kit for UM S3 S5 S7
A new and enhanced Bondtech DDG Extruder for Ultimaker 3D printers.
Drop-in replacement. Plug-and play. Very easy to install. Reversible.
No need for firmware updates.
This solution is a high performance extruder system with our Dual Drive Gear technology that provides slipping free material feeding. The adjustable tension mechanism allows to finetune the pre-tension for different filaments.
This Upgrade Kit fits most UltiMaker models, from the UM3 till the S7.
Price:
$224.90
Only 5 left in stock (can be backordered)
Chose Currency / Country
Select Currency
Select Country
Description
Special Features
The DDG V2 comes with special features of its own:
- Space for housing the UM filament sensor inside;

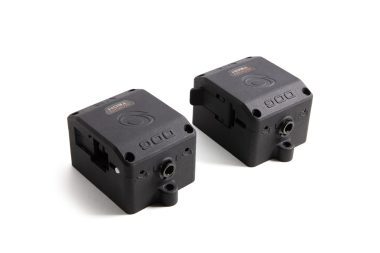

- Symetrical design to be reversible (standard can be re-assembled as mirrored and vice-versa);
- Filament tension set with a 2mm hex key;

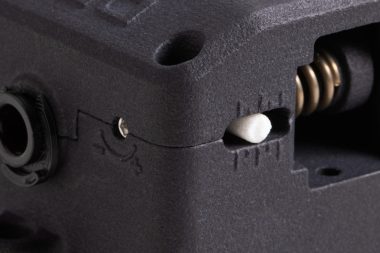

- Pre-tension scale;

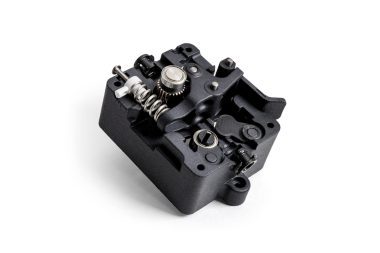

Hardened Steel Drive Gears
Like all other Bondtech Extruders, the DDG V2 features Nickel Coated hardened Steel Drive Gears to feed standard and abrasive materials with confidence and without wear.

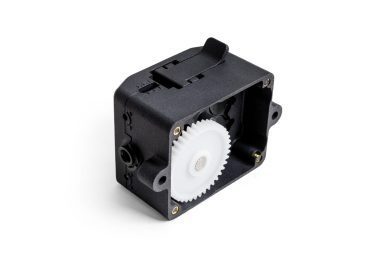

Recycling the stepper motors
The original stepper motor of the printer will be reused and the extruder will be mounted at the same position and in the same mounting holes as the factory extruder making the installation easy and take less than 10 minutes.
2.85mm filament only
This upgrade kit is compatible with 2.85mm filament only.
Firmware Update
No firmware update is necessary.
Hardware Changes Required
No additional hardware changes are required on the UM S3, S5 and S7.
For the UM2+ and UM3 it is necessary to use the UM DDG Converter Cable to reverse the feeding direction.
What Version May You Need
Depending on the UltiMaker model you are upgrading, different versions may be necessary.
Check the list below:
- For UM3 : use 1x DDG V2 upgrade kit plus 2x UM DDG Converter Cable
- For UM S3 : use the DDG V2 upgrade kit only
- For UM S5 : use the DDG V2 upgrade kit only
- For UM S7 : use the DDG V2 upgrade kit only
Additional information
| Freight Weight | 180 g |
|---|---|
| Dimensions | 11 × 10 × 8 cm |
Compatibility
Compatibility
This DDG V2 Upgrade Kit for UltiMaker is compatible with the following 3D printer models::
- Ultimaker 3 series (converter cable required)
- Ultimaker S3 series
- Ultimaker S5 series
- Ultimaker S7 series
This DDG V2 Upgrade Kit is also compatible with the following Ultimaker equipment:
- Material Station
Quick Start & Setup Guides
Quick Start & Setup Guides
Click one image below to open/download a PDF file with the step by step guide that best fits your case or need.
DDG V2 Quick Start Guide
