Bondtech Upgrade Kit For Raise3D Dual Extrusion 3D Printers

Bondtech

/

Shop

/

Upgrade Kits

/

DualDirect Extruder for Raise3D N Series

EAN13: 7350011412143 SKU: EXT-KIT-38 Categories: , , , , Brand:

DualDirect Extruder for Raise3D N Series

(3 customer reviews)

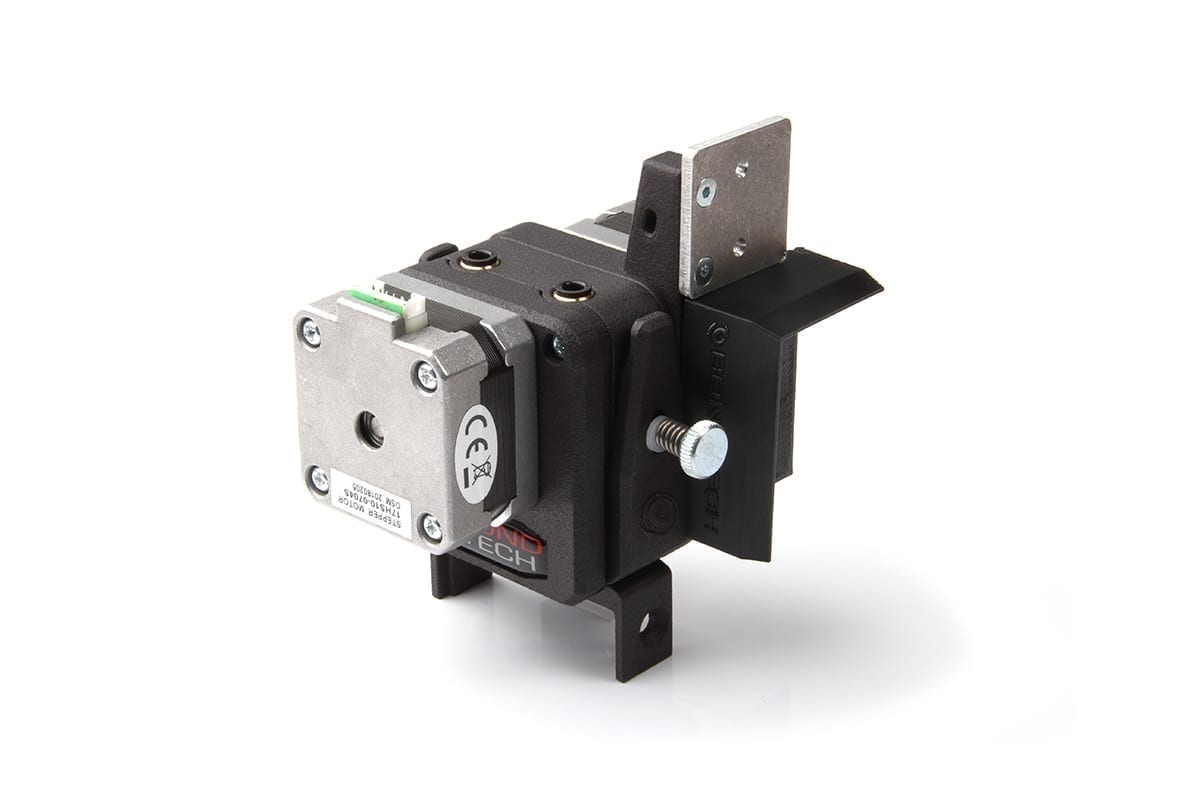

Bondtech upgrade extruder for RAISE3D DualDirect with dual nozzle.

High Performance Extruder

This kit provides a high-performance material feeding system with the ability to print faster with improved quality. The adjustable thumbscrew allows you to fine-tune the force acting on the filament.

SLS 3D Printed in PA12

The housing parts are professionally SLS printed in polyamide for maximum strength and precision.

Compatibility With Legacy And New Motors

This Upgrade Kit is compatible with the new Raise3D’s black motors. Older ones (silver) require the “Adapter Raise3D Dual” you can find in the “You may need” column, here on the right hand side. Check for more details in the Description.

Price:

$200.00

Only 5 left in stock (can be backordered)

Select Currency

Select Country

This extruder upgrade kit for the Raise3D N1/N2/N2+ printer will replace the original feeder placed on the printhead.

Please Note!
On early printers an Adapter Raise3D Dual cable is required to connect the factory cable to the new motor. You can determine if your printer has legacy motors with an easy visual check. Motors that require the adapter will have a silver appearance (unpainted aluminum finish) on the front and rear side of the motor. If the motors on your printer have black front and rear motor endplates you will not need this adapter.

Reliable Filament Extrusion

It allows for a more reliable printing with all sorts of filaments, both stiff and flexibles and the DualDrive system ensures that the extruder never looses grip of the filament so grinding, slipping is a thing of the past.

Half Weight For Improved Quality And Speed

Original extruder setup on Raise3D is 890g for dual setup, this new upgrade is 425g with the included motors and it allows for faster printing without surface issues due to vibration during accelerations/decelerations.

Includes Pancake Stepper Motors

The kit comes with it owns lightweight pancake motors.

Additional Info

The extruder is equipped with two push-fit connectors for 4 mm guide tube that will let you connect the existing guide tubes to the extruder. Tubes are not included.
Installs in about half an hour with standard tools available.
This upgrade fits both the Revision 1 (casted) and Revision 2(cnc-milled) version of the printhead.

Full installation guide available at the tab installation guide.
Installation is done in about 20 minutes.

Plug & Play solution, no need to cut and solder wires.

E-step value: 415

IMPORTANT!!
It has come to our knowledge that if the ribbon cable to the break-out board gets unplugged when the printer is turned on, thermal runway might happen, make sure that the ribbon cable is securly held in place with hotmelt or a zip tie.

Freight Weight 554 g
Dimensions 15.5 × 11.5 × 10.5 cm

3 reviews for DualDirect Extruder for Raise3D N Series

  1. israel

    There’s a critical typo in the instruction manual regarding rewiring the stepper motor pins – it is instructed to swap the “outermost” pins, then gives confusing directions afterwards about swapping pins 1 and 3. After having burned out my extruder control board I found out that the instructions should have read “leftmost”, not “outermost”, along with specifying the nonstandard orientation of the JST header used to describe the pinswap.

    Thankfully, Raise3D designed the extruder control boards to be modular; however, this really dims my view of Bondtech :/

    • martin

      Hi, thanks for the heads up in the instruction, it has now been changed to make it even clearer.
      If you changed the outmost wires it can not have caused the damage to your controller (I guess that you talk about the controller board in the printer), the motor would simply not turn since the two coils were not connected. Normally to create a damage to the stepper drivers a short circuit is required (connecting two wires for one coil directly to each other)

      I hope that you will enjoy the upgrade and the advantage it gives to your printer
      /Martin

  2. Кутовой Константин (verified owner)

    Has no information about 2 screws from the left and the right sides. Only when I read about another your extrusion, I get understanding that screws it for adjusting the clamping force of filament.

    • Nuno Santiago

      Dear Konstantin,
      Thank you for calling our attention on to this miss.
      We just updated the guides by adding info about what are those thumbscrews and what are they for.
      Your remark will help many users in the Future.

      Regards,
      Nuno

  3. GGeary (verified owner)

    This is the best upgrade you can do for a Rasie3d N2 series.
