Bondtech Upgrade Kit For Creality3D CR-10S with BMG extruder





Upgrade Kits


Creality3D CR-10S Kit

EAN13: 7350011412419 SKU: EXT-KIT-49 Categories: , , , , Brand:

Creality3D CR-10S Kit

(2 customer reviews)

Updated Version

Now this upgrade is supplied with the newest version of the Bondtech Mini Geared (BMG) extruder, featuring brass motor gear, black POM main gear, and threaded push-fit.

Improved Performance

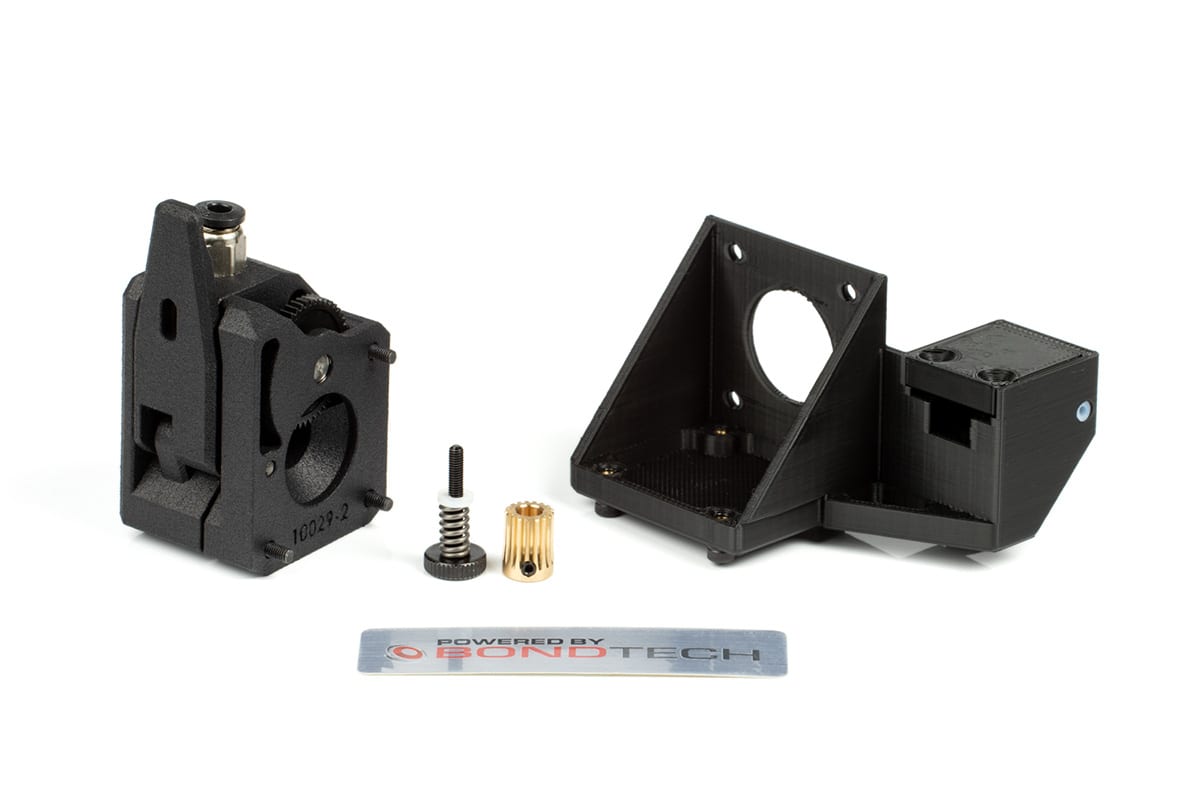

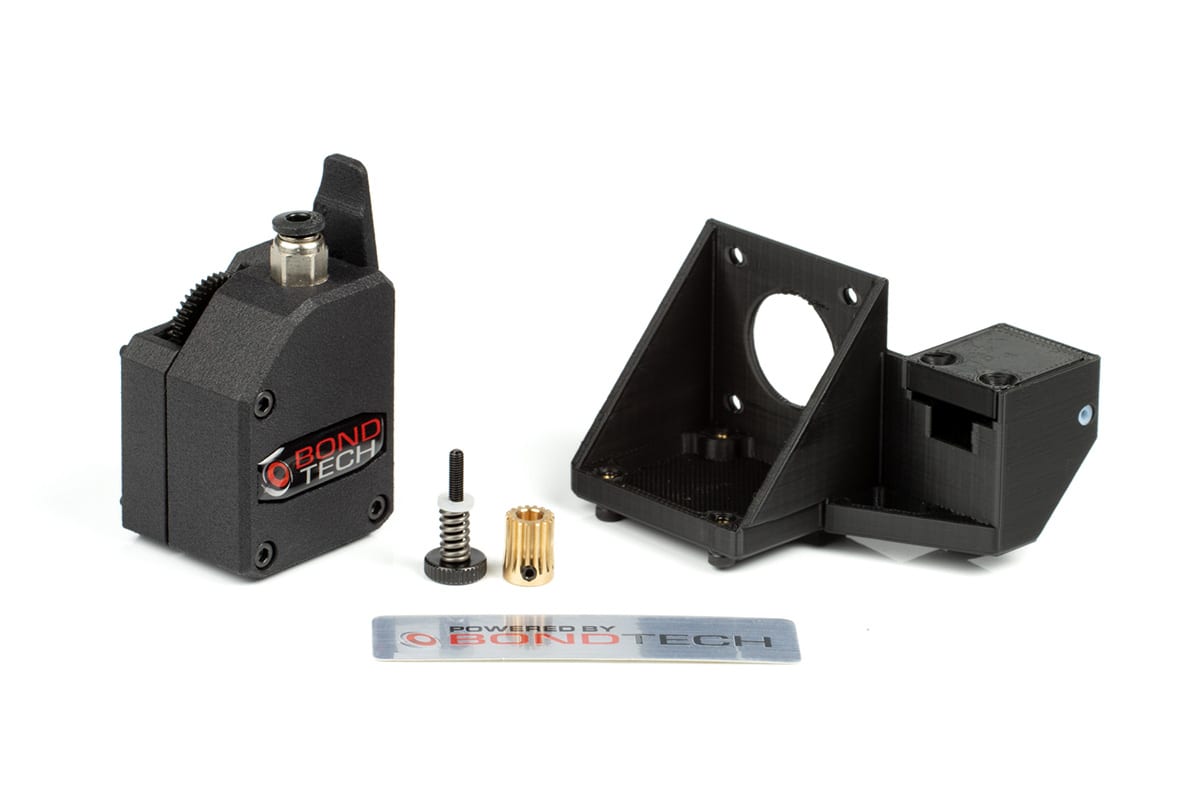

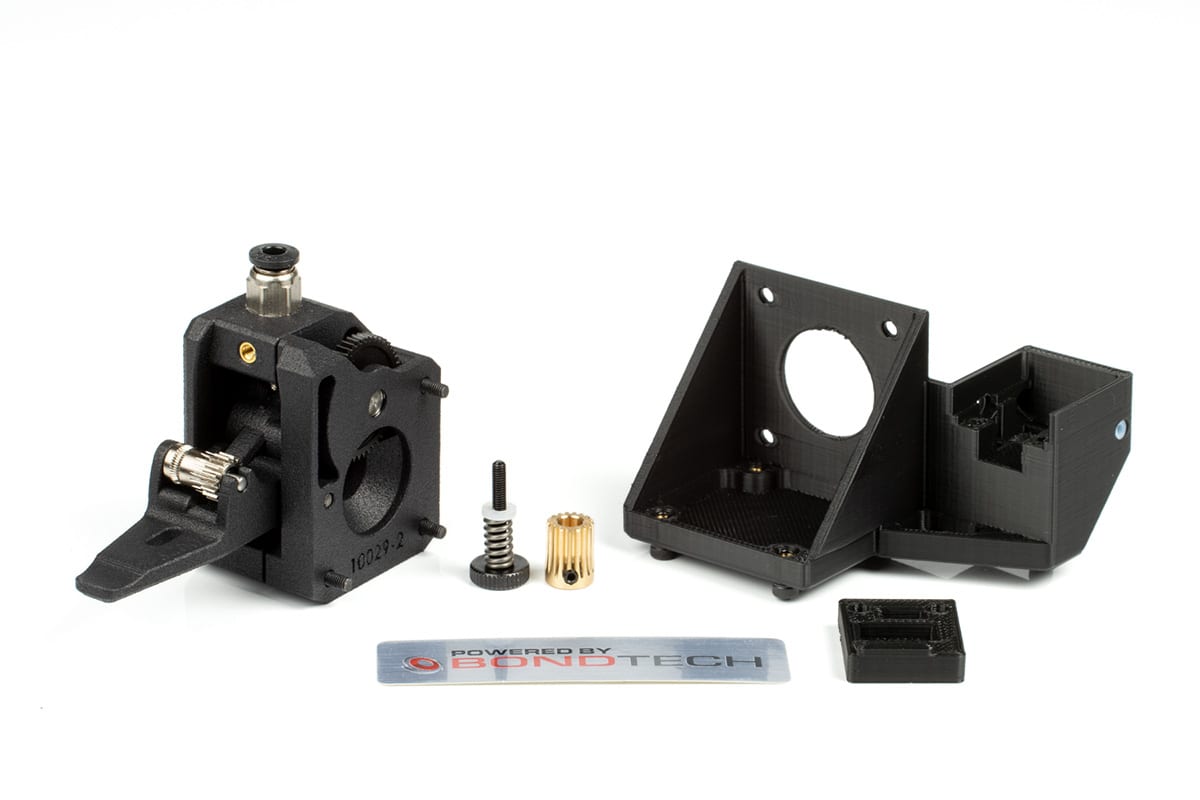

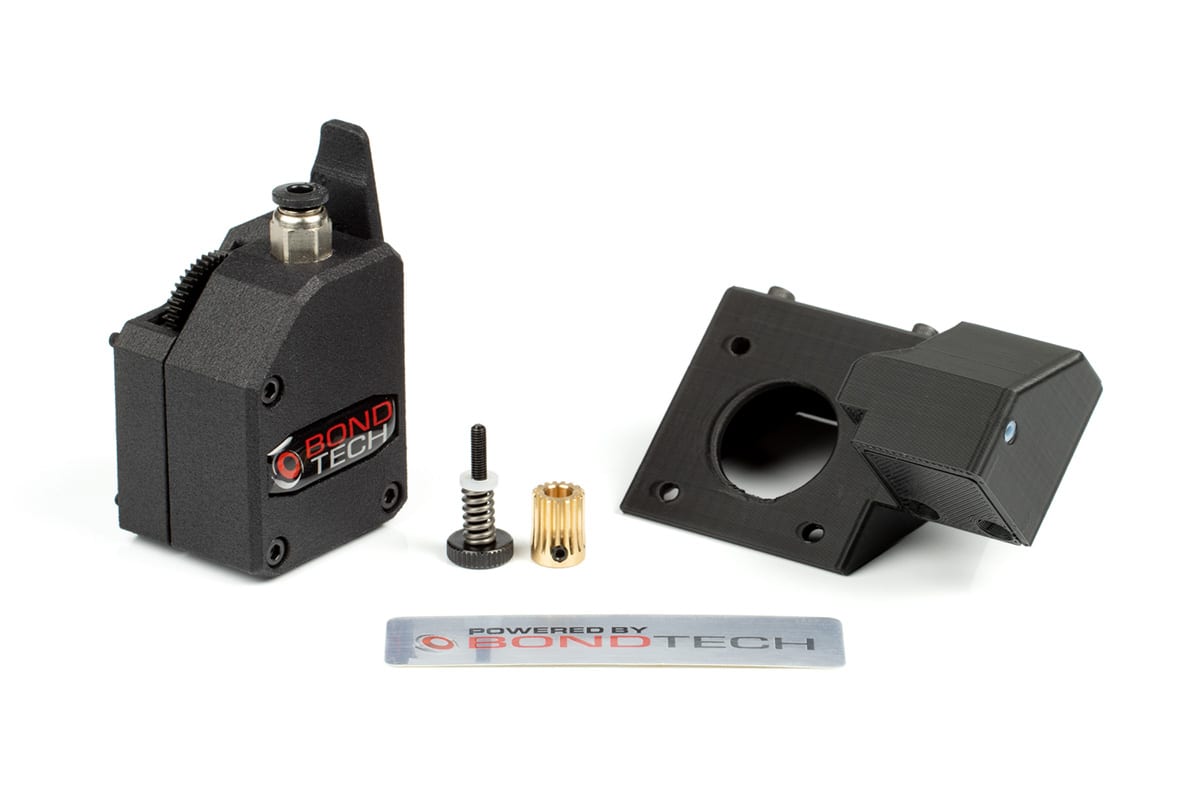

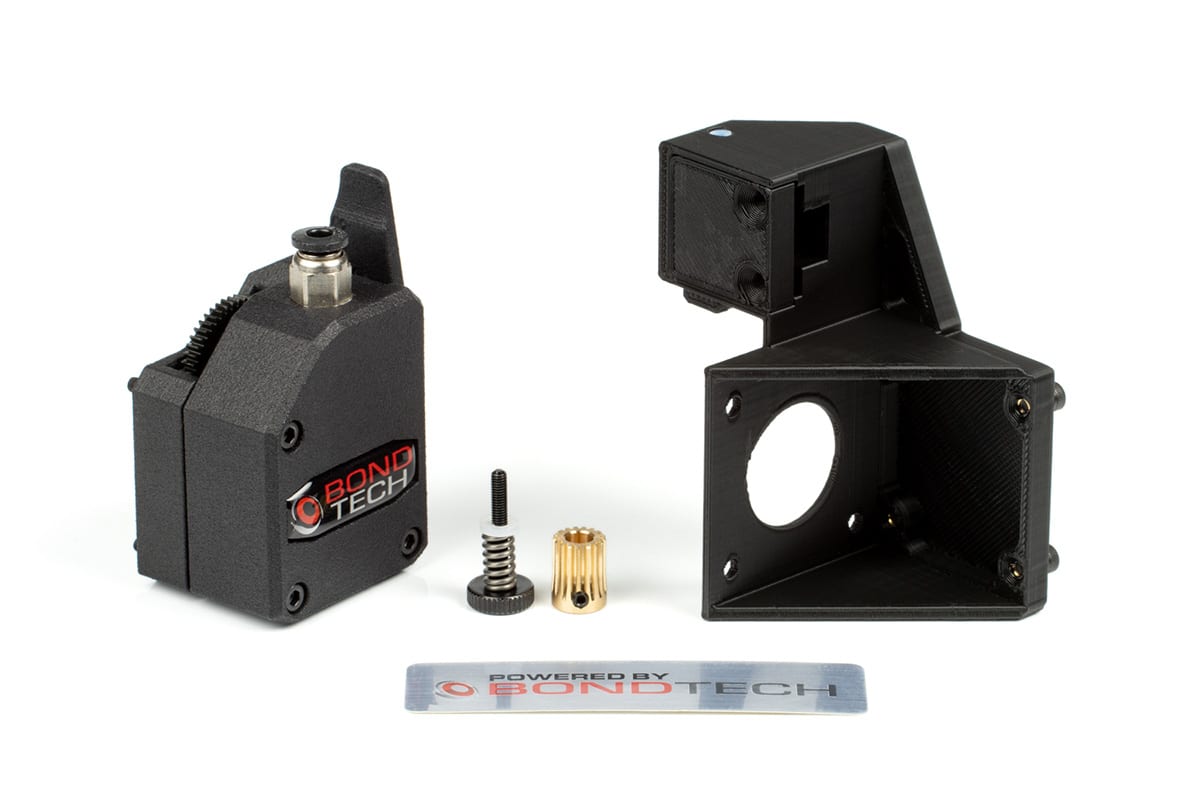

This kit includes the BMG (Bondtech Mini Geared) Extruder, a high-performance material feeding system with the ability to print faster and with improved quality. The adjustable thumbscrew allows you to fine-tune the force acting on the filament.

The housing parts are professionally SLS printed in polyamide for maximum strength and precision.

This bowden upgrade kit fits the
Creality3D CR-10S, CR-10 S4, and CR-10 S5.



In stock (can be backordered)

Select Currency

Select Country

A Bondtech Standard for Creality3D

This extruder upgrade kit fits the Creality CR-10S, Ender, Tevo Tornado and other printers that uses the same type of mounting plate and will replace the original feeder.
For models without filament sensor, like the CR-10, Ender and Tevo Tornado, we have different options available.

Increased reliability And Performance

It allows for a more reliable printing with all sorts of filaments, both stiff and flexibles and the Dual Drive technology ensures that the extruder never loses grip of the filament so grinding, slipping is a thing of the past.
The bowden tube is securely held in place by the 4mm industry standard  integrated push-fit connector.

Release Notes

E-steps needs to be updated to 415 and the rotation direction of the motor needs to be reversed, please see the installation guide of how to do it that you will find under the tab “Installation guide”
This kit contains no motor, the original motor is used.

Freight Weight 160 g
Dimensions 14.5 × 7.5 × 6 cm


To use the BMG with any compatible motor be aware of the way to install the motor gear we supply.
Check the graph above to assure the proper orientation and placement of the motor gear on the motor shaft.

2 reviews for Creality3D CR-10S Kit

  1. CB

    Finaly a reliable, high Quality feedingsystem….
    The parts fit nicely, so the upgrade can be done within 10 minutes.
    For printquality it was a huge improvement! I can only recommend this upgrade-kit!
    No more slipping, grinding or whatever with my filaments!

  2. Mibix

    I love this thing. I could never calibrate the steps on my Ender 3 till I got this, there would always be missed steps or slipping. Now this thing never slips. It has such good grip without damaging the filament. I accidentally started a print with a tangled spool and this thing dragged my whole full filament dry box across my workbench, it is amazing. Install was a breeze too. I ended up setting the steps to 451 not 415 after calibrating it.
