BMG-HT for FunMat HT

EAN13: 7350011410644 SKU: EXT-KIT-67 Categories: , , Brand:

BMG-HT for Funmat HT IDGA

New Version WITH IDGA Shipping Now!

with full metal drive train and integrated drive gear for lower run-out

New version shipping now : with filament tension adjustment

A High Temperature Extruder

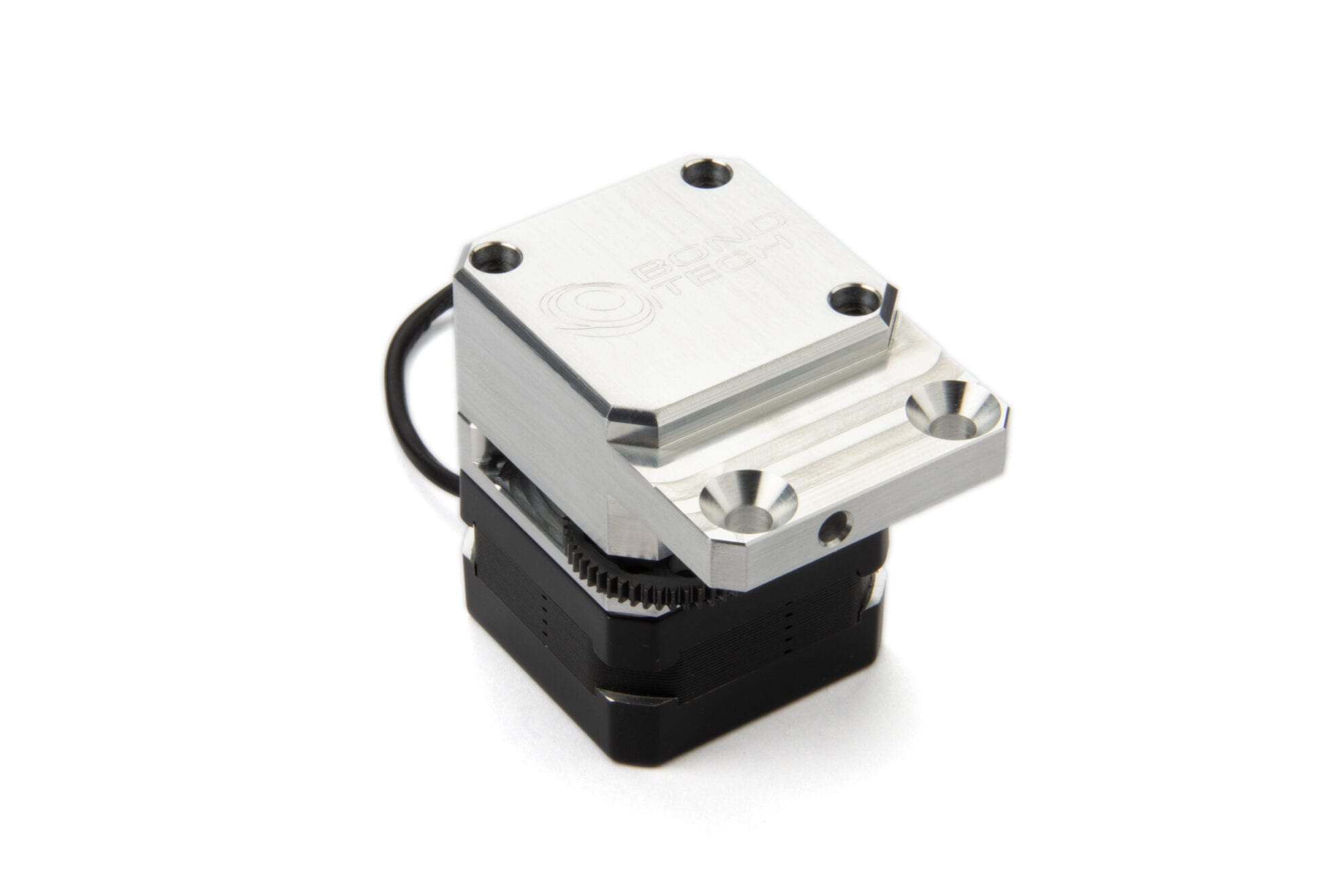

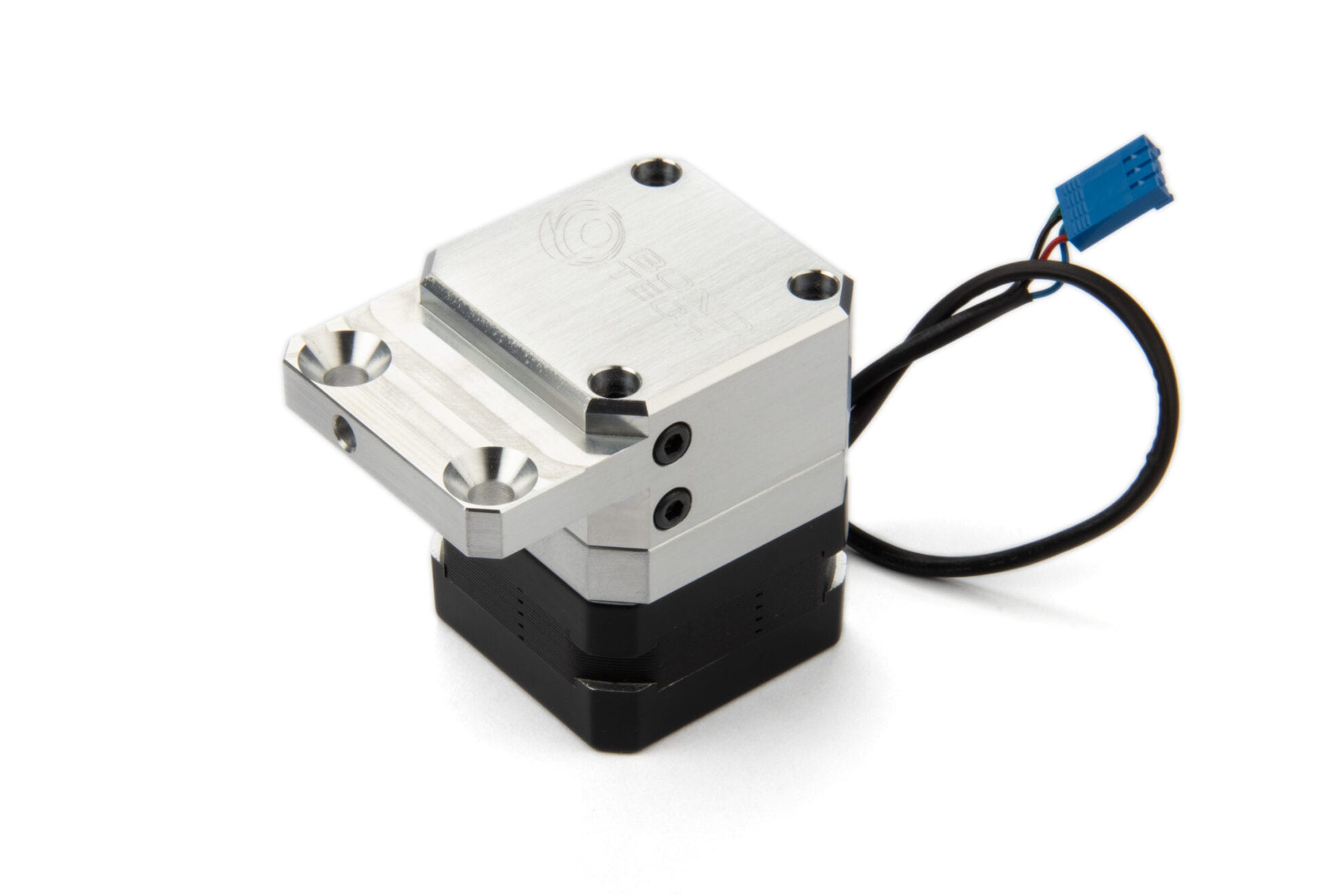

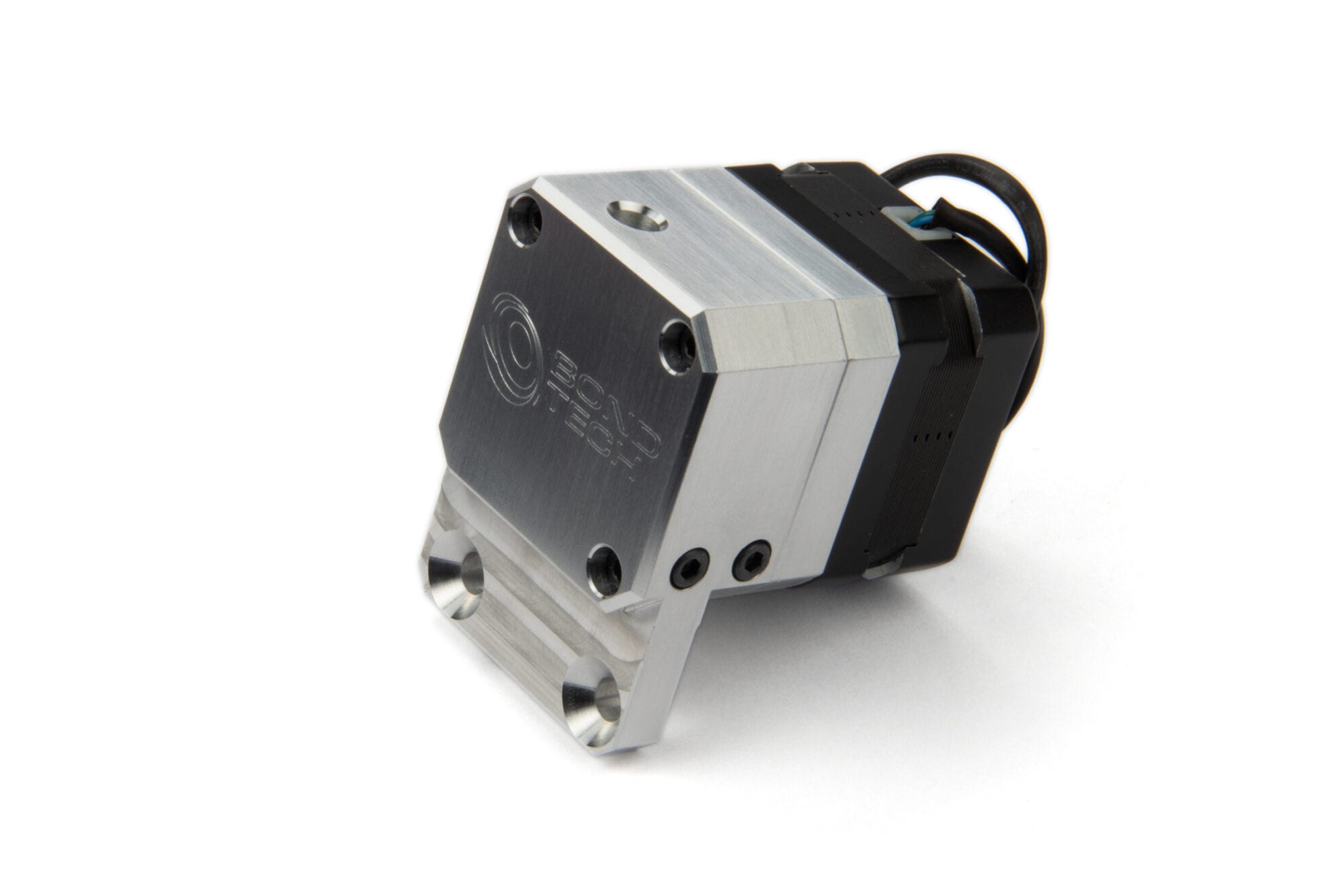

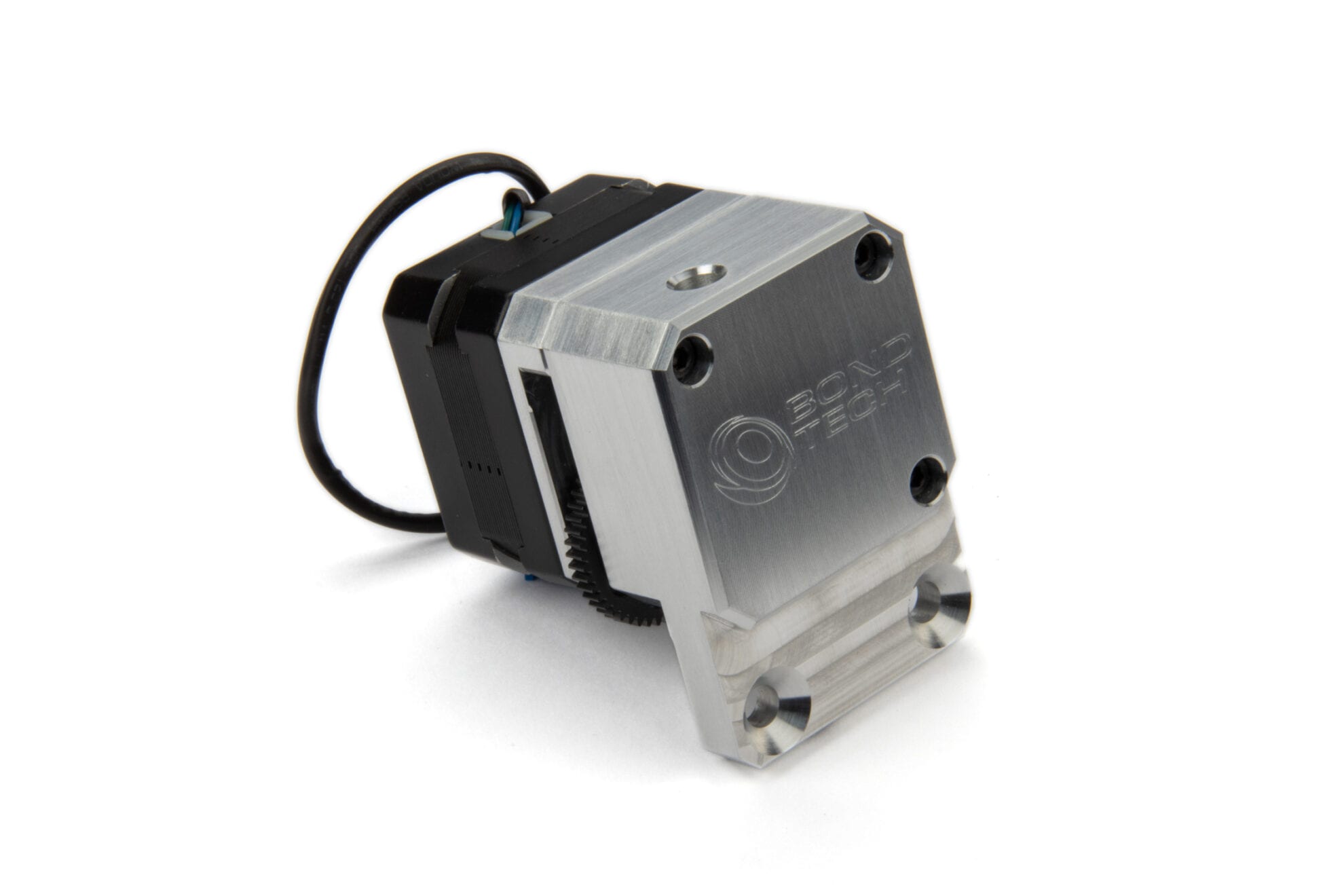

The BMG-HT for the Funmat HT is a high temperature upgrade kit based on our popular Bondtech Mini Geared (BMG) Extruder. It has a milled Aluminum housing, and a high temperature pancake stepper motor capable of withstanding build chamber high temperatures.

For A High Temperature 3D printer

Increase the value of your FunMat HT with this upgrade. Your 3D printer will be more reliable and less prone to slipping and grinding the filament. Avoid the common under extrusion issues by adding our state-of-the-art Dual Drive System to your high temperature 3D printer.

This is an aftermarket product made by Bondtech. Be aware this extruder is not certified by the FunMat HT original manufacturer.

Price:

$359.00

Only 6 left in stock (can be backordered)

Select Currency

Select Country

Improved Version With Filament Tension Adjustment

This new version of the BMG-HT allows for the distance between drive gears to be adjusted. Two screws on the side move the secondary drive gear carriage allowing to adjust the BMG-HT to more filament types and hardness.

A Professional Upgrade Kit

The BMG-HT is a high temperature resistant, rigid, strong, lightweight, and good-looking extruder. BMG-HT becomes our first Professional upgrade kit that will improve reliability and performance of professional and industrial grade 3D printers.

Lower Weight Load For Increased Performance

By using our 3:1 gearing ratio, we increased the available push force and resolution although using a pancake high temperature stepper motor. The lightweight stepper motor and the Aluminum housing lead the overall weight of the print-head down. Comparing the parts replaced and added in this setup for the Funmat HT, we lowered the weight load from above 400g to less than 260g. An over 35% weight save that will have meaningful and positive impact on the printer’s performance:

  • Less wear and tear of the linear motion systems;
  • Better surface quality;
  • Ability to 3D print faster.
Direct Dual Drive Extrusion

Like in all other Bondtech extruders the BMG-HT also uses our award-winning Dual Drive Gear Technology. You will experience effective and consistent extrusion no matter what material you are feeding to your printer. Our Dual Drive system will keep on going to help your Funmat HT laying down perfect layers and make your prints shine with a bright you didn’t think to be possible.

Stepper motor must run below 1A. We recommended to set current to 0.7A.

Different Funmat-HT versions come from factory with different stepper driver setups. Be sure your machine is running the extruder stepper motor at 0.7A by checking the driver DIP switches configuration. In case you don’t know how to perform this check, please contact our Customer Support. Thank you.

Freight Weight 340.3 g
Dimensions 10 × 8 × 7 cm

STEP BY STEP GUIDES

These are the guides that apply to the Bondtech Upgrade Kit for Intamsys Funmat HT


01. BMG-HT for Funmat HT – Hardware Installation Guide


02. BMG-HT for Funmat HT – Firmware Update Guide

Technical Specification

  • Article number : EXT-KIT-67
  • EAN code : 7350011410644
  • Net weight : 260g
  • Gross weight : 300g
  • Package Size : 137x94x65mm
  • Gearing ratio : 3:1
  • E-steps value : 415
  • S.M. max Input Current : 1A
  • S.M. max Peak Temperature : 155℃
  • S.M. max Working Temperature : 120℃
  • S.m: model : LDO-42STH25-1004AF

To download the Stepper Motor’s datasheet click here.
