Singledirect Extruder for Raise3D N series

EAN13: 7350011412181 SKU: EXT-KIT-53 Categories: , , , , Brand:

Singledirect Extruder for Raise3D N series


Price:

$110.00

Only 12 left in stock (can be backordered)

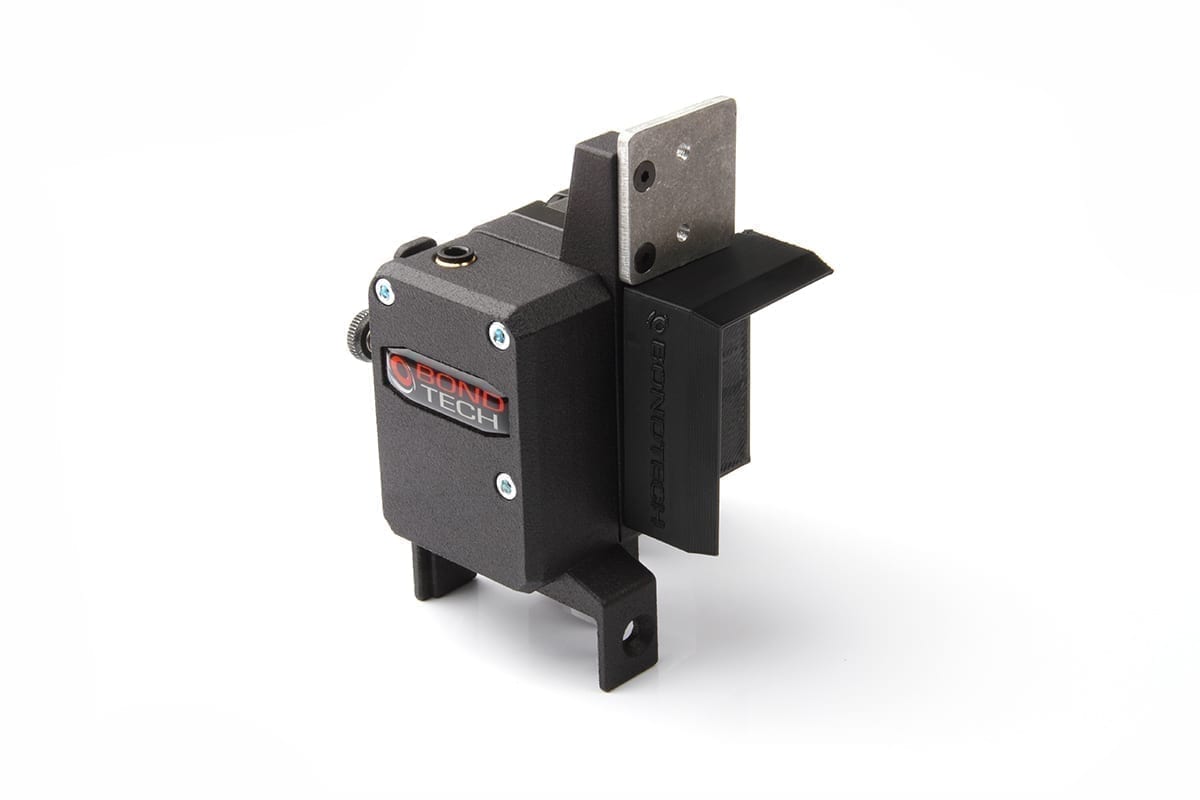

Bondtech upgrade extruder Raise3D SingleDirect with single nozzle.

This kit provides a high-performance material feeding system with the ability to print faster with improved quality. The adjustable thumbscrew allows you to fine-tune the force acting on the filament.

The housing parts are professionally SLS printed in polyamide for maximum strength and precision.

Please Note! On early printers an adapter cable is needed in order to connect the factory cable to the new motor. You can determine if your printer has legacy motors with an easy visual check. Motors that require an adapter will have a silver appearance (unpainted aluminum finish) on the front and rear side of the motor. You find the adapter needed at the bottom of this page. If the motors on your printer have a black front and rear motor endplate then you won’t need the adapter.



Always check below if we have Product Alerts you should be aware of before buying.

You may need

This extruder upgrade kit for the Raise3D N1/N2/N2+ printer will replace the original feeder placed on the printhead.
It fit´s both dual and single nozzle printers.

It allows for a more reliable printing with all sorts of filaments, both stiff and flexibles and the DualDrive system ensures that the extruder never looses grip of the filament so grinding, slipping is a thing of the past.

Original extruder setup on Raise3D is 532g for single setup, this new upgrade is 252g with the included motor and it allows for faster printing without surface issues due to vibration during accelerations/deaccelerations.

The kit comes with it own lightweight pancake motor.

The extruder is equipped with a push-fit connector for 4 mm ptfe tube that will let you connect the existing guide tube to the extruder. Tube is not included.

Installs in about half an hour with standard tools available.

This upgrade fits both the Revision 1 (casted) and Revision 2(cnc-milled) version of the printhead.

Full installation guide available at the tab installation guide.

Installation is done in about 20 minutes.

Plug & Play solution, no need to cut and solder wires.

E-step value: 415

IMPORTANT!
It has come to our knowledge that if the ribbon cable to the break-out board gets unplugged when the printer is turned on, thermal runway might happen, make sure that the ribbon cable is securely held in place with hot glue or a zip tie.

Freight Weight 322.3 g
Dimensions 15.5 × 11.5 × 10.5 cm
