LGX Lite ALU Mount Plate for Mosquito
Price:
$14.90
In stock (can be backordered)
Use this mount to attach your Mosquito or Mosquito Magnum hotend directly to the LGX Lite.
Machined in Aluminum and bead blasted.
Always check below if we have Product Alerts you should be aware of before buying.

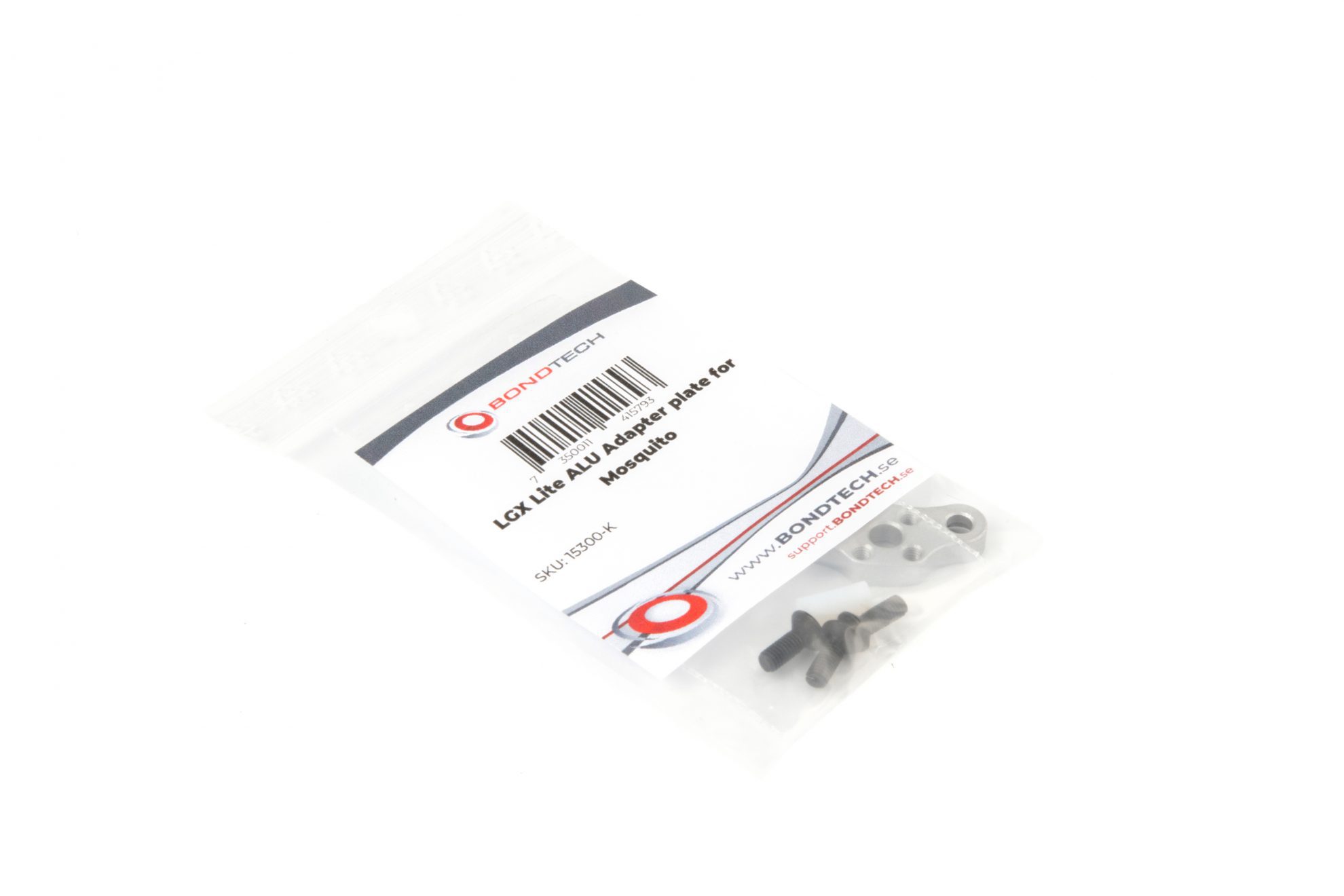

Product includes:

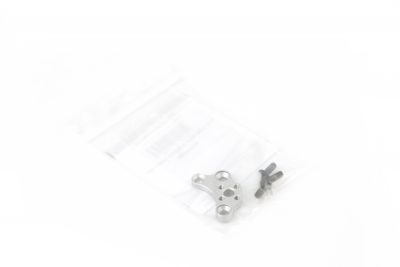

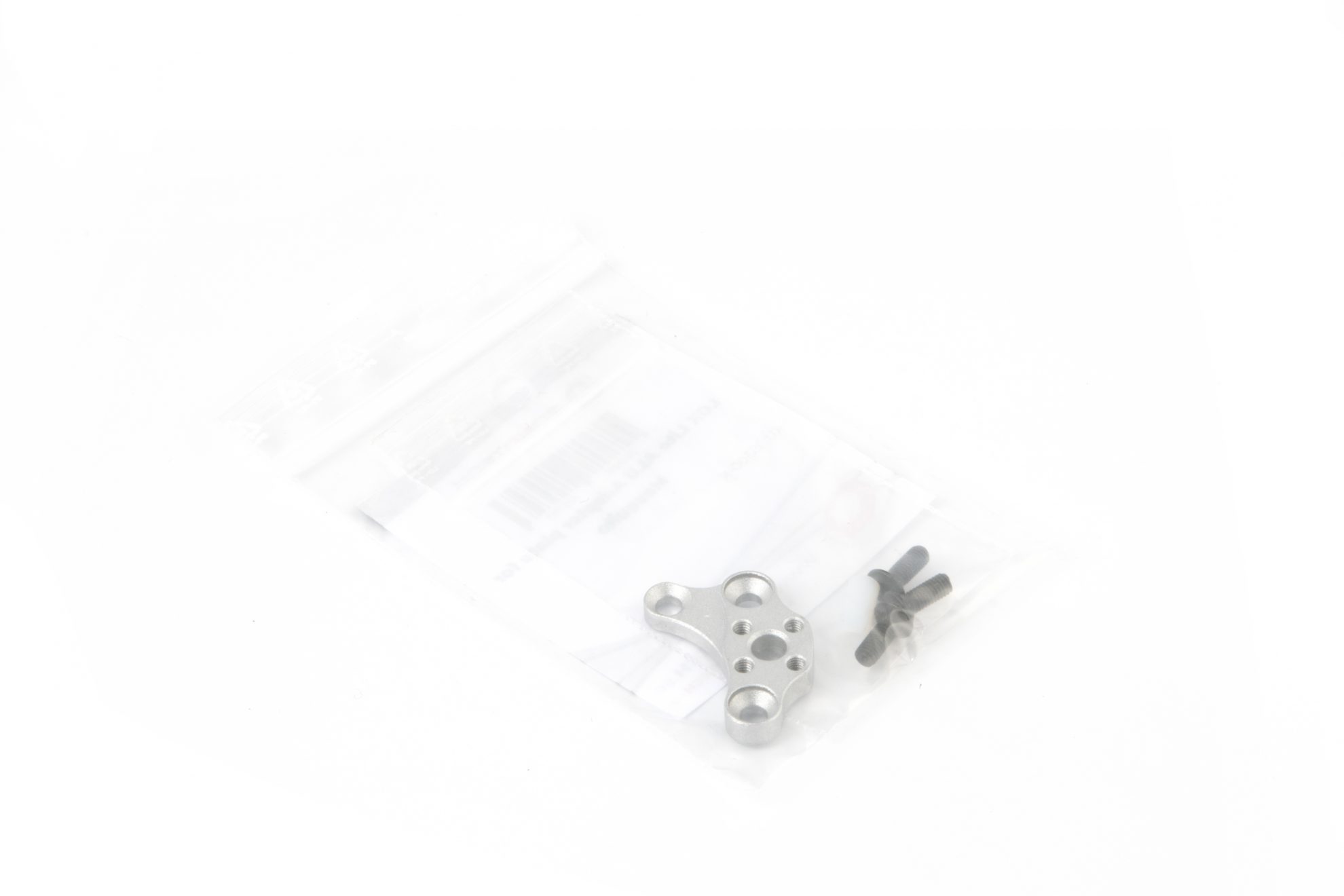

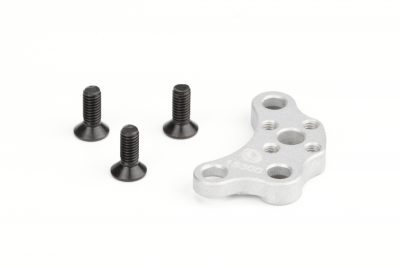

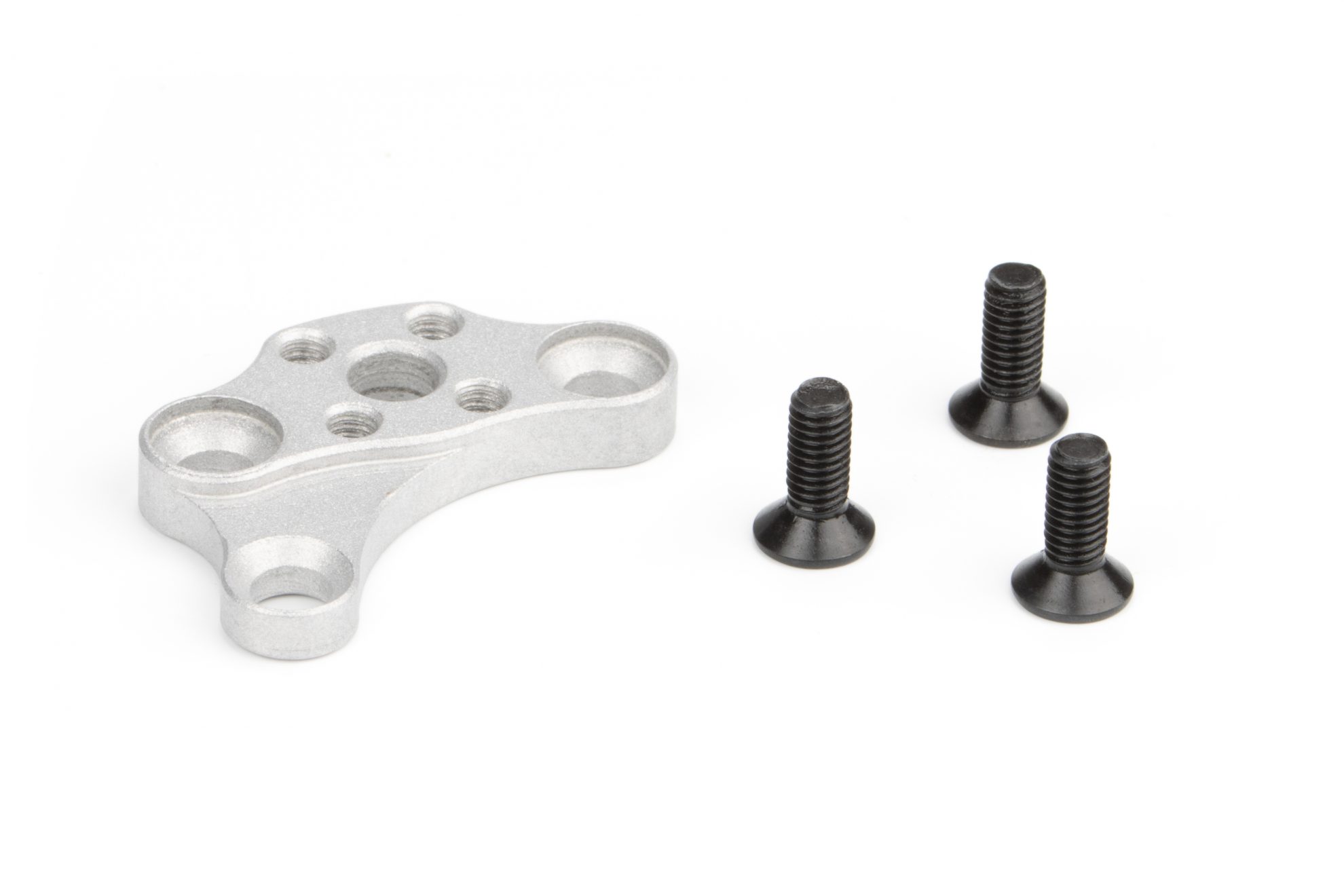

- 1x Aluminum Mount Plate
- 3x M3x8 countersunk screw
- 1x 8.8mm long PTFE Tube
Required:
- 2x M2.5x4mm screw for Mosquito/Mosquito Magnum/Mosquito Magnum+ Air
(found in the Mosquito Mounting Hardware Kit) - 2x M2.5x12mm screw for Mosquito Liquid / Magnum+ Liquid
(requires independent sourcing)
| Freight Weight | 4.9 g |
|---|---|
| Dimensions | 8 × 6 × 1 cm |
SETUP GUIDE
Setting Up the LGX Lite ALU Mosquito Plate
The guide below shows how to install the LGX Lite ALU Mosquito Plate.
To perform this installation you need the following items:
- LGX Lite
- LGX Lite ALU Mosquito Plate
- Includes 3 M3x8 countersunk screws and a 8.8mm long PTFE tube
- Mosquito hotend
- Includes 2 M2.5x4mm screws in the Mounting Kit
Click the tab's arrow to expand it and show the setup steps.
You may click the guide's pictures to view bigger resolution versions.

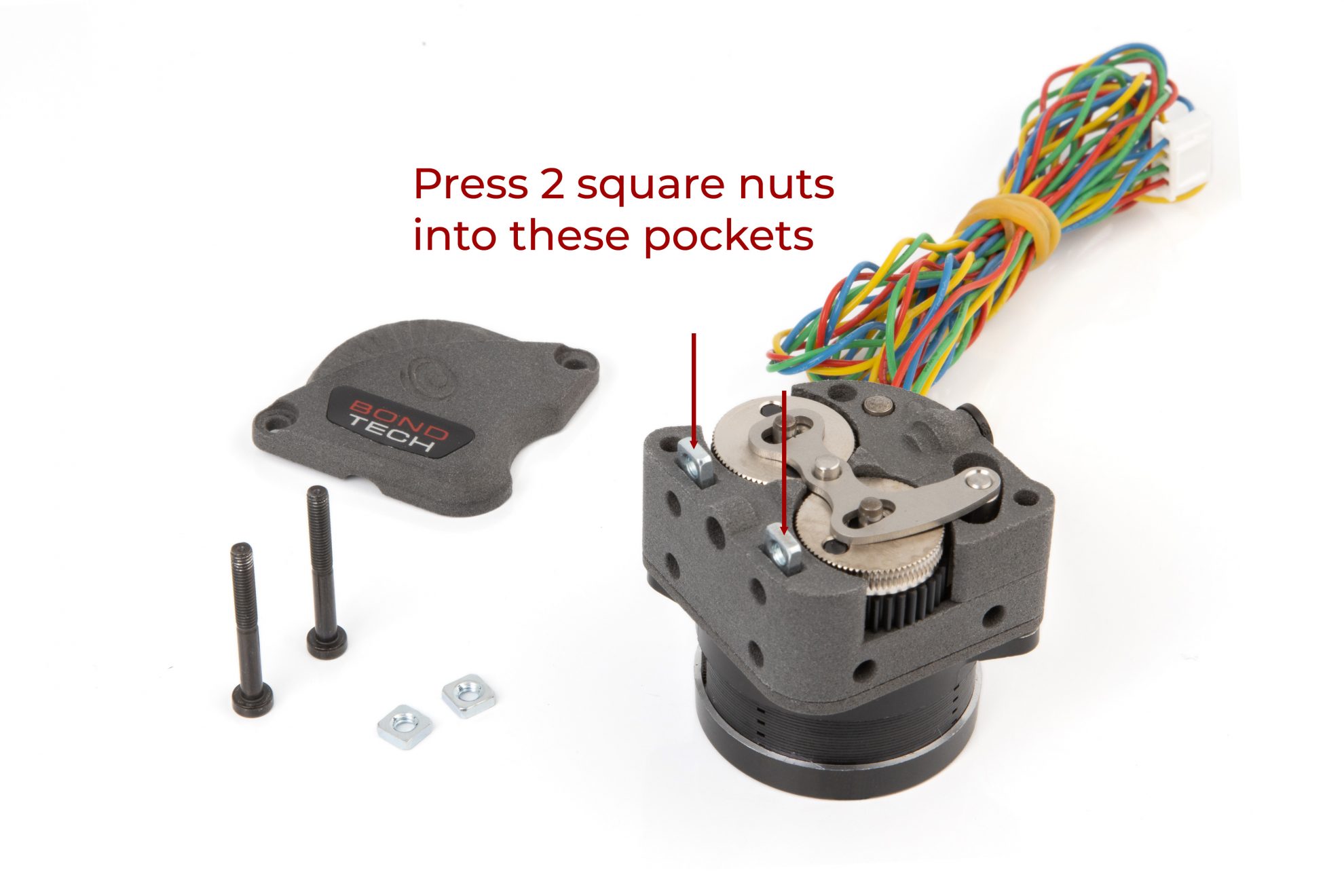

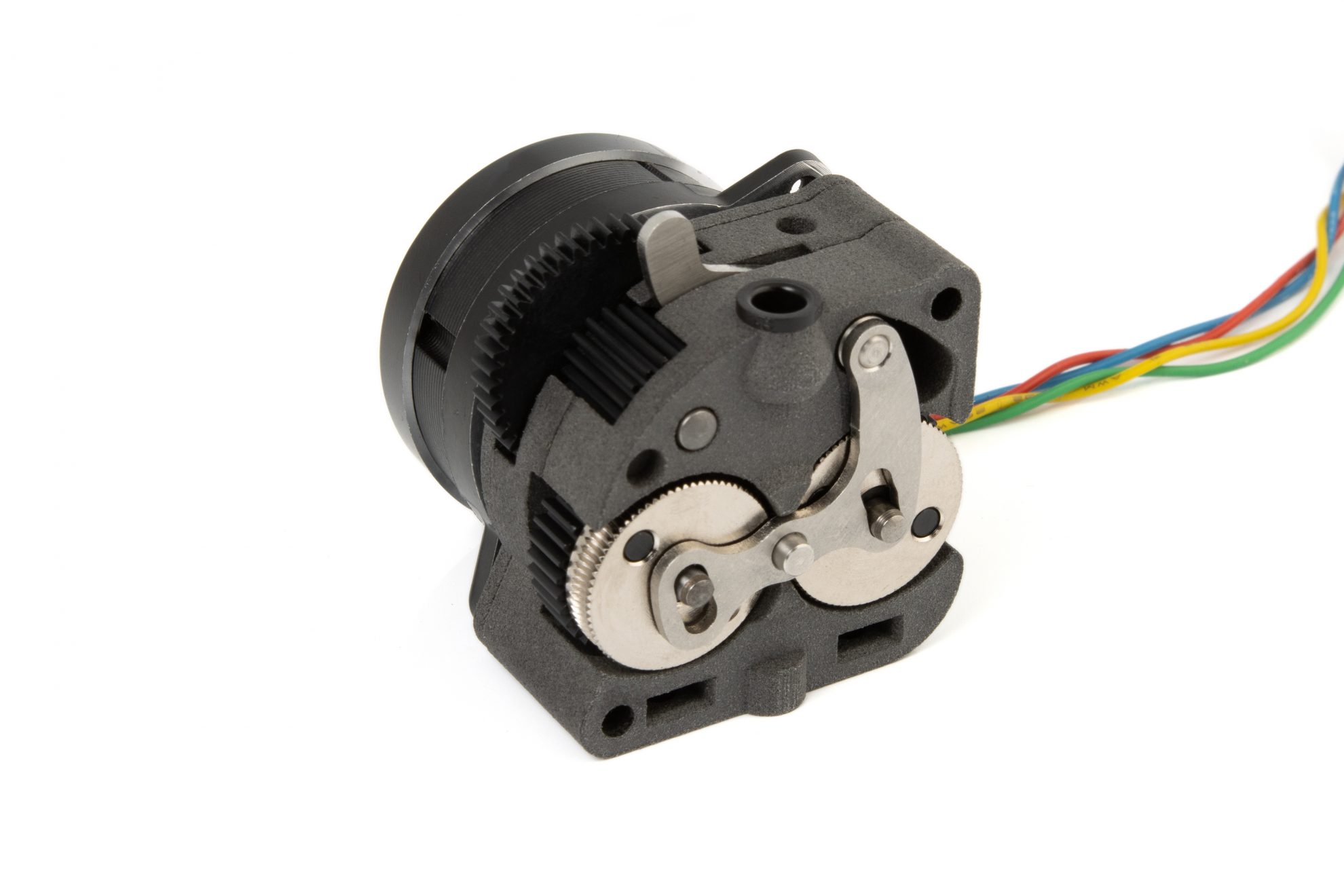

Step 1. Install LGX Lite's Bottom Square Nuts
Remove the LGX Lite front plate
Insert the 2 front botton square nuts
Insert the 2 rear botton square nuts
Step 2. Mount the ALU Plate

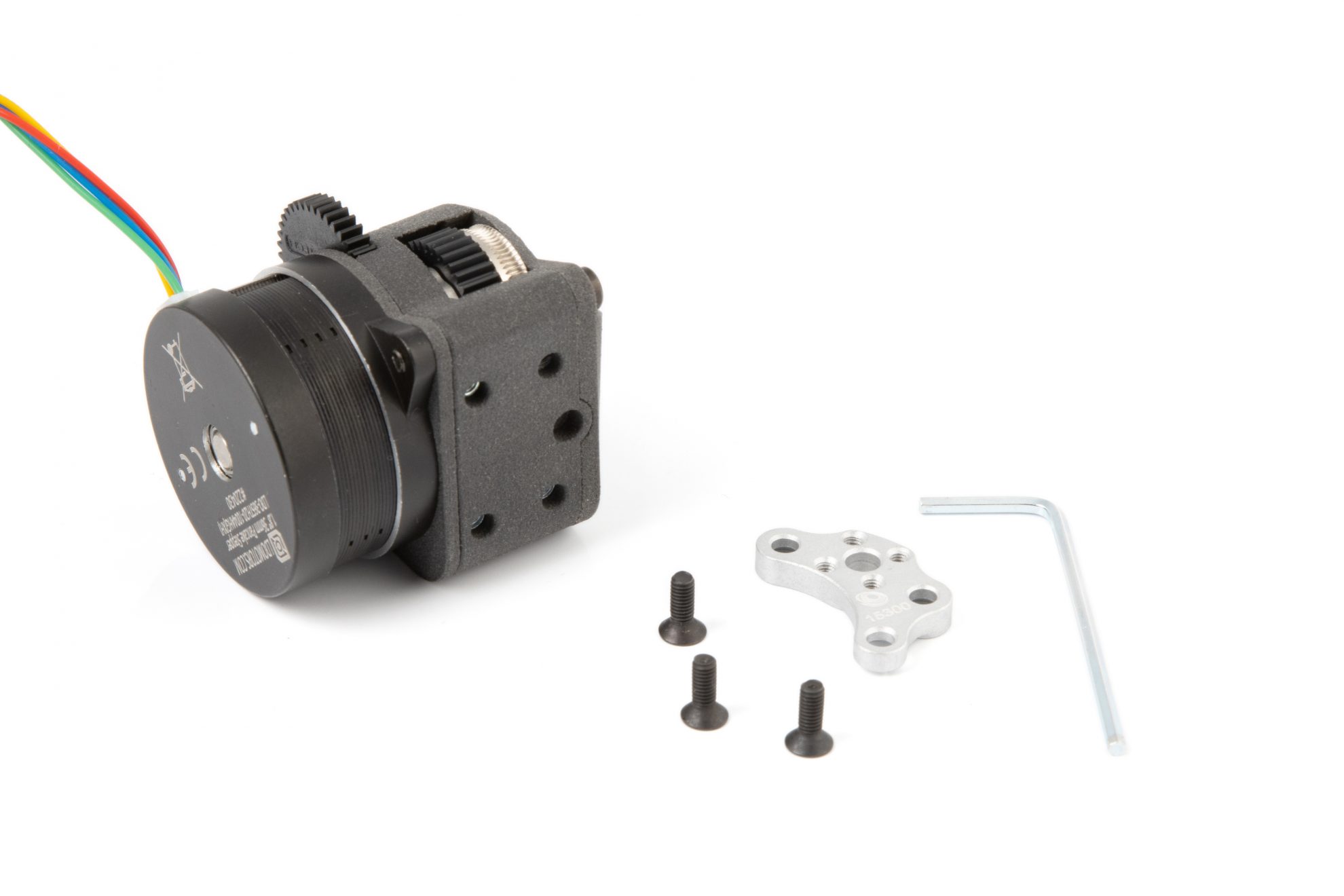

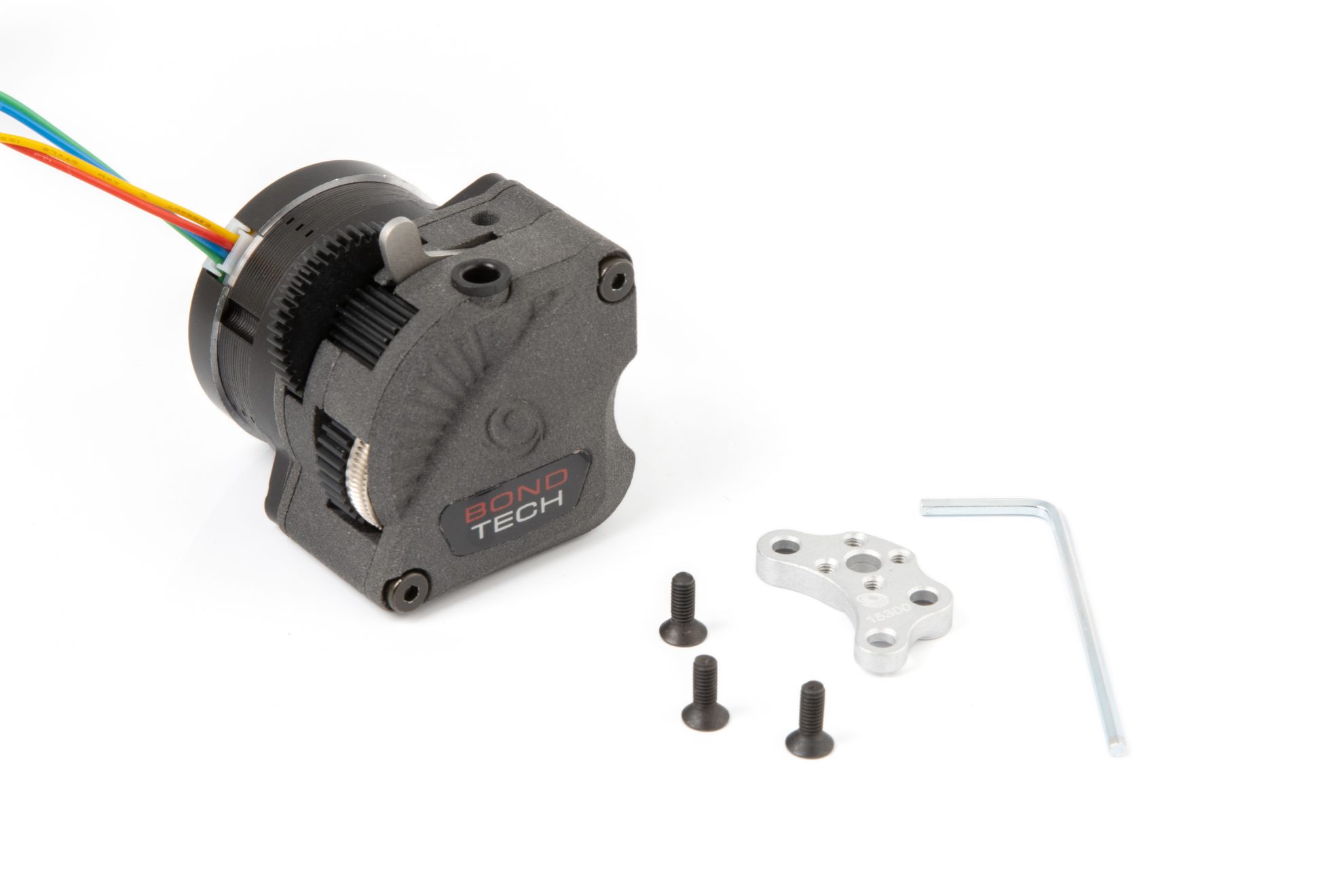

Take the LGX Lite and ALU plate's items

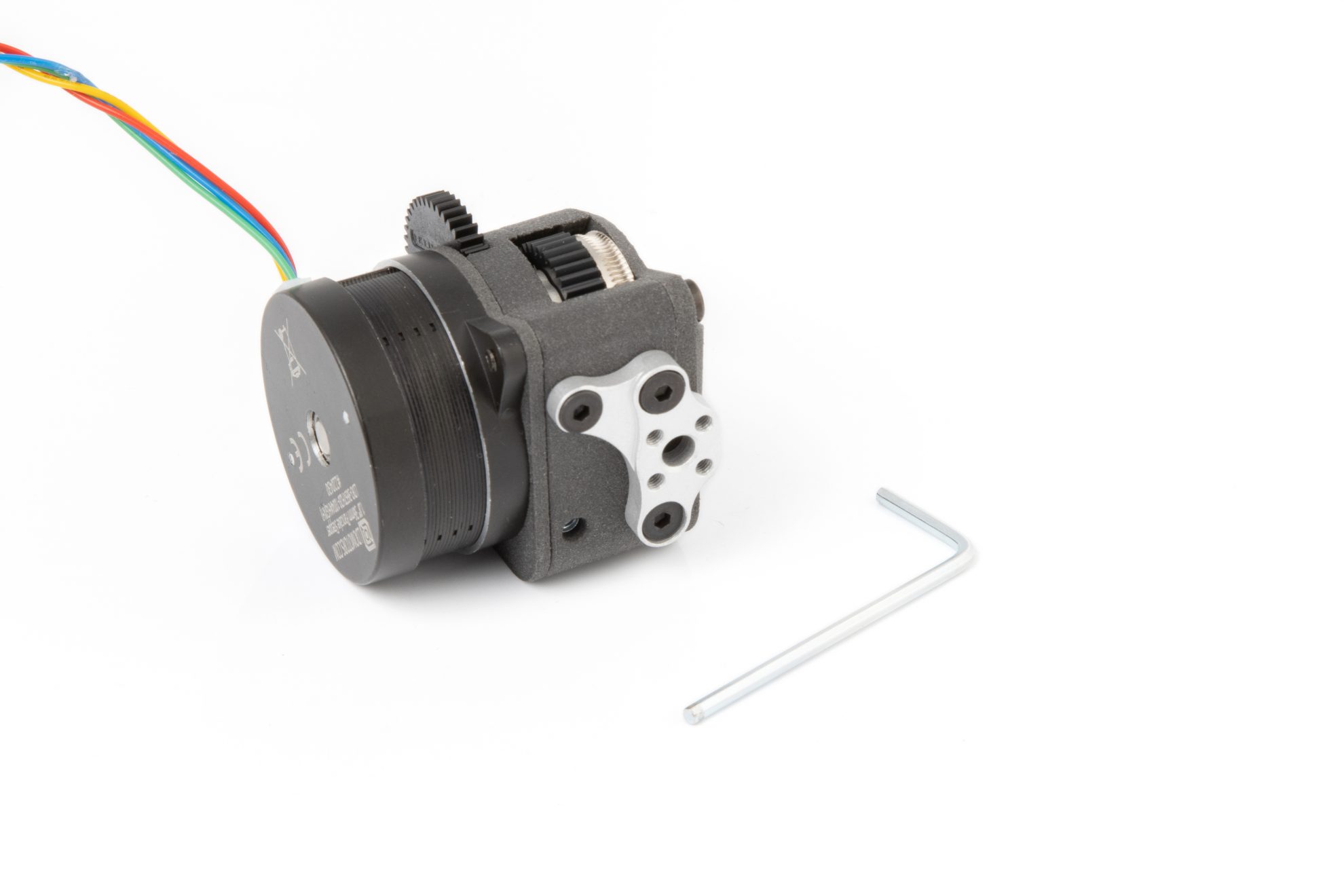

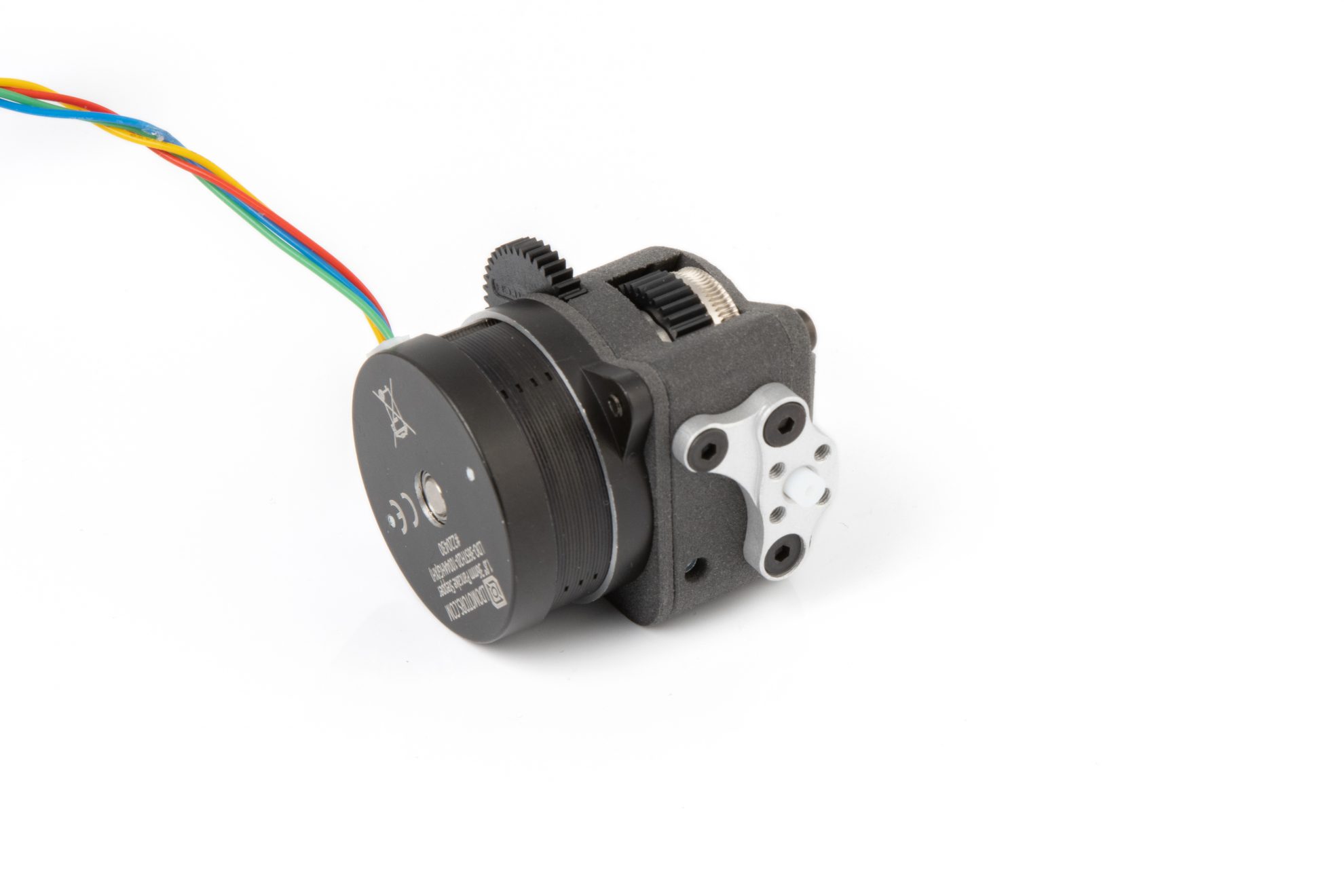

The plate mounts to the Lite's bottom
Mount the flat surface against the Lite
Step 3. Apply the PTFE Tube

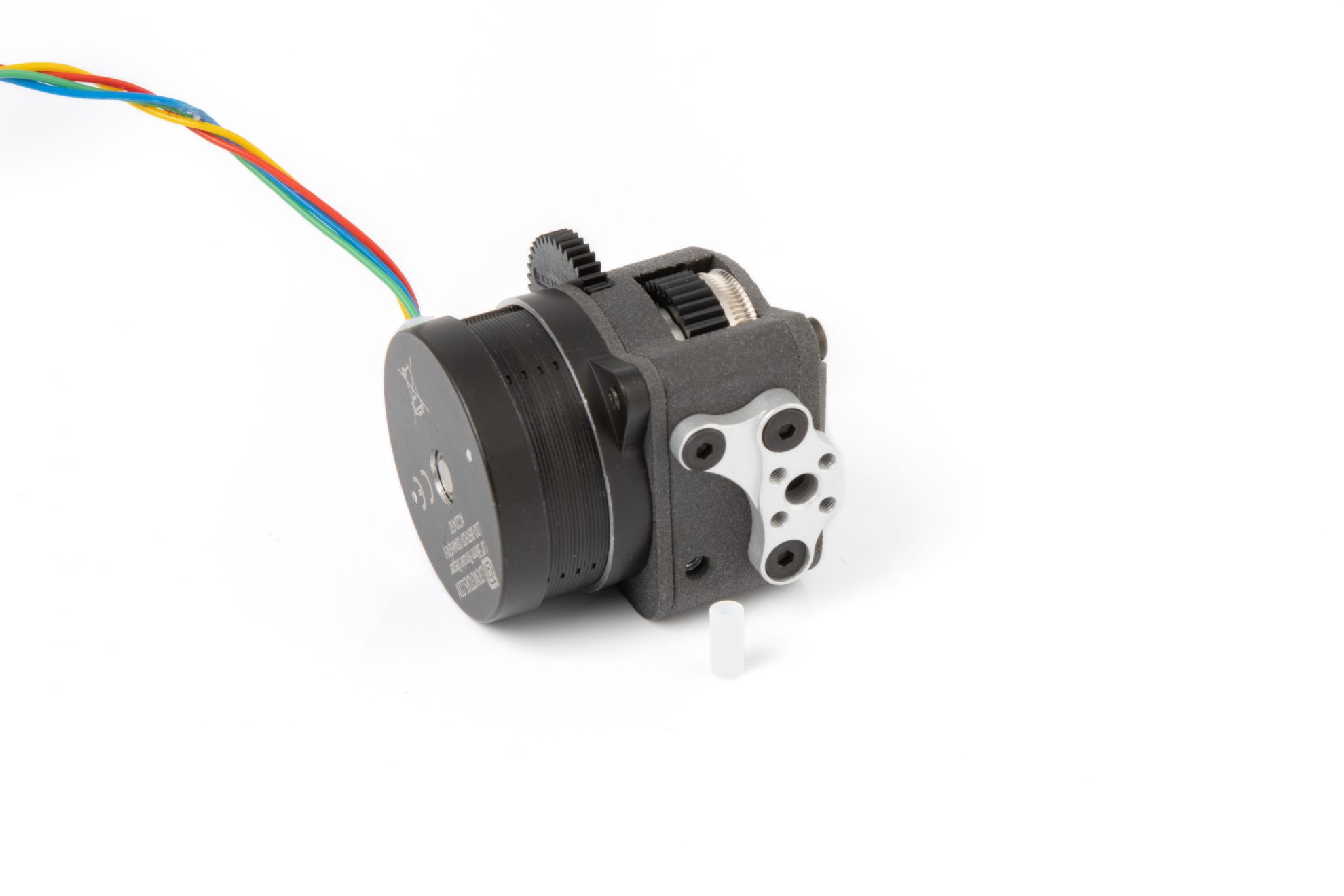

Add the short PTFE tube
Insert it in the plate's filament hole

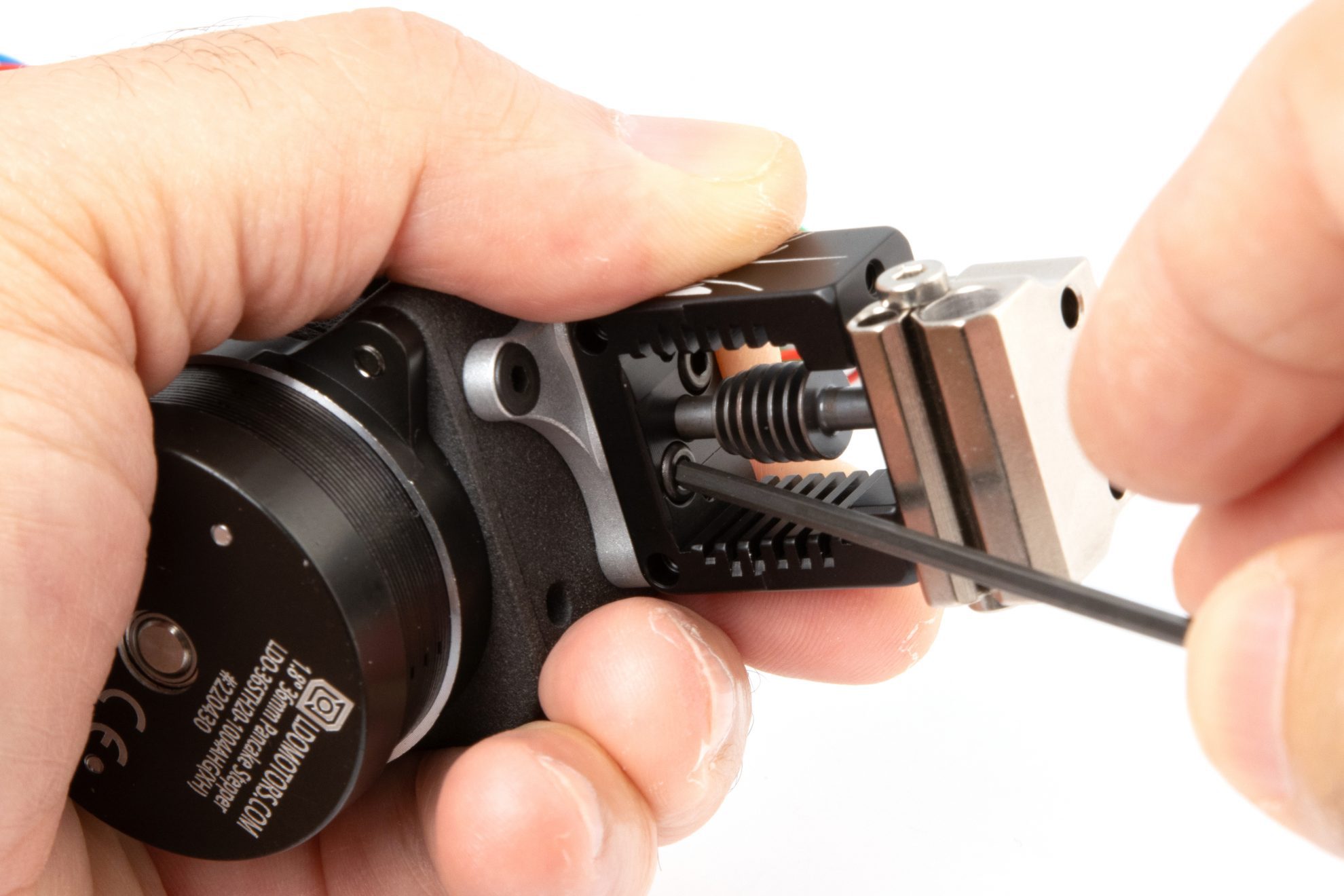

Step 4. Mount the Mosquito Hotend

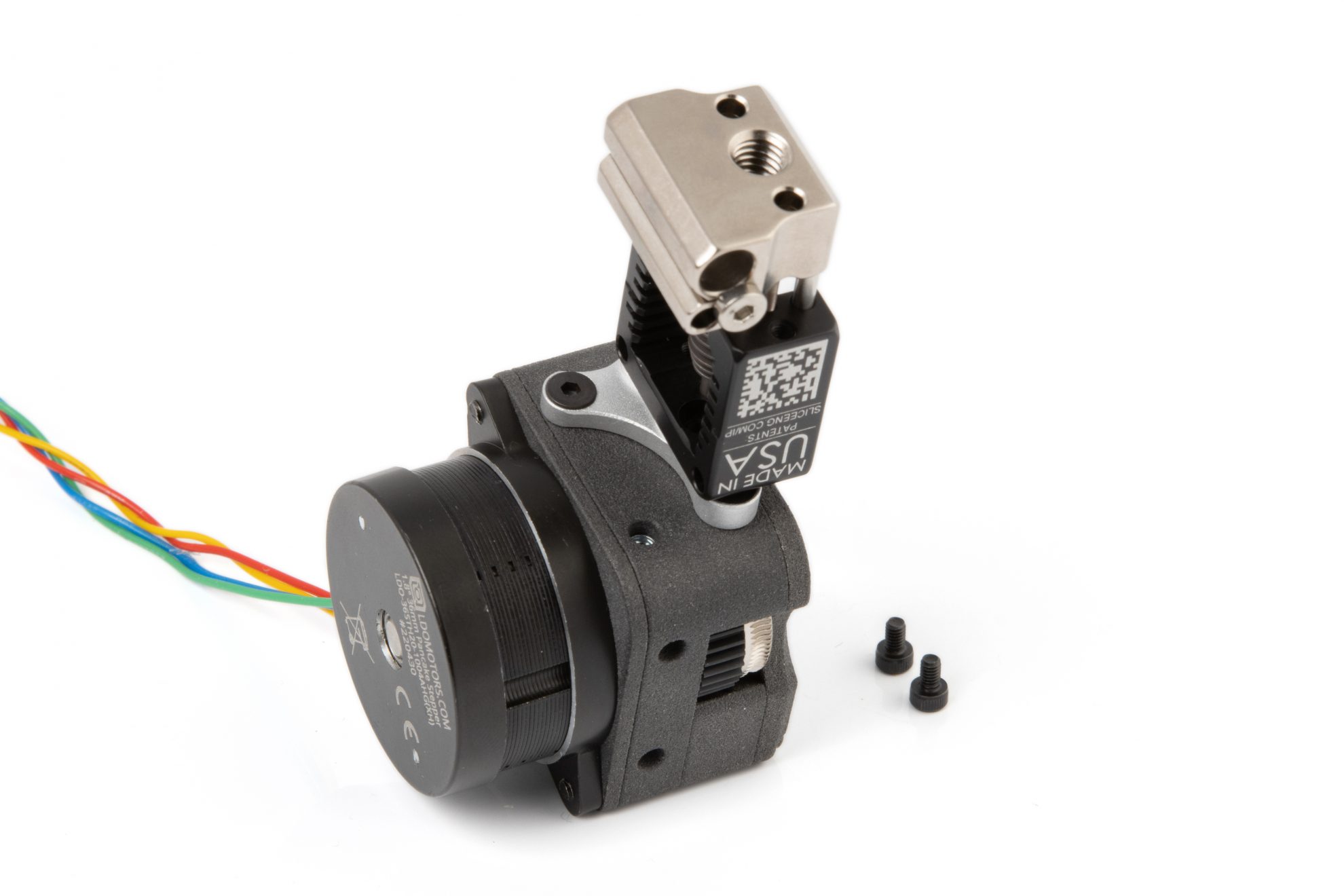

Add the Mosquito and 2 M2.5x4 screws

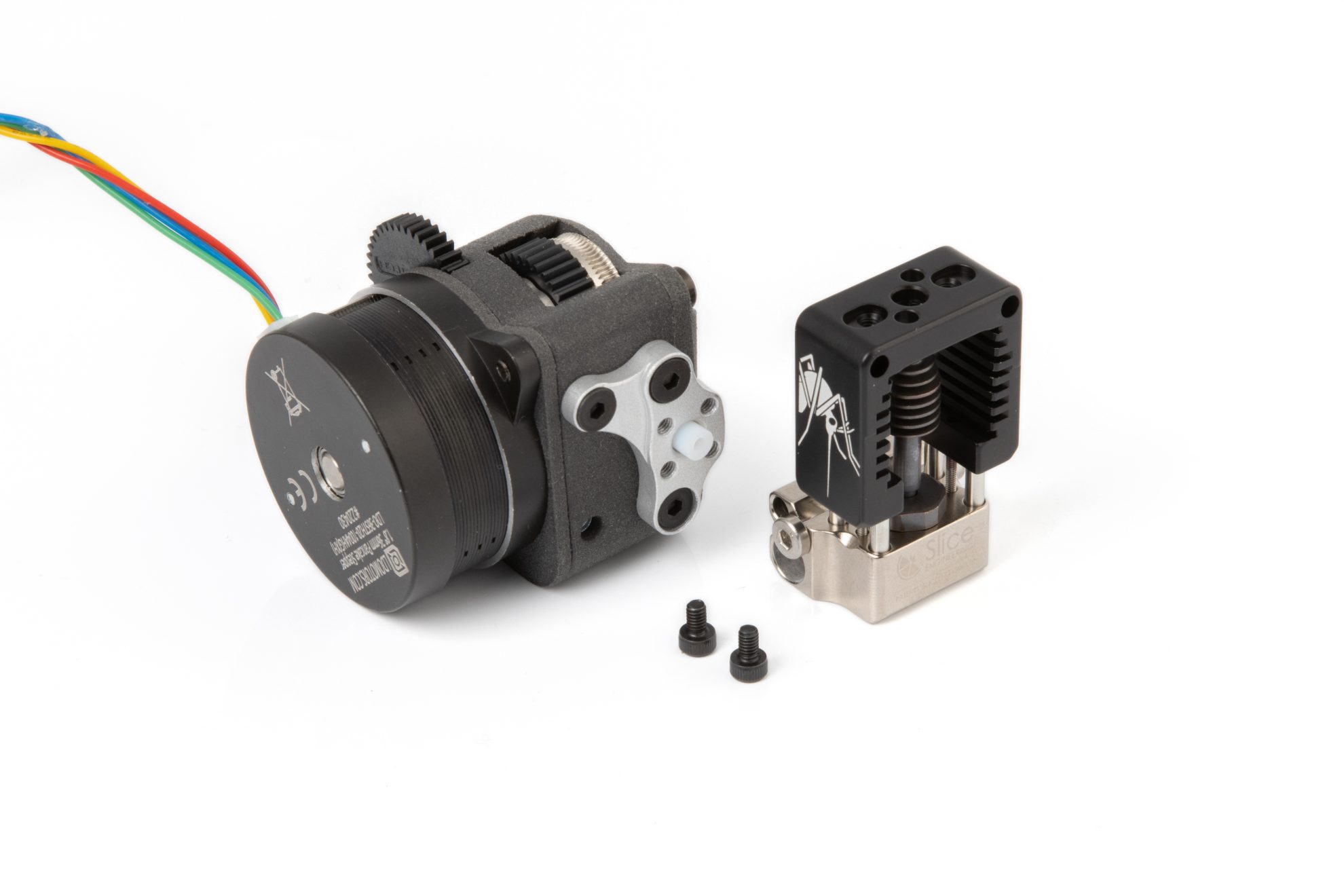

Face the Mosquito against the ALU plate
Insert the screws in the mounting holes

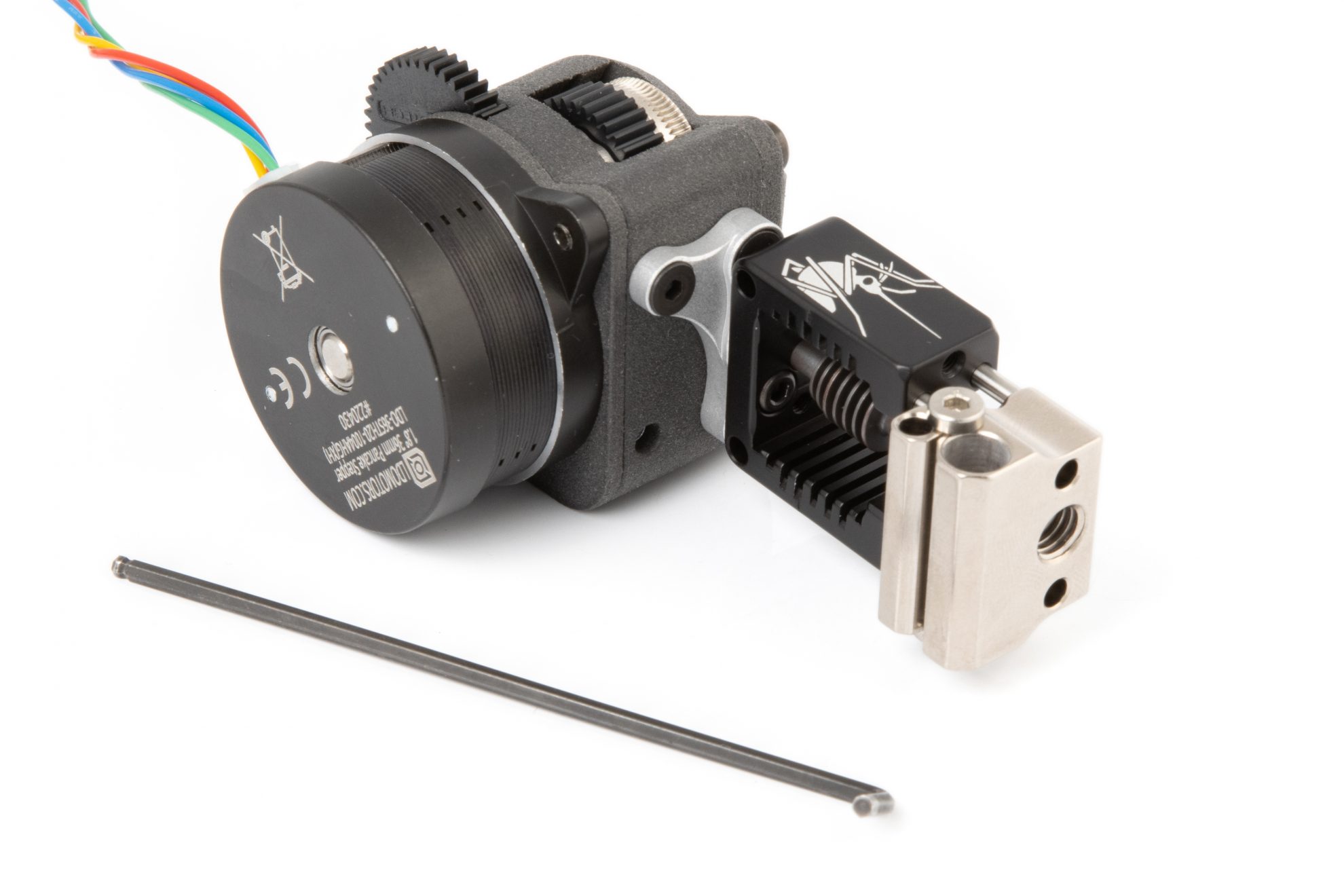

Take a 2.0mm hex key with ball point
Tighten the screws

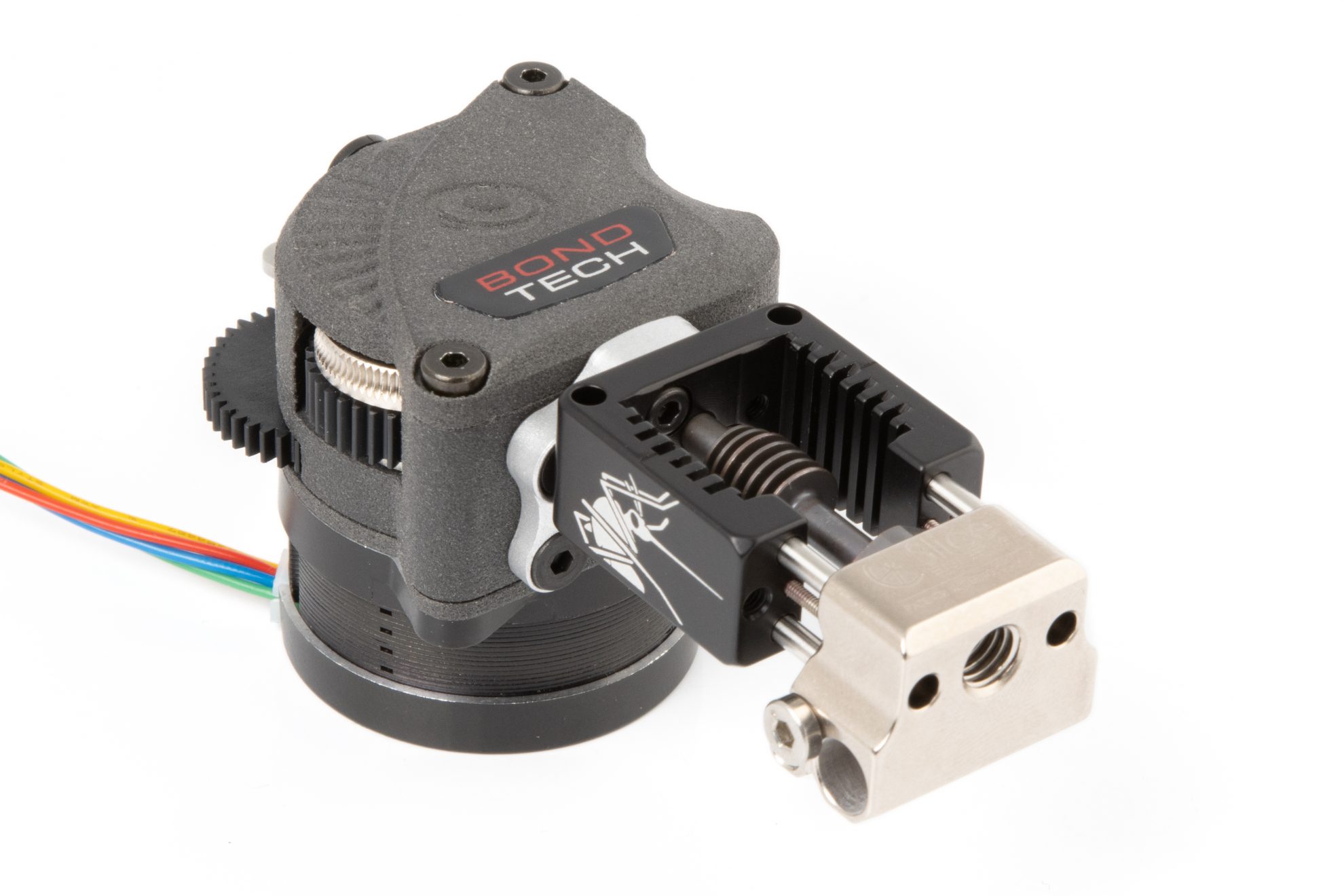

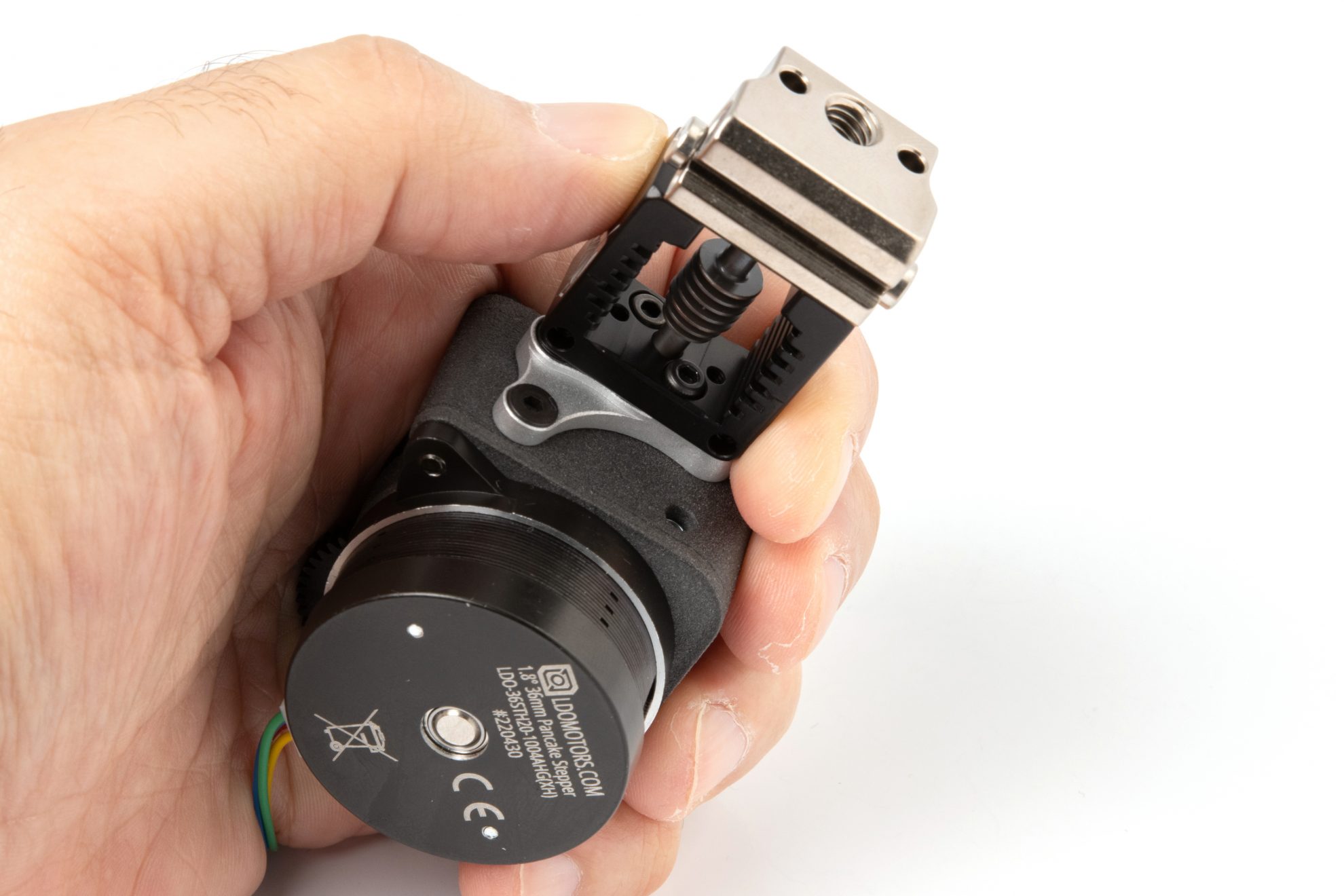

The Mosquito is mounted on the LGX Lite
STEP Files To Download
Click the link below to download a simplified geometry of this product:
LGX Lite Mosquito Mount simplified geometry
