Bondtech Coated Nozzle M6×0.75×5×13 1.75

Bondtech Coated Nozzle M6×0.75×5×13 1.75


Price:

$14.99

This nozzle is manufactured by Bondtech in-house,
and will fit the following 3D printers:

  • Creality CR-10 Max
  • Creality CR-10S Pro
  • Creality CR-10S Pro V2

Features

  • 1 unit per pack
  • Available in sizes from 0.25 to 0.8mm

Always check below if we have Product Alerts you should be aware of before buying.

Main Advantages

  • Affordable price
  • Machined with ultra-precision
  • Brass nozzle with Nickel coated surface

Advantages of the Nickel Coating

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. With a Nickel coating the nozzles are more corrosion resistant and have lower coefficient of friction, which allows slicker feeding of material and prevents plastic from adhering to the nozzle surface.


Recommended Materials

Use this nozzle with the following materials:

  • PLA
  • ABS
  • HIPS
  • PC
  • TPU
  • TPE
  • Nylon
  • PETG
  • ASA
  • PP
  • PVA

For technical and abrasive materials we recommend to use other nozzles in our range.

Different nozzle sets for different materials

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.

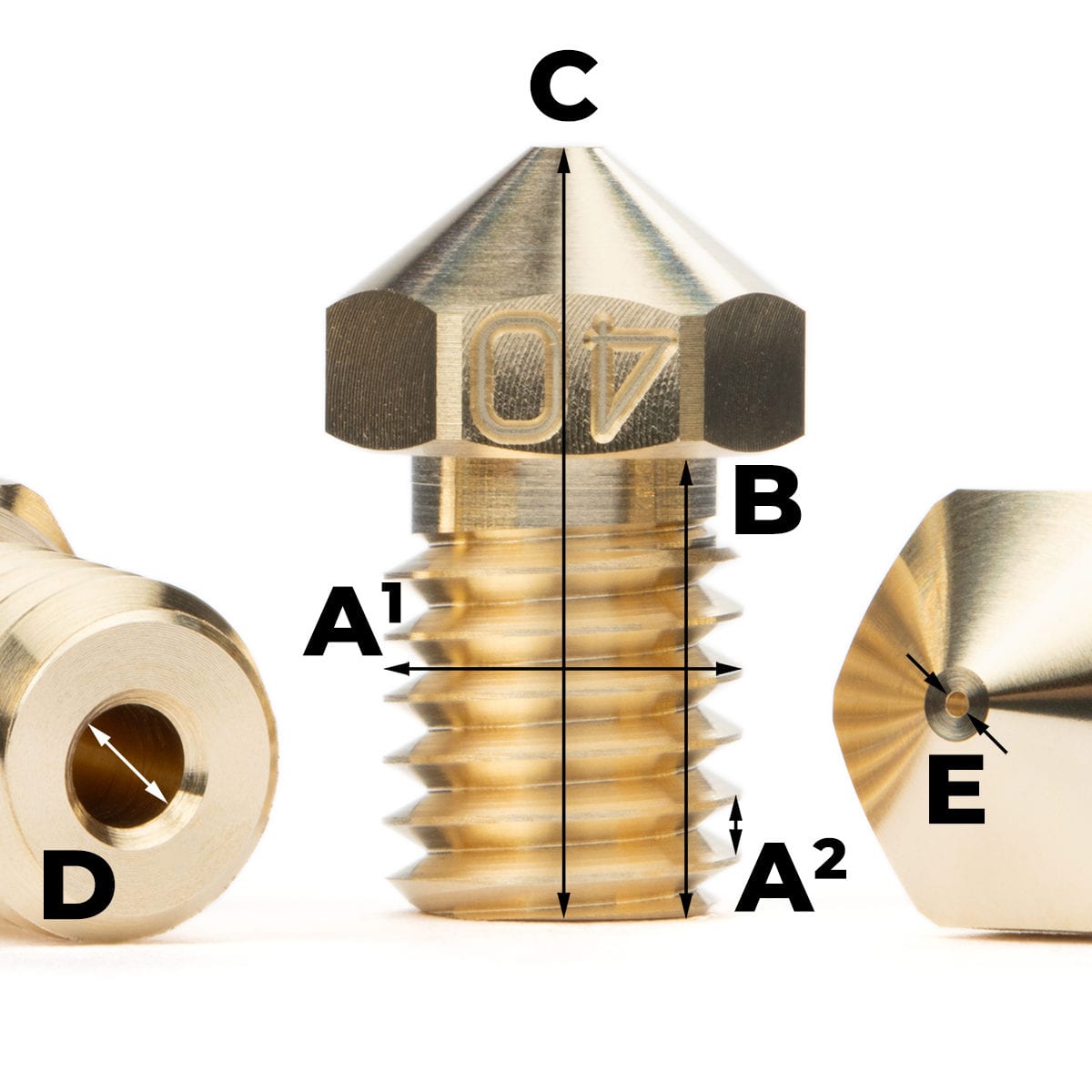

Explaining the Bondtech Nozzles reference standard : MA1×A2×B×C D E

MA1xA2 refers to the nozzle threading :
MA1 thread with A2 mm pitch.

B >> refers to the nozzle neck length :
B mm long.

C refers to the nozzle overall length :
C mm long.

D refers to the filament diameter:
1.75 or 2.85 mm

E refers to the nozzle diameter:
15,25, 40, 60, 80 ... mm/100

Freight Weight 5 g
Dimensions 5 × 6 × 1 cm
Nozzle size

0.25, 0.40, 0.60, 0.80

Compatibility Table

M6×1×7.5×12.5 1.75 M6×1×5×13 1.75 M6×0.75×5×13 1.75 M6×1×5.5×14 1.75
List of Hotends
Mosquito
Mosquito Magnum
Copperhead
E3D V4, V5 and V6 blocks
E3D Chimera
E3D Kraken
RepRap M6
List of 3D Printers
BCN3D family
Formbot Raptor
Prusa i3MK2/2S
Prusa MK3/3S
Prusa Mini
Wanhao i3 Mini
bq Hephestos
bq Hephestos 2
bq Prusa i3 Hephestos
bq Witbox
bq Witbox 2
Creality CR-10
Creality CR-10-S4
Creality CR-10-S5
Creality CR-10S
MakerBot Replicator
MakerBot Replicator 2
MakerBot Replicator 2X
Creality Ender 2
Creality Ender 3 Pro
Creality CR-20 Pro
Creality Ender 5
Craftbot family
Creality CR-10 V2
Tevo Tornado
Creality CR-10 Max
Creality CR-10S Pro
Creality CR-10S Pro V2
Raise 3D Pro2
Raise 3D Pro2 Plus

Technical Data Sheet
