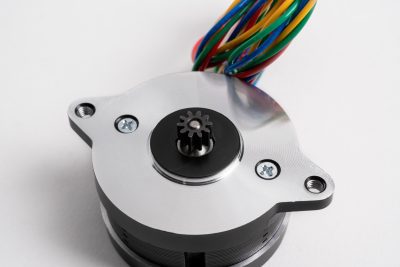

Nema14 20mm Round Stepper Motor 10T Gear
Nema14 High resolution 1.8 degree pancake stepper motor
with with a 10 teeth motor gear,
made by LDO,
Compatible with the following compact extruders:
- LGX Lite
- Orbiter
- HextrudORT
- Sherpa Mini
Ships with 700mm long not detachable stripped cable with XH2.54-4P connector
For common ratings, specifications and dimensions please check its Technical Data Sheet below.
Price:
$24.00
In stock (can be backordered)
Chose Currency / Country
Select Currency
Select Country
Description
- Rated current: 1.4 A
- Recommended Max current: 0.6 A
- Step angle: 1.8 deg.
- Torque: 0.90 KG-cm
- Output shaft diameter: 5.0 mm with flat.
- Hole for mounting: 31 mm, 4xM3
- Motor length: 20 mm
- Weight: 85g
- Connector: XH2.54-4P connector
- Manufacturer : LDO
Additional information
| Freight Weight | 134 g |
|---|---|
| Dimensions | 10 × 8 × 7 cm |
Technical Data Sheet
Technical Data Sheet
