Motor Cable JST XHP-6 – Dupont-4p w/ lock
Price:
$2.00
In stock (can be backordered)

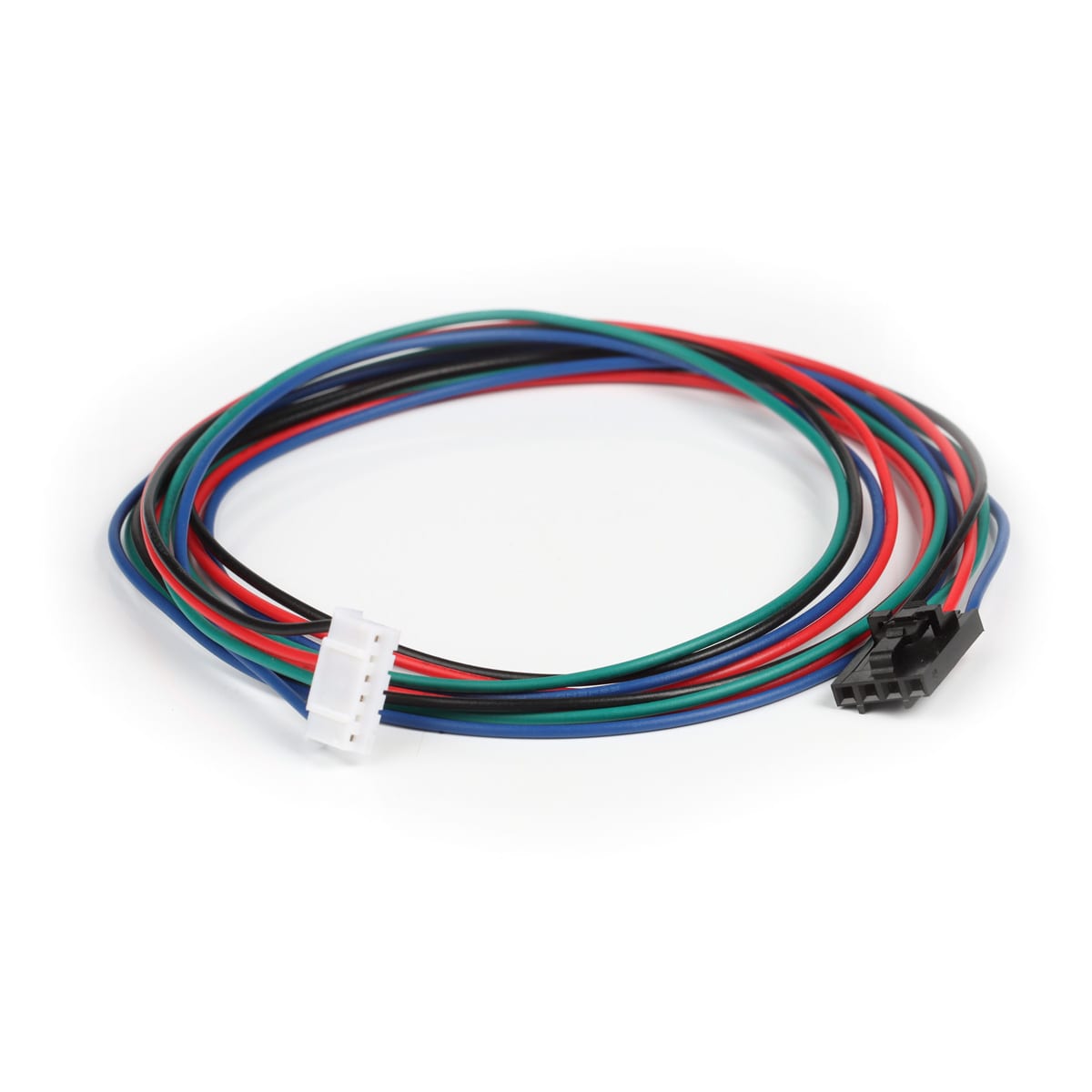

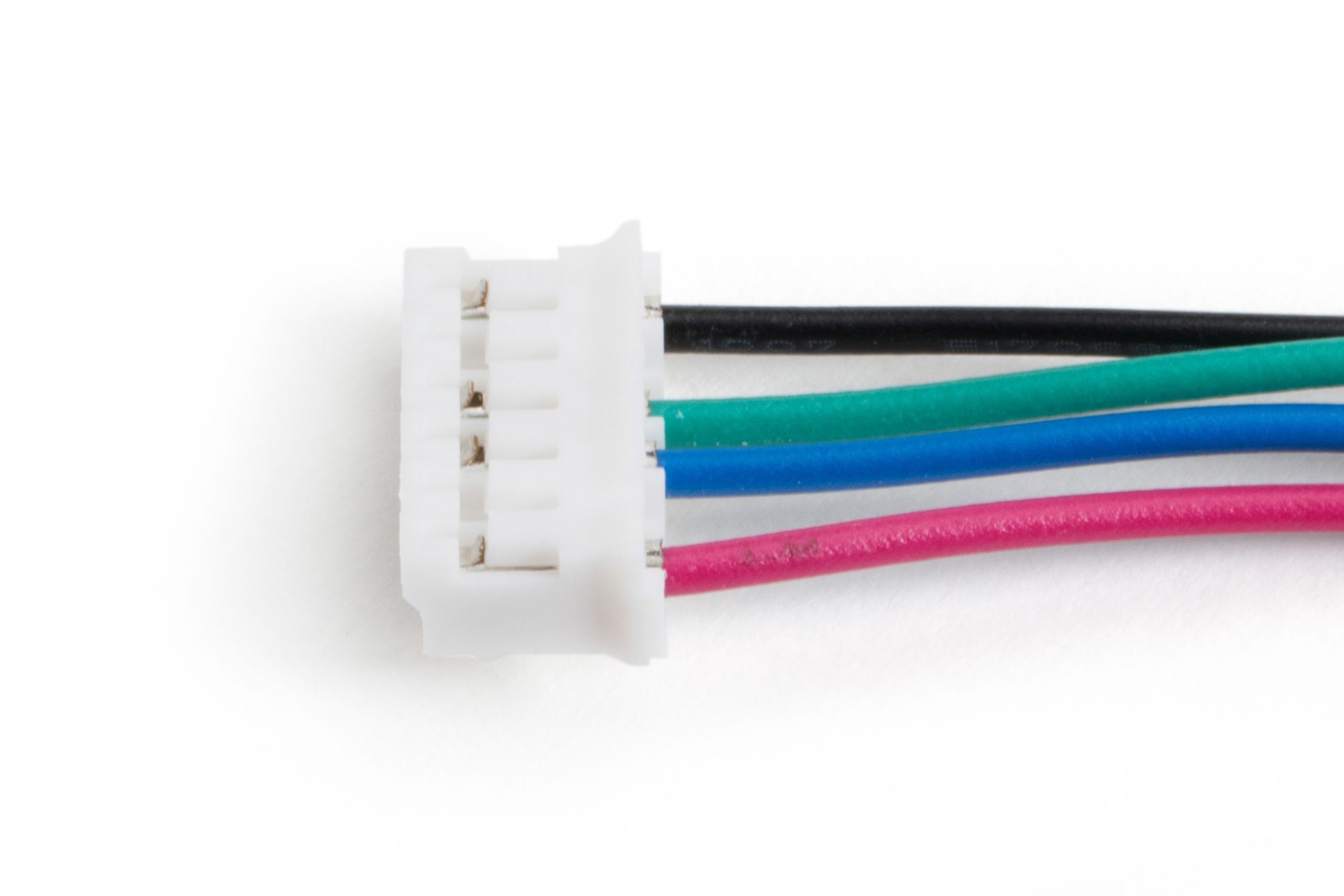

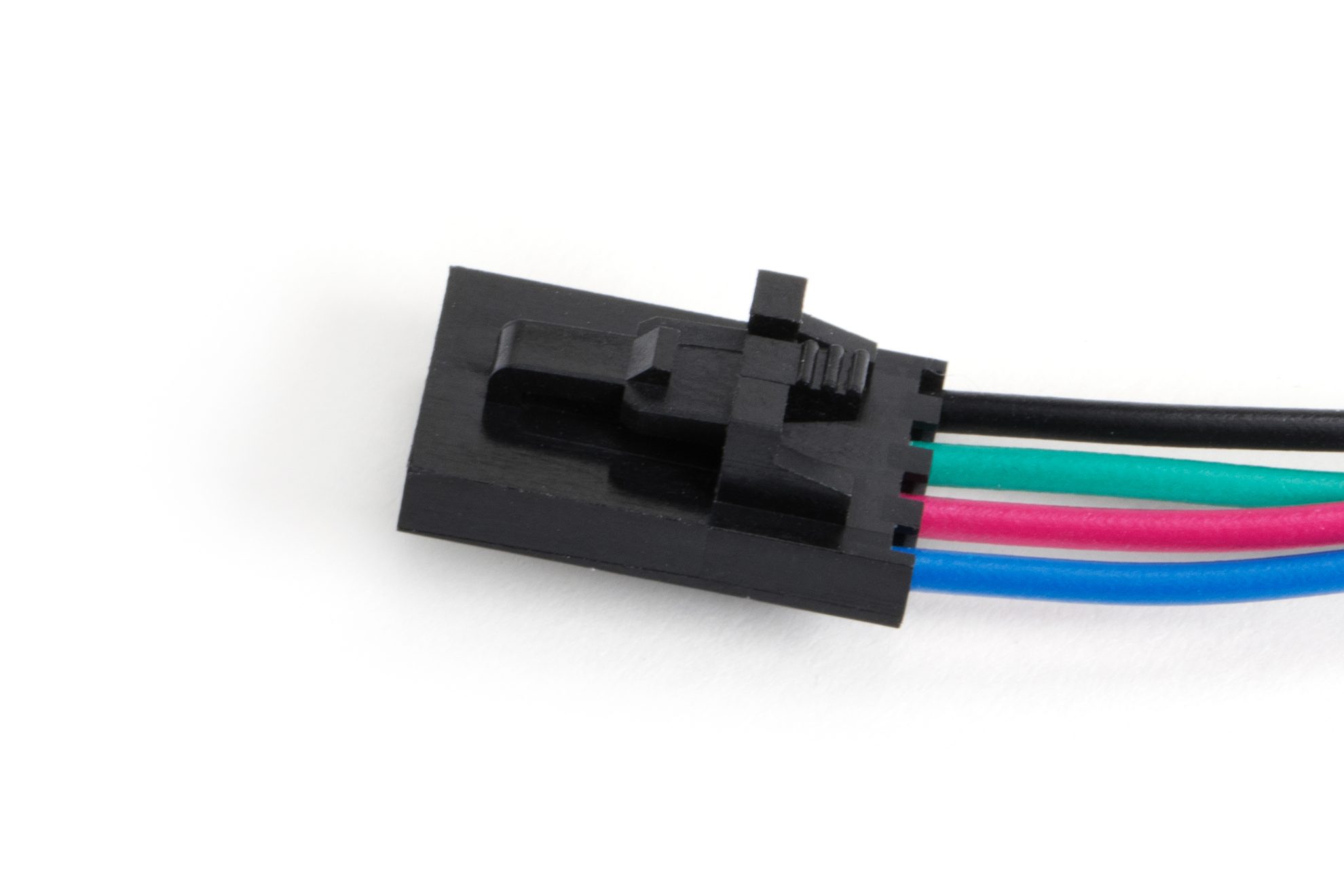

700 mm, Dupont cable 4-pin connector with locking function to JST-PH6 6-pin connector.
This cable is by default wired for our 40 mm Geared Nema17 motor, please make sure that it follows the schematics for your application.
Specified wiring of this cable can be found down below.
Always check below if we have Product Alerts you should be aware of before buying.
You may need
Controller side Motor side
PIN 1 —————– PIN 1
PIN 2 —————– PIN 4
PIN 3 —————– PIN 3
PIN 4 —————– PIN 6
If it is going to be used with our 25 mm Pancake motor then swap position of the two center wires in order to have a correct connection like below.
Controller side Motor side
PIN 1 —————– PIN 1
PIN 2 —————– PIN 3
PIN 3 —————– PIN 4
PIN 4 —————– PIN 6
| Freight Weight | 10.6 g |
|---|---|
| Dimensions | 8 × 6 × 1 cm |
