Nema17 22mm Stepper Motor 18mm D-shaft

EAN13: 7350011415113 SKU: 13002A Categories: , ,

Nema17 22mm Stepper Motor 18mm D-shaft

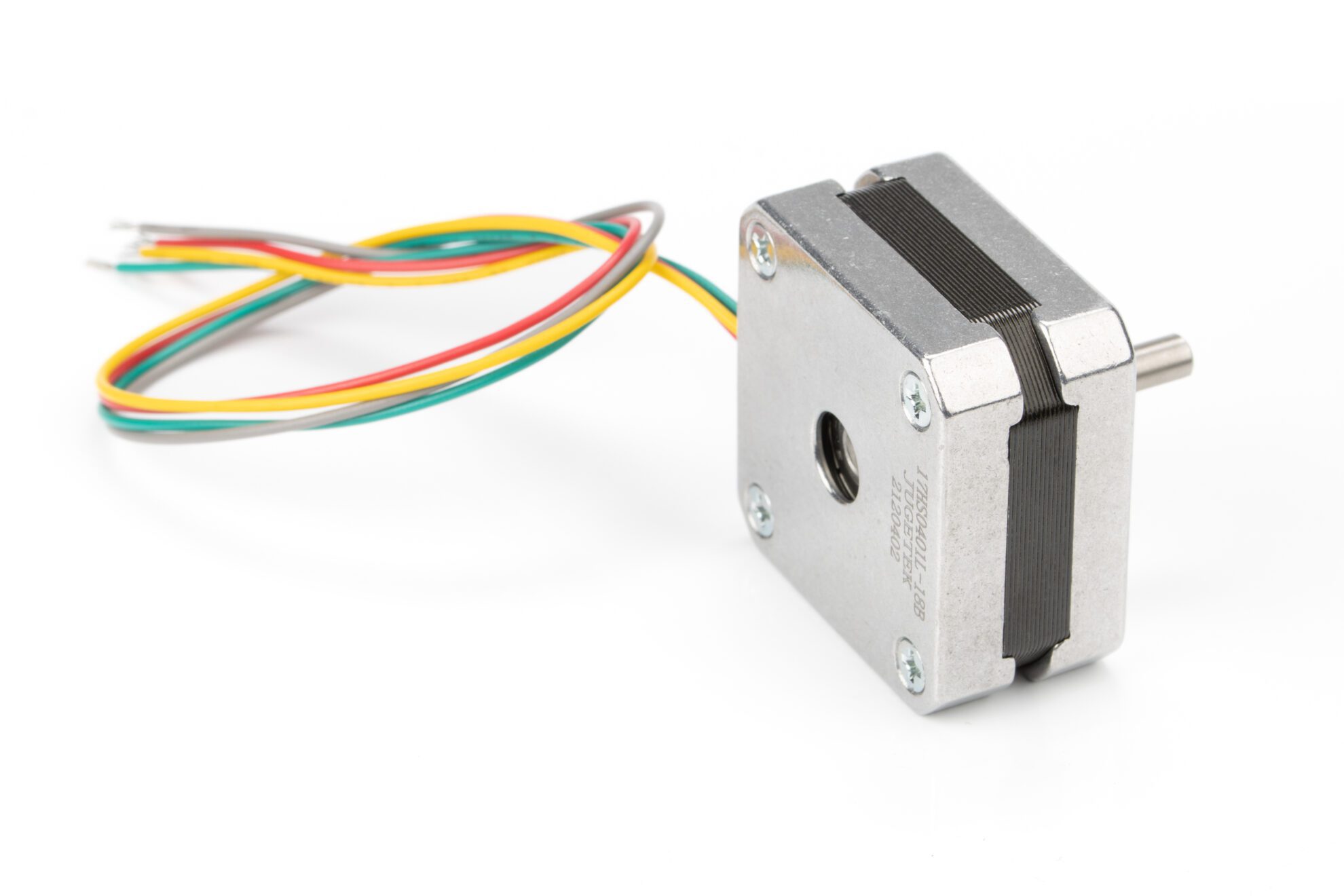

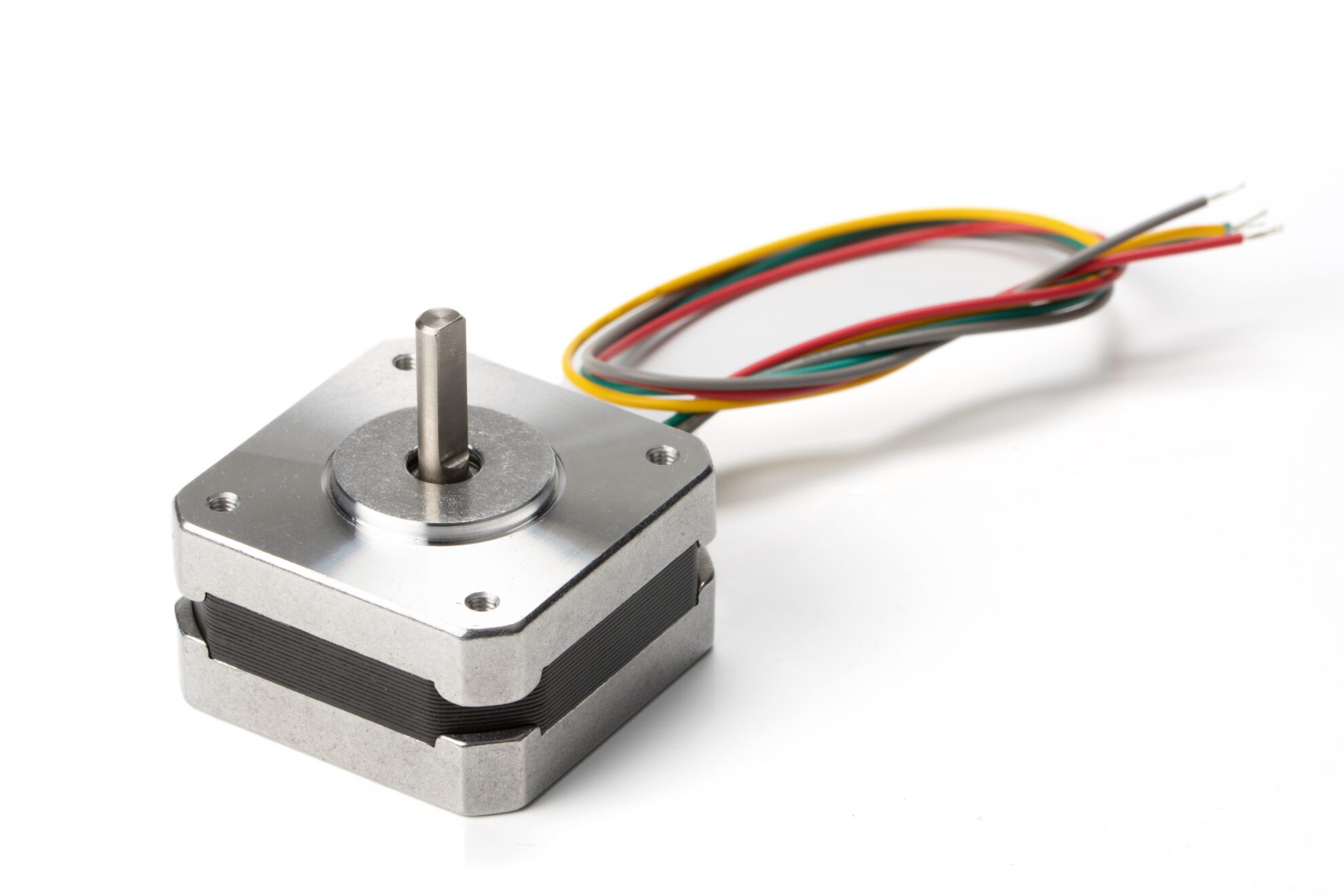

Nema17 Pancake stepper with a 150 mm long not detachable stripped cable with bare leads.

For common ratings, specifications and dimensions please see below or in the datasheet.

Price:

$13.30

Only 7 left in stock (can be backordered)

Select Currency

Select Country

  • Max Input current: 0.8 A
  • Step angle: 1.8 deg.
  • Torque: 12 Ncm
  • Output shaft diameter: 5.0 mm with flat.
  • Hole for mounting: 31 mm, 4xM3
  • Motor length: 22 mm
  • Weight: 129.5 g
  • Connector: no connector
Freight Weight 180 g
Dimensions 10 × 8 × 7 cm

Technical Data Sheet
