Bondtech Brass 4 Pack Nozzle for RepRap 1.75 E3D V4, V5 V6 & Mosquito

Bondtech

/

Shop

/

Specials

/

Nozzle Packs

/

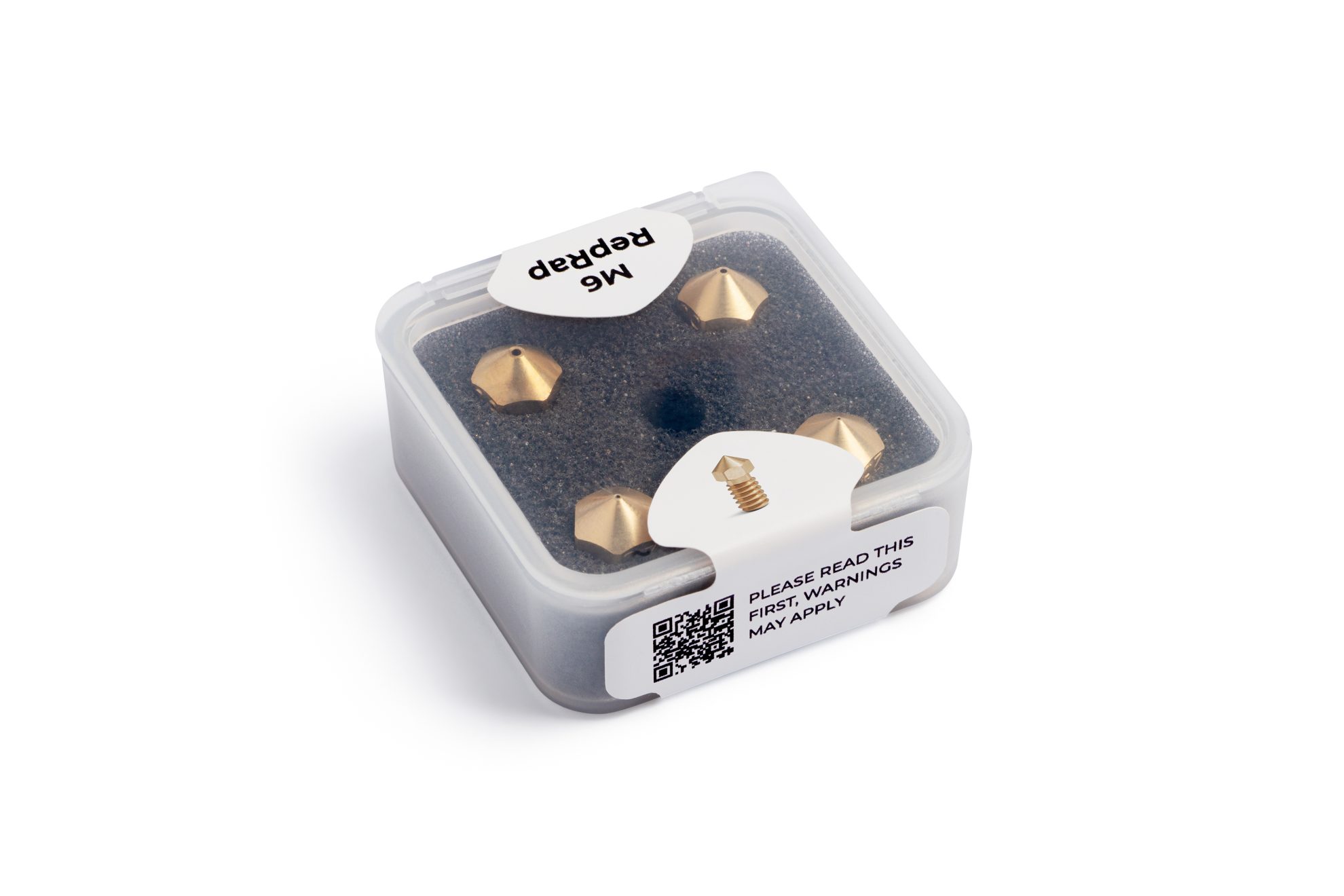

Bondtech Brass Nozzle M6 Nozzle 4 Pack 1.75

Bondtech Brass Nozzle M6 Nozzle 4 Pack 1.75


Price:

$30.57

In stock (can be backordered)

These nozzles are manufactured by Bondtech in-house,
and will fit the following hotends/blocks:

  • Mosquito and Mosquito Magnum
  • Copperhead
  • E3D V4, V5 and V6 blocks
  • E3D Chimera and Kraken
  • RepRap M6
  • Prusa Blocks

Features

  • Compatible with 1.75mm diameter filament;
  • 4 units per pack

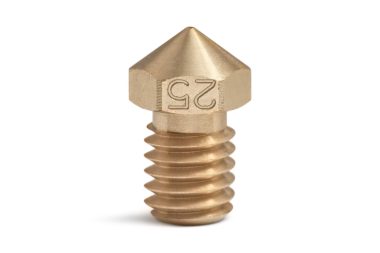

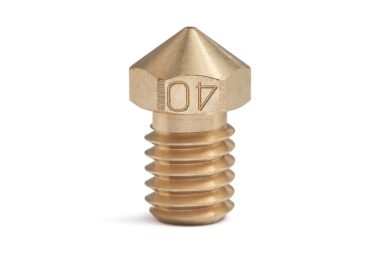

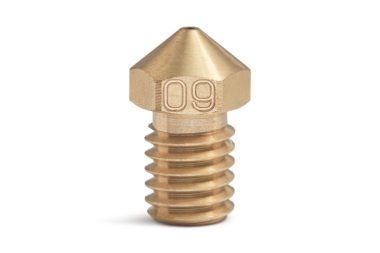

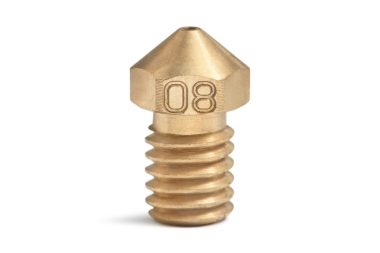

  • Sizes included : 0.25, 0.4, 0.6 and 0.8mm

Buy the Pack, Save 15%

Always check below if we have Product Alerts you should be aware of before buying.

You may need

+
This product has multiple variants. The options may be chosen on the product page
Out of stock
+
This product has multiple variants. The options may be chosen on the product page

Advantages

  • Affordable price
  • Machined with ultra-precision

Recommended Materials

Use this nozzle with the following materials:

  • PLA
  • ABS
  • HIPS
  • PC
  • TPU
  • TPE
  • Nylon
  • PETG
  • ASA
  • PP
  • PVA

For technical and abrasive materials we recommend to use other nozzles in our range.

Different nozzle sets for different materials

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.

Explaining the Bondtech Nozzles reference standard : MA1×A2×B×C D E

MA1xA2 refers to the nozzle threading :
MA1 thread with A2 mm pitch.

B >> refers to the nozzle neck length :
B mm long.

C refers to the nozzle overall length :
C mm long.

D refers to the filament diameter:
1.75 or 2.85 mm

E refers to the nozzle diameter:
15,25, 40, 60, 80 ... mm/100

Freight Weight 25 g
Dimensions 3.5 × 3.5 × 1.5 cm
Nozzle size

0.25, 0.40, 0.60, 0.80

Compatibility Table

M6×1×7.5×12.5 1.75 M6×1×5×13 1.75 M6×0.75×5×13 1.75 M6×1×5.5×14 1.75
List of Hotends
Mosquito
Mosquito Magnum
Copperhead
E3D V4, V5 and V6 blocks
E3D Chimera
E3D Kraken
RepRap M6
List of 3D Printers
BCN3D family
Formbot Raptor
Prusa i3MK2/2S
Prusa MK3/3S
Prusa Mini
Wanhao i3 Mini
bq Hephestos
bq Hephestos 2
bq Prusa i3 Hephestos
bq Witbox
bq Witbox 2
Creality CR-10
Creality CR-10-S4
Creality CR-10-S5
Creality CR-10S
MakerBot Replicator
MakerBot Replicator 2
MakerBot Replicator 2X
Creality Ender 2
Creality Ender 3 Pro
Creality CR-20 Pro
Creality Ender 5
Craftbot family
Creality CR-10 V2
Tevo Tornado
Creality CR-10 Max
Creality CR-10S Pro
Creality CR-10S Pro V2
Raise 3D Pro2
Raise 3D Pro2 Plus
