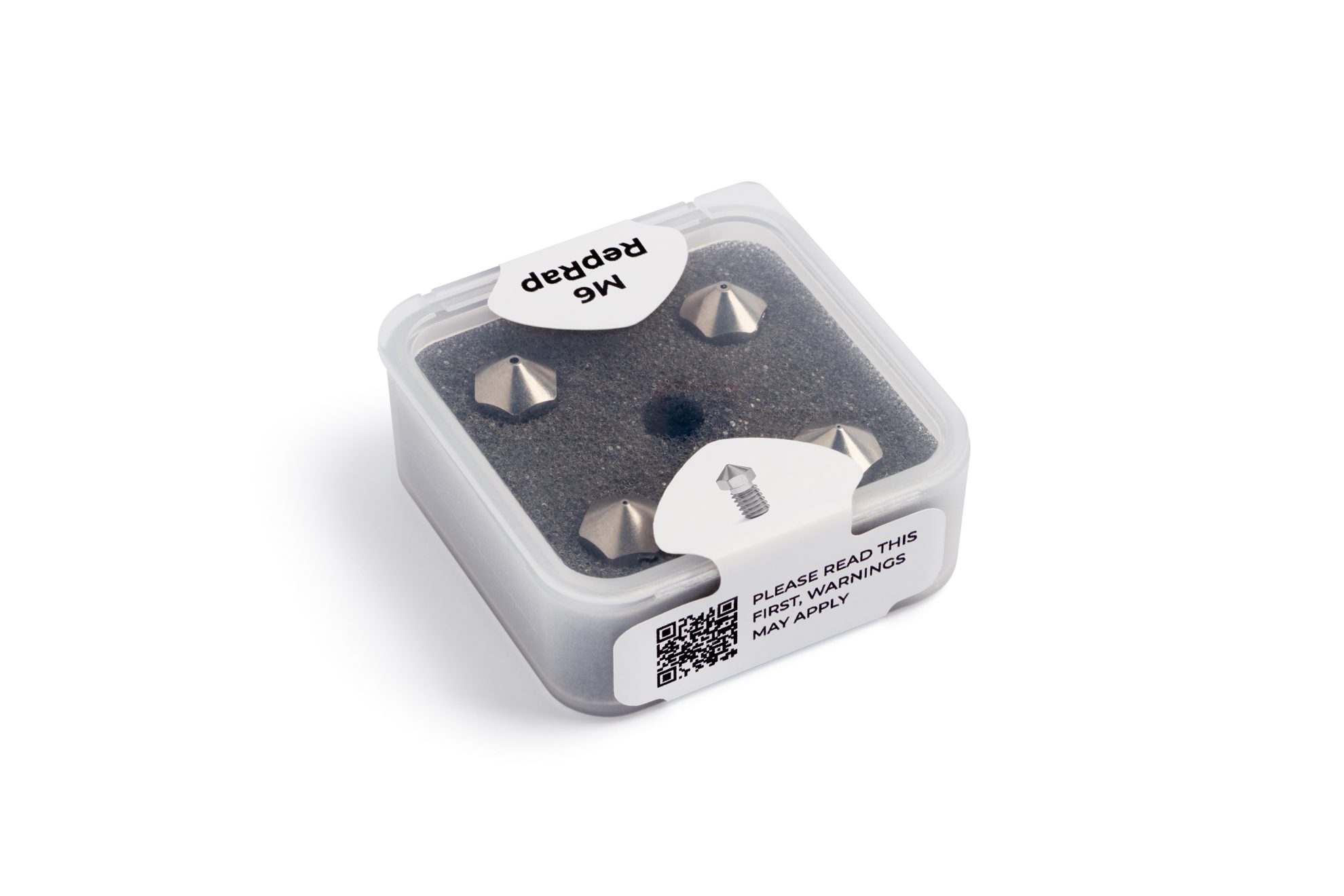

These nozzles are manufactured by Bondtech in-house,
and will fit the following hotends/blocks:
- Mosquito and Mosquito Magnum
- E3D V4, V5 and V6 blocks
- E3D Chimera and Kraken
- RepRap M6
- Compatible with 1.75mm diameter filament;
- 4 units per pack
- Sizes included : 0.25, 0.4, 0.6 and 0.8mm
Buy the Pack, Save 15%
- Affordable price
- Machined with ultra-precision
- Brass nozzle with Nickel coated surface
Advantages of the Nickel Coating
A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction, which allows slicker feeding of material and delays plastic adhesion to the nozzle’s surface.
Use this nozzle with the following materials:
For technical and abrasive materials we recommend to use other nozzles in our range.
Different nozzle sets for different materials
We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.
MA1xA2 refers to the nozzle threading :
MA1 thread with A2 mm pitch.
B >> refers to the nozzle neck length :
B mm long.
C refers to the nozzle overall length :
C mm long.
D refers to the filament diameter:
1.75 or 2.85 mm
E refers to the nozzle diameter:
15,25, 40, 60, 80 ... mm/100
|Freight Weight||5 g|
|Dimensions||3.5 × 3.5 × 1.5 cm|
0.25, 0.40, 0.60, 0.80
Technical Data Sheet
|M6×1×7.5×12.5 1.75||M6×1×5×13 1.75||M6×0.75×5×13 1.75||M6×1×5.5×14 1.75|
E3D V4, V5 and V6 blocks
Wanhao i3 Mini
bq Hephestos 2
bq Prusa i3 Hephestos
bq Witbox 2
MakerBot Replicator 2
MakerBot Replicator 2X
Creality Ender 2
Creality Ender 3 Pro
Creality CR-20 Pro
Creality Ender 5
Creality CR-10 V2
Creality CR-10 Max
Creality CR-10S Pro
Creality CR-10S Pro V2
Raise 3D Pro2
Raise 3D Pro2 Plus
