LGX Lite Toolhead Setup For Voron V0.1

LGX Lite Toolhead Setup For Voron V0.1

An alternative to the Voron original setup

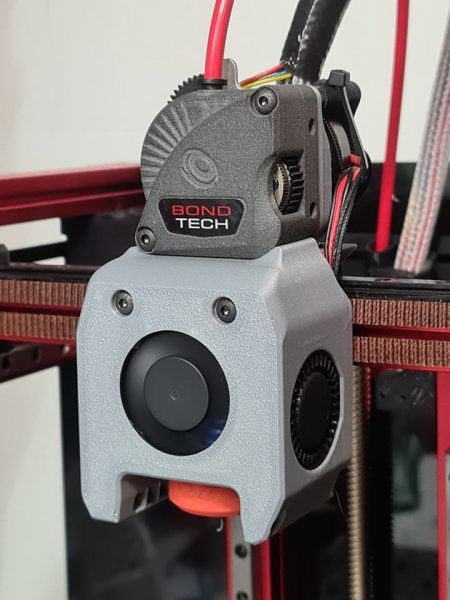

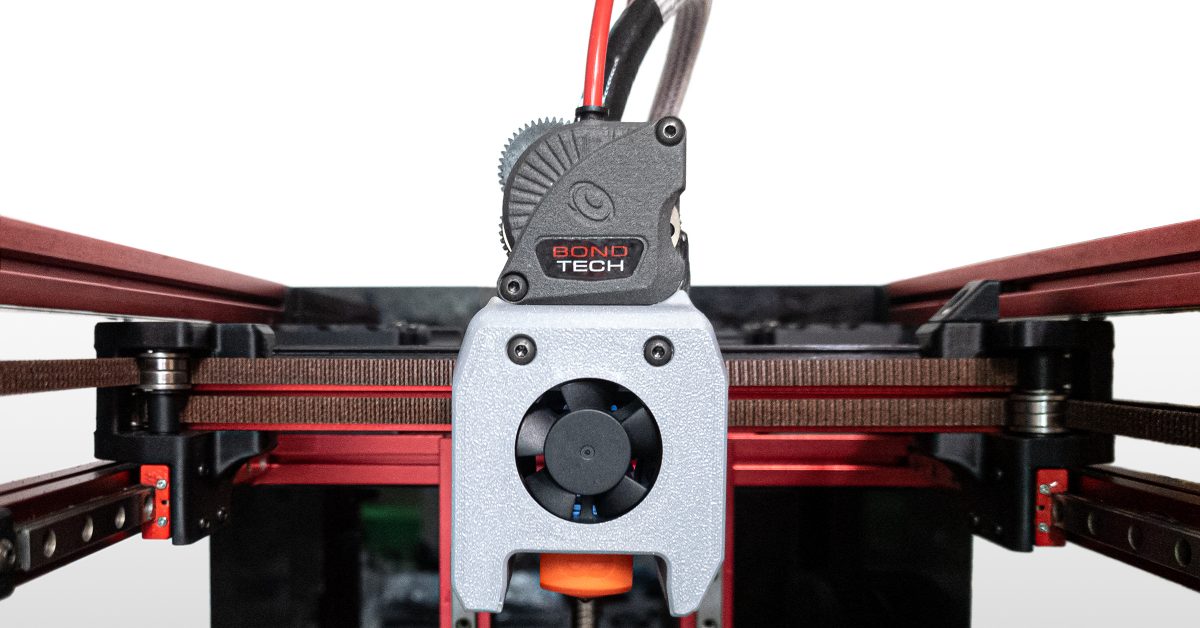

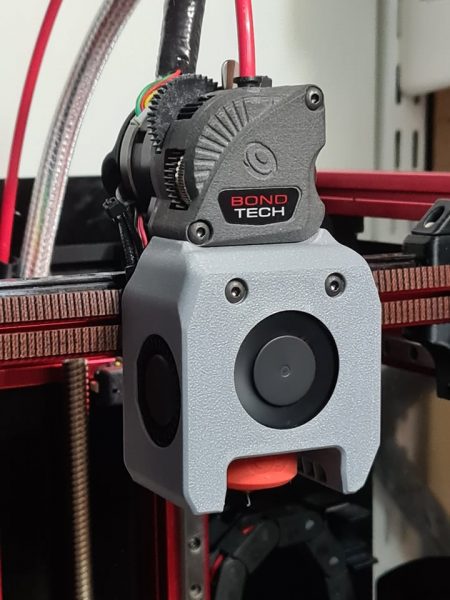

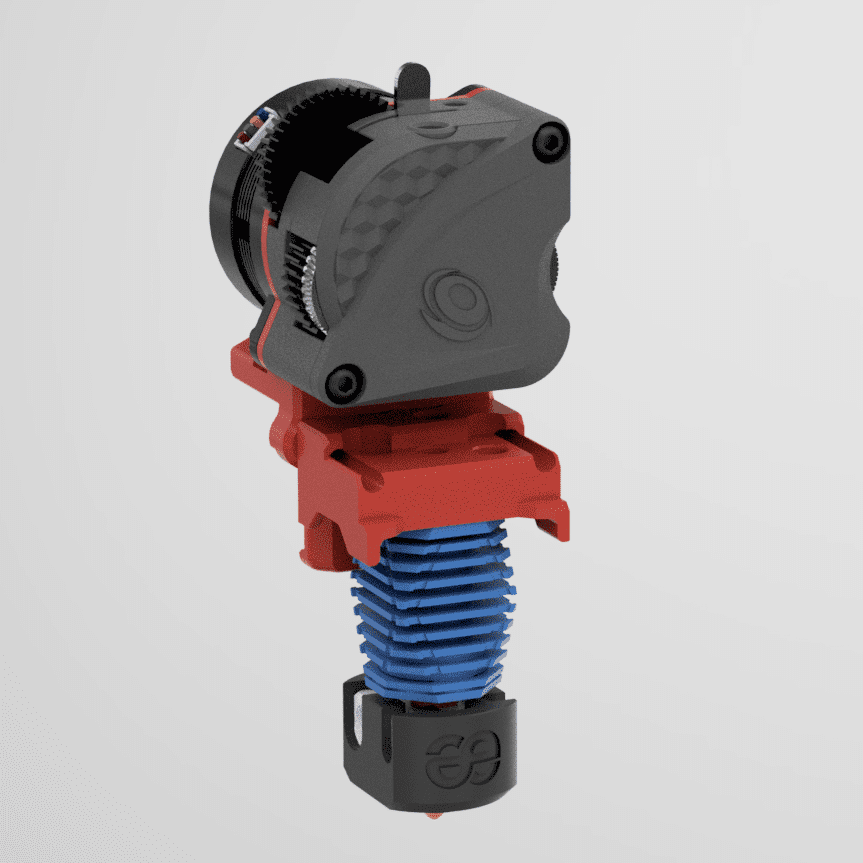

The Mini After-LGX-Lite

We are expecting Nemgrea to publish soon an official Voron V0.2 toolhead release to support the LGX Lite in the Future.

Meanwhile, Olof Ogland designed and tested already an alternative setup that you can use or adapt right now.

The main difference of this setup lies on the cowling. Olof’s cowling keeps the LGX Lite fully visible and accessible.

This project also includes:

  • Mounts for several hotends;

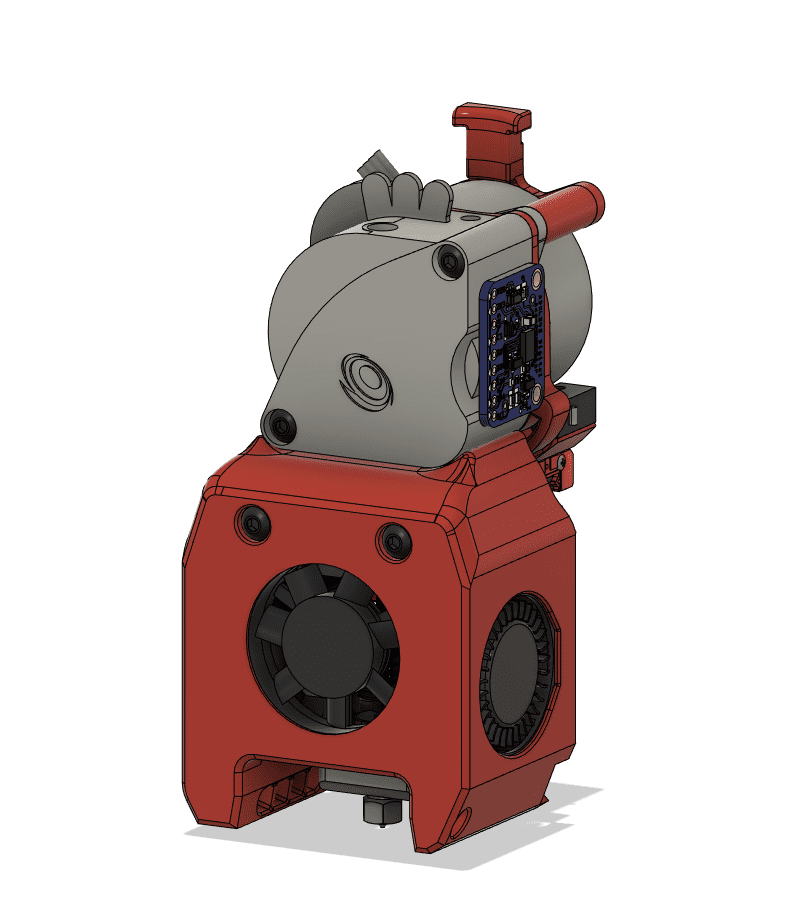

  • AdaFruit and Generic ADXL345 accelerometer mounts – for Klipper’s input shaping tuning;
  • Z-axis Bed Adjustable Y offset set – to allow the print bed to move back and forth from -1 up to +3.5 mm.
  • Klicky – a z-probe mount that attaches with magnets

License and Credits

License:
https://github.com/VoronDesign/Voron-0/blob/Voron0.1/LICENSE

Original source:
https://github.com/VoronDesign/Voron-0

Credits:
Nemgrea, DaveR, JosAr

Source for Klicky integration:
https://github.com/jlas1/Klicky-Probe

Click the button below to send us a message. Let us know if you would buy this Mini After-LGX-Lite plastic parts set from Bondtech, made of PA12 using laser sintering. Tell us also about the other parts. Would you need them as well?

Click here to send us feedback

Find all the forked files below.

Most screws required to perform the installation should be already on your kit. You may need some additional sizes and types. The following list identifies them:

  • 2x M3x6 BHCS for belts
  • 2x M3x30 BHCS for lgx lite
  • 4x M2.5×6 low profile for copperhead

Because the Download STL File buttons are pointing to STL files, and not to ZIP archives,
right-click the blue buttons and use “Save Link As” to download the STL files.

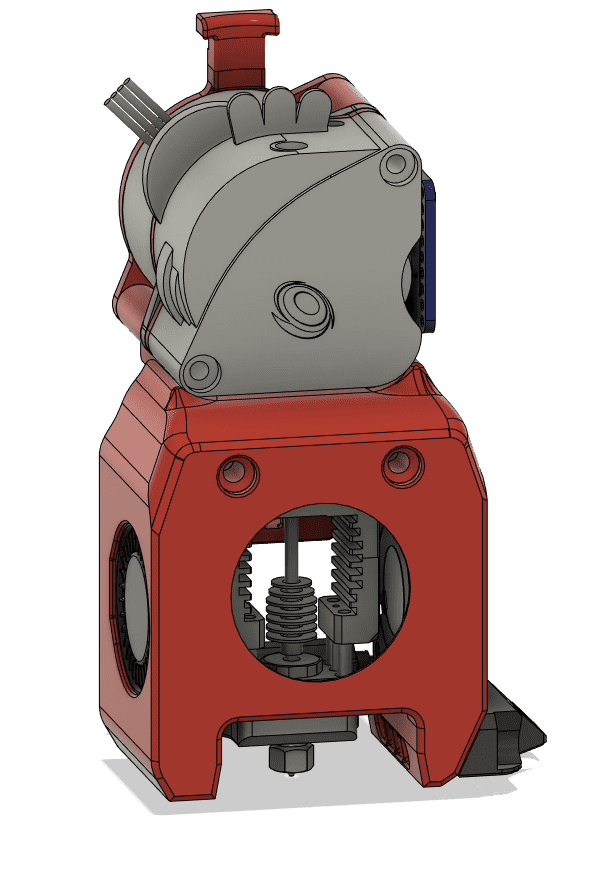

Cowling Universal
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

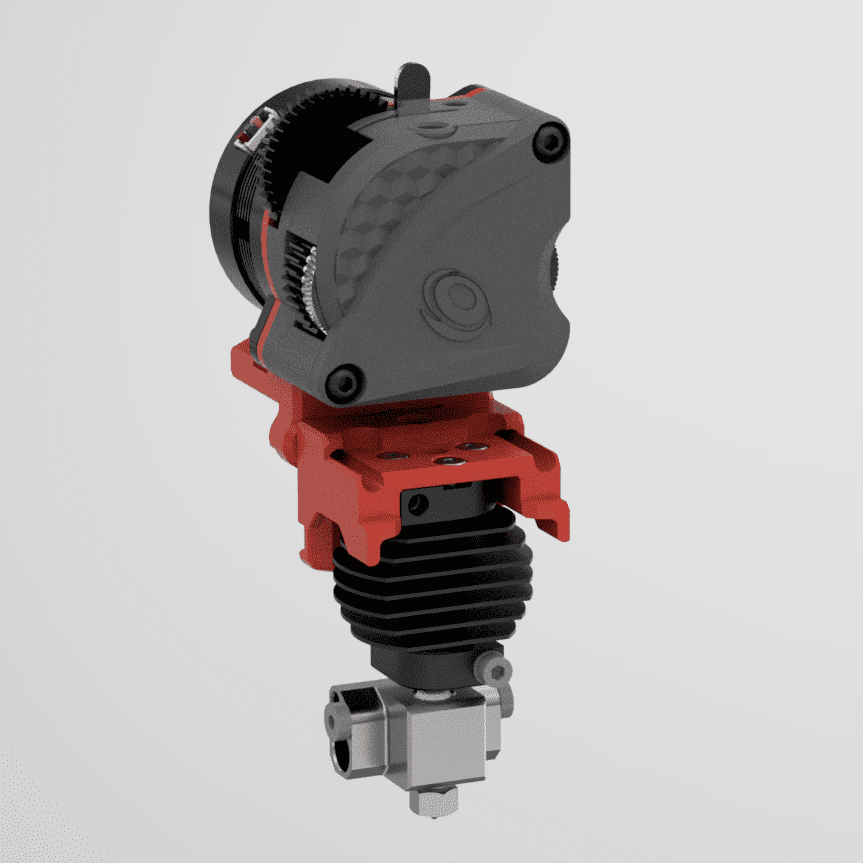

Hotend Mount MOSQUITO 3007 Fan
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Hotend Mount MOSQUITO 3010 Fan
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Hotend Mount COPPERHEAD Screw Mount 3007 Fan
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Hotend Mount COPPERHEAD Screw Mount 3010 Fan
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Hotend Mount DRAGON 3007 Fan
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Hotend Mount DRAGONFLY 3007 Fan
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Hotend Mount DRAGONFLY 3010 Fan
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Klicky
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Strain Relief
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Strain Relief Spacers
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

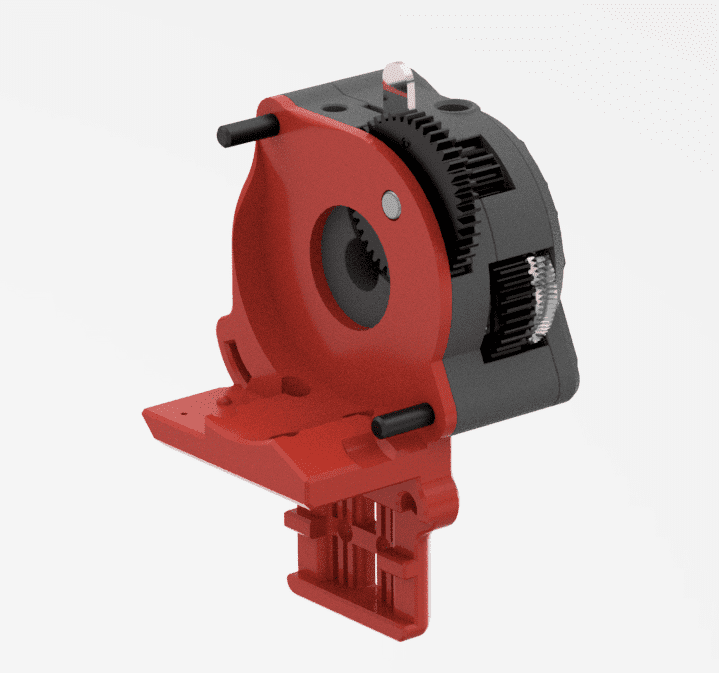

X-Carriage
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Because the Download STL File buttons are pointing to STL files, and not to ZIP archives,
right-click the blue buttons and use “Save Link As” to download the STL files.

AdaFruit ADXL345 Adapter
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Generic ADXL345 Adapter

Keep in mind that the ADXL345 generic mount is experimental and your model may vary. Use the step file to adjust this to your requirements.

Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

PTFE Cutting Jig
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Because the Download STL File buttons are pointing to STL files, and not to ZIP archives,
right-click the blue buttons and use “Save Link As” to download the STL files.

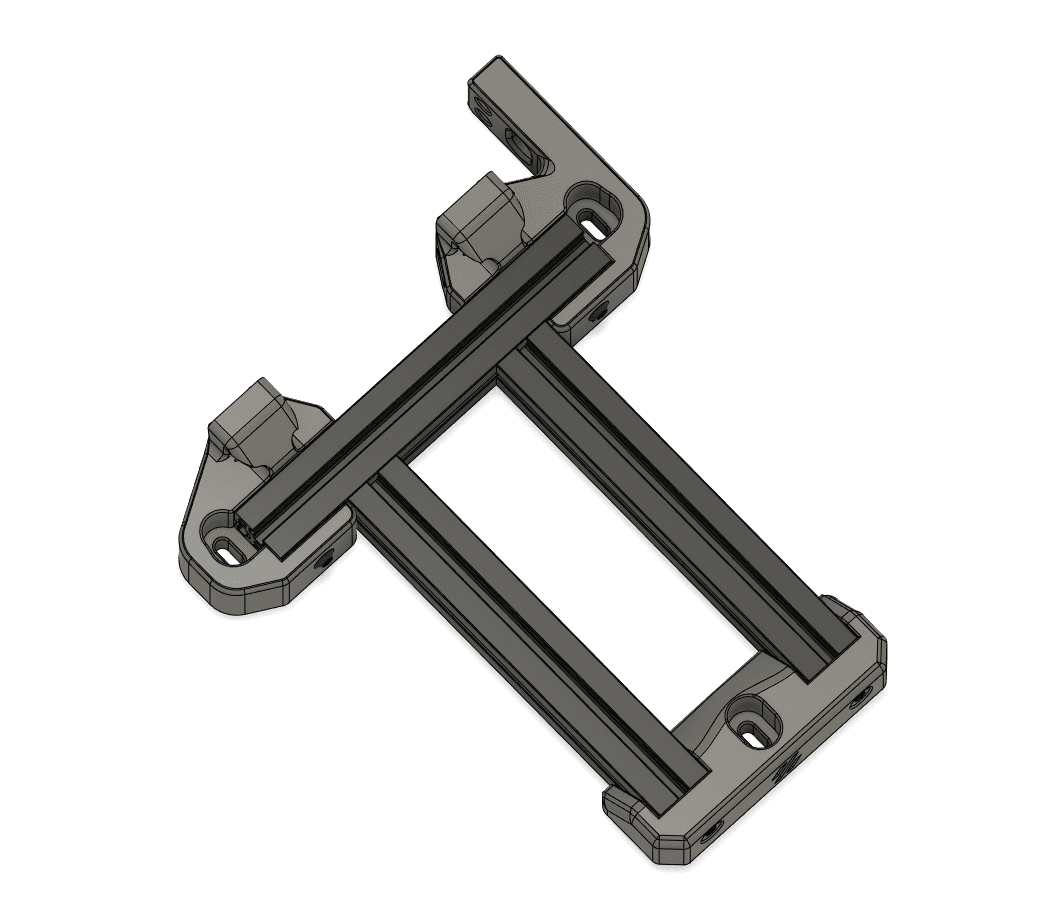

Front Bed Mount
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Rear Bed Mount Left
Download STL FIle


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Rear Bed Mount Right
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Front Bed Mount LGX Lite Spacer
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Rear Bed Mount Left LGX Lite Spacer
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

Rear Bed Mount Right LGX Lite Spacer
Download STL File


Roll back and forth to zoom in and out.
Click and drag to rotate the view.

+
