Bondtech Upgrade Kit LGX Lite Arrow for Creality CR-6 SE/Max CR-10 Smart

Bondtech

/

Shop

/

Upgrade Kits

/

LGX Lite Arrow Upgrade Kit for Creality

LGX Lite Arrow Upgrade Kit for Creality


Price:

$129.80

Only 5 left in stock (can be backordered)

Upgrade kit with LGX Lite V2 eXtruder to use on:

  • Creality CR-6 SE;
  • CR-6 Max;
  • CR-10 Smart.

NEW : Featuring the Bondtech black sleek look

The LGX Lite Arrow for Creality and LGX Lite V2 eXtruder plastic parts are now stronger – made of PA12 GF Polyamide 12 Glass Filled – and look even better with the sleek Bondtech black dye.

Always check below if we have Product Alerts you should be aware of before buying.

You may need

+
This product has multiple variants. The options may be chosen on the product page
+
This product has multiple variants. The options may be chosen on the product page

LGX Lite Arrow for Creality Advantages

  • It converts the compatible printers from Bowden to direct extruder.
  • Extra load on strain gauge is limited to the LGX Lite itself.
  • Housing is light and insulated from the Extruder to allow for strain gauge levelling.
  • It is compatible with all stock hotends and cooling fans.
  • Housing is easy to remove for maintenance and service of the hotend and extruder.
  • Z-position of the fan shroud may be adjusted.

LGX Lite Arrow for Creality Features

Weight: 65g (mounting hardware) / 143g (extruder with motor)
E-steps : 562 @ 16 microsteps.
Klipper’s rotation_distance : 5.7.
Stepper motor current : 0.45 to 0.65A max.
Max operating temperature : 90°C.
It may be upgraded with Slice Engineering hotends:

  • Copperhead Screw Mount;
  • Mosquito;
  • Mosquito Magnum;

LGX Lite Arrow for Creality Includes

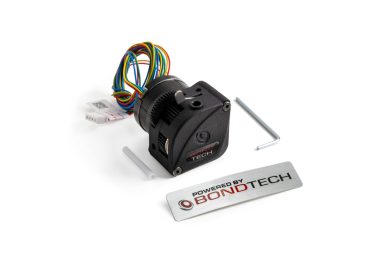

  • 1X LGX Lite V2 eXtruder with motor
  • 1x LGX Lite eXtruder mounting set
    • 1x PA12 extruder mount
    • 1x PA12 hotend mount
    • 4x M3x6 button head screw
    • 2x M3x10 button head screw
    • 2x M3x8 button head screw
    • 1x M3x30 screw
    • 1x M3 square nut
    • 1x Capricorn cutting fixture
    • 1x 70mm Capricorn tube
  • 1x LGX Lite Arrow housing set
    • 1x PA12 front housing
    • 1x PA12 left wing
    • 1x PA12 right wing
    • 1x PA12 top lid
    • 1x PA12 fan shroud
    • 1x PA12 (breakout board/cables) cover
    • 2x M3x8 button head screw
    • 1x M3x16 screw
    • 2x M3x20 MC6S screw
    • 3x M3 square nut
  • 1x Powered by Bondtech sticker
Freight Weight 350 g
Dimensions 16 × 11.5 × 10.5 cm

Quick Start and Setup Guides

Click one image below to open/download a PDF file with the step by step guide that best fits your case.

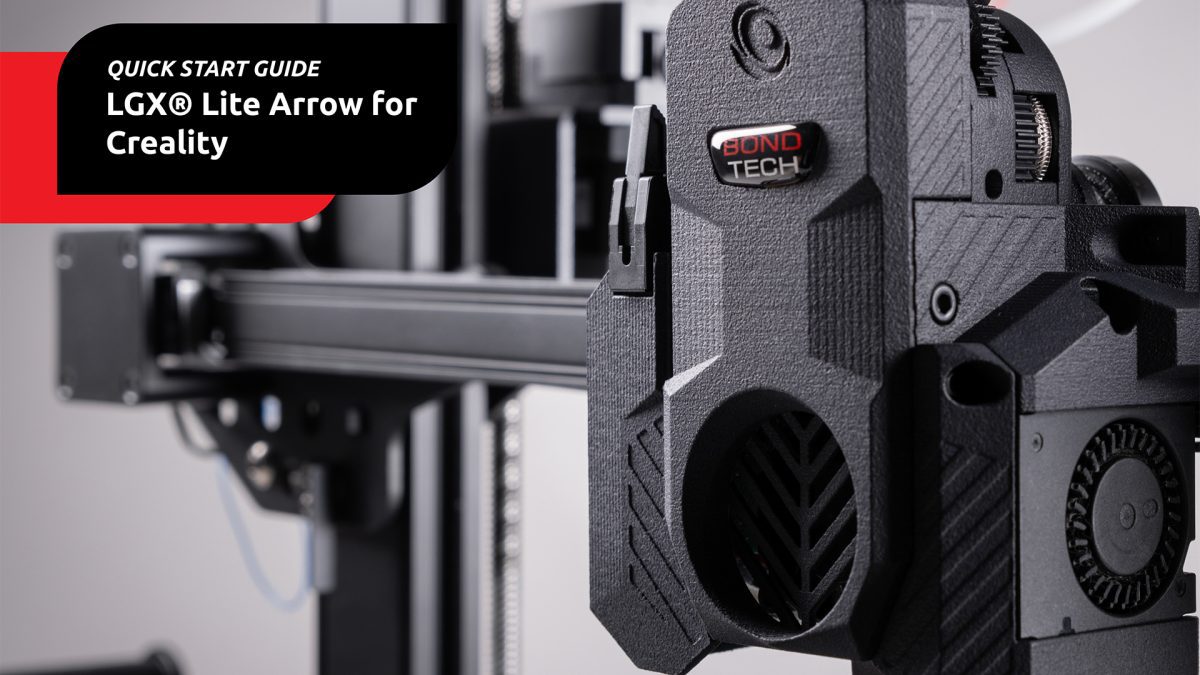

Quick Start Guide

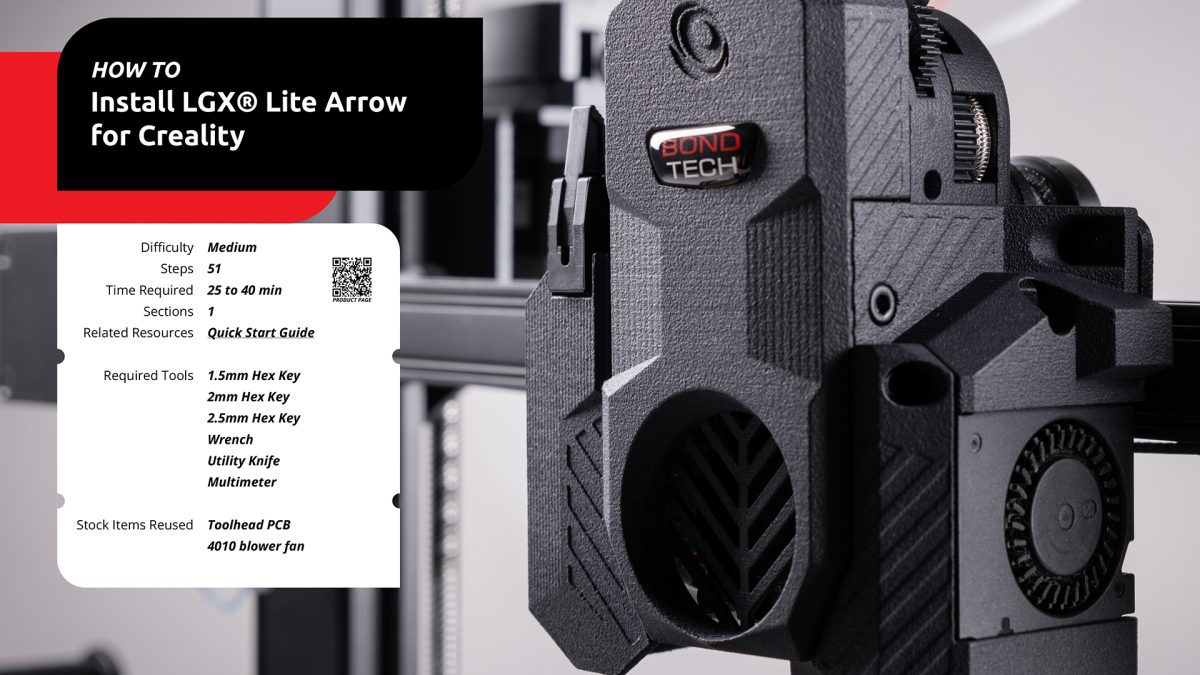

How To Install A LGX Lite V2 Arrow for Creality

Watch a video instead

Check the “Print Profiles” tab to download ready to work print settings for PLA.

Compatible Hotends

The following hotends are compatible with our LGX Lite Arrow set:

  • Creality stock hotend
  • Micro-Swiss All-metal for CR-6 SE / CR-6 MAX / CR-10 Smart
  • using the Hotend Upgrade Set:
    • Copperhead (screw mount only)
    • Mosquito
    • Mosquito Magnum

Technical Data Sheet

Print Profiles

We currently have the following Print Profiles to use the LGX Lite Arrow:

The profile above can also be used on the CR-6 Max and CR-10 Smart, just by adding these new printers to the Printer Settings list.Change the bed shape and Z-height and save the Printer Settings with a new name.
