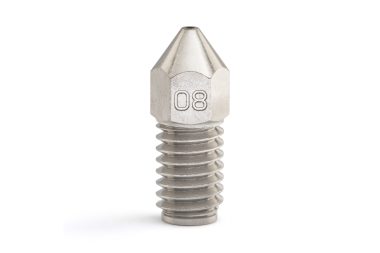

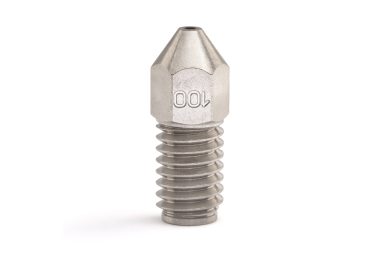

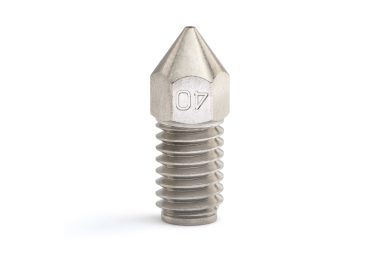

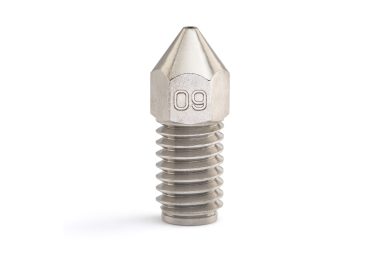

Bondtech CHT ® CSP Spider Coated Brass Nozzle 4 pack

Bondtech CHT ® CSP Spider Coated Brass Nozzle 4 pack

All nozzles in this Bondtech CHT ® CSP (Creality SPider) nozzle increase the melting capacity of your hotend, to build faster and to save your time. They also improve the layer adhesion of your 3D prints to create stronger parts.
Find the compatibility list and product alerts tabs below.

Features:

  • Brass body;
  • Nickel Coating;
  • 1 unit per pack;
  • Sizes included : 0.40, 0.60, 0.80, and 1.0mm;
  • Optimized for 1.75mm filament;
  • Compatible with 2.85mm filament.
  • Requires 6mm wrench

Buy the Pack, Save 15%

Price:

$77.86

In stock (can be backordered)

Select Currency

Select Country

Core Heating Technology is patented.

In Europe : Registration number: EP3445568A1 : Publication Date: 2021-12-01
In the U.S. : Registration Number : US11712847B2 : Publication Date: 2023-08-01

Nozzles for 3D printers made of metal with at least one or a multitude of holes to increase the standard circular surface area of the heating walls.

Bondtech CHT ® CSP (Creality SPider) Coated Brass Nozzle Advantages

  • Higher melt capacity by increasing the surface area of the heating walls
  • Flow Rate gains between 25 and 65% (material and settings dependent)
  • Competitive price/performance price
  • Machined with ultra-precision
  • Brass nozzle with Nickel coated surface
  • Follows nozzle standard:
    • Spider (M6×1×9×16.8)
  • May be used with 1.75 or 2.85mm hotends.

Flow Rate gains may vary. Results depend on the hardware, materials and print settings used.

Check the White Paper:

"Increasing Melt Capacity With 3 Nozzle Features"

Click here to know more about the Bondtech CHT ® nozzles.

Advantages of the Bondtech CHT ® technology:

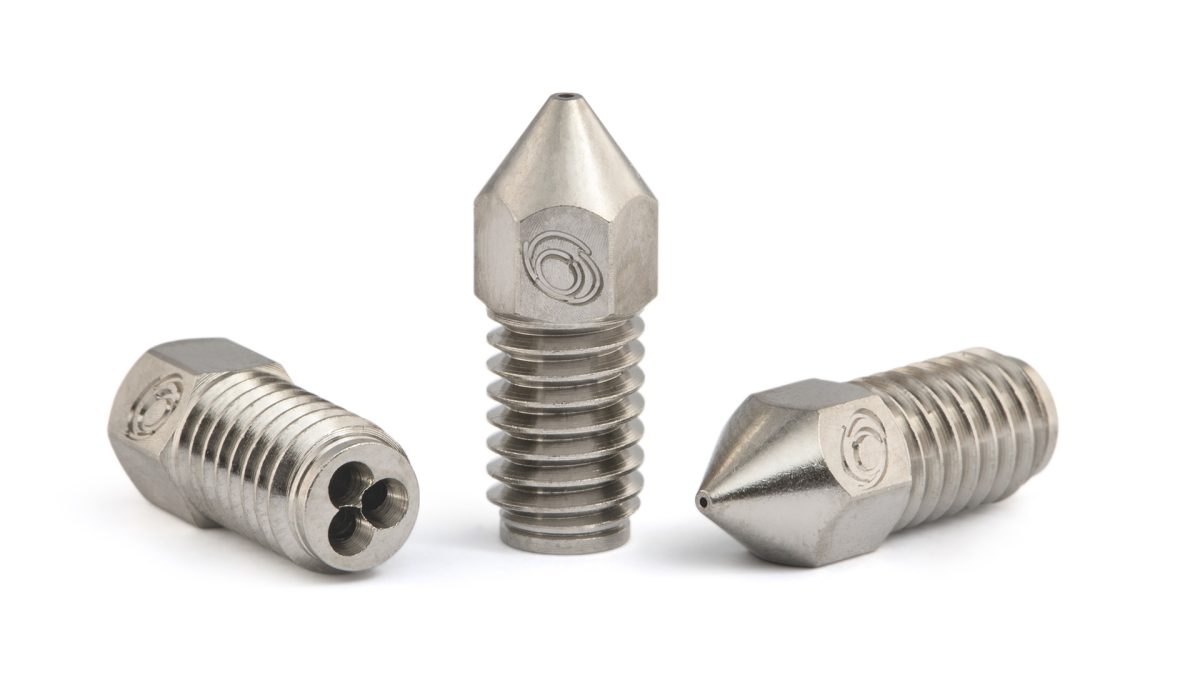

Bondtech CHT ® nozzles split the filament into 3 thinner strands allowing to melt the material from within. In doing so, the material melts faster and higher flow rates can be used.

Core Heating is a patented technology

Registration number: EP3445568A1
Nozzles for 3D printers made of metal with at least one or a multitude of holes to increase the surface area of the heating walls.

Advantages of the Nickel Coating

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction, which allows slicker feeding of material and delays plastic adhesion to the nozzle's surface.


Recommended Materials

Use this nozzle with the following materials:

  • PLA
  • ABS
  • HIPS
  • PC
  • TPU
  • TPE
  • Nylon
  • PETG
  • ASA
  • PP
  • PVA

For technical and abrasive materials we recommend to use other nozzles in our range.

Different nozzle sets for different materials

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.

Freight Weight 18 g
Dimensions 3.5 × 3.5 × 2.5 cm
Nozzle size

0.40, 0.60, 0.80, 1.00

Product ALERTS

ALERT : Avoid Cold Bondtech CHT BiMetal MK8 Nozzles Change

Heat up the heat block up to 280C, or at least above 250C, before removing or tightening any Bondtech CHT BiMetal nozzle. Use at most 1.5 Nm torque.

Compatibility List

The Bondtech CHT CSP nozzles are compatible with the following hotends:

  • Creality Spider hotend (V1)

The Creality Spider hotend may be used on the following Craslity 3D printer models:

  • Ender-3 / Ender-3 Max / Ender-3 Pro / Ender-3 V2
  • Ender-5 / Ender-5 Plus / Ender-5 Pro
  • Ender-6
  • Ender-7
  • CR-10 series
  • CR-10S series
  • CR-20 series

Technical Data Sheet
