Secondary Drive Gear 1.75/5mm set
Complementary to IDGA and RIDGA sets
Use this product to complete a mini Bondtech Dual Drive gears set if you have, or want to buy, a RIDGA or IDGA integrated primary drive gear assembly.
OEM set for 1.75mm filament type extruders.

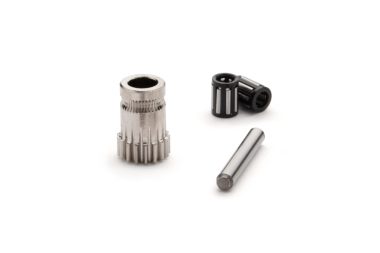

This set includes the following components:
- 1x Secondary gear with inner diameter 5 mm;
- 2x needle bearings;
- 1x 3×20 mm shaft.
Price:
$11.00
In stock (can be backordered)
Chose Currency / Country
Select Currency
Select Country
Description
This set installs on the mobile hinge of your extruder.
The following extruders are compatible with the secondary drive gear and needle bearings of this set:
- From Bondtech
- All Bondtech BMG type extruders;
- All DDX Direct Drive eXtruders for Creality versions;
- All Bondtech BMG type extruders for Prusa i3 and Mini;
- BMG-HT for Intamsys;
- From the Voron Open Source Project:
- ClockWork / CW1;
- ClockWork 2 / CW2;
- Pocket Watch;
- Mini AfterBurner / Min AB;
- Mini StealthBurner / Mini SB;
- M4/Mobius;
- Other Open Source extruders:
- HextrudORT;
- SherpaMini;
- Galileo;
- Other…
NOTE: Some Open Source extruders in the list above may require a different shaft length.
Check the “You May Need column” or use this link to add another shaft you may need for your extruder.
Additional information
| Freight Weight | 6 g |
|---|---|
| Dimensions | 8 × 6 × 1 cm |
IDGA / RIDGA Compatibility Table
IDGA / RIDGA Compatibility Table
Rotate the phone 90 degrees to update the chart.
