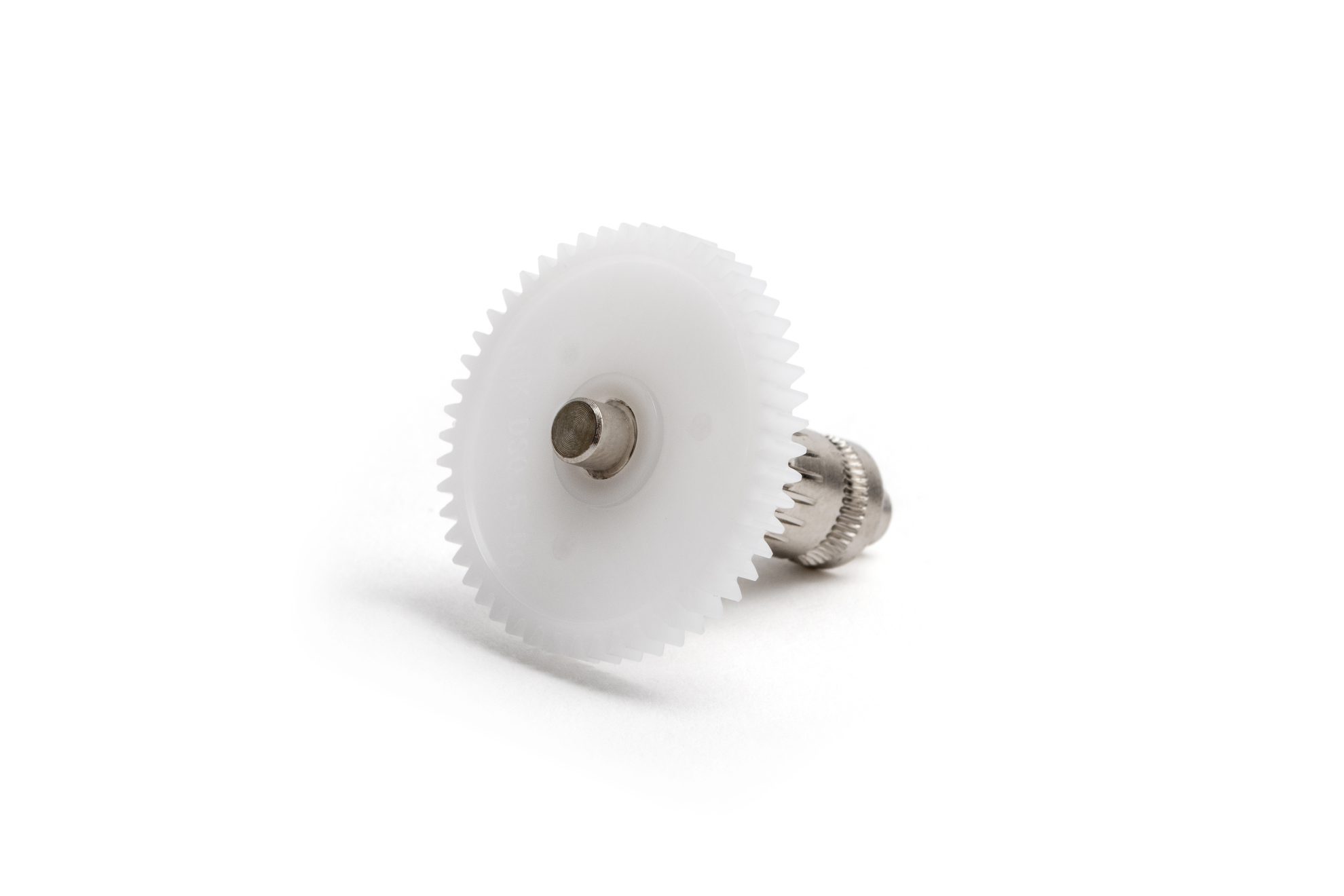

DDX Integrated Drive Gear Assembly

Price:

$16.00

In stock (can be backordered)

Integrated Drive Gear Assembly compatible with:

Bondtech DDX for Creality extruder

V1, V2 and V3.

Bondtech BMG-HT for FunMat HT

Be aware the shaft is 28.1mm long
not compatible with the Bondtech BMG extruder

We recommend using 4x8x3.0 mm ball bearings (NOW INCLUDED).

Always check below if we have Product Alerts you should be aware of before buying.

You may need

Ballbearing 4x8x3.0

$1.50

Secondary Drive Gear 1.75/5mm set

$11.00

Description

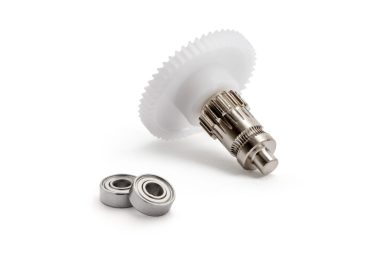

This Assembly replaces the following mini drive train items:

Main shaft;
Main gear;
Set screw;
Primary drive gear.
2x 4x8x3.0 mm ball bearings

Technical Specification

Shaft length: 28.1 +/-0.08mm
Shaft length to support ball bearings : < 3.3mm – 3.3mm >
Filament teeth’s center to end of shaft : < 21.84mm – 6.30mm >
Number of drive gear teeth : 17
Drive gear teeth length : 4mm
Mainshaft/drive gear Material: Hardened Steel
Materials Compatibility:
- Flexible : yes;
- Rigid : yes;
- Abrasive : yes.
Number of main gear teeth : 50
Main gear teeth length : 3mm
