OEM IDGA Integrated Drive Gear Assembly Set for Voron ClockWork 2 (CW2)

Bondtech

/

Shop

/

Accessories

/

OEM IDGA Set

OEM IDGA Set


Price:

$18.00

In stock (can be backordered)

Reduce the runout of the main drive gear on your Dual Drive extruder.

A very solid, reliable and improved solution from Bondtech that provides a slight improvement to the print surface quality.

Compatible only with the following extruders:

  • Voron ClockWork 2 (CW2)

Always check below if we have Product Alerts you should be aware of before buying.

When adapting this piece of hardware into your design, make sure to allow for a bit of axial play in both directions, in order for the filament path to retain some level of self-correction.
The bearing facing the motor face should have about 0.4 mm of material between it and the motor face in order for the plastic gear to retain as much engagement as possible.
Please contact us if you have further questions regarding integrations.

This main drive gear assembly set includes:

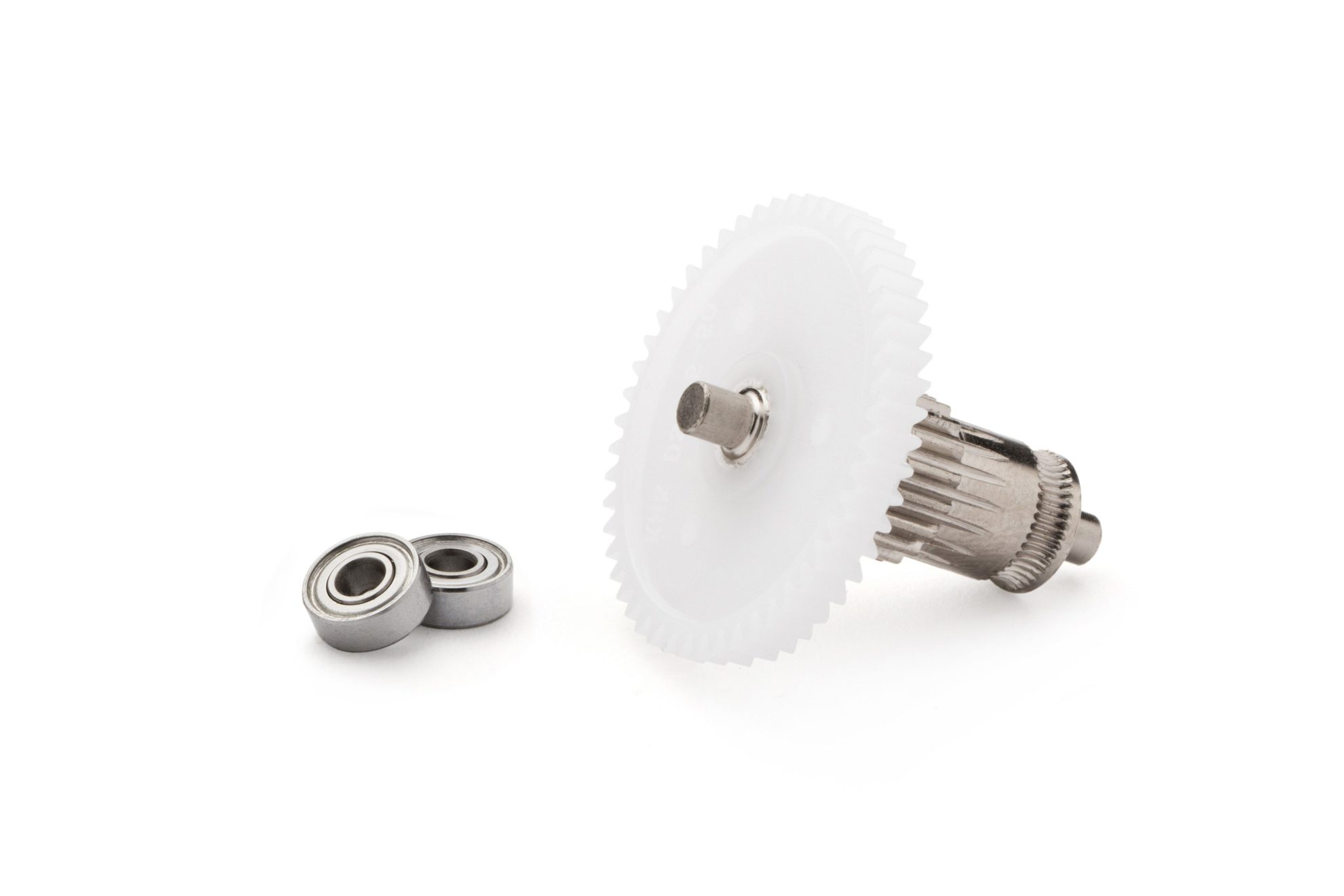

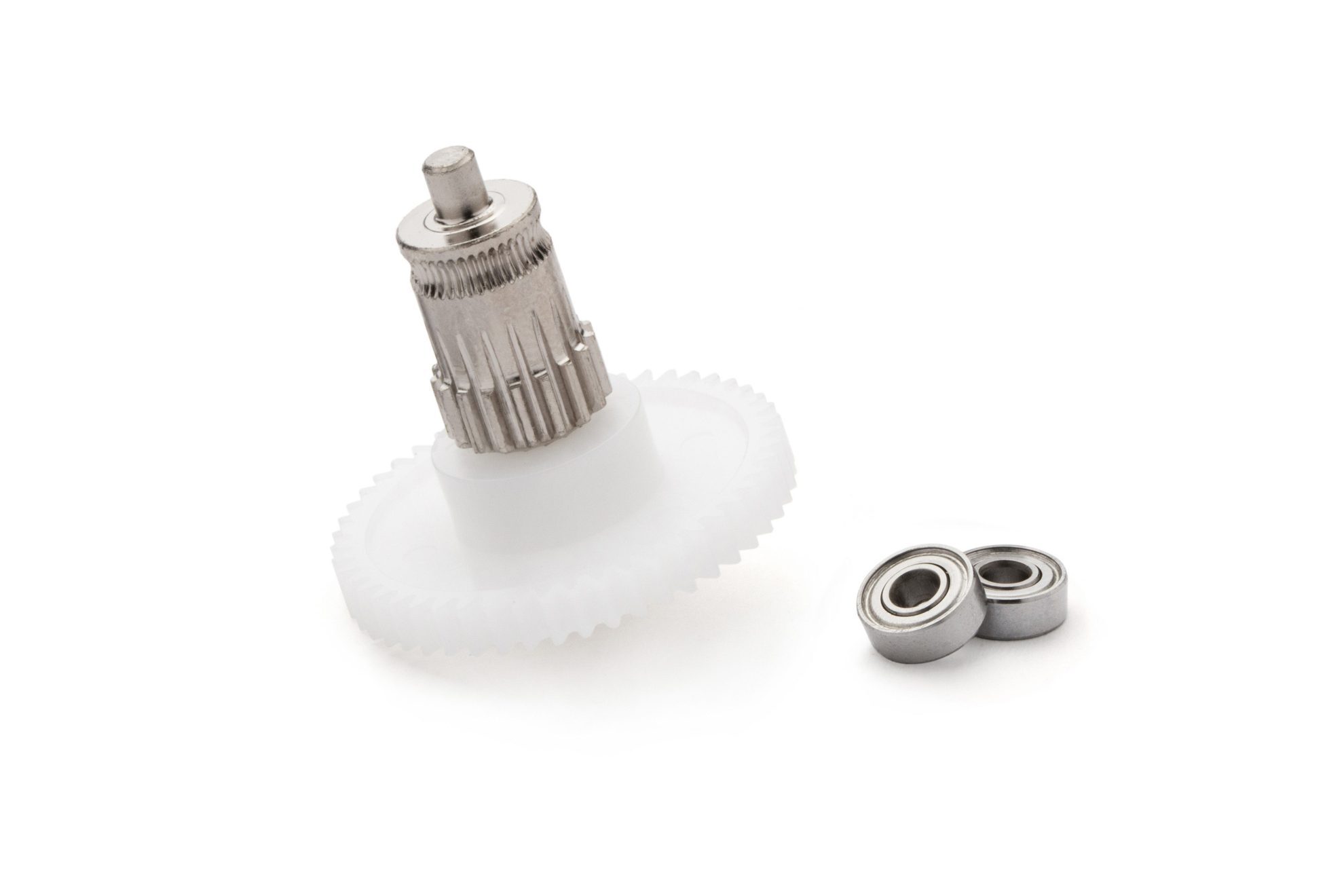

  • 1x 15168 OEM IDGA Integrated Drive Gear Assembly;
  • 2x MR85ZZ 5x8x2.5mm ball bearing.

The OEM IDGA is designed to allow for maximum compatibility with the following Open Source extruder:

  • Voron CW2 extruder.

It must be used with 5x8x2.5 mm ball bearings (INCLUDED).

This IDGA, Integrated Drive Gear Assembly, replaces the following mini drive train items:

  • Main shaft;
  • Main gear;
  • Set screw;
  • Primary drive gear.

Technical Specification

  • Shaft length: 27.8 +/-0.03mm
  • Shaft length to support ball bearings : Main Gear side < 2.60 +/-0,03mm - 2.60 +/-0,03mm > filament teeth side
  • Filament teeth’s center to end of shaft : Main Gear side < 22.2mm - 5.60 +/-0.04mm > filament teeth side
  • Number of drive gear teeth : 17
  • Drive gear teeth length : 4mm
  • Integrated drive gear Material: Hardened Steel
    Materials Compatibility:

    • Flexible : yes;
    • Rigid : yes;
    • Abrasive : yes.
  • Number of main gear teeth : 50
  • Main gear teeth length : 3mm
Freight Weight 10.6 g
Dimensions 8 × 6 × 2.49 cm

IDGA / RIDGA Compatibility Table

SKU

15119

15149

15165

15167

15169

Short Name

DDX IDGA

OEM RIDGA

BMG IDGA

OEM RIDGA v2

OEM IDGA

Ballbearings

4x8x3 mm

4x8x3 mm

3x8x3 mm

5x8x2.5 mm

5x8x2.5 mm

BMG-HT











All Bondtech DDX











All BMG / BMG-M











All BMG-X2 / BMG-X2-M











All Bondtech kits for Prusa











HextrudORT











Sherpa Mini











Voron Mini StealthBurner











Voron CW1











Voron CW2











Comments

Name updated
Replaced

Name updated
Replaced

Available now

Available now

Available now

SKU >

15119

15149

15165

15167

15169

Short Name >

DDX IDGA

OEM RIDGA

BMG IDGA

OEM RIDGA v2

OEM IDGA

Ballbearings

4x8x3 mm

4x8x3 mm

3x8x3 mm

5x8x2.5 mm

5x8x2.5 mm

BMG-HT











All Bondtech DDX











All BMG / BMG-M











All BMG-X2 / BMG-X2-M











All Bondtech kits for Prusa











HextrudORT











Sherpa Mini











Voron Mini StealthBurner











Voron CW1











Voron CW2











Comments

Name updated
Will be replaced later

Name updated
Being replaced now

Available now

Available now

Available now

Rotate the phone 90 degrees to update the chart.

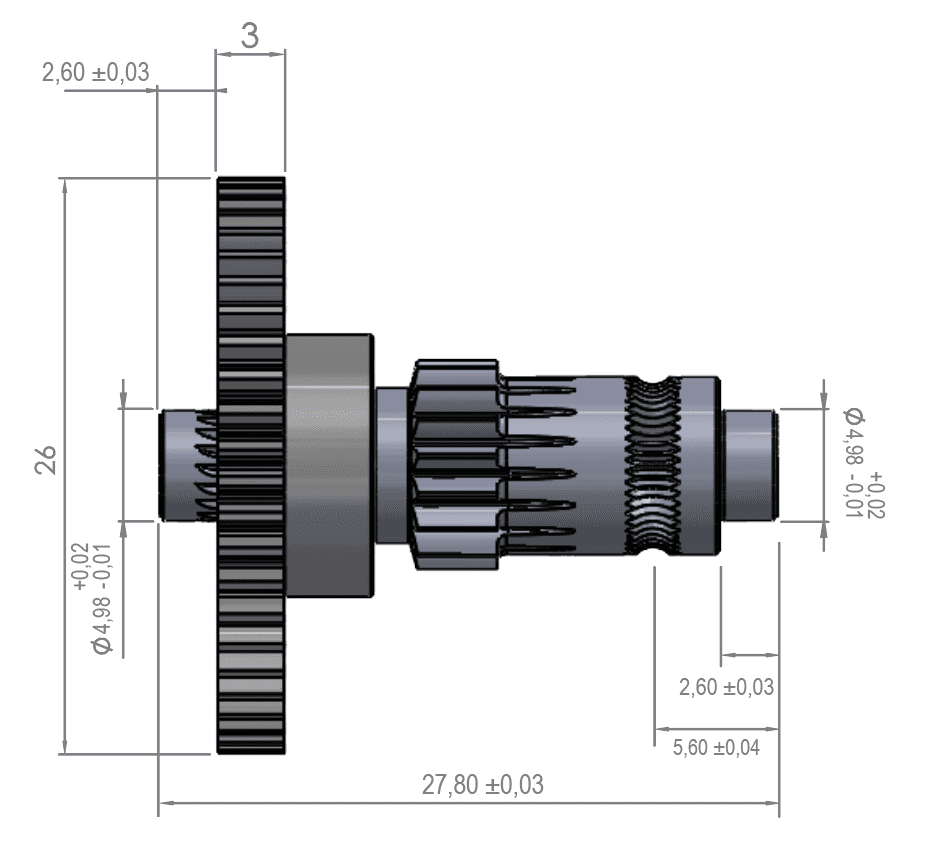

Technical Drawing
