Reversed Integrated Drive Gear Assembly V2 for OEM and Open Source extruders

Bondtech

/

Shop

/

Accessories

/

OEM RIDGA (V2) Set

OEM RIDGA (V2) Set

Reduce the runout of the main drive gear on your Dual Drive extruder.

A very solid, reliable and improved solution from Bondtech that provides a slight improvement to the print surface quality.

Designed for the following Open Source extruders:

  • HextrudORT;
  • Sherpa Mini;
  • Voron Mini StealthBurner.

Why a V2?

The OEM RIDGA V2 allows for ideal engagement between main gear and an 8T or 10T motor gear, while retaining a safe distance between the stepper motor and gear assembly.

Price:

$18.00

In stock (can be backordered)

Select Currency

Select Country

When adapting this piece of hardware into your design, make sure to allow for a bit of axial play in both directions, in order for the filament path to retain some level of self-correction.
The bearing facing the motor face should have about 0.4 mm of material between it and the motor face in order for the plastic gear to retain as much engagement as possible.
Please contact us if you have further questions regarding integrations.

This main drive gear assembly set includes:

  • 1x 15166 OEM RIDGA Reversed Integrated Drive Gear Assembly;
  • 2x MR85ZZ 5x8x2.5mm ball bearing.

The OEM RIDGA V2 is designed to allow for maximum compatibility with the following Open Source extruders:

  • HextrudORT;
  • Sherpa Mini;
  • Voron Mini StealthBurner.

It must be used with 5x8x2.5 mm ball bearings (INCLUDED).

This RIDGA, Reverse Integrated Drive Gear Assembly, replaces the following mini drive train items:

  • Main shaft;
  • Main gear;
  • Set screw;
  • Primary drive gear.

Technical Specification

  • Shaft length: 26.6 +0/-0.05mm
  • Shaft length to support ball bearings : Main Gear side < 2.6mm - 2.8mm > drive gear teeth side
  • Filament teeth’s center to end of shaft : Main Gear side < 12.8mm - 13.8mm > drive gear teeth side
  • Number of drive gear teeth : 17
  • Drive gear teeth length : 4mm
  • Integrated drive gear Material: Hardened Steel
    Materials Compatibility:

    • Flexible : yes;
    • Rigid : yes;
    • Abrasive : yes.
  • Number of main gear teeth : 50
  • Main gear teeth length : 3mm
Freight Weight 10 g
Dimensions 8 × 6 × 3 cm

OPEN SOURCE EXTRUDERS' DESIGN DISCLAIMER

When assembling an extruder, the sequence of component insertion of the RIDGA differs from the multi-piece version of the classic BMG main drive gear assembly. The drive gear section of the RIDGA can’t be inserted before the gear shaft because it is integrated. Needs a wider hole to pass through.

The Open Source extruder you printed may likely need a custom integration design to support the OEM RIDGA.

Please contact the designer or author of your extruder, or consult within its community, to get help with this.

IDGA / RIDGA Compatibility Table

SKU

15119

15149

15165

15167

15169

Short Name

DDX IDGA

OEM RIDGA

BMG IDGA

OEM RIDGA v2

OEM IDGA

Ballbearings

4x8x3 mm

4x8x3 mm

3x8x3 mm

5x8x2.5 mm

5x8x2.5 mm

BMG-HT











All Bondtech DDX











All BMG / BMG-M











All BMG-X2 / BMG-X2-M











All Bondtech kits for Prusa











HextrudORT











Sherpa Mini











Voron Mini StealthBurner











Voron CW1











Voron CW2











Comments

Name updated
Replaced

Name updated
Replaced

Available now

Available now

Available now

SKU >

15119

15149

15165

15167

15169

Short Name >

DDX IDGA

OEM RIDGA

BMG IDGA

OEM RIDGA v2

OEM IDGA

Ballbearings

4x8x3 mm

4x8x3 mm

3x8x3 mm

5x8x2.5 mm

5x8x2.5 mm

BMG-HT











All Bondtech DDX











All BMG / BMG-M











All BMG-X2 / BMG-X2-M











All Bondtech kits for Prusa











HextrudORT











Sherpa Mini











Voron Mini StealthBurner











Voron CW1











Voron CW2











Comments

Name updated
Will be replaced later

Name updated
Being replaced now

Available now

Available now

Available now

Rotate the phone 90 degrees to update the chart.

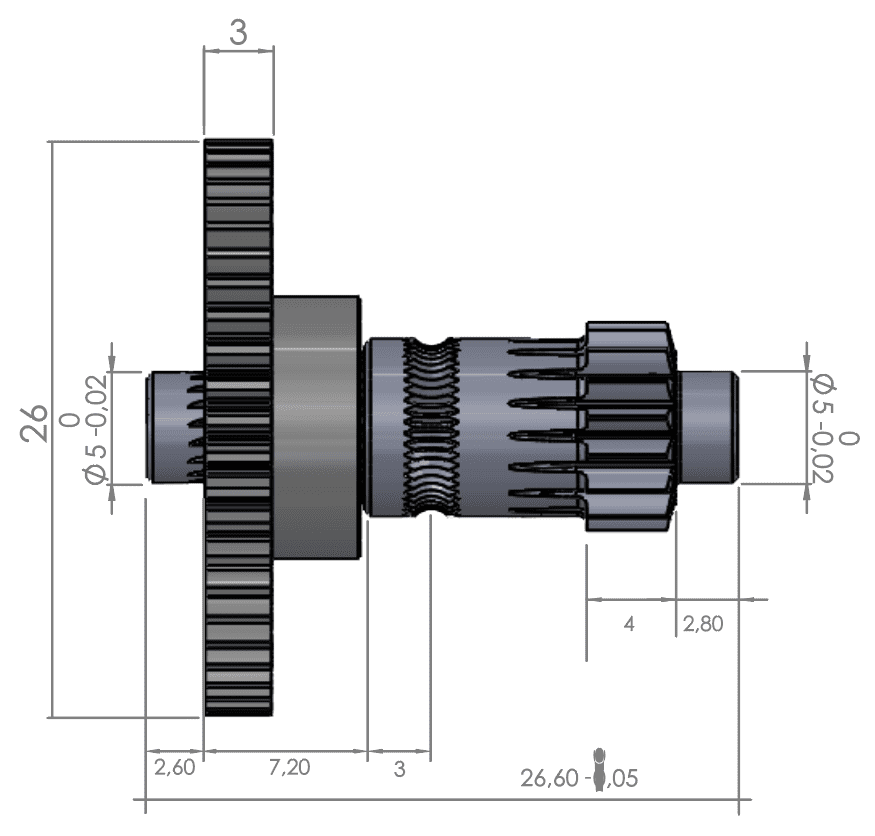

Technical Drawing
