OEM Reverse Set for HextrudORT
Price:
$34.90
In stock (can be backordered)
Original Bondtech OEM set of parts to use on the HextrudORT
from the HevORT project.Includes a set with the Hardened Steel R.I.D.G.A. V2 and BMG original 1.75mm secondary Drive Gear.
- Precision cnc-machined.
- Sharp teeth for maximum grip on the filament.
- The perfect choice for a high-performance feeding system.
- Extremely high wear resistance for use with abrasive filaments.
Always check below if we have Product Alerts you should be aware of before buying.
You may need
What is included
- 1x R.I.D.G.A. V2 – OEM Reverse Integrated Drive Gear Assembly
- 1x 1.75/5.0mm BMG Secondary Drive Gear
- with integrated needle bearings and one 3×20 mm shaft
- 1x 3×24 mm shaft
- 1x Thumbscrew Assembly
- 1x 4 mm Push-fit Collar
- 2x 5x8x2.5 Ball Bearing

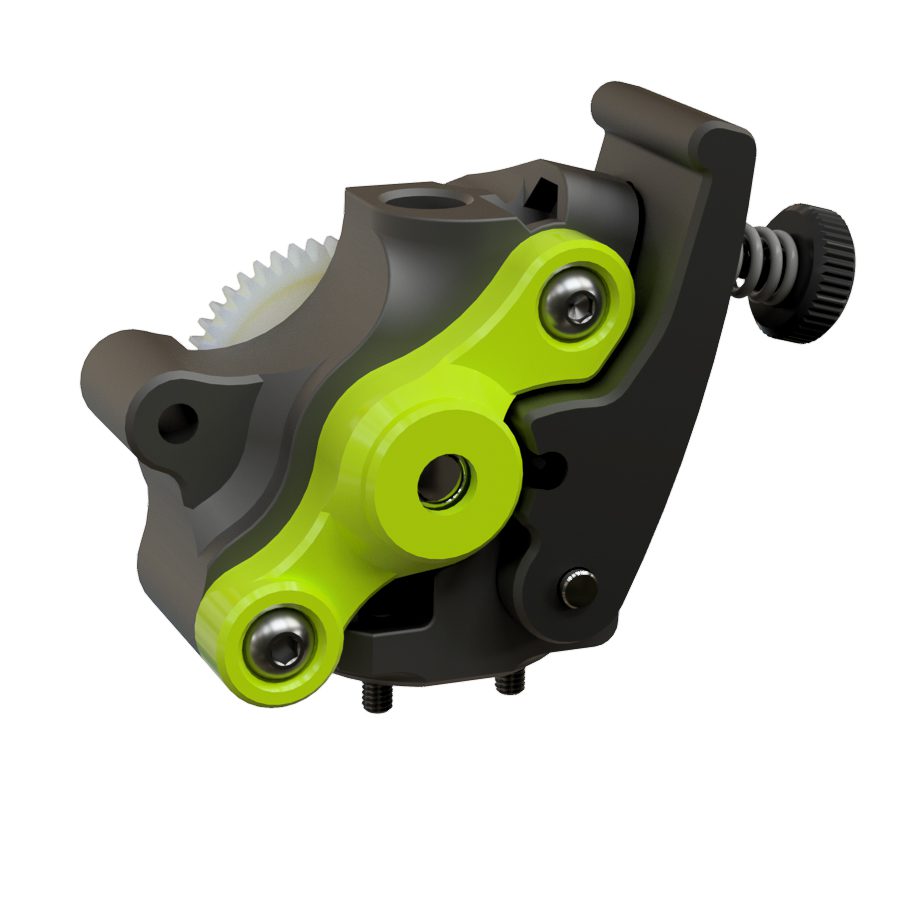

The new HextrudORT extruder
| Freight Weight | 24 g |
|---|---|
| Dimensions | 8 × 6 × 3 cm |
OPEN SOURCE EXTRUDERS' DESIGN DISCLAIMER
When assembling an extruder, the sequence of component insertion of the RIDGA differs from the multi-piece version of the classic BMG main drive gear assembly. The drive gear section of the RIDGA can’t be inserted before the gear shaft because it is integrated. Needs a wider hole to pass through.
The Open Source extruder you printed may likely need a custom integration design to support the OEM RIDGA.
Please contact the designer or author of your extruder, or consult within its community, to get help with this.

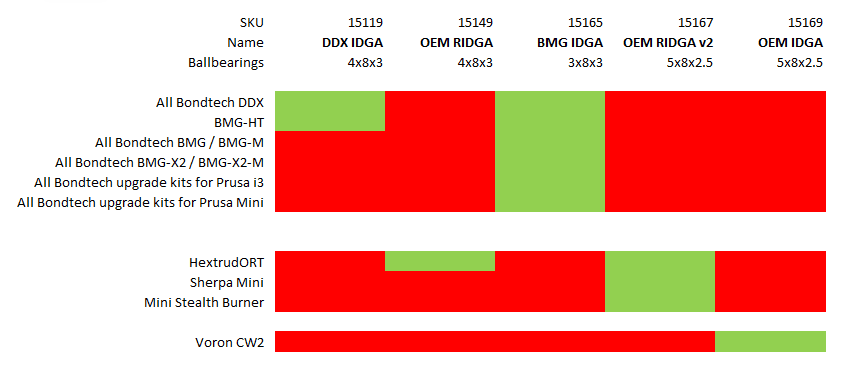

IDGA / RIDGA Compatibility Table
Rotate the phone 90 degrees to update the chart.
Technical Drawing (RIDGA V2)
