Drivegear kits
Price:
$27.00
Bondtech drive gear kit in hardened and surface protected steel.
Precision cnc-machined.
Super sharp teeths for maximum grip on the filament.
The perfect choice for a high-performance feeding system.
Extremely high wear resistance for use with abrasive filaments.
Always check below if we have Product Alerts you should be aware of before buying.
Description

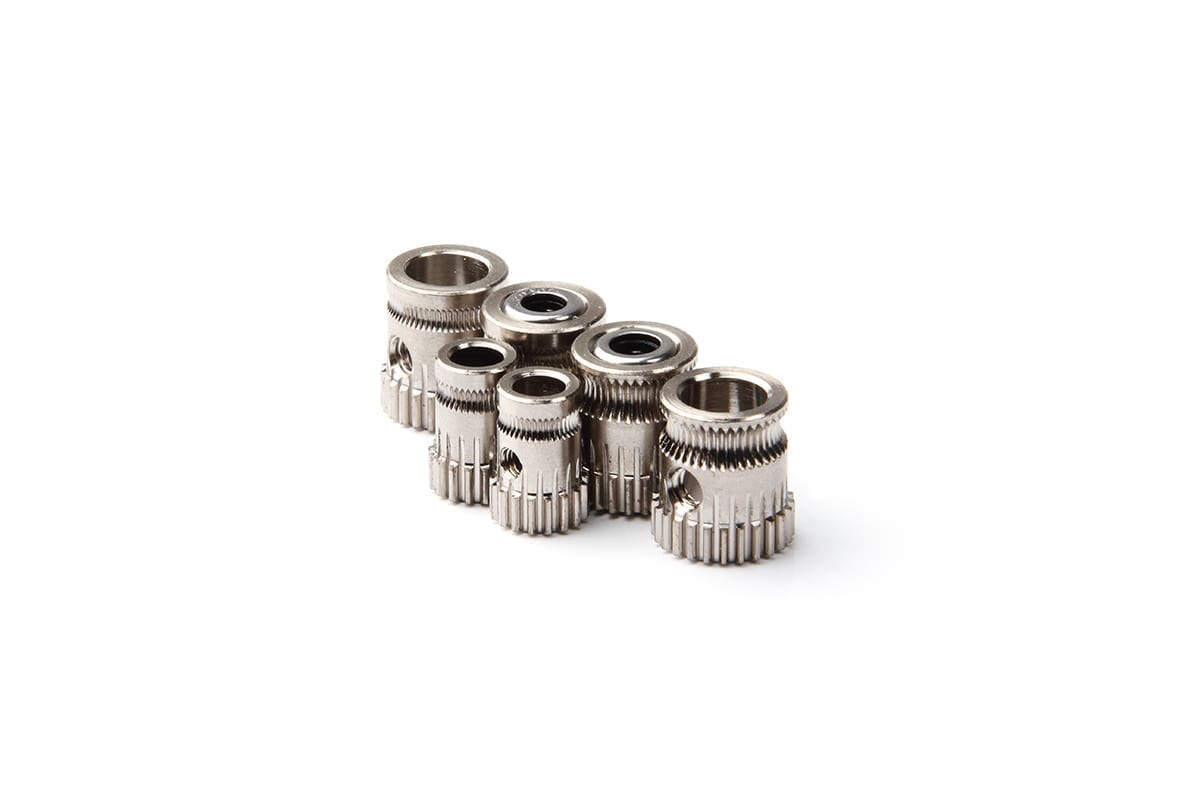

These drivegear kits come as a set consisting of a primary drive gear, a secondary drive gear, bearings and a shaft.
- Gear set for filament size 1.75 mm, primary gear with inner diameter 5 mm, secondary gear with two needle bearings,M3x2 setscrew and one 3 x 20 mm shaft.
- Gear set for filament size 1.75 mm, primary gear with inner diameter 8 mm, secondary gear with integrated needle bearings, M4x3 setscrew and one 4 x 22 mm shaft.
- Gear set for filament size 2.85 – 3.0 mm, primary gear with inner diameter 8 mm, secondary gear with integrated needle bearings, M4x3 setscrew and one 4 x 22 mm shaft.
A Lithium based grease is recommended to use on the gear section and inside the needle bearings for low friction and to avoid wear. A small dab of grease is enough.
Additional information
| Freight Weight | 40 g |
|---|---|
| Dimensions | 7 × 5 × 2 cm |
| Drivegear Type | 1.75 / 5.0, 1.75 / 8.0, 3.0 / 8.0 |
