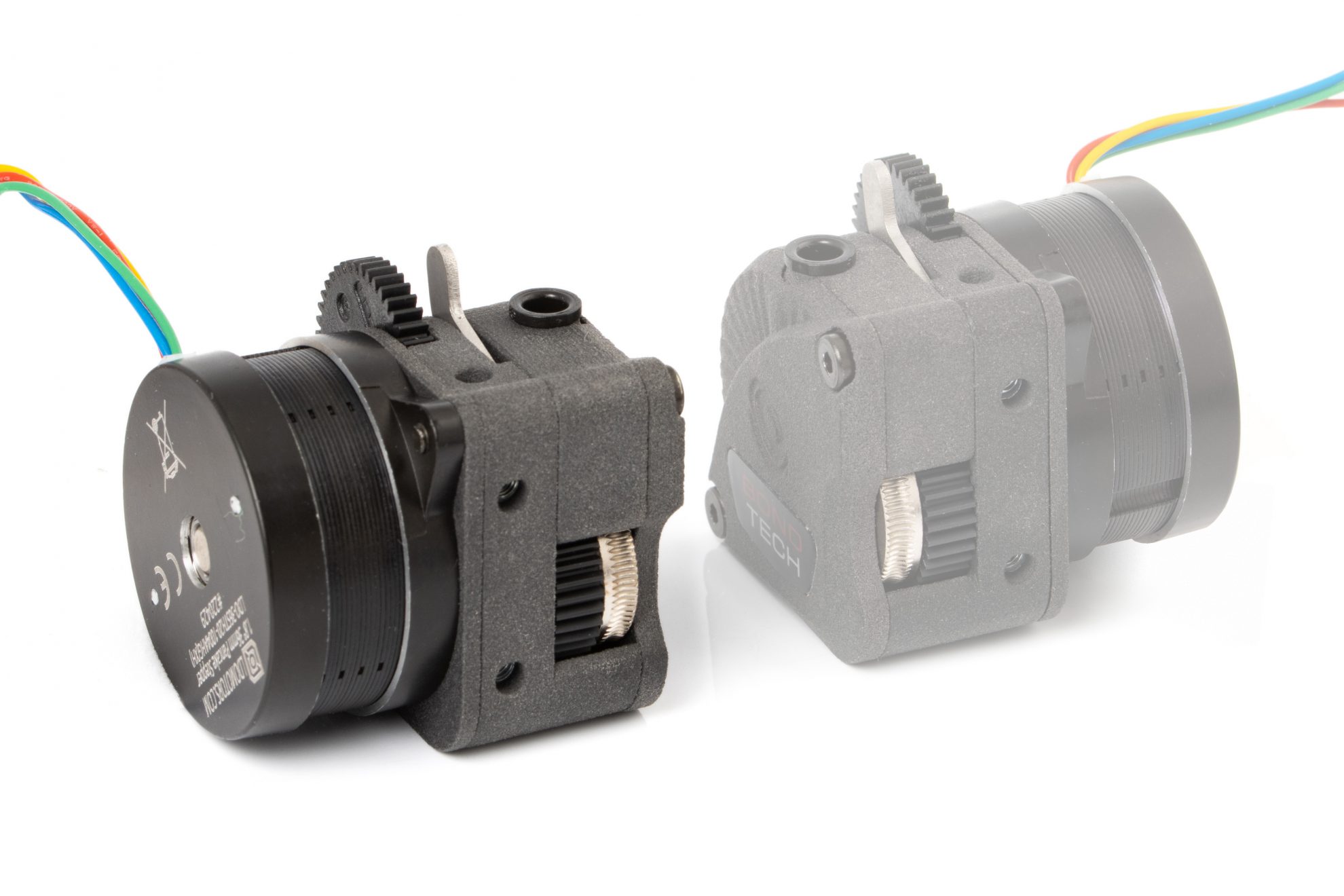

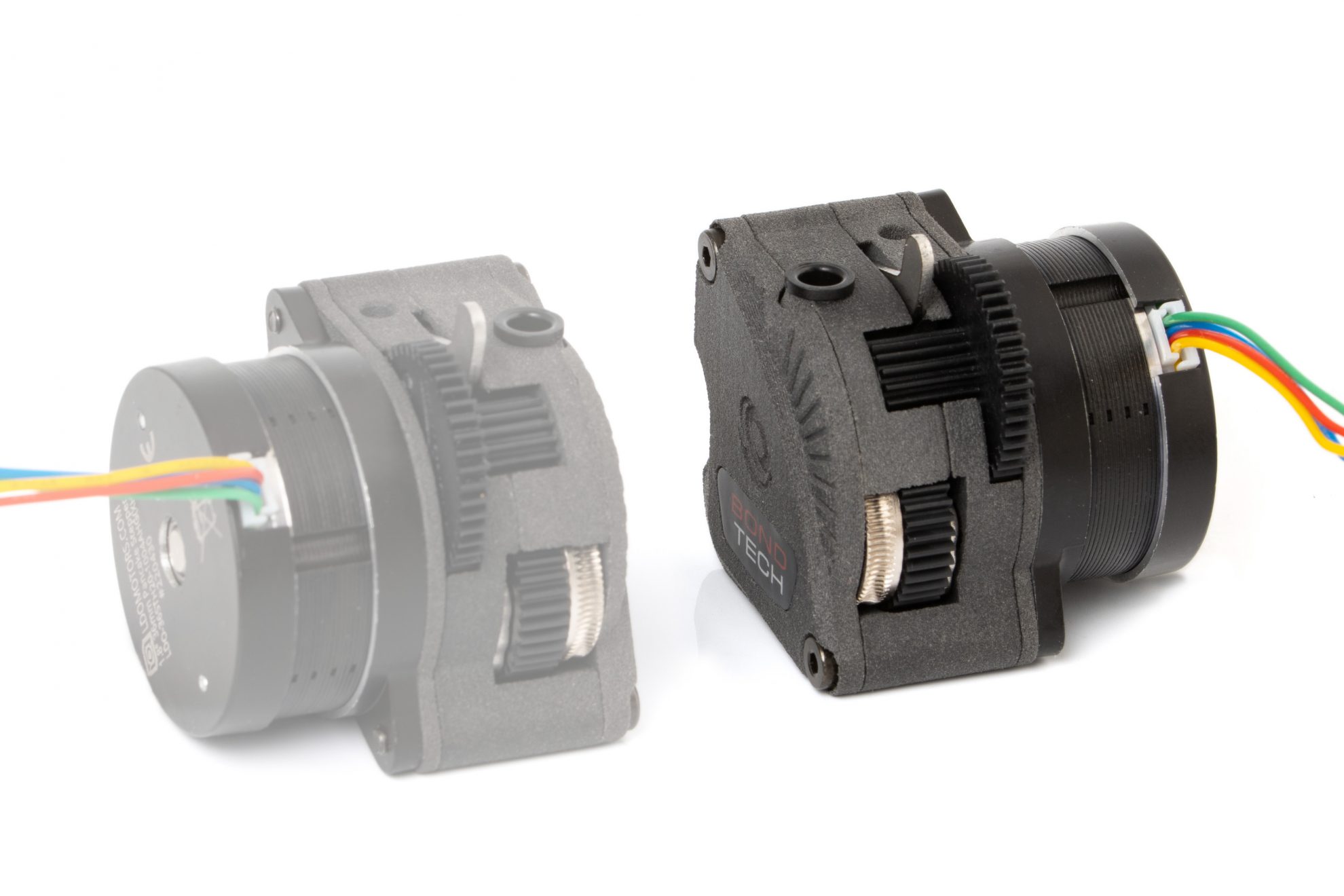

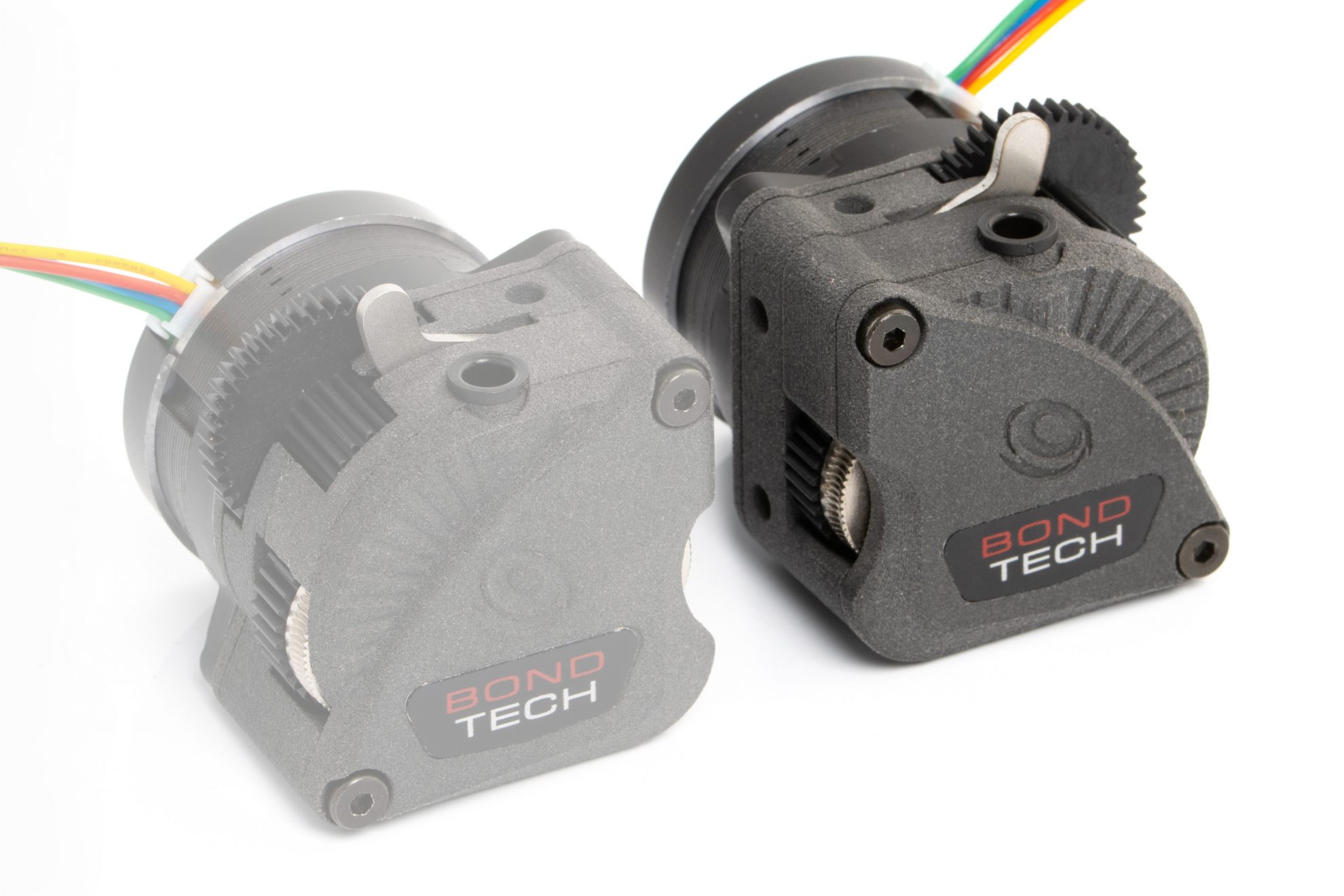

LGX Lite Large Gears eXtruder Mirrored

Main advantages:

  • symmetric design to LGX Lite
  • micro form factor
  • featherweight
  • small footprint
  • enhanced filament grip.

Includes full size LGX Large Gears, maintenance windows and filament tension lever with 3 presets (open; rigid; flexible).

This extruder only supports 1.75 mm size filament.

Price:

$69.90

Out of stock

Select Currency

Select Country

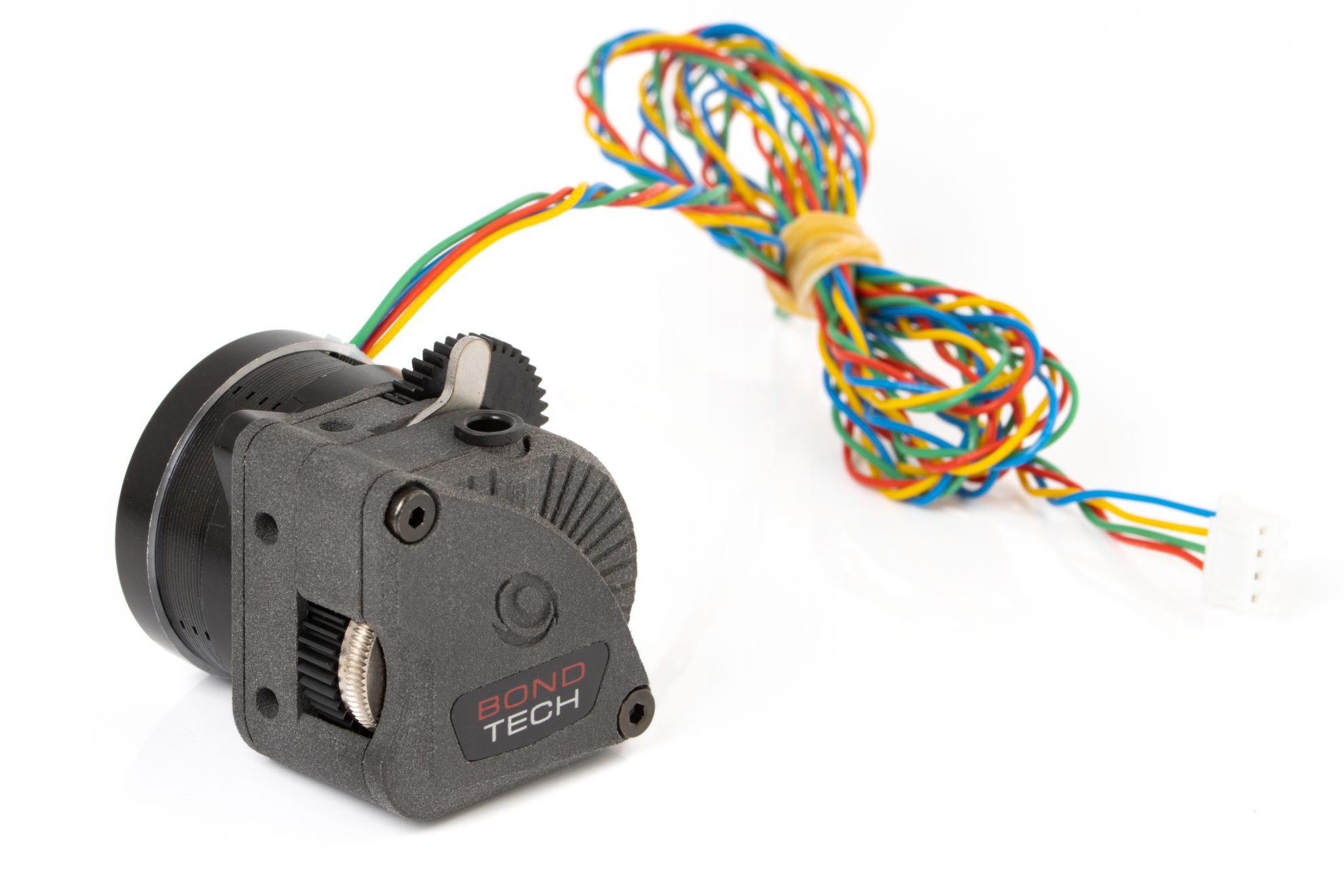

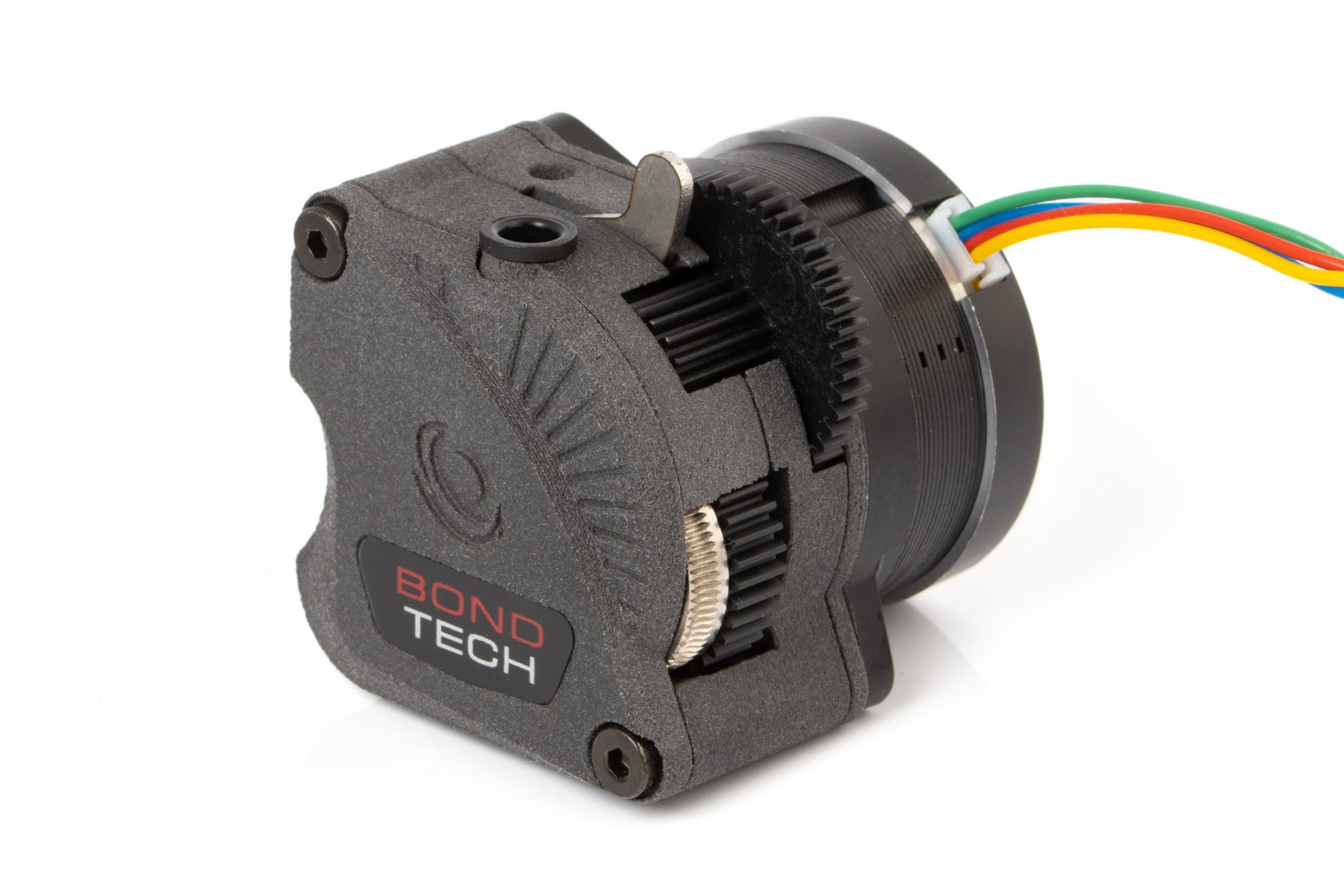

The Bondtech LGX Lite Mirrored is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtech’s new Dual Drive Technology based on larger drive gears.

Each LGX Lite Mirrored extruder is supplied with:

  • 1x LGX Lite Mirrored feeder;
  • 1x Nema14 Round 20mm pancake stepper motor;
    • 1m long lead cable
    • with JST-XH 4-pin connector
  • 1x 2mm Hex Key (recommended tool);
  • 1x Powered By Bondtech sticker.

Also shipping with additional accessories:

  • 1x Push-fit collar
  • 1x 30mm PTFE tube to use in the PTFE Tube Adapter.
  • 8x M3 square nuts for reinforcing mounting holes.

8 features of this Bondtech eXtruder:

  • Larger drive wheels, for increased filament grip;
  • Filament pre-tension lever, for repeated results;
  • Drive wheels’ maintenance windows, for easy cleaning;
  • Compact, light & centered filament path, for increased performance and compatibility;
  • Multiple mounting hole patterns, for easy and flexible setup;
  • Compatible with Nema14 round stepper motors;
  • Craft boxes without bleaching & no coating.
3D Printed Housing using PA12 GF

The housing parts are professionally printed with polyamide 12 Glass Filled for maximum strength, precision and higher temperature resistance.

To lower our ecological impact we are reducing our use of chemical dyes. This part is supplied with a wax protective coating to lower sensitivity to moisture and grease, while remaining fully functional.

Freight Weight 189 g
Dimensions 10 × 8.5 × 7.5 cm

Technical Specification

LGX® Lite extruder
  • e-steps value : 562 using 16 microsteps; 1124 using 32 microsteps.
  • Drive wheels : hardened steel;
  • Materials compatibility : abrasive; rigid; semi-flexible; flexible; and soft.
  • Mounting holes : M3
  • Mounting patterns : bottom (4 points); right (2 points), front to motor (2 points), top (1 point)
  • Hole at the top of the LGX® Lite : 5 mm depth
  • Holes on the side of the LGX® Lite : 5 mm depth
  • Holes on the bottom of the LGX® Lite : 5 mm depth
  • Max tightening torque on the extruder screws is 0.3 Nm

For Klipper users

rotation_distance = full_steps_per_rotation * microsteps / steps_per_mm

rotation_distance = 200 * 16 / 562
rotation_distance = 5.7

The above calculation assumes the following parameters:

  • stepper motor is a 1.8 degrees motor hence 200 as full steps per rotation;
  • microsteps are set to 16;
  • e-steps value recommended for the LGX® Lite is 562.

Use either:
rotation_distance: 5.7 #known calculated rotation distance
#rotation_distance: 55 #use this with gear ratio
#gear_ratio: 44:10, 37:17 #use this with rotation_distance 55

Or
#rotation_distance: 5.7 #known calculated rotation distance
rotation_distance: 55 #use this with gear ratio
gear_ratio: 44:10, 37:17 #use this with rotation_distance 55

  • retraction speed : 35 mm/s
  • retraction distance (bowden) : ~5 mm (0.4 + tube length[mm] x 0.015)
  • retraction distance (direct drive) for rigid materials : 0.4 mm
  • retraction distance (direct drive) for soft materials : 3 mm
  • Max Environment operating temperature : 70°C
  • Max stepper motor running temperature (using LGX Lite) : 80℃
  • Recommended stepper motor Current (using LGX Lite) : 0.45 to 0.60 A
  • LGX® Lite net weight : 48 g
  • LGX® Lite with motor net weight : 141 g
  • Package measurements : 80x103x73 mm
  • Package weight : 85 or 185 g
Custom Stepper Motor for Bondtech LGX Lite
  • Connector: JST-XH 4-pin connector
  • Motor gear : 10 teeth
  • Motor length: 20 mm
  • Motor Diameter: 36mm
  • Weight : 93g
  • Max Current : 1.0 A / phase

      To use the LGX Lite, run the stepper motor with currents between ~0.45 and ~0.60A:

      Be vigilant regarding the stepper motor surface temperature.
      Keep it cool enough to touch. Lower Vref otherwise.

  • Leads Length : 1m
  • Step Angle : 1.8 degree
  • Max Torque at : 1800 PPS
  • Potential Flow Rate @ Max Torque : 120mm^3/s
  • Class: H, rated peak temp 180℃
  • Max operating Temperature / Current :
    120℃ / 750 mA
  • Check for more info here.

How to change the Current using Vref

It is very hard to read the current being fed to stepper motors. To determine that current we rely on the Vref value. The Vref value is a voltage reference measured in VDC that can be read using a multimeter. It helps us setting the current output of the stepper motor driver.

Different 3D printer mainboards use different stepper motor drivers. Each type of stepper motor drivers has its own formula to calculate the required Vref to get a specific current. Here are some examples:

  • TMC stepper drivers.
    The formula for these drivers is Vref = ( I * 2.5 ) / Imax
    Where I is the target current value measured in A; and Imax is 1.77 on regular mode and 1.2 on SilentStepSticks mode.

  • Pololu A4998.
    The formula for these drivers is Vref = I * 8 * R
    Where I is the target current value measured in A; and R is the Sense Resistor value, that depends on what board are you using. Melzis use 0.1,the Creality Silent boards use 0.15, ...

Pre-tension Lever Positions

The LGX Lever Positions

The LGX Lite eXtruder is the second Bondtech extruder to present a pre-tension mechanism that includes an easy to use lever for users to release the tension or define it as one of 2 different settings.

Find below the illustrations and descriptions that show the available options.

Position 0

When facing the LGX eXtruder push the lever all the way to the left.

Use it to load or unload filament without pressure from the drive gears.

Position 1

When facing the LGX eXtruder push the lever all to the left and then 1 position to the right.

Use it to work with rigid materials.

Position 2

When facing the LGX eXtruder push the lever all to the left and then 2 positions to the right.

Use it to work with semi-flexible and flexible materials.

Mounting Patterns

Extruder and Stepper Motor go together

Preferably, you should always use the extruder attached to the stepper motor when you mount it on a printer.

If you need to put a plate in between the stepper motor and the extruder please notice the absolute max supported thickness is 2.6mm.

To use a plate in between the stepper motor and the extruder, you need to replace the stock rear plate of the extruder with the printer’s plate (thicknesses between 2 and 2.6mm, 2.5mm being the optimal value).
Don’t use a plate in between without removing the rear plate.

Multiple Mount Patterns

The LGX® Lite features 4 mounting patterns:

  1. 4 holes at the bottom;
  2. 2 holes at the right hand side;
  3. 1 hole at the top plus the filament entry that may be used as anchor.
  4. 2 holes across, to hold the stepper motor

All except frontal mounting holes on the LGX® Lite require to place a M3 square nut inside the housing to act as reinforcement. The holes with square nuts are M3 thread and 5 mm deep (till bottom of the square nut).

Setup Videos

LGX Lite on CR-10 Smart / CR-6 SE

from Embrace Making

Hot Stepper Motor?

To use the LGX®, LGX® Lite or LGX® Lite Mirrored, run the stepper motor with currents between ~0.45 and ~0.65A.

This current interval is just a recommendation and it should be optimal to keep the stepper motor running with enough torque and low enough surface temperature.


Be vigilant regarding the stepper motor surface temperature.
Keep it cool enough to touch. Lower the current otherwise.

If the stepper motor is cool and loosing steps you need more torque.
In this case increase the current.

To adjust the LGX's stepper motor current use one of the following methods:

It is very hard to read the current being fed to stepper motors. To determine that current we rely on the Vref value. The Vref value is a voltage reference measured in VDC that can be read using a multimeter. It helps us setting the current output of the stepper motor driver.

Different 3D printer mainboards use different stepper motor drivers. Each type of stepper motor drivers has its own formula to calculate the required Vref to get a specific current.

You can learn how to adjust the Vref by watching the video or by following this guide as example:

Lowering current on Ender-6

If your printer doesn't have DigiPOTs, and in case you don't have a multimeter to visualize the Vref you may still adjust the current fed to the LGX stepper motor by trial and error.

Use the analog potentiometer (inside yellow ring)next to the extruder's stepper motor driver (below the heatsink inside the red ring), and turn the potentiometer a few degrees at a time.

Rotate it counter clockwise to lower the current, or clockwise to increase it.

Between each iteration, use the printer and check if the stepper motor is not getting hot neither it is loosing steps.

Lower current if stepper motor is too hot to touch.

Increase current if stepper motor is loosing steps.

DigiPOTs are digital potentiometers which resistance can be varied by digital communication instead of turning a knob, like seen above.

On a 3D printer with a mainboard carrying DigiPOTs, you may use the user interface of the unit (if that feature is available) or even Gcode commands to set the current of the different stepper motors.

On RepRap units with DigiPOTs, the M906 command may be used to change the Extruder stepper motor current M906 Ennn, where nnn is the amount of milliamps desired.

Marlin also uses a similar command. M906 Ennn sets the current on TMC drivers. On stepper motors with other drivers and DigiPOTs, you may also set the current in milliamps using the command M907 Ennn

Product Videos

from Vez3D

from Circuit Orchestra

STEP Files To Download

Click the button below to download the STEP file

Download STEP file
