Bondtech CHT ® M6 Coated Brass Nozzle 5 pack

Bondtech CHT ® M6 Coated Brass Nozzle 5 pack

All nozzles in this Bondtech CHT ® RepRap M6 (MOS) nozzle pack increase the melting capacity of your hotend, to build faster and to save your time. They also improve the layer adhesion of your 3D prints to create stronger parts.
Find the compatibility list and product alerts tabs below.

Features:

  • Brass body;
  • Nickel Coating;

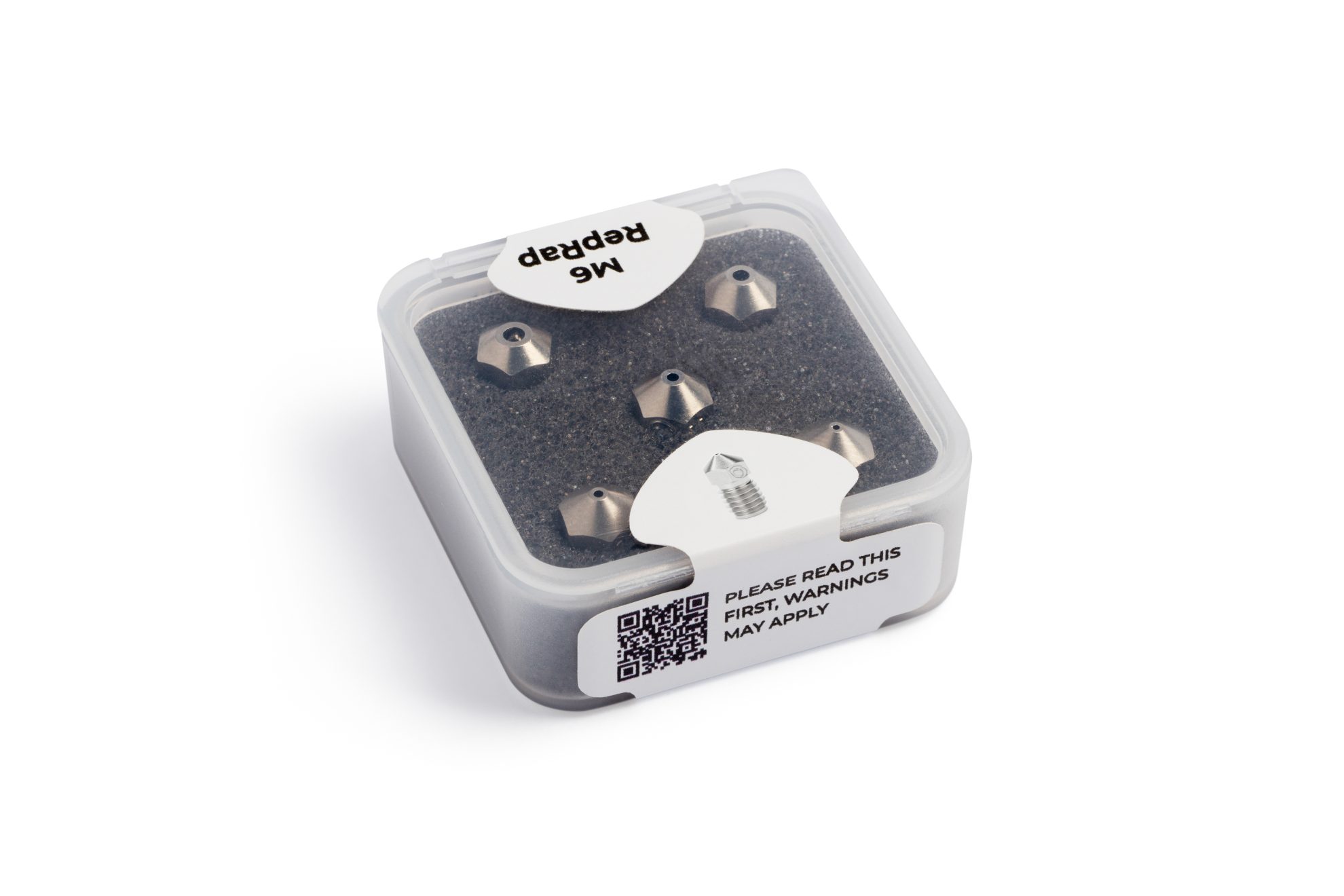

  • 5 units per pack;

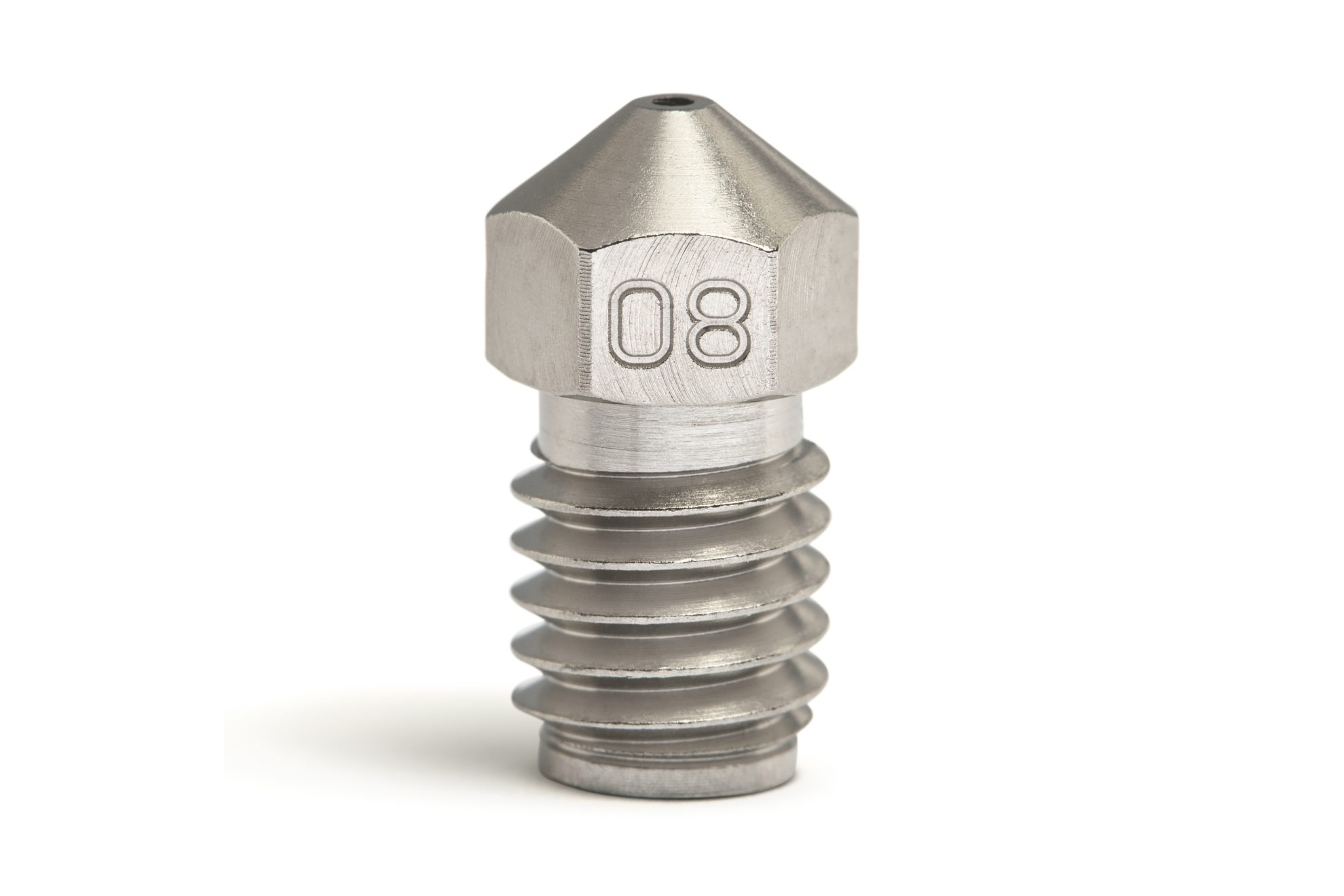

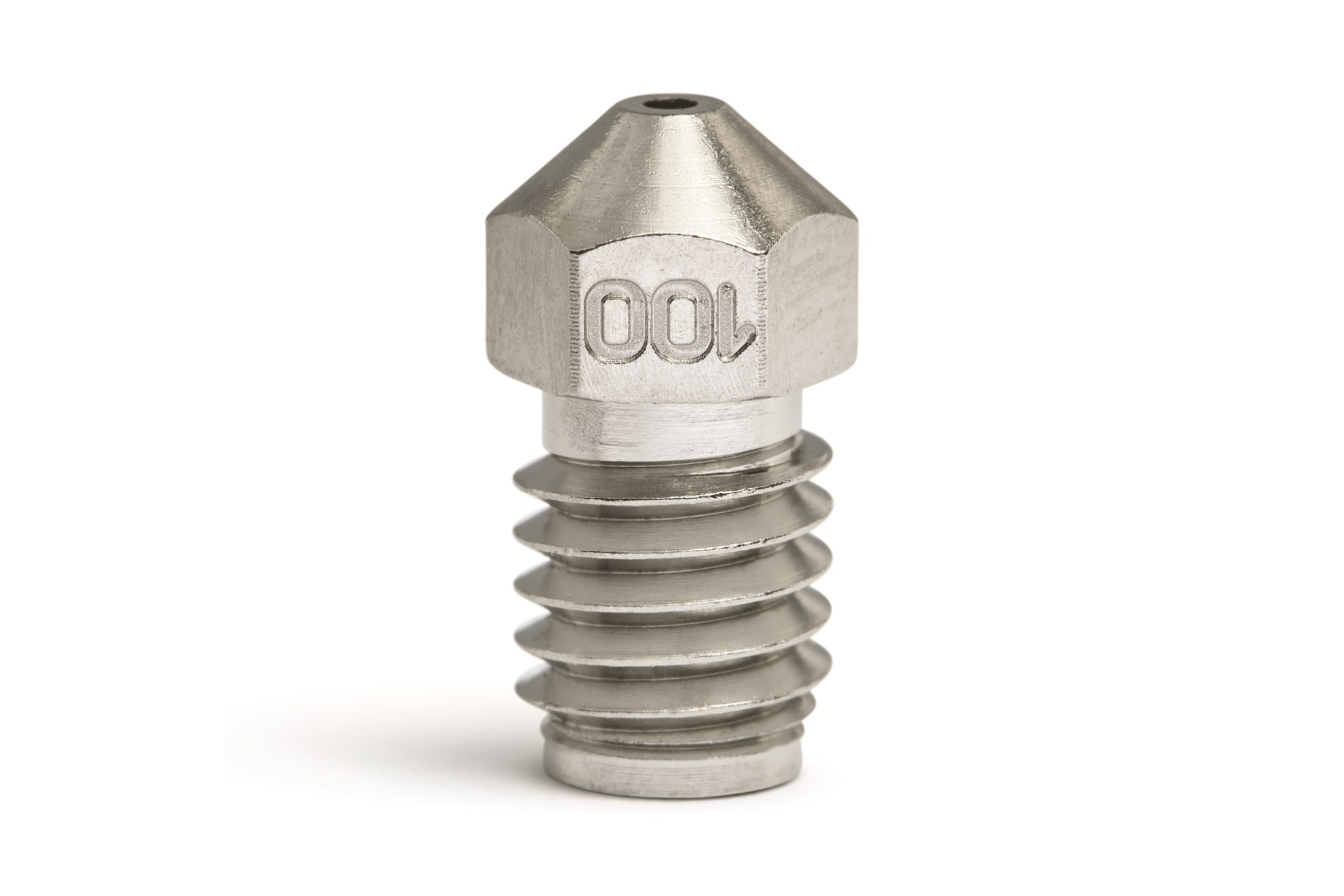

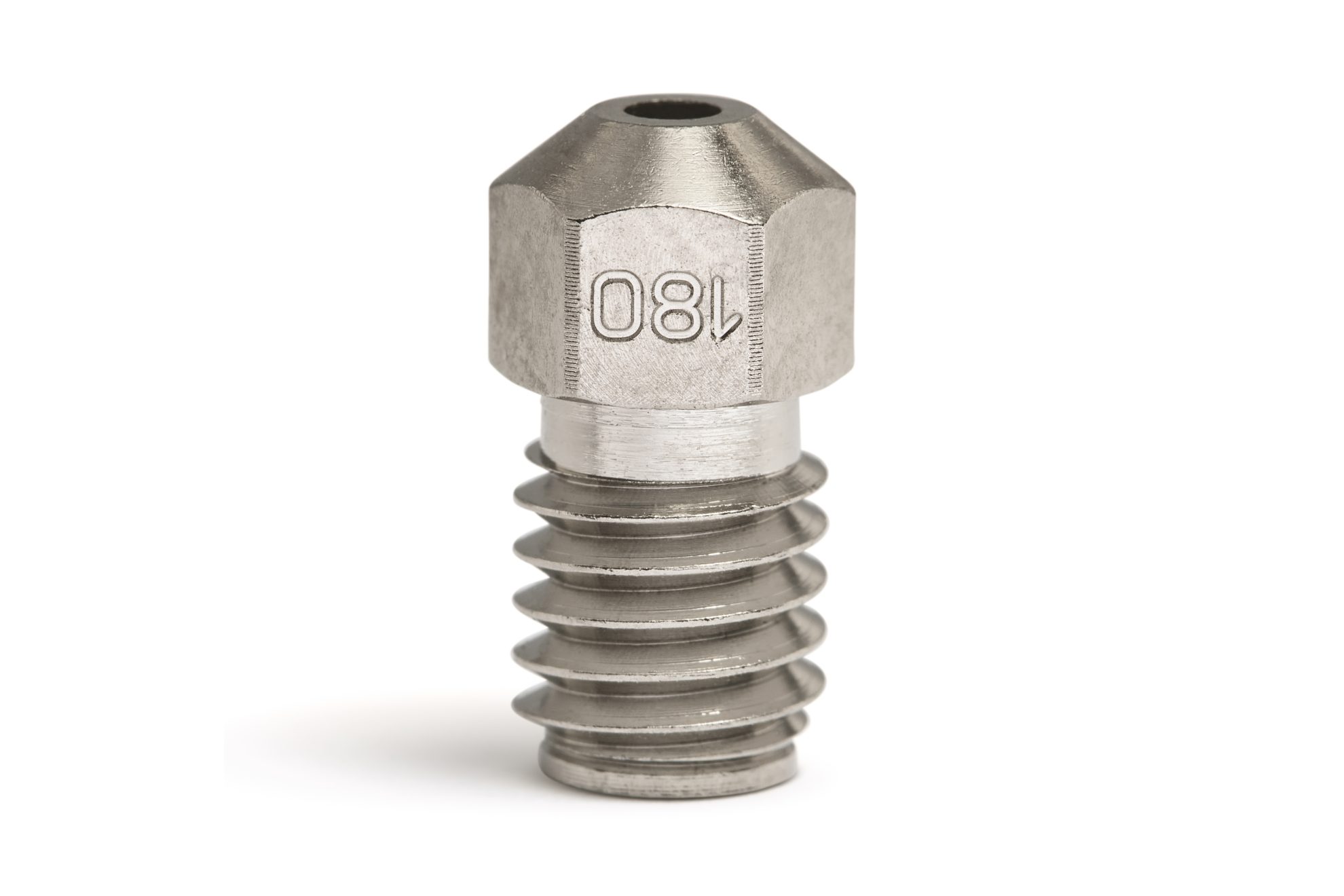

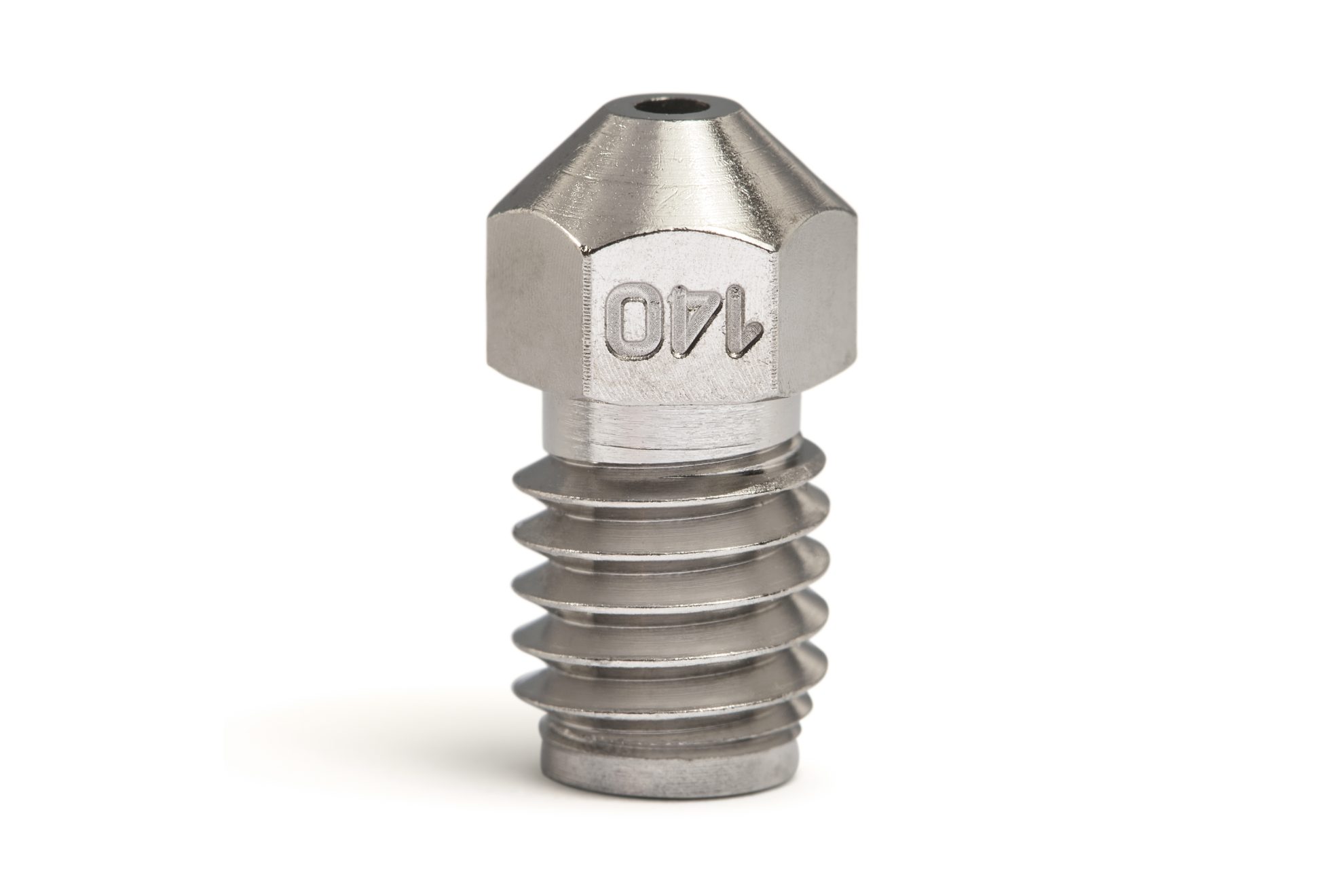

  • Sizes included : 0.60, 0.8, 1.0, 1.4 and 1.8mm;
  • Optimized for 1.75mm filament;
  • Compatible with 2.85mm filament.
  • Requires 6mm wrench

Buy the Pack, Save 15%

Price:

$84.58

In stock (can be backordered)

Select Currency

Select Country

Core Heating Technology is patented.

In Europe : Registration number: EP3445568A1 : Publication Date: 2021-12-01
In the U.S. : Registration Number : US11712847B2 : Publication Date: 2023-08-01

Nozzles for 3D printers made of metal with at least one or a multitude of holes to increase the standard circular surface area of the heating walls.

30% gains or more!!?? Check the White Paper:

"Increasing Melt Capacity With 3 Nozzle Features"

Gains apply to 1.75 / 2.85mm rigid materials and 2.85mm flexible filaments only.

To achieve meaningful volumetric flow gains use at least 0.6mm diameter nozzles.

Main Bondtech CHT ® Advantages
  • Higher melt capacity by increasing the surface area of the heating walls
  • Affordable price
  • Machined with ultra-precision
  • Brass nozzle with Nickel coated surface
  • Follows nozzle standards:
    • RepRap (M6×1×7.5×12.5)
    • MK8 (M6×1×5×13)
    • Volcano (M6×1×14.5×21)
  • May be used with 1.75 or 2.85mm hotends.

Advantages of the Bondtech CHT ® technology:

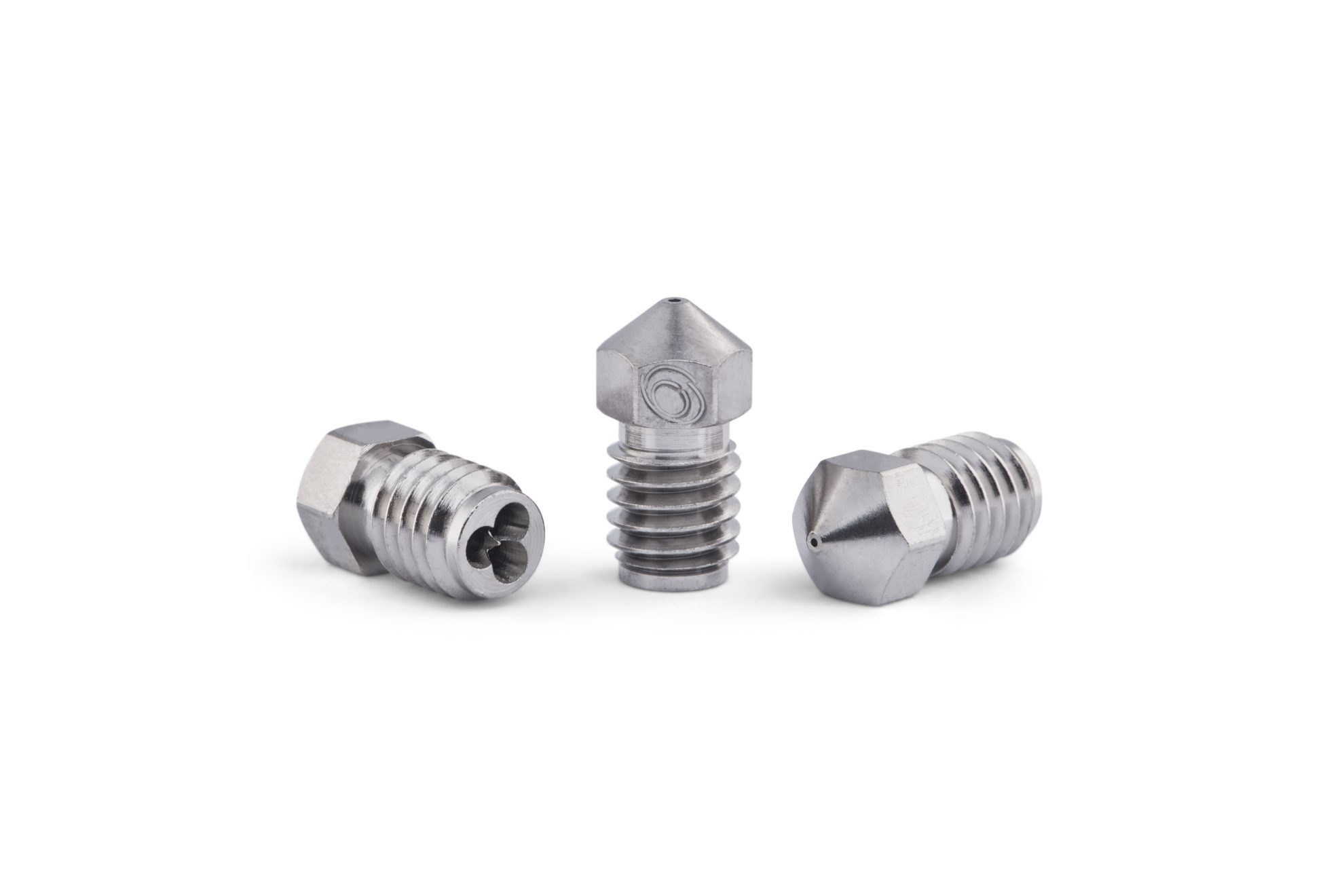

Bondtech CHT ® nozzles split the filament into 3 thinner strands allowing to melt the material from within. In doing so, the material melts faster and higher flow rates can be used.

Advantages of the Nickel Coating

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction, which allows slicker feeding of material and delays plastic adhesion to the nozzle's surface.


Different nozzle sets for different materials

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.

Freight Weight 15.1 g
Dimensions 3.5 × 3.5 × 1.5 cm

Product ALERTS

ALERT : Avoid Cold Bondtech CHT RepRap M6 (MOS) Nozzles Change

Heat up the heat block up to 280C, or at least above 250C, before removing or tightening any Bondtech CHT nozzle. Use at most 1.5 Nm torque.

Technical Data Sheet

Compatibility List

This Bondtech CHT nozzle fits the following hotends/blocks:

  • Mosquito® / Magnum
  • Mosquito® Liquid
  • Mosquito® Magnum+
  • Copperhead™
  • E3D Chimera and Kraken
  • E3D V4, V5 and V6 blocks
  • Prusa i3, Prusa Mini
  • RepRap M6
  • Bambu Lab X1 after-market hotend
