Bondtech HeatLink 300°C Thermistor

EAN13: 7350011412365 SKU: 14055 Categories: , Tags: , , Brand:

Bondtech HeatLink 300°C Thermistor

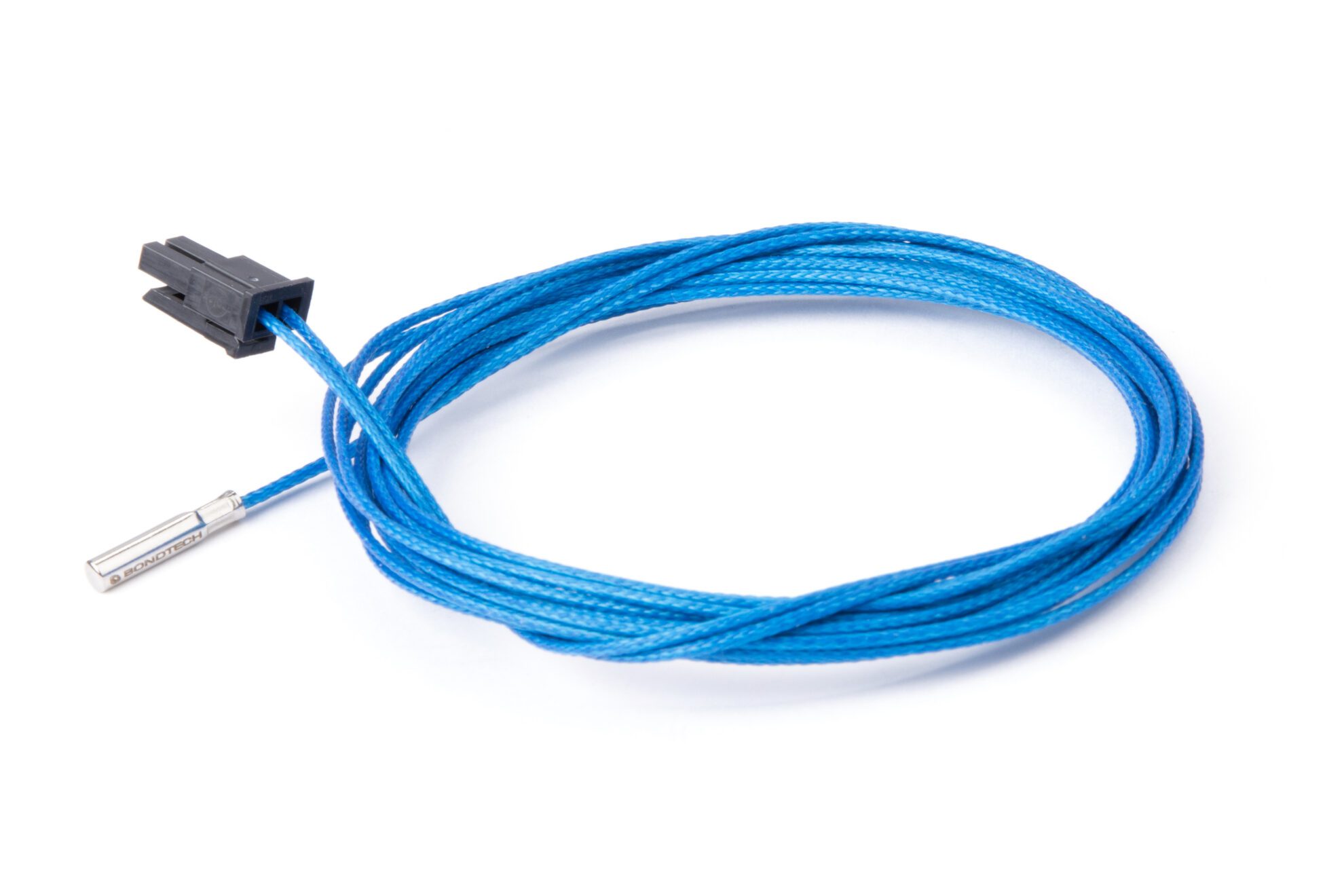

Plug & Play Thermistor

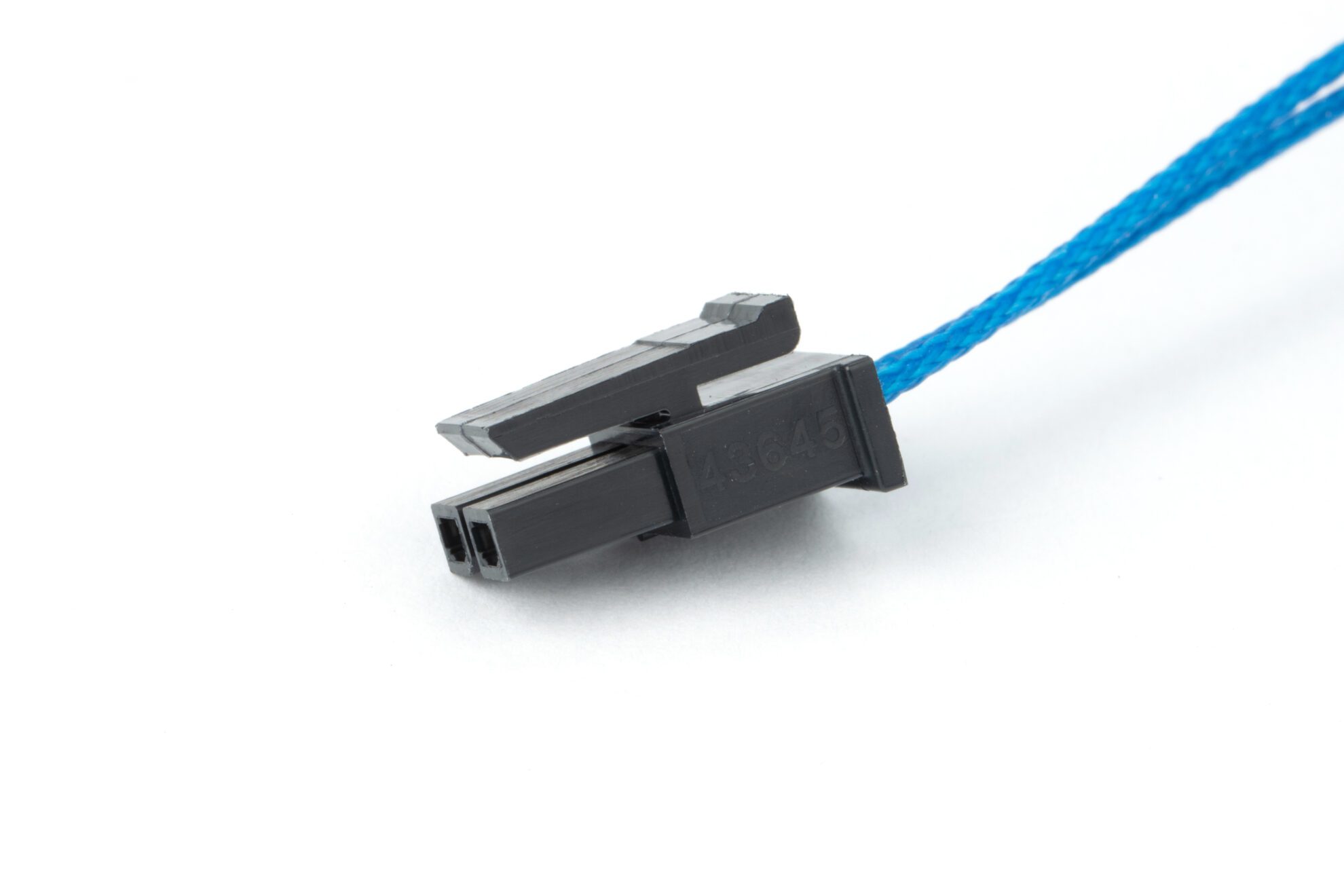

  • 1.5m leads with blue sleeves and Molex micro-fit 3.0 female connector;
  • Ø 3mm 15mm long Stainless Steel crimped cartridge with laser engraved Bondtech logo;
  • SeMitec 104NT-4 temperature sensor;

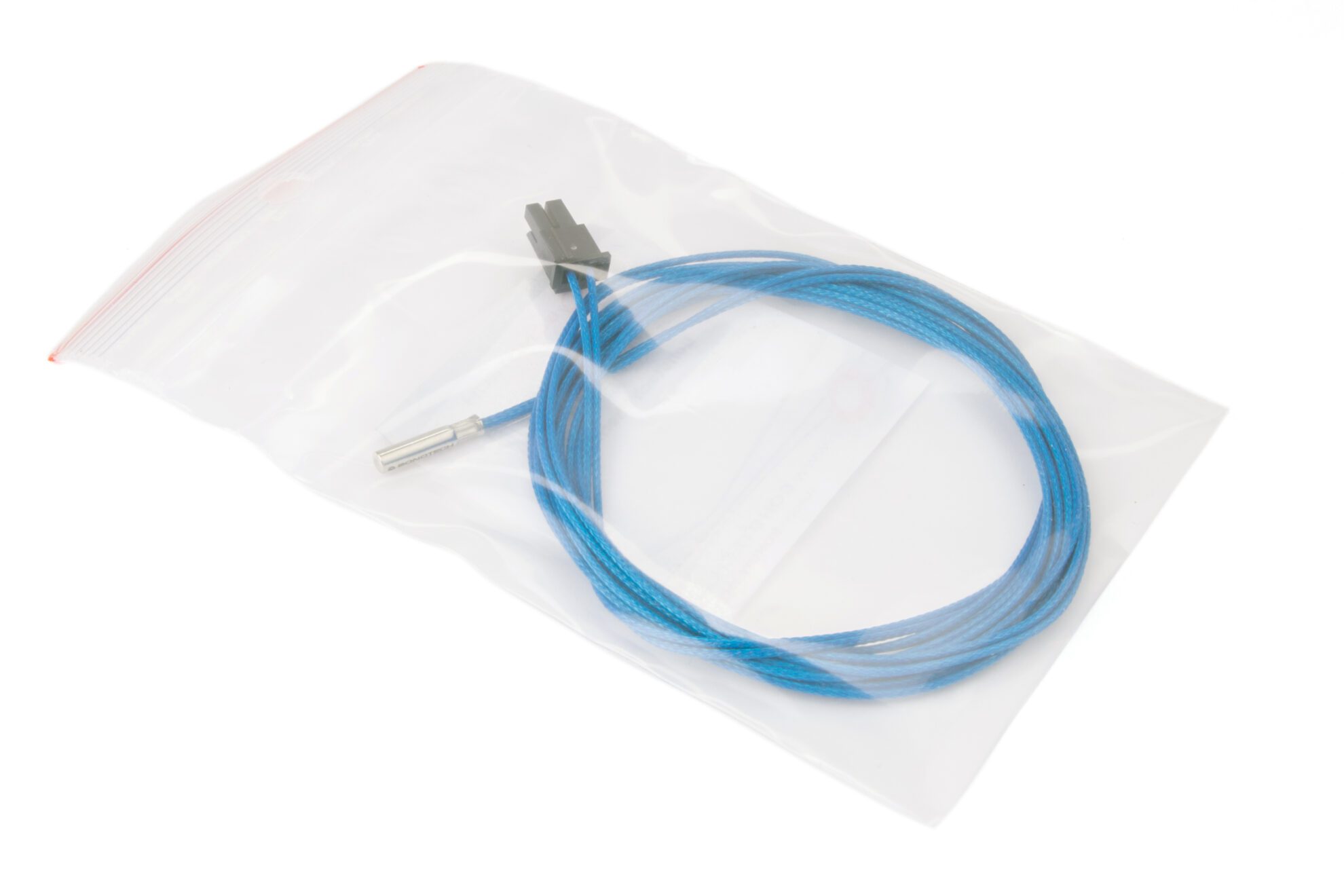

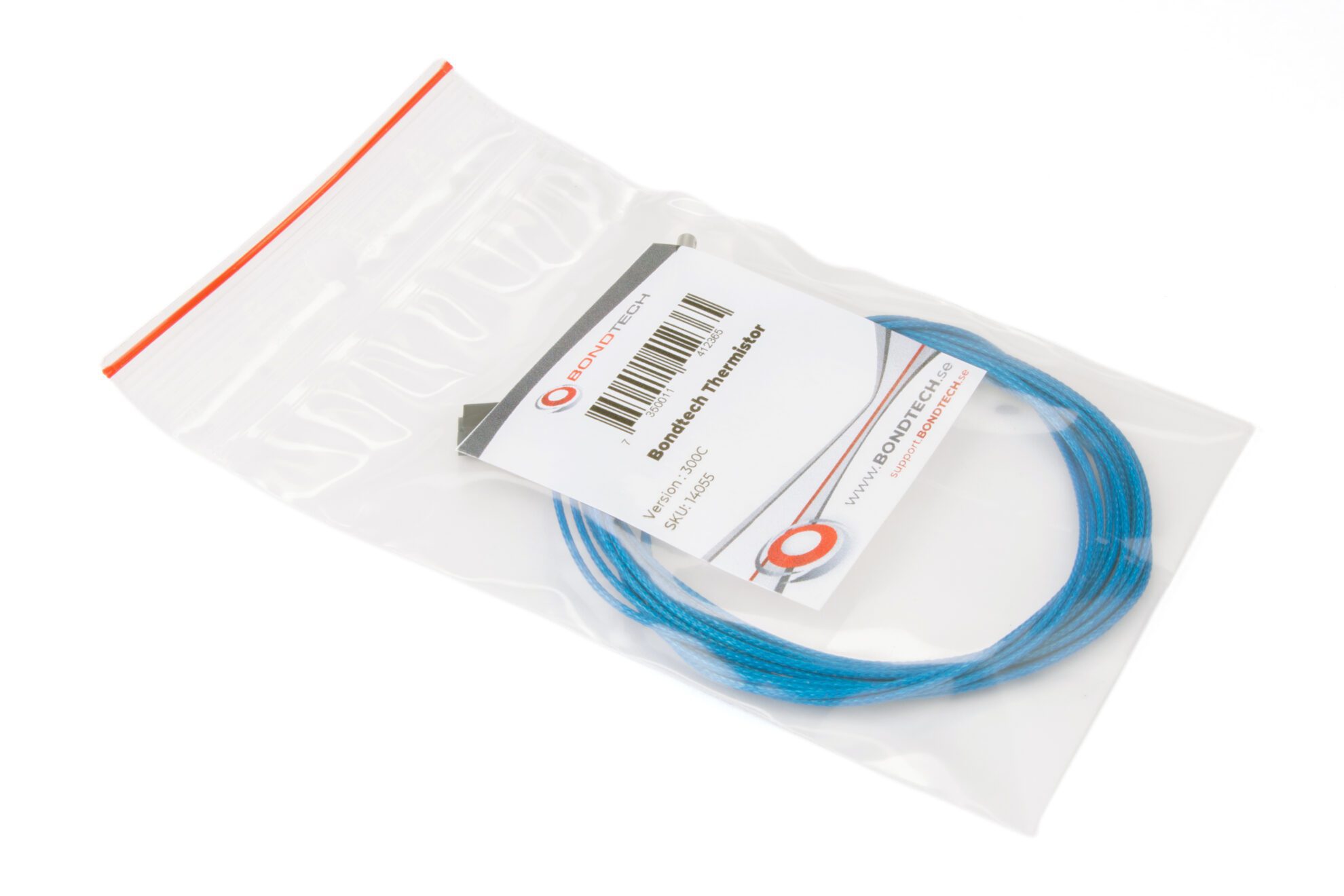

  • Packed in plastic bag.

You must select ONE optional HeatLink Interface Cable below…
… to connect this heater to your printer.
Check compatibility table at bottom of this page.

Price:

From: $14.90

Bondtech HeatLink JST XH-2 With Lock

#gap-1605559890 { padding-top: 30px; }

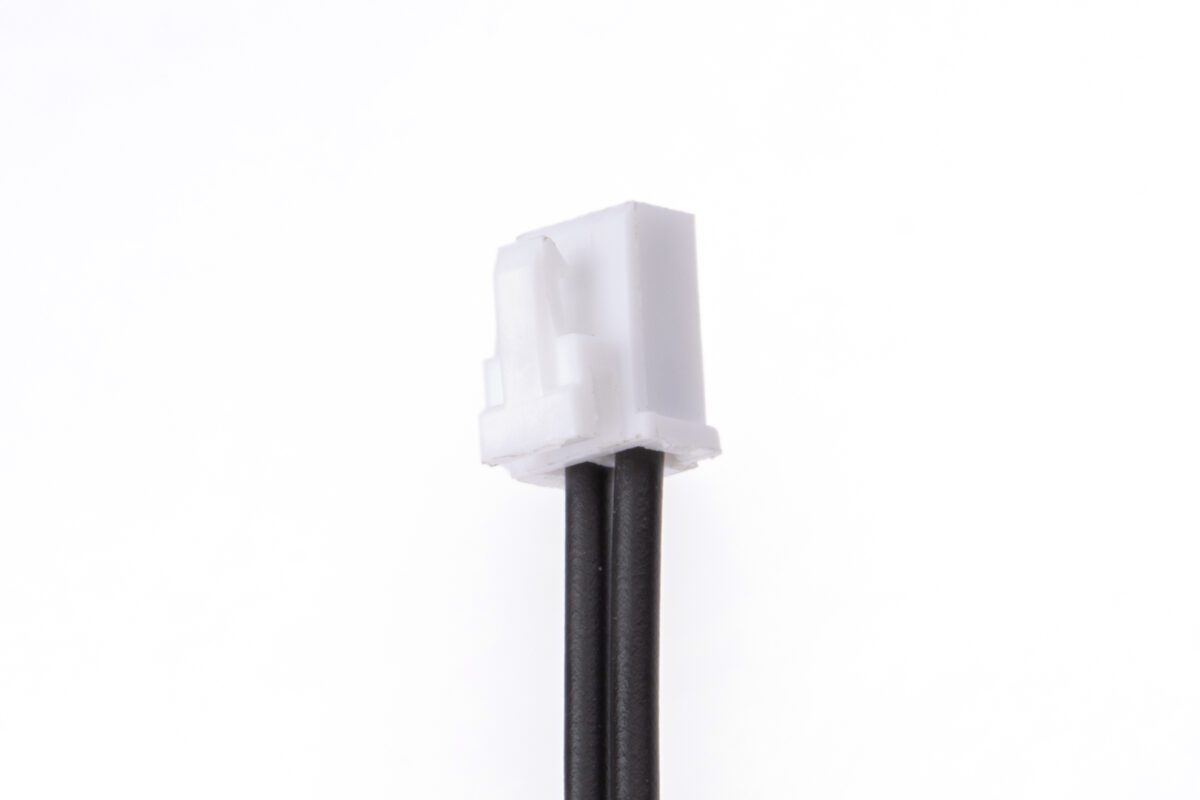

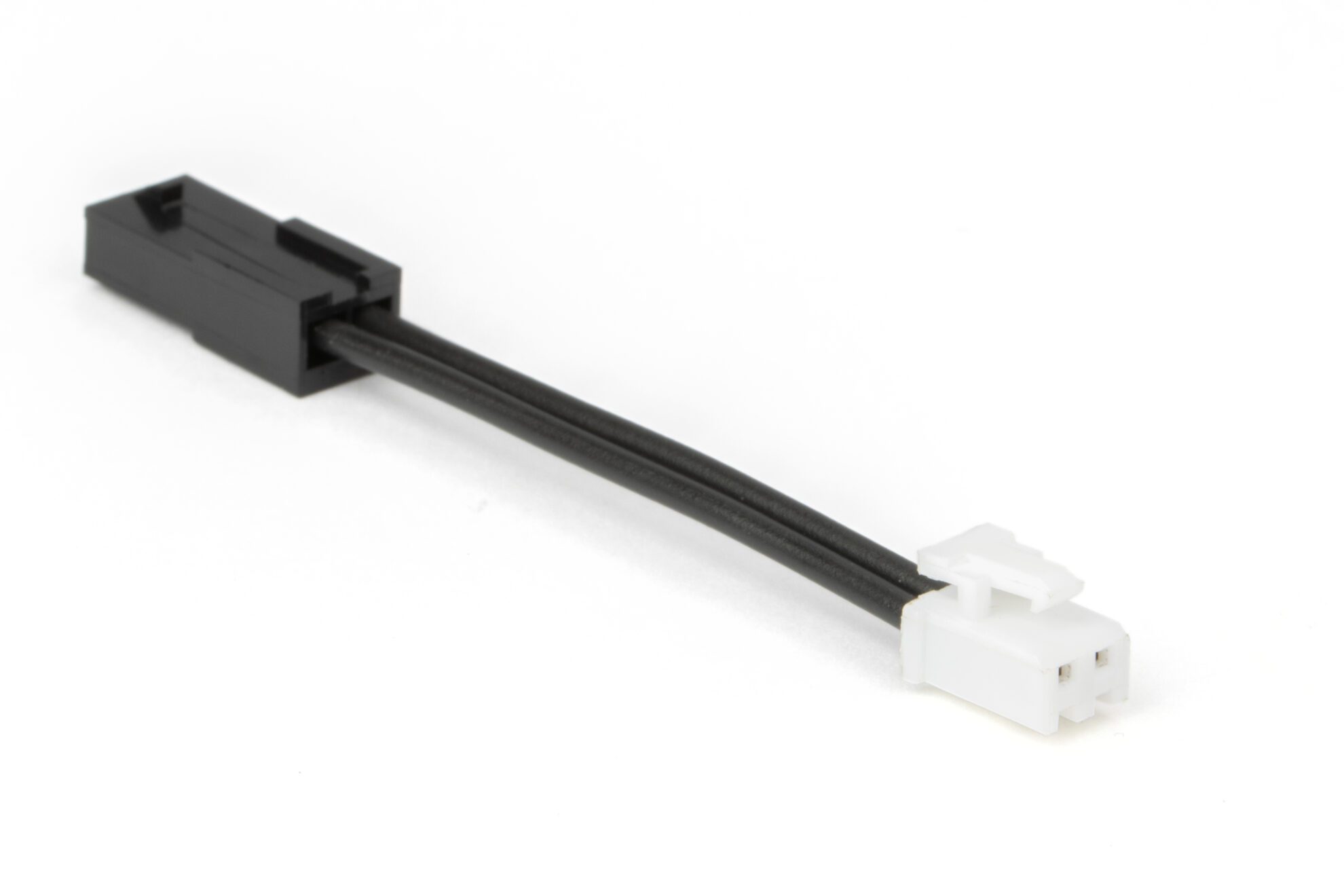

Plug & Play Interface Cable - JST XH-2 With Lock

  • 50mm Interface cable with
  • Molex micro-fit 3.0 male connector on one end
  • JST XH-2 With Lock connector on the other.
  • Packed in plastic bag.

Bondtech HeatLink JST XHP-2

#gap-944234499 { padding-top: 30px; }

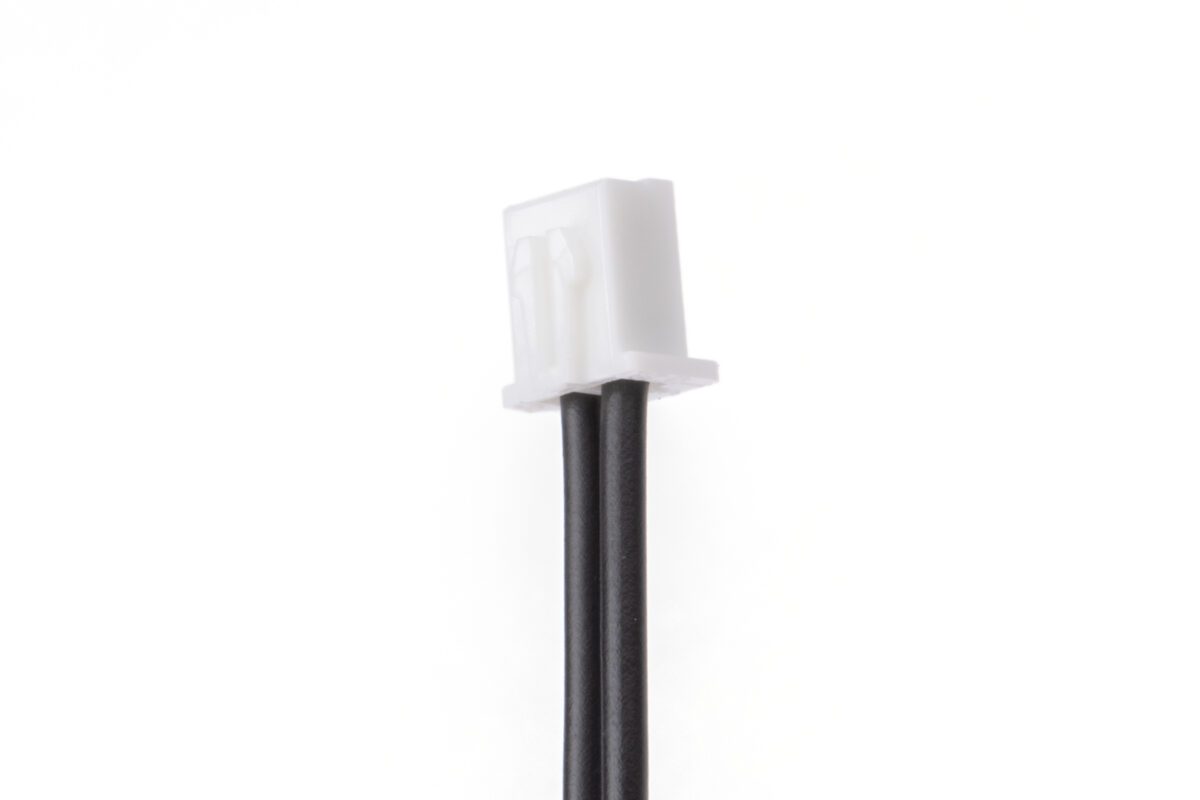

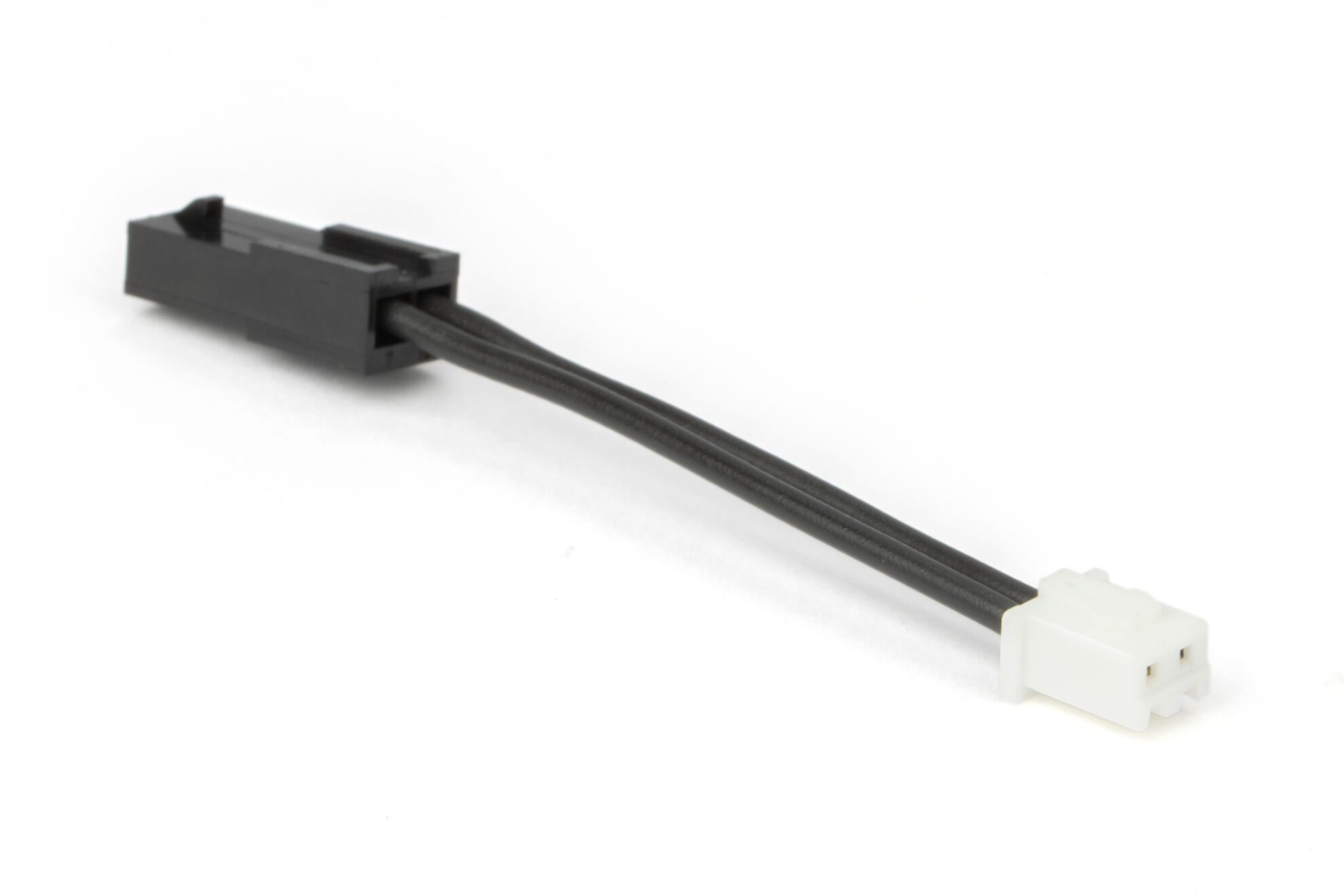

Plug & Play Interface Cable - JST XHP-2

  • 50mm Interface cable with
  • Molex micro-fit 3.0 male connector on one end
  • JST XHP-2 connector on the other.
  • Packed in plastic bag.

Bondtech HeatLink JST SMP-02V-BC

#gap-844160710 { padding-top: 30px; }

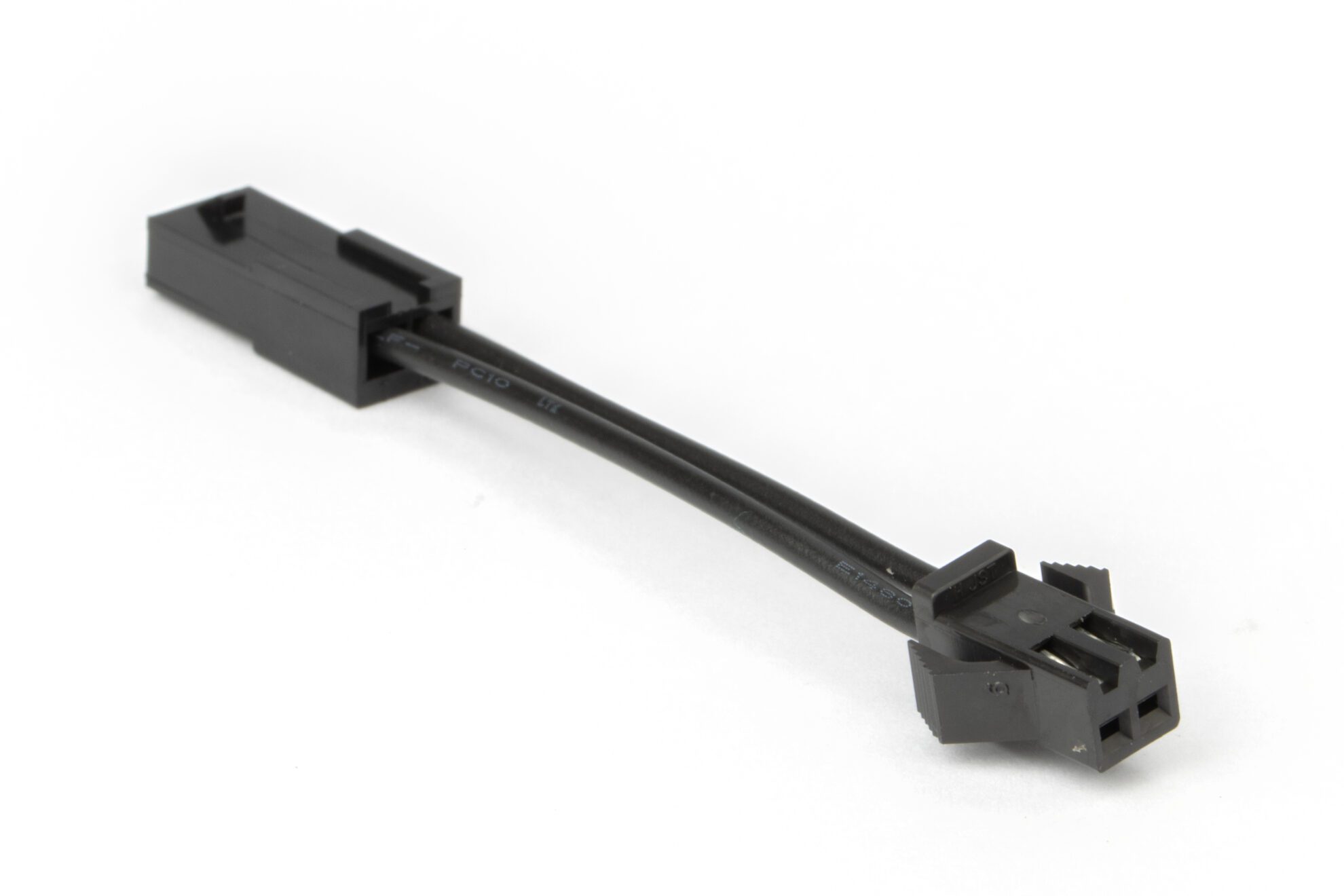

Plug & Play Interface Cable - JST SMP-02V-BC

  • 50mm Interface cable with
  • Molex micro-fit 3.0 male connector on one end
  • JST SMP-02V-BC connector on the other.
  • Packed in plastic bag.

In stock (can be backordered)

Select Currency

Select Country

Update your firmware

Before buying this thermistor to use it with the DDX extruder check if we have a firmware update to support it here: Firmware Updates For Creality Using DDX

Bondtech HeatLink 300°C Thermistor

Have it your way!
This 300C thermistor based on the SeMitec 104NT-4-R025H42G temperature sensor and uses a Molex micro-fit 3.0 female connector to enable extending it with one of the HeatLink interface cables and connect to your printer without hassle.
Do not use this thermistor at nozzle temperatures above 300°C.

Use the following code to customize your Marlin2.0 to use this thermistor:
#define TEMP_SENSOR_0 5

Check the R/T table here:
104NT-4-R025H42G_RT_table.pdf

The HeatLink range is an alternative group of thermistors and heater cables enabled with Molex micro-fit connectors, complemented by several short interface cables for connecting to dozens of 3D printer models to bring ease of use to their owners.

HeatLink is the answer to the growing demand for powerful heaters and high temperature thermistors that are ready to use and easy to install.

Bondtech HeatLink

Plug & Play thermistors and heaters from Bondtech.

Ready to use on ( at least ) 25 different Creality and Prusa models.

Pair a Bondtech thermistor or heater with a HeatLink interface cable to plug into any printer without soldering or crimping.

Each Interface Cable is 50mm long and will fit entirely inside the control box.


Bondtech HeatLink Interface Cables Compatibility Table


HeatLink
JST
XH-2 W/ LOCK


HeatLink
JST
XHP-2


HeatLink
JST
VHR-2N


HeatLink
JST
SMP-02V-BC


HeatLink
Molex
MX-50-57-9002


HeatLink

Ferrule

HeatLink
JST
XH-2 W/ LOCK
compatible with:


CR-10S Pro
CR-10S Pro V2
CR-10 Max
CR-10 V2
CR-10 V3

HeatLink
JST
XHP-2
compatible with:


Ender-3
Ender-3 Pro
Ender-3 V2
CR-10
CR-10 mini
CR-10 S
CR-10 S4
CR-10 S5
CR-5 Pro
CR-X
Ender-6

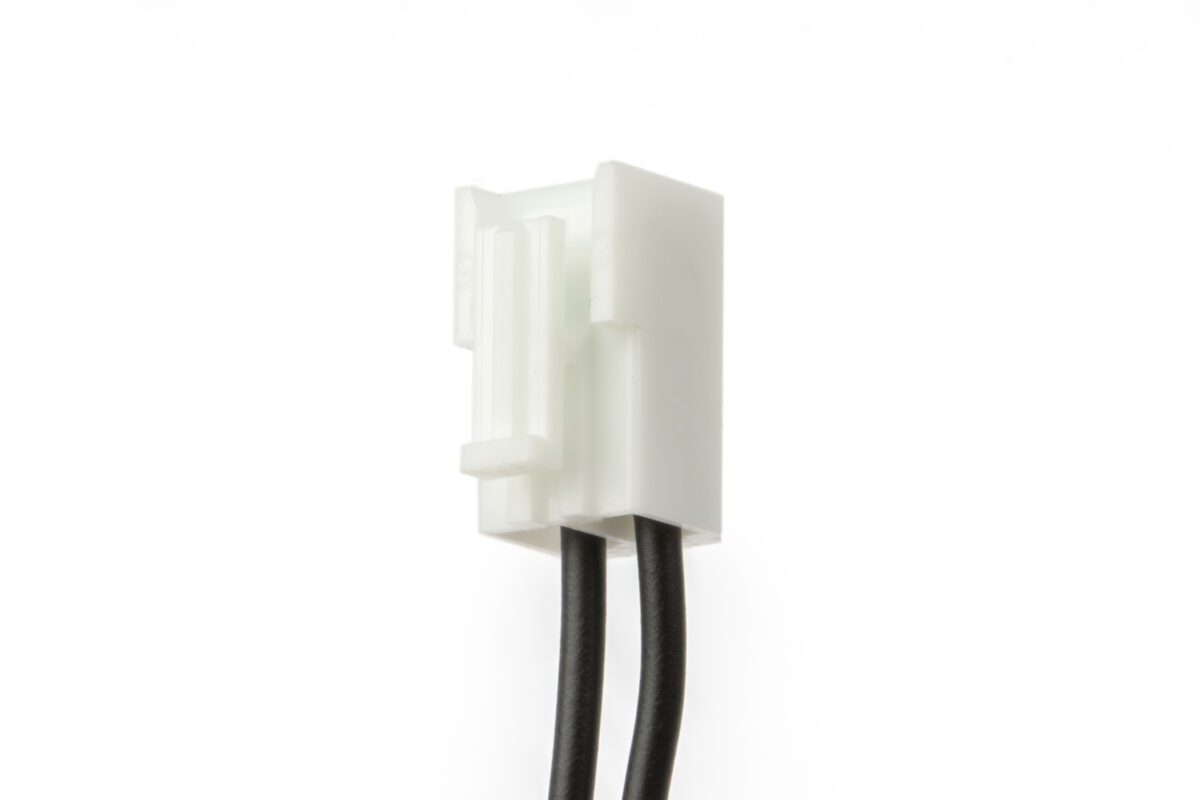

HeatLink
JST
VHR-2N
compatible with:



HeatLink
JST
SMP-02V-BC
compatible with:


Ender-5
Ender-5 Pro
Ender-5 Plus

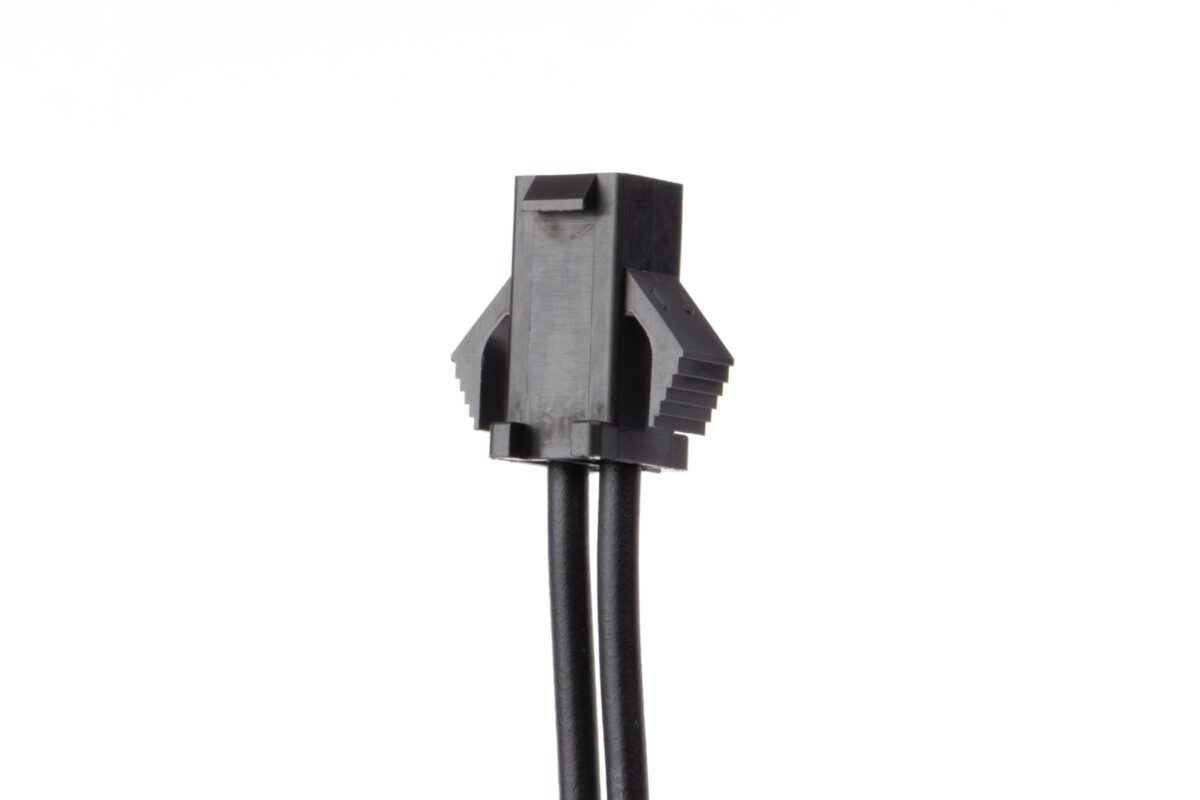

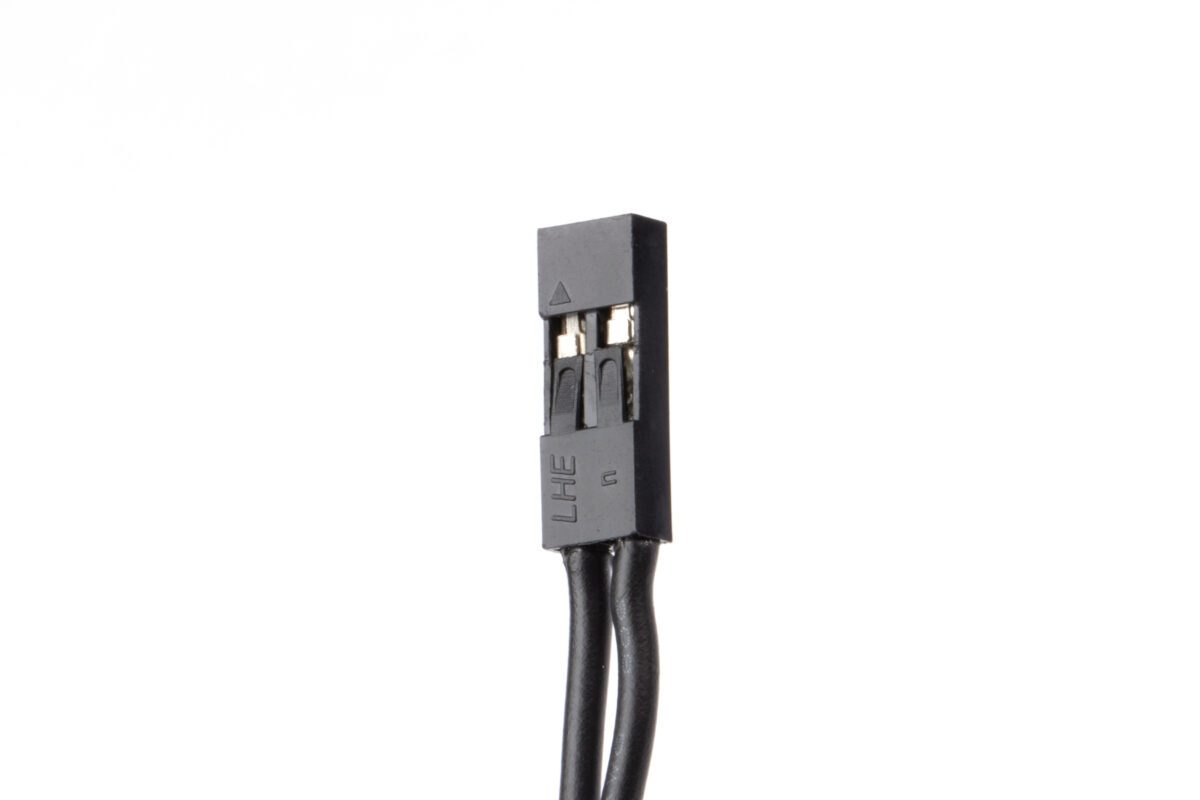

HeatLink
MOLEX
MX-50-57-9002
compatible with:


i3 MK3 / S / +
i3 MK2.5 / S
i3 MK2 / S

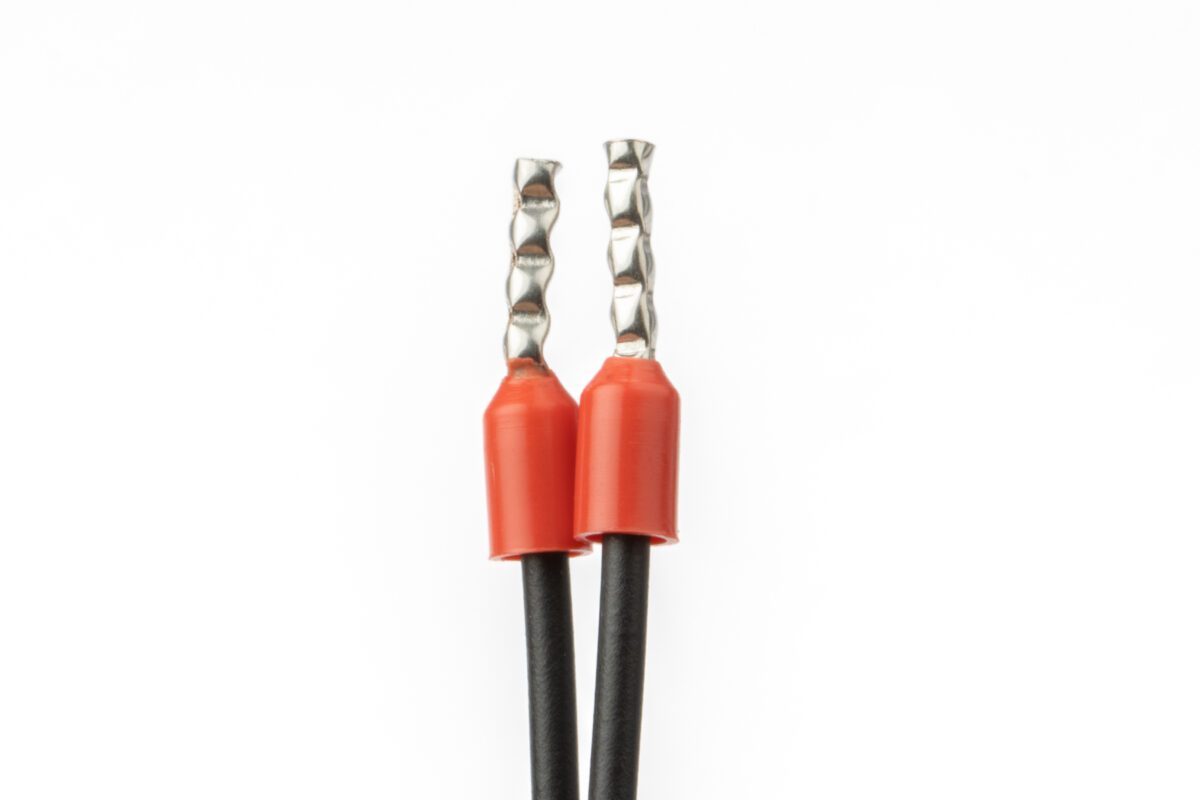

HeatLink

Ferrule
compatible with:



The table above refers to connecting Bondtech HeatLink Thermistors only.

Freight Weight 11.4 g
Dimensions 12 × 8 × 1 cm

Bondtech HeatLink JST XH-2 With Lock

Freight Weight 3.1 g
Dimensions 8 × 6 × 1 cm

Bondtech HeatLink JST XHP-2

Freight Weight 2.9 g
Dimensions 8 × 6 × 1 cm

Bondtech HeatLink JST SMP-02V-BC

Freight Weight 3.1 g
Dimensions 8 × 6 × 1 cm
