Bondtech HeatLink 12v 50W Heater

EAN13: 7350011412389 SKU: 14057 Categories: , Tags: , , , Brand:

Bondtech HeatLink 12v 50W Heater

Plug & Play Heater

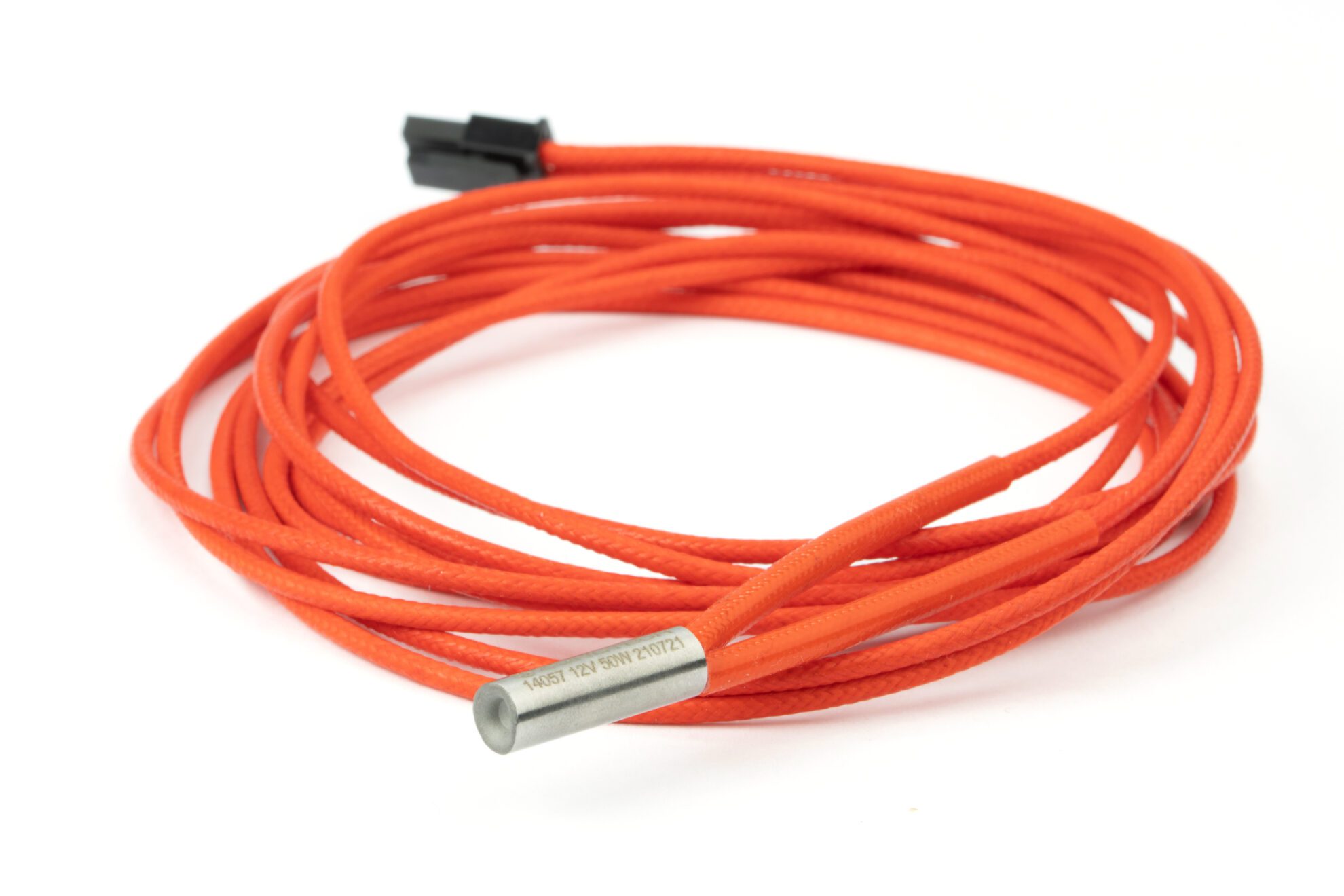

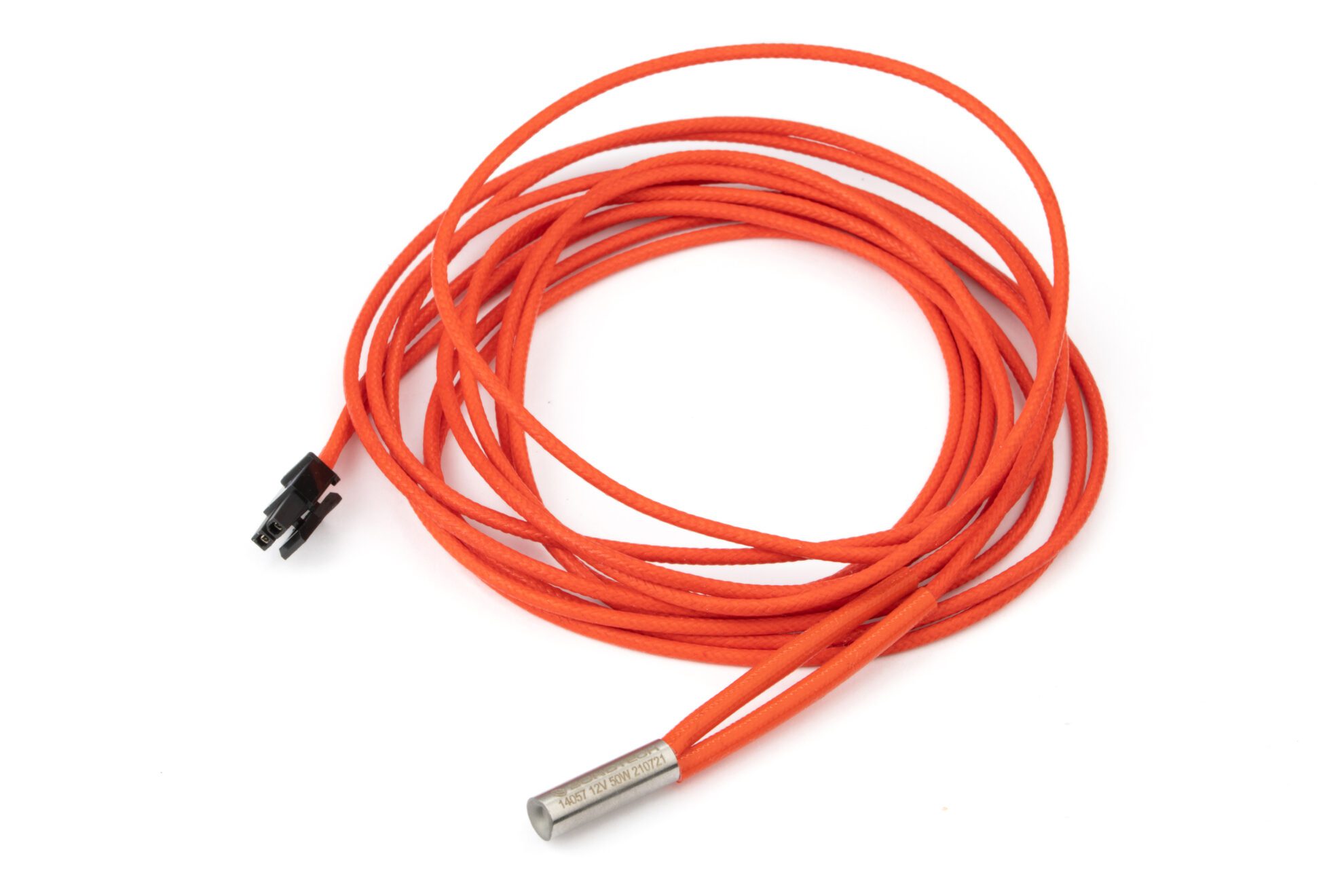

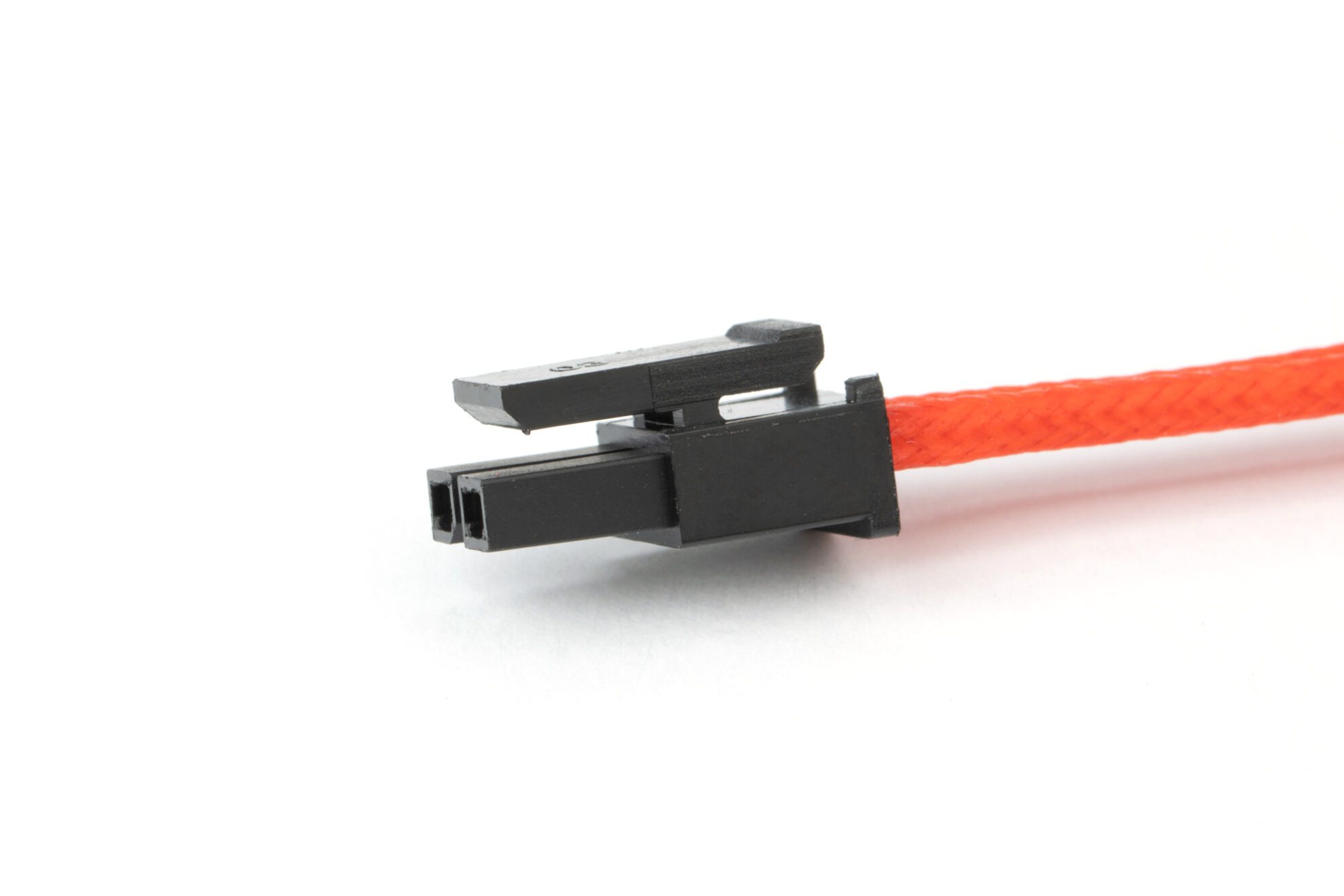

  • 1.5m leads with red sleeves and Molex micro-fit 3.0 female connector;
  • Ø 6mm 20mm long Stainless Steel cartridge with laser engraved Bondtech logo, SKU, electric specification and date of packaging;
  • 12v 50W heating element;

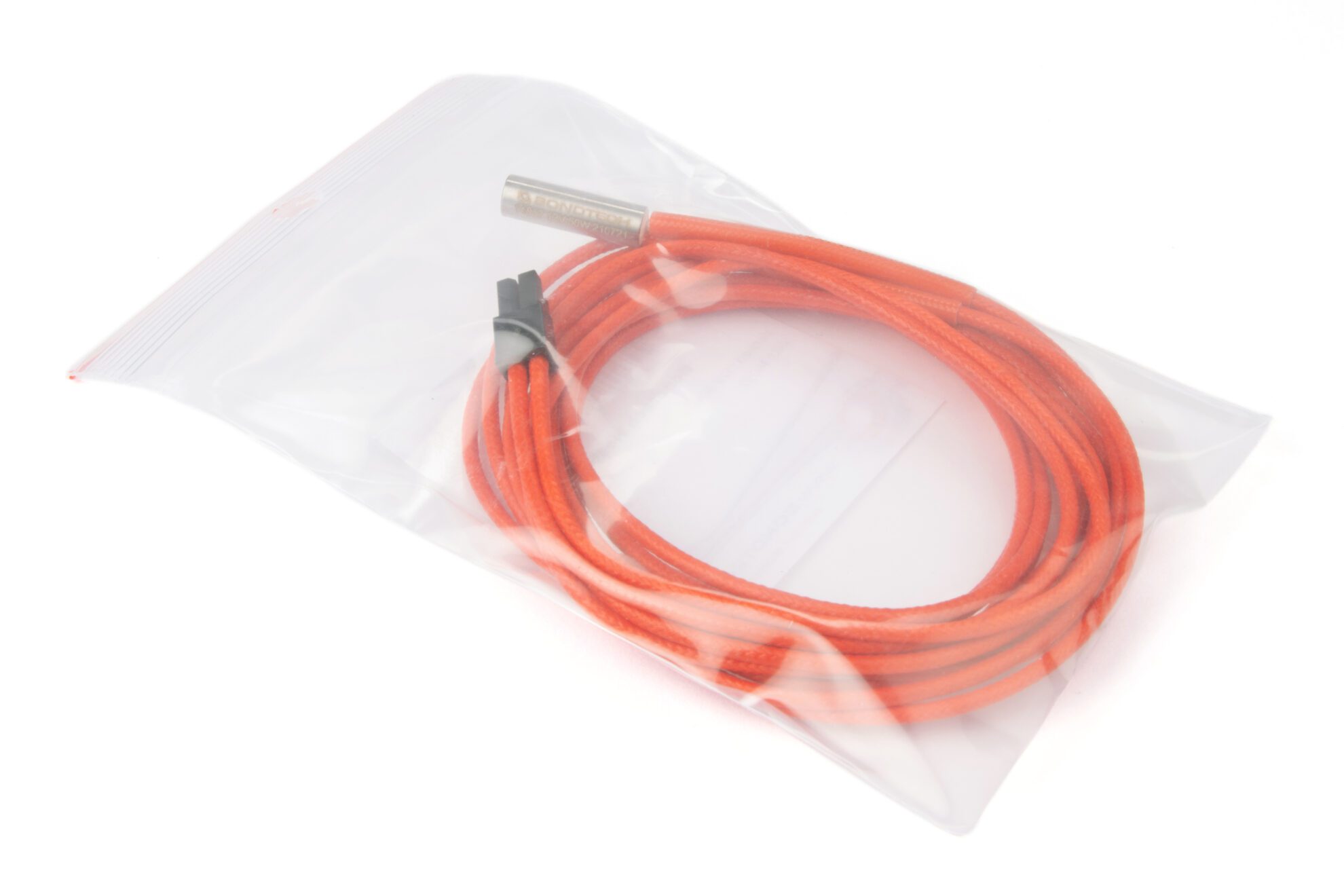

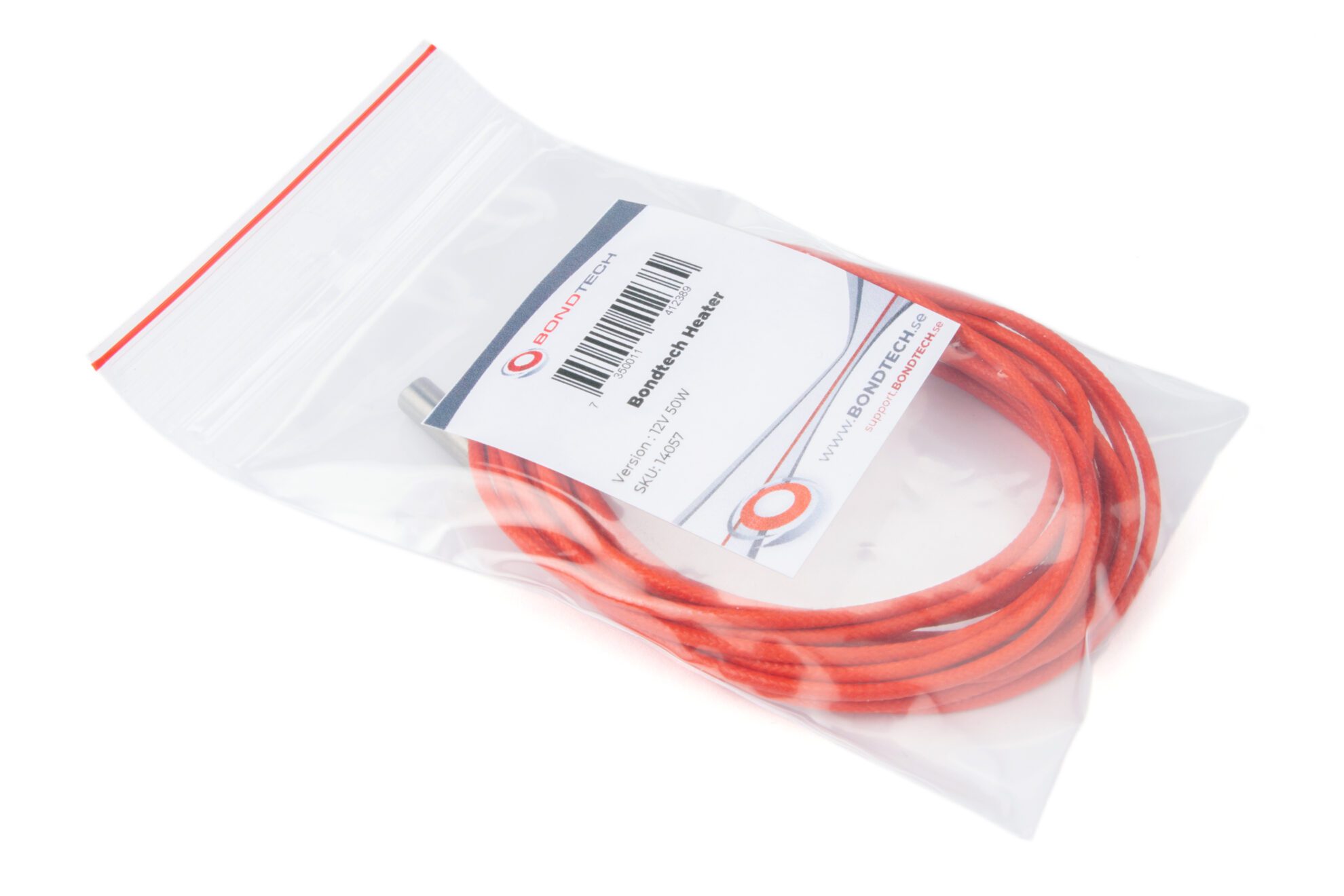

  • Packed in plastic bag.

You must select ONE optional HeatLink Interface Cable below…
… to connect this heater to your printer.
Check compatibility table at bottom of this page.

Price:

From: $12.90

Bondtech HeatLink JST XHP-2

#gap-263815897 { padding-top: 30px; }

Plug & Play Interface Cable - JST XHP-2

  • 50mm Interface cable with
  • Molex micro-fit 3.0 male connector on one end
  • JST XHP-2 connector on the other.
  • Packed in plastic bag.

Bondtech HeatLink JST VHR-2N

#gap-18519736 { padding-top: 30px; }

Plug & Play Interface Cable - JST VHR-2N

  • 50mm Interface cable with
  • Molex micro-fit 3.0 male connector on one end
  • JST VHR-2N connector on the other.
  • Packed in plastic bag.

Bondtech HeatLink JST SMP-02V-BC

#gap-1198256659 { padding-top: 30px; }

Plug & Play Interface Cable - JST SMP-02V-BC

  • 50mm Interface cable with
  • Molex micro-fit 3.0 male connector on one end
  • JST SMP-02V-BC connector on the other.
  • Packed in plastic bag.

Bondtech HeatLink Ferrule

#gap-871832823 { padding-top: 30px; }

Plug & Play Interface Cable- Ferrules

  • 50mm Interface cable with
  • Molex micro-fit 3.0 male connector on one end
  • Ferrule connector on the other.
  • Packed in plastic bag.

In stock (can be backordered)

Select Currency

Select Country

Update your firmware

Before buying this heater to use it with the DDX extruder check if we have a firmware update to support it here: Firmware Updates For Creality Using DDX

Bondtech HeatLink 12v 50W Heater

Have it your way!
This 12v 50W Heater cartridge and cable uses a Molex micro-fit 3.0 female connector to enable extending it with one of the HeatLink interface cables and connect to your printer without hassle.
Do not use this heater at nozzle temperatures above 300°C.

The HeatLink range is an alternative group of thermistors and heater cables enabled with Molex micro-fit connectors, complemented by several short interface cables for connecting to dozens of 3D printer models to bring ease of use to their owners.

HeatLink is the answer to the growing demand for powerful heaters and high temperature thermistors that are ready to use and easy to install.

Bondtech HeatLink

Plug & Play thermistors and heaters from Bondtech.

Ready to use on ( at least ) 25 different Creality and Prusa models.

Pair a Bondtech thermistor or heater with a HeatLink interface cable to plug into any printer without soldering or crimping.

Each Interface Cable is 50mm long and will fit entirely inside the control box.


Bondtech HeatLink Interface Cables Compatibility Table


HeatLink
JST
XH-2 W/ LOCK


HeatLink
JST
XHP-2


HeatLink
JST
VHR-2N


HeatLink
JST
SMP-02V-BC


HeatLink
Molex
MX-50-57-9002


HeatLink

Ferrule

HeatLink
JST
XH-2 W/ LOCK
compatible with:



HeatLink
JST
XHP-2
compatible with:


Ender-6

HeatLink
JST
VHR-2N
compatible with:


CR-10S Pro
CR-10S Pro V2
CR-10 Max
CR-10 V2
CR-10 V3

HeatLink
JST
SMP-02V-BC
compatible with:


Ender-5
Ender-5 Pro
Ender-5 Plus

HeatLink
MOLEX
MX-50-57-9002
compatible with:



HeatLink

Ferrule
compatible with:


i3 MK3 / S / +
i3 MK2.5 / S
i3 MK2 / S

CR-10
CR-10 mini
CR-10 S
CR-10 S4
CR-10 S5
CR-20 Pro
CR-5 Pro
CR-X
Ender-3
Ender-3 Pro
Ender-3 V2

The table above refers to connecting Bondtech HeatLink Heaters only.

Freight Weight 32.8 g
Dimensions 12 × 8 × 2 cm

Bondtech HeatLink JST XHP-2

Freight Weight 2.9 g
Dimensions 8 × 6 × 1 cm

Bondtech HeatLink JST VHR-2N

Freight Weight 3.5 g
Dimensions 8 × 6 × 1 cm

Bondtech HeatLink JST SMP-02V-BC

Freight Weight 3.1 g
Dimensions 8 × 6 × 1 cm

Bondtech HeatLink Ferrule

Freight Weight 2.9 g
Dimensions 8 × 6 × 1 cm
