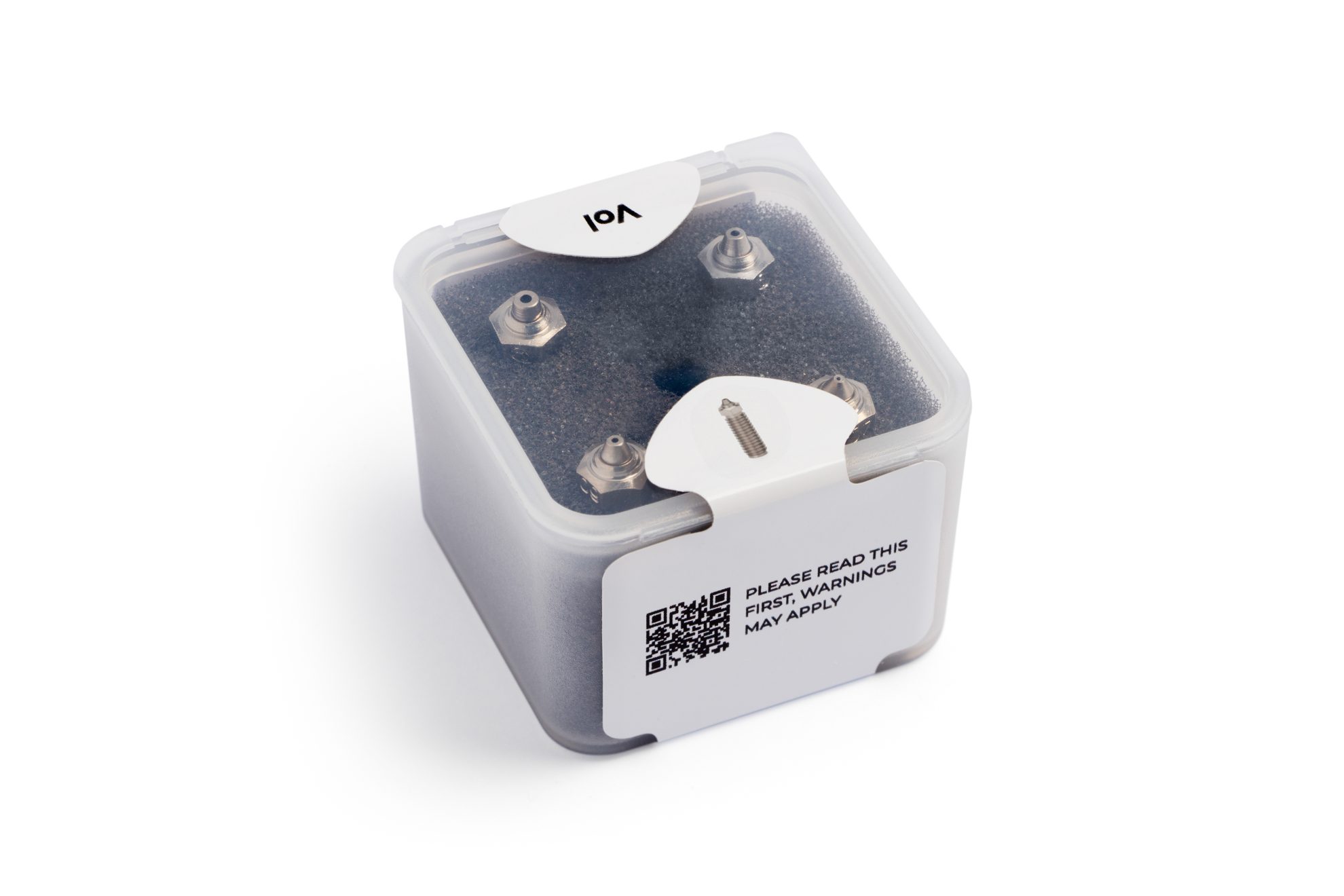

Bondtech CHT BiMetal ™ VOL Coated Nozzle 4 pack
All nozzles in this Bondtech CHT BiMetal ™ VOLcano nozzle pack increase the melting capacity of your hotend, to build faster and to save your time. They also improve the layer adhesion of your 3D prints to create stronger parts. Important to notice these nozzles are resistant to particle or fiber loaded abrasive materials.
Find the compatibility list and product alerts tabs below.
Features:
- Copper body;
- Hardened Steel inserts;
- Nickel Coating;
- 4 units per pack;

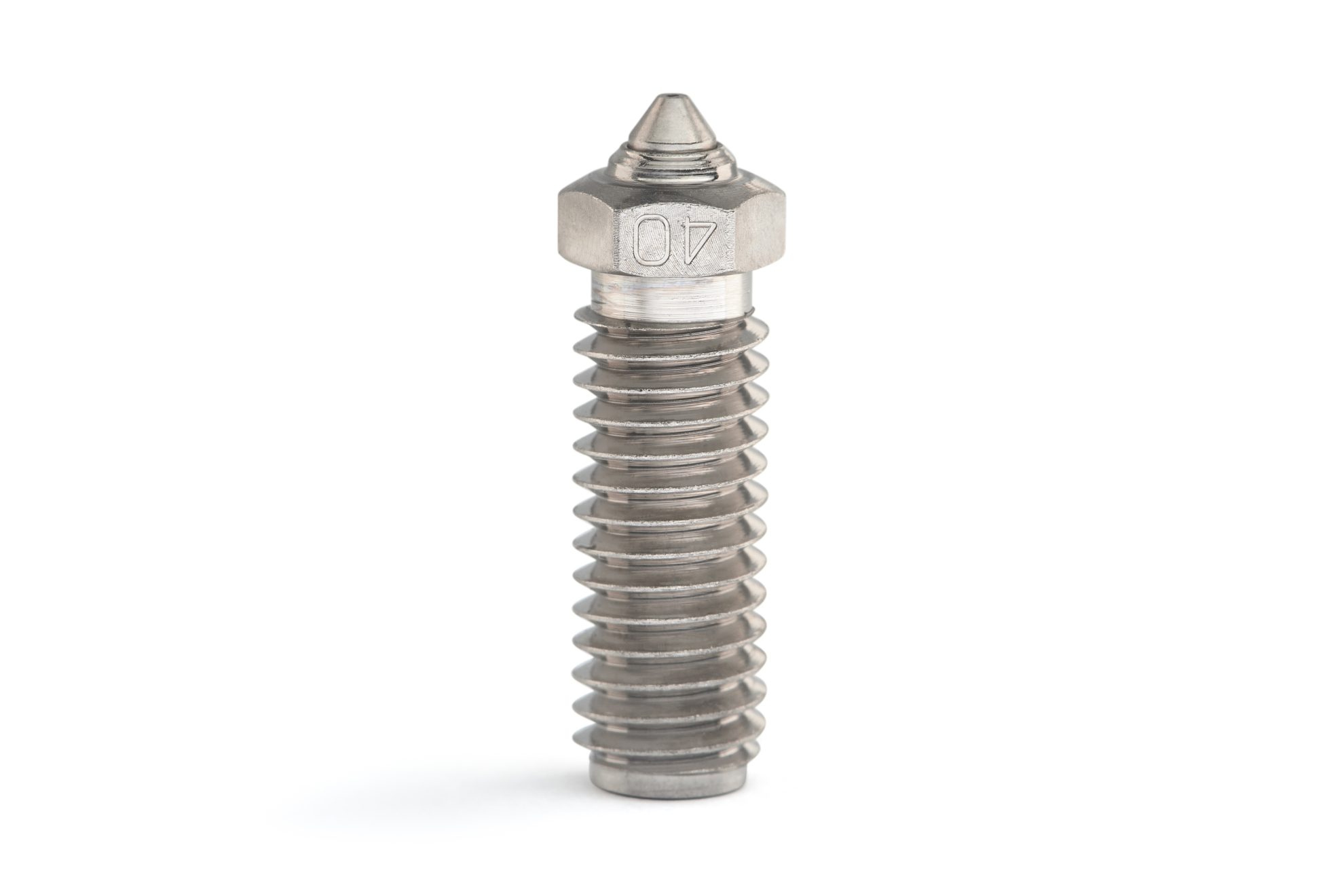

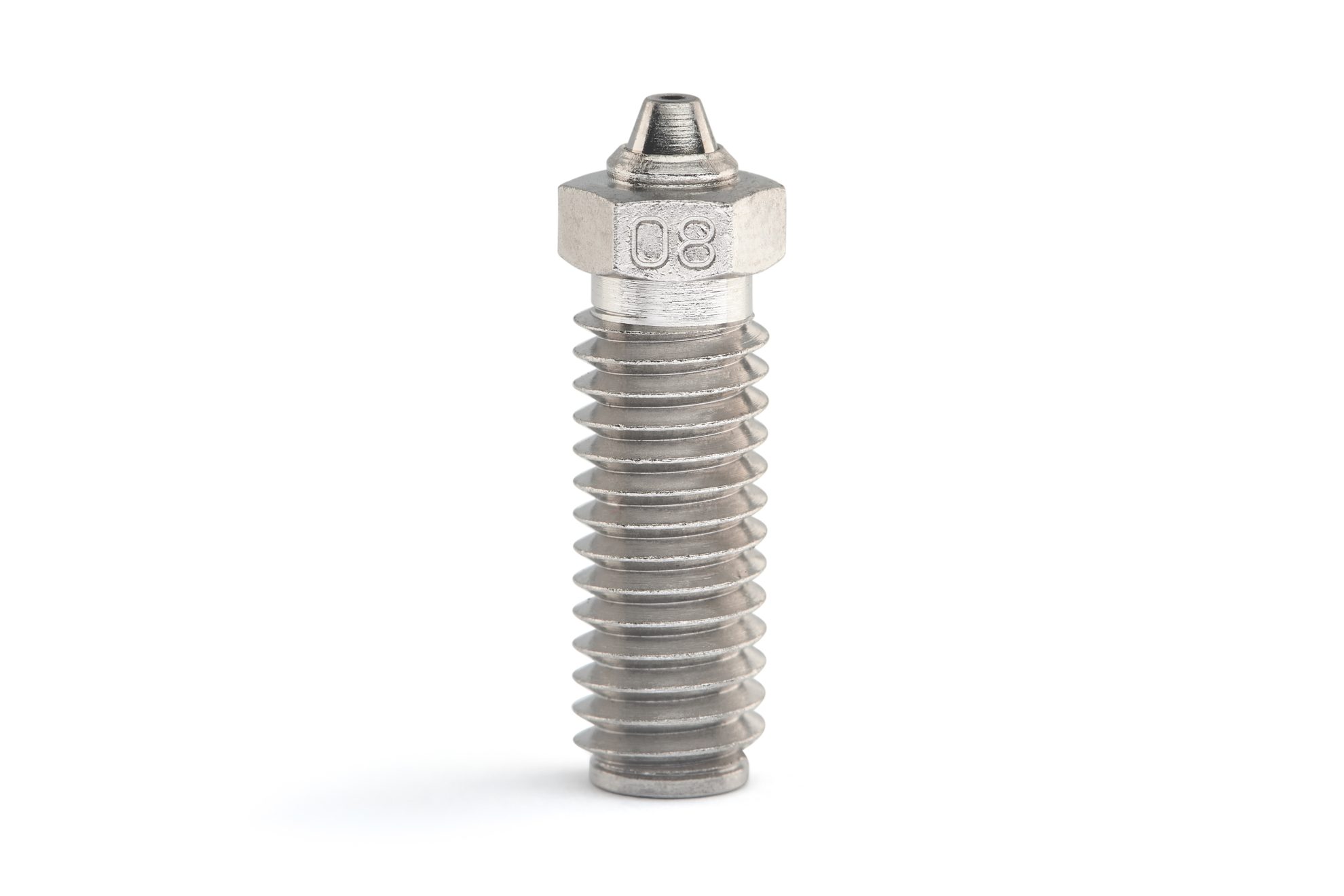

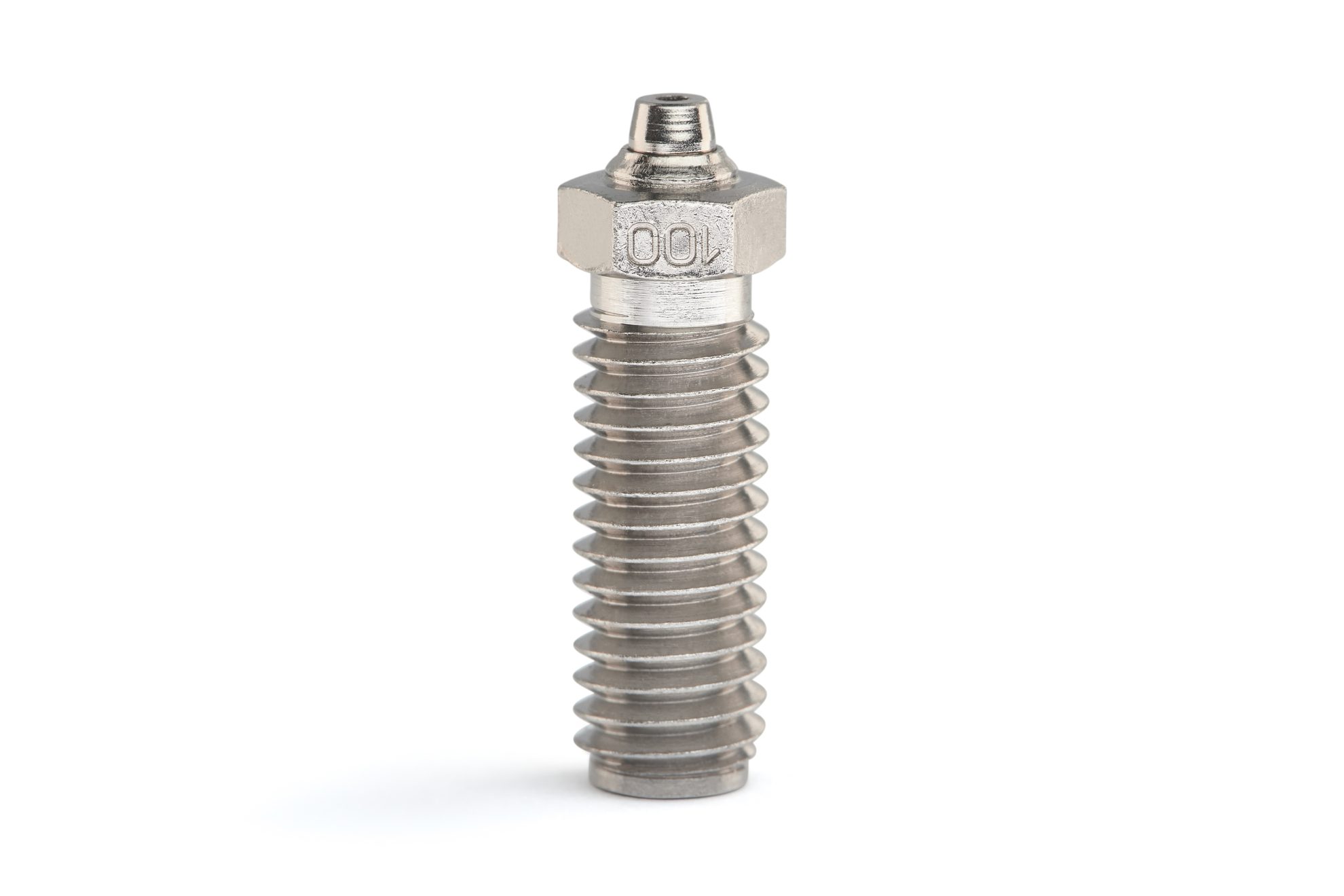

- Sizes included : 0.40, 0.60, 0.80, and 1.0mm;
- Optimized for 1.75mm filament;
- Compatible with 2.85mm filament.
- Requires 6mm wrench
Buy the Pack, Save 10%
Price:
Original price was: $179.60.$161.64Current price is: $161.64.
In stock (can be backordered)
Chose Currency / Country
Select Currency
Select Country
Description
Core Heating Technology is patented.
In Europe : Registration number: EP3445568A1 : Publication Date: 2021-12-01
In the U.S. : Registration Number : US11712847B2 : Publication Date: 2023-08-01
Nozzles for 3D printers made of metal with at least one or a multitude of holes to increase the standard circular surface area of the heating walls.
Bondtech CHT BiMetal ™ VOLcano Coated Nozzle Advantages
- Abrasive-proof to work with Carbon and Glass fiber composite materials;
- Higher melt capacity by increasing the surface area of the heating walls
- Flow Rate gains between 25 and 65%
- Competitive price/performance price
- Machined with ultra-precision
- Copper body and Hardened Steel inserts nozzle with Nickel coated surface
- Follows nozzle standard:
- Volcano (M6×1×14.5×21)
- May be used with 1.75 or 2.85mm hotends.
Flow Rate gains may vary. Results depend on the hardware, materials and print settings used.
Additional information
| Freight Weight | 19.6 g |
|---|---|
| Dimensions | 3.5 × 3.5 × 2.5 cm |
| Nozzle size | 0.40, 0.60, 0.80, 1.00 |
Product ALERTS
Product ALERTS
ALERT : Avoid Cold Bondtech CHT BiMetal Vol Nozzles Change
Heat up the heat block up to 280C, or at least above 250C, before removing or tightening any Bondtech CHT BiMetal nozzle. Use at most 1.5 Nm torque.
Technical Data Sheet
Technical Data Sheet
Compatibility List
Compatibility List
This Bondtech CHT nozzle fits the following hotends/blocks:
- E3D Volcano blocks
- Other Volcano type blocks
- Artillery Sidewinder X1 and X2
- Anycubic Vyper
- Creality K1
- FLSUN Super Racer
- Artillery Genius Pro
- Anycubic Kobra and Kobra Max
- Lulzbot TAZ MOARstruder
- Others compatible with Volcano…
Product Videos
Product Videos
Standard Nozzle vs. Bondtech CHT®
Flow Rate Comparison
Flow Rate Comparison
Comparing a standard 0.6 Volcano nozzle with a 0.6 CHT Volcano nozzle
| Room Temperature | 20 - 25 °C |
| Material | HT-PLA |
| Manufacturer | add:north |
| Vref ( current ) | ( 500mA ) |
| Extruder | LGX 1.75 |
| Arm Position | 0 1 2 3 4 5 |
| Motor | LDO Nema17 |
| Hotend | E3D Volcano |
| Nozzle | 0.6mm CHT |
| Nozzle ( °C ) | Feed Rate | Flow Rate (mm^3/s) |
| 200 °C | 650 | 26.06 |
| 210 °C | 810 | 32.47 |
| 220 °C | 910 | 36.48 |
| 230 °C | 1090 | 43.70 |
| 240 °C | 1175 | 47.10 |
| 250 | 1250 | 50.11 |
| 260 °C | 1360 | 54.52 |
| 270 °C | 1450 | 58.13 |
| 280 °C | 1580 | 63.34 |
add:north recommended temperature for HT-PLA: 200 - 230 °C
| Room Temperature | 20 - 25 °C |
| Material | HT-PLA |
| Manufacturer | add:north |
| Vref ( current ) | ( 500mA ) |
| Extruder | LGX 1.75 |
| Arm Position | 0 1 2 3 4 5 |
| Motor | LDO Nema17 |
| Hotend | E3D Volcano |
| Nozzle | 0.6mm Standard |
| Nozzle ( °C ) | Feed Rate | Flow Rate (mm^3/s) |
| 200 °C | 520 | 20.85 |
| 210 °C | 585 | 23.45 |
| 220 °C | 630 | 25.26 |
| 230 °C | 705 | 28.26 |
| 240 °C | 750 | 30.07 |
| 250 °C | 810 | 32.47 |
| 260 °C | 865 | 34.68 |
| 270 °C | 910 | 36.48 |
| 280 °C | 960 | 38.48 |
add:north recommended temperature for HT-PLA: 200 - 230 °C
Bondtech CHT Volcano Flow Rate Gains
| ( °C ) | ( mm^3/s ) | ( % ) |
| Nozzle Temperature | Absolute Increase | Relative Increase |
| @ 200 °C | + 5.21 | + 25% |
| @ 210 °C | + 9.02 | + 38% |
| @ 220 °C | + 11.22 | + 44% |
| @ 230 °C | + 15.43 | + 55% |
| @ 240 °C | + 17.04 | + 57% |
| @ 250 °C | + 17.64 | + 54% |
| @ 260 °C | + 19.84 | + 57% |
| @ 270 °C | + 21.65 | + 59% |
| @ 280 °C | + 24.85 | + 65% |
