2021
Harnessing the innovative potential of 3DSolex’s CHT patent, Bondtech invested in extensive research and development to enhance and commercialize the technology.
A Bondtech CHT nozzle unlocks increased flow capacity for faster build speeds, superior layer bonding for stronger parts, and energy-efficient printing, promoting sustainability without compromising performance.
According to a value-for-money assessment, integrating Bondtech CHT nozzles stands out as the most lucrative enhancement to any 3D printer.
Huge gains in Flow capacity
The CHT nozzle melts more plastic to print faster or build more in less time.
Super improved layer adhesion
More molten extruded material fuses layers to make mechanically stronger parts.
Build much more with less energy
The higher heat transfer efficiency saves you money on the electricity bills.
The best money for value upgrade
It costs so little saves so much it is paid in less than 10 hours of 3D prints.
Find this tech in these products
I just installed an LGX on my CR6 Max and I can't thank you enough for the great installation video! After following the directions on esteps and setting in the software it works great. Printing already! Great product....
David ★ ★ ★ ★ ★

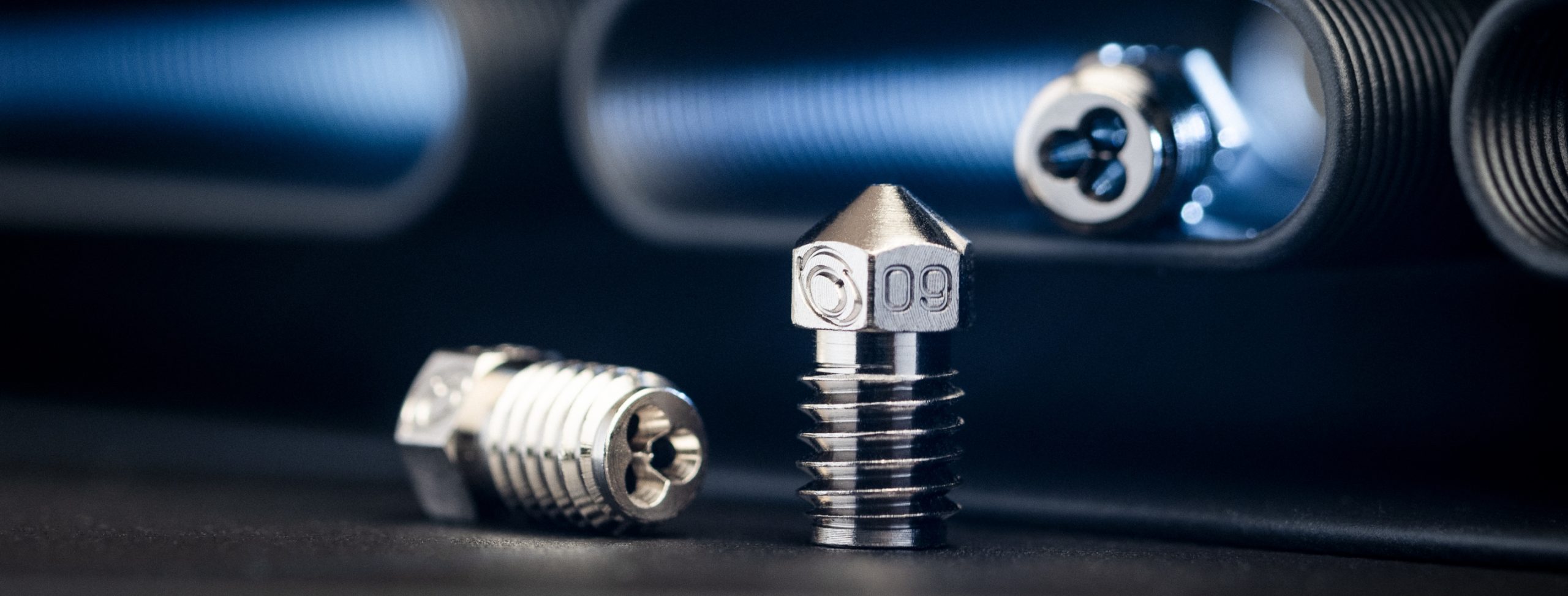

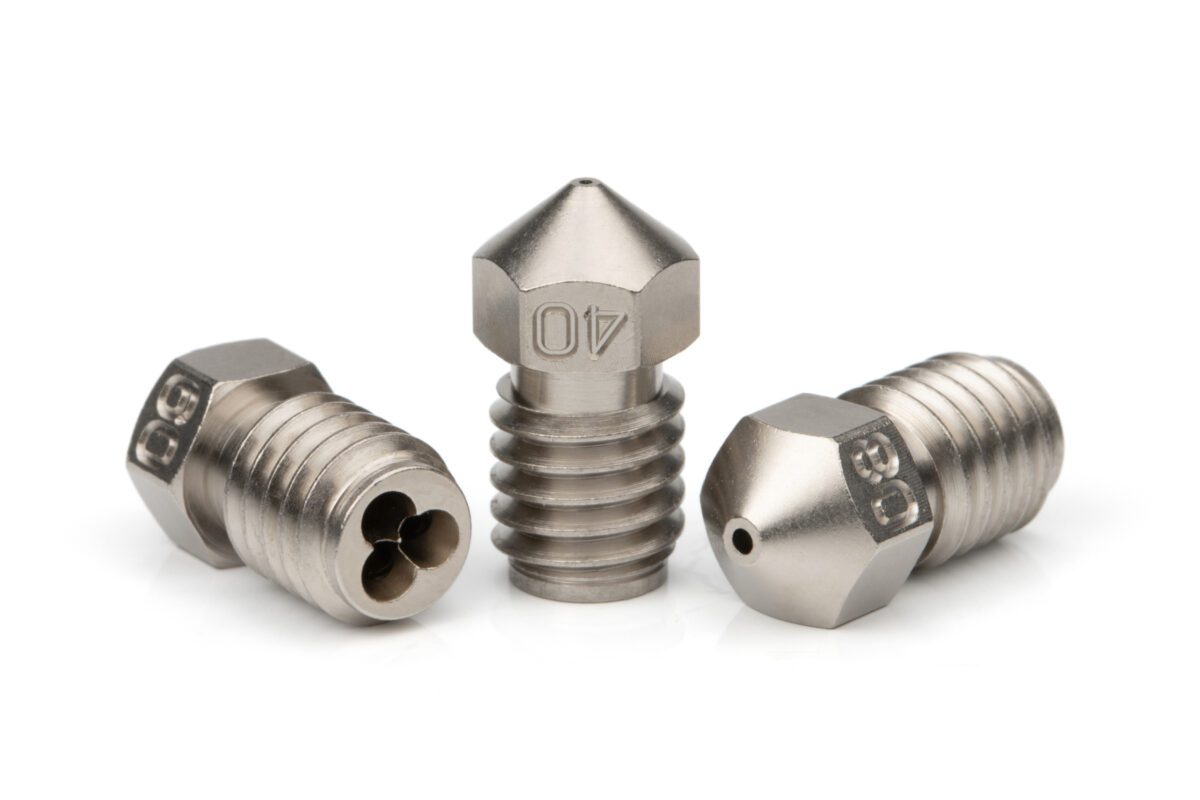

CHT Coated Brass

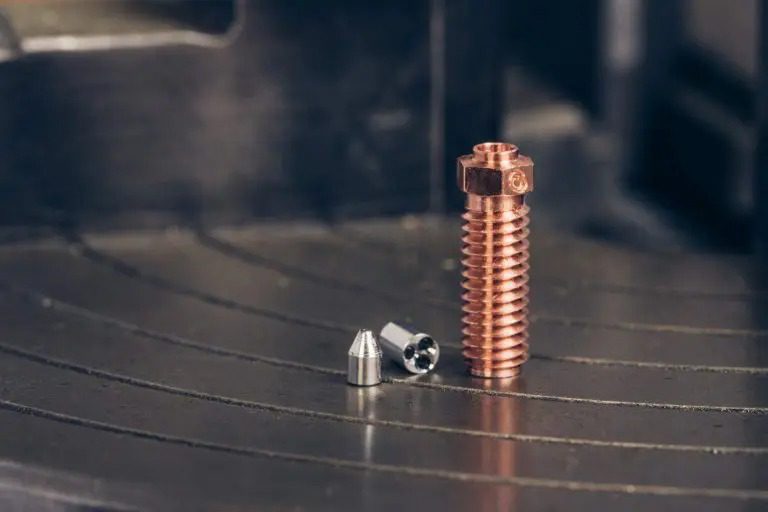

CHT BiMetal
Composition
Nickel coated
Brass
Nickel coated
Copper & Hardened Steel
Construction
Monolithic
or Body + inlet insert
Body +
tip & inlet inserts
Filament ⌀
from 1.75mm
to 2.85 mm
from 1.75mm
to 2.85 mm
Working Temperature
From 20° C
to 300° C
From 20° C
to 450° C
Max tightening Torque
1.5 Nm
1.0 Nm
Rigid materials
Abrasive materials
Flexible materials
SKU
600-C-CHT-MOS-175-??
600-C-CHT-MK8-175-??
600-C-CHT-CSP-175-??
600-C-CHT-VOL-175-??
NOZ01CHT41????
Available Bore Diameters
(mm)
- 0.25
- 0.40
- 0.50
- 0.60
- 0.80
- 1.00
- 1.40
- 1.80
- 0.40
- 0.60
- 0.80
- 1.00
- 1.40
- 1.80
- 0.40
- 0.60
- 0.80
- 1.00
- 0.40
- 0.50
- 0.60
- 0.80
- 1.00
- 1.20
- 0.40
- 0.50
- 0.60
- 0.80
- 1.00
- 1.00
- 1.80
- 2.50
Thread Standard
RepRap M6
MK8
Spider
Volcano
Neptune 4
Compatibility
- E3D hotends
- E3D V4
- E3D V5
- E3D V6
- E3D Chimera
- E3D Kraken
- NorthPrint hotends
- Chube
- Phaetus hotends
- Rapido
- Rapido 2
- Rapido 2F
- Rapido Plus
- Rapido 2 UHF
- Dragon UHF
- Dragonfly BMS
- Dragonfly BMO
- neXt G
- Phaetus x Voron Dragon HF
- Slice Engineering hotends
- Copperhead
- Mosquito
- Mosquito Magnum
- Mosquito Magnum Plus
- bq 3D printers
- Hephestos
- Hephestos 2
- Prusa i3 Hephestos
- Witbox
- Witbox 2
- Creality 3D printers
- CR-10
- CR-10-S4
- CR-10-S5
- CR-10S
- Ender 2
- Ender 3 Pro
- CR-20 Pro
- Ender 5
- CR-10 V2
- CR-6 SE
- CR-10 Smart
- All Craftbot 3D printers
- Elegoo 3D printers
- Neptune 3 Pro
- MakerBot 3D printers
- Replicator
- Replicator 2
- Replicator 2X
- Micro Swiss hotends
- All Metal Hotend Kit for
- CR-10
- Ender
- All Metal Hotend Kit for
- CR-10s PRO
- CR-10 Max
- Ender 3 Neo
- Ender 3 V2 Neo
- All Metal Hotend Kit for
- Creality CR-6 SE
- CR-6 MAX
- CR-10 Smart
- All Metal Hotend Kit for
- Tevo 3D printers
- Tornado
- Creality Spider V1 Hotends
- E3D hotends
- Volcano
- Artillery 3D printers
- SideWinder X1
- SideWinder X2
- Genius Pro
- Anycubic 3D printers
- Vyper
- Kobra
- Kobra Max
- LulzBot 3D printers/toolheads
- TAZ
- MOARstruder
- Creality 3D printers
- K1
- FLSUN 3D printers
- Super Racer
- Neptune 4 Plus
- Neptune 4 Max
Thread
M6x1 mm
M6x1 mm
M6x1 mm
M6x1 mm
M6x1 mm
Thread Length
6 mm
4 mm
6 mm
14.5 mm
16 mm
Neck Length
7.5 mm
5 mm
6 mm
16 mm
18 mm
Total Length
12.5 mm
13 mm
16.8 mm
21 mm
22.5 mm
Tightening Wrench
7 mm
8 mm
6 mm
6 mm
6 mm
Tightening Torque
Hot tighten at 1.5 Nm
Hot tighten at 1.5 Nm
Hot tighten at 1.5 Nm
Hot tighten at 1.5 Nm
Hot tighten at 1.5 Nm
Construction
Monolithic
Monolithic
Monolithic
Neck & head block
+ inlet insert
Neck & head block
+ inlet insert
SKU
600-A-CHT-MOS-175-??
600-A-CHT-MK8-175-??
600-A-CHT-VOL-175-??
Available Bore Diameters
(mm)
- 0.40
- 0.60
- 0.80
- 1.00
- 0.40
- 0.60
- 0.80
- 1.00
- 0.40
- 0.60
- 0.80
- 1.00
Thread Standard
RepRap M6
MK8
Volcano
Compatibility
- E3D hotends
- E3D V4
- E3D V5
- E3D V6
- E3D Chimera
- E3D Kraken
- NorthPrint hotends
- Chube
- Phaetus hotends
- Rapido
- Rapido 2
- Rapido 2F
- Rapido Plus
- Rapido 2 UHF
- Dragon UHF
- Dragonfly BMS
- Dragonfly BMO
- neXt G
- Phaetus x Voron Dragon HF
- Slice Engineering hotends
- Copperhead
- Mosquito
- Mosquito Magnum
- Mosquito Magnum Plus
- bq 3D printers
- Hephestos
- Hephestos 2
- Prusa i3 Hephestos
- Witbox
- Witbox 2
- Creality 3D printers
- CR-10
- CR-10-S4
- CR-10-S5
- CR-10S
- Ender 2
- Ender 3 Pro
- CR-20 Pro
- Ender 5
- CR-10 V2
- CR-6 SE
- CR-10 Smart
- All Craftbot 3D printers
- Elegoo 3D printers
- Neptune 3 Pro
- MakerBot 3D printers
- Replicator
- Replicator 2
- Replicator 2X
- Micro Swiss hotends
- All Metal Hotend Kit for
- CR-10
- Ender
- All Metal Hotend Kit for
- CR-10s PRO
- CR-10 Max
- Ender 3 Neo
- Ender 3 V2 Neo
- All Metal Hotend Kit for
- Creality CR-6 SE
- CR-6 MAX
- CR-10 Smart
- All Metal Hotend Kit for
- Tevo 3D printers
- Tornado
- E3D hotends
- Volcano
- Artillery 3D printers
- SideWinder X1
- SideWinder X2
- Genius Pro
- Anycubic 3D printers
- Vyper
- Kobra
- Kobra Max
- LulzBot 3D printers/toolheads
- TAZ
- MOARstruder
- Creality 3D printers
- K1
- FLSUN 3D printers
- Super Racer
Thread Length
6 mm
4 mm
14.5 mm
Thread
M6x1 mm
M6x1 mm
M6x1 mm
Neck Length
7.5 mm
5 mm
16 mm
Total Length
12.5 mm
13 mm
21 mm
Tightening Wrench
7 mm
8 mm
6 mm
Tightening Torque
Hot tighten at 1.5 Nm
Hot tighten at 1.5 Nm
Hot tighten at 1.5 Nm
Construction
Neck & Head block
+ Tip insert
+ Inlet insert
Neck & Head block
+ Tip insert
+ Inlet insert
Neck & Head block
+ Tip insert
+ Inlet insert
Learn about other Bondtech technologies
DUAL DRIVE TECHNOLOGY
( GEN1 )
More precision, less filament slipping, tearing and shredding:
Better parts.

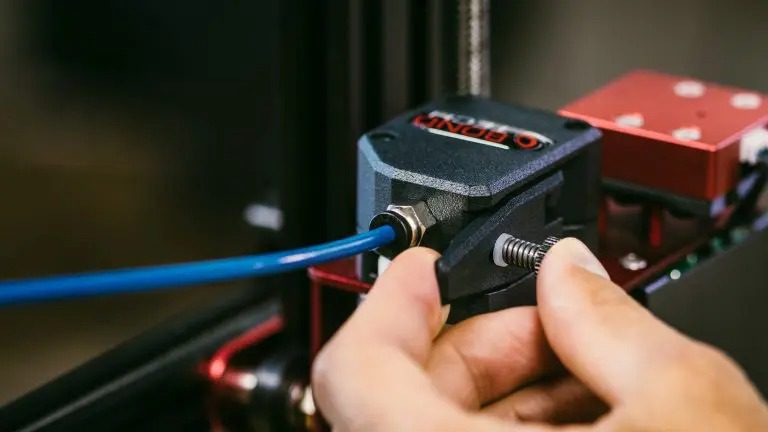

PRE-TENSION
QUICK RELEASE
No need for tools, just two fingers to setup or release:
Easier to use.

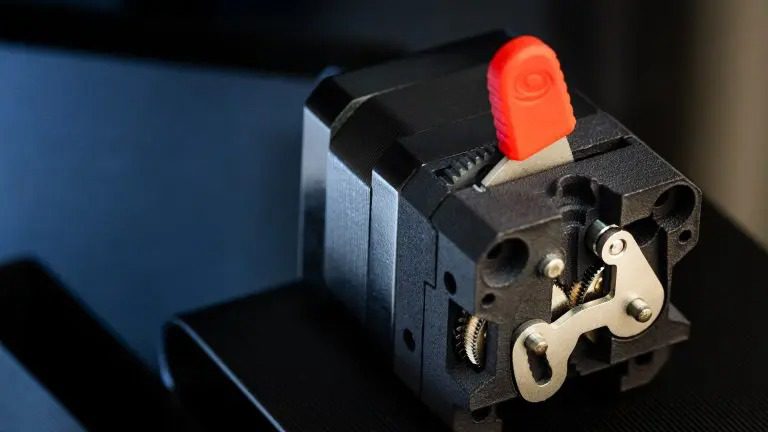

MINI DUAL DRIVE TECHNOLOGY
( GEN2 )
Smaller drive gears; great grip & control; room for a gearbox:
Less extruder weight.
PRE-TENSION
LEVER
CAM mechanism that adjusts the distance between drive gears:
More repeatability.

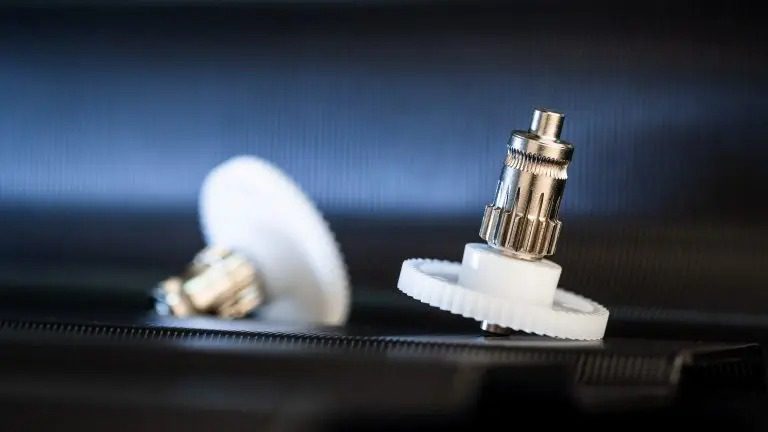

INtegrated Drive Gear Assembly
( IDGA )
Monolithic construction; less run-out:
Better print surface quality.
LARGE DUAL DRIVE TECHNOLOGY
( GEN3 )
Largest drive gears; leading grip & control:
Less failed prints and better surface quality.

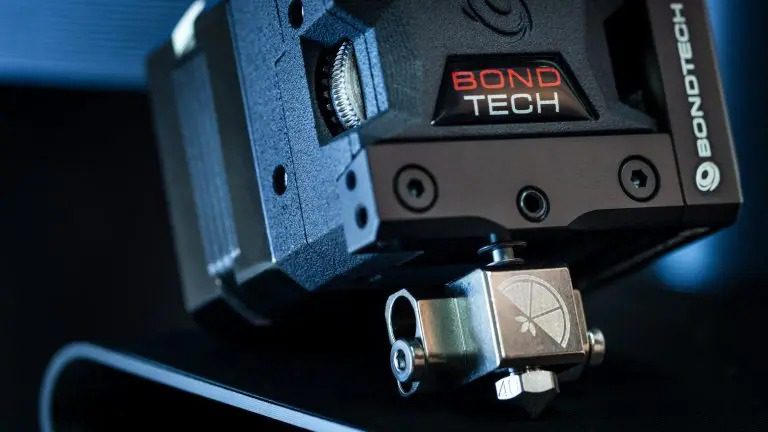

SHORT FILAMENT PATH
TOOLHEADS
Our solution to print faster with rigid and flexible materials:
More flow and less spring effect.

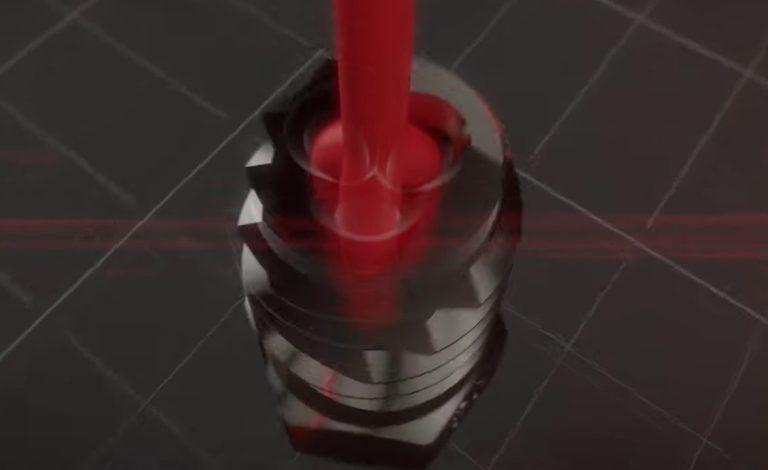

CORE HEATING TECHNOLOGY
( CHT )
3-ways filament spliter; triple the heat surface contact:
Faster prints and stronger parts.
LGX FULL STEEL
DRIVE TRAIN
Steel gears and drive wheels; metal sliding bearings:
Raise application limits higher.
BI-METAL CHT
( Core Heating Technology )
Updated CHT nozzles with Copper bodies and Steel inserts:
High flow comes to abrasive materials.
