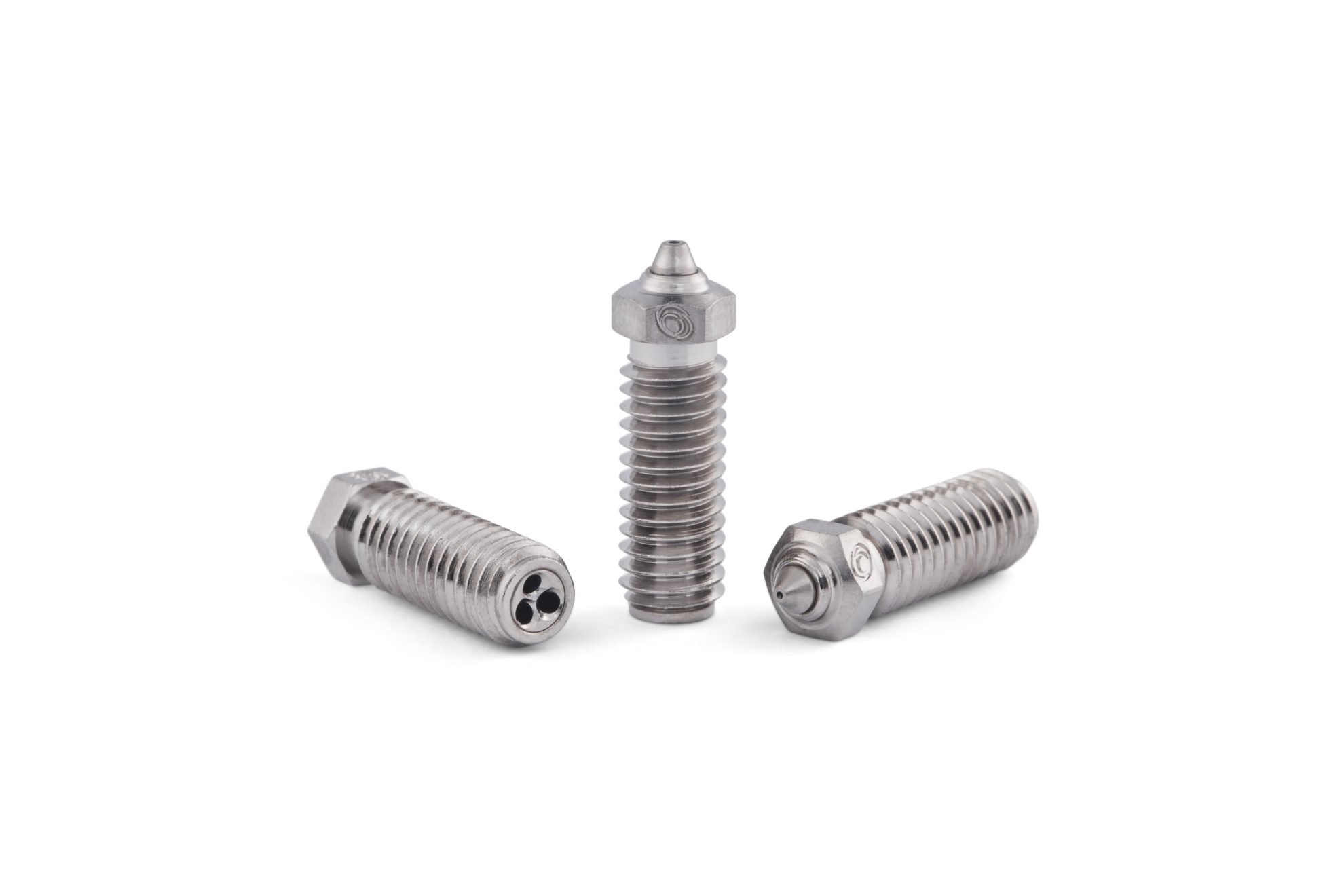

Bondtech CHT BiMetal VOL Coated Nozzle
Price:
$44.90
This Bondtech CHT BiMetal ™ VOLcano nozzle increases the melting capacity of your hotend, to build faster and to save your time. It also improves the layer adhesion of your 3D prints to create stronger parts. Important to notice this nozzle is resistant to particle or fiber loaded abrasive materials.
Find the compatibility list and product alerts tabs below.
Features:
- Copper body;
- Hardened Steel inserts;
- Nickel Coating;
- 1 unit per pack;
- Available sizes : 0.40, 0.60, 0.80, and 1.0mm;
- Optimized for 1.75mm filament;
- Compatible with 2.85mm filament.
- Requires 6mm wrench
You may need
Select Currency
Select Country
Always check below if we have Product Alerts you should be aware of before buying.
Core Heating Technology is patented.
In Europe : Registration number: EP3445568A1 : Publication Date: 2021-12-01
In the U.S. : Registration Number : US11712847B2 : Publication Date: 2023-08-01

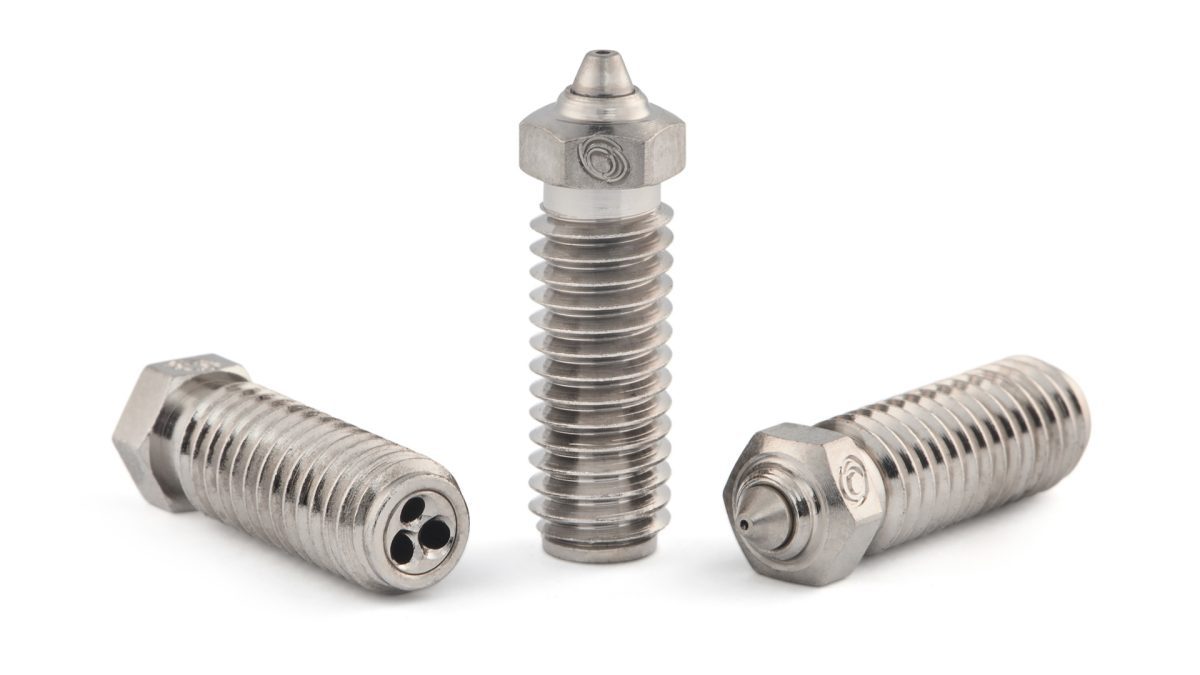

Nozzles for 3D printers made of metal with at least one or a multitude of holes to increase the standard circular surface area of the heating walls.
Bondtech CHT BiMetal ™ VOLcano Coated Nozzle Advantages
- Abrasive-proof to work with Carbon and Glass fiber composite materials;
- Higher melt capacity by increasing the surface area of the heating walls
- Flow Rate gains between 25 and 65%
- Competitive price/performance price
- Machined with ultra-precision
- Copper body and Hardened Steel inserts nozzle with Nickel coated surface
- Follows nozzle standard:
- Volcano (M6×1×14.5×21)
- May be used with 1.75 or 2.85mm hotends.
Flow Rate gains may vary. Results depend on the hardware, materials and print settings used.
| Freight Weight | 10 g |
|---|---|
| Dimensions | 3.5 × 3.5 × 3 cm |
| Nozzle size | 0.40, 0.50, 0.60, 0.80, 1.00 |
Product ALERTS
Copper is a soft material and doesn't withstand high mechanical efforts. For Wood, Carbon or Glass fiber loaded abrasive filaments use only 0.6, 0.8 or 1.0mm nozzle sizes. For metal, glitter or other particle loaded abrasive filaments you may use the 0.4mm or 0.5mm nozzle sizes.
ALERT : Avoid Cold Change Of Bondtech CHT BiMetal Nozzles
Before removing or tightening any Bondtech CHT BiMetal nozzle, heat it up to 280C, or at least above 250C.
Use a calibrated tool to limit Torque up to 1.5 Nm. ALERT : Size limitation for fiber loaded filaments
ALERT : For particle loaded filaments
Technical Data Sheet
Compatibility List
This Bondtech CHT nozzle fits the following hotends/blocks:
- E3D Volcano blocks
- Other Volcano type blocks
- Artillery Sidewinder X1 and X2
- Anycubic Vyper
- Creality K1 & K1 Max
- FLSUN Super Racer
- Artillery Genius Pro
- Anycubic Kobra and Kobra Max
- Lulzbot TAZ MOARstruder
- Others compatible with Volcano…
Product Videos
Flow Rate Comparison
Comparing a standard 0.6 Volcano nozzle with a 0.6 CHT Volcano nozzle
| Room Temperature | 20 - 25 °C |
| Material | HT-PLA |
| Manufacturer | add:north |
| Vref ( current ) | ( 500mA ) |
| Extruder | LGX 1.75 |
| Arm Position | 0 1 2 3 4 5 |
| Motor | LDO Nema17 |
| Hotend | E3D Volcano |
| Nozzle | 0.6mm CHT |
| Nozzle ( °C ) | Feed Rate | Flow Rate (mm^3/s) |
| 200 °C | 650 | 26.06 |
| 210 °C | 810 | 32.47 |
| 220 °C | 910 | 36.48 |
| 230 °C | 1090 | 43.70 |
| 240 °C | 1175 | 47.10 |
| 250 | 1250 | 50.11 |
| 260 °C | 1360 | 54.52 |
| 270 °C | 1450 | 58.13 |
| 280 °C | 1580 | 63.34 |
add:north recommended temperature for HT-PLA: 200 - 230 °C
| Room Temperature | 20 - 25 °C |
| Material | HT-PLA |
| Manufacturer | add:north |
| Vref ( current ) | ( 500mA ) |
| Extruder | LGX 1.75 |
| Arm Position | 0 1 2 3 4 5 |
| Motor | LDO Nema17 |
| Hotend | E3D Volcano |
| Nozzle | 0.6mm Standard |
| Nozzle ( °C ) | Feed Rate | Flow Rate (mm^3/s) |
| 200 °C | 520 | 20.85 |
| 210 °C | 585 | 23.45 |
| 220 °C | 630 | 25.26 |
| 230 °C | 705 | 28.26 |
| 240 °C | 750 | 30.07 |
| 250 °C | 810 | 32.47 |
| 260 °C | 865 | 34.68 |
| 270 °C | 910 | 36.48 |
| 280 °C | 960 | 38.48 |
add:north recommended temperature for HT-PLA: 200 - 230 °C
Bondtech CHT Volcano Flow Rate Gains
| ( °C ) | ( mm^3/s ) | ( % ) |
| Nozzle Temperature | Absolute Increase | Relative Increase |
| @ 200 °C | + 5.21 | + 25% |
| @ 210 °C | + 9.02 | + 38% |
| @ 220 °C | + 11.22 | + 44% |
| @ 230 °C | + 15.43 | + 55% |
| @ 240 °C | + 17.04 | + 57% |
| @ 250 °C | + 17.64 | + 54% |
| @ 260 °C | + 19.84 | + 57% |
| @ 270 °C | + 21.65 | + 59% |
| @ 280 °C | + 24.85 | + 65% |
