Reversed Integrated Drive Gear Assembly for HextrudORT extruder

Bondtech

/

Shop

/

Accessories

/

Bondtech Accessories

/

For OEM & Open Source

/

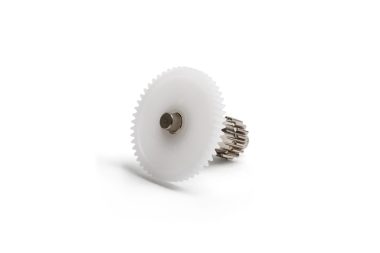

OEM Reverse Integrated Drive Gear Assembly

OEM Reverse Integrated Drive Gear Assembly

Be aware the primary drive gear is reversed :
not compatible with the Bondtech BMG extruder

We recommend using 4x8x3.0 mm ball bearings (NOW INCLUDED).

Find ball bearings in the "You May Need" menu >

Find the required ball bearings by pressing "FILTER", above the main image, to open the You may need menu ^

Compatible only with :

  • new HextrudORT extruder

Price:

$16.00

Select Currency

Select Country

The R.I.D.G.A. replaces the following drive train items:

  • Main shaft;
  • Main gear;
  • Set screw;
  • Primary drive gear.
  • 2x 4x8x3.0 mm ball bearings

A collaboration project with an outstanding element from our community

The BMG Reverse Integrated Drive Gear was designed in collaboration with MirageC, the creator of the HextrudORT, to address the runouts of the main shaft assembly and primary drive gear held by a set screw.

As MirageC explains in his YouTube video Extrusion Quality – Mystery issue resolved ! the runout of the main double gear and wobbling of the main drive gear contribute to explain the surface irregularity seen in all 3D prints.

To lower said (in)tolerances to a minimum, we made the following improvements:

  • main dual gears with tighter tolerances,
  • pressed fit onto the main shaft with a new method,
  • also, main shaft and main drive gear are machined in a monolithic steel set.

Result? A very meaningful step forward in quality.

Freight Weight 11 g
Dimensions 8 × 6 × 3 cm

Technical Specification

Technical Specification

  • Shaft length: 27 -0/+0.05
  • Shaft length to support ball bearings : < 3mm – 3mm >
  • Filament teeth’s center to end of shaft : < 14mm – 13mm >
  • Number of drive gear teeth : 17
  • Drive gear teeth length : 4mm
  • Mainshaft/drive gear Material: Hardened Steel
    Materials Compatibility:

    • Flexible : yes;
    • Rigid : yes;
    • Abrasive : yes.
  • Number of main gear teeth : 50
  • Main gear teeth length : 3mm

IDGA / RIDGA Compatibility Table

SKU

15119

15149

15165

15167

15169

Short Name

DDX IDGA

OEM RIDGA

BMG IDGA

OEM RIDGA v2

OEM IDGA

Ballbearings

4x8x3 mm

4x8x3 mm

3x8x3 mm

5x8x2.5 mm

5x8x2.5 mm

BMG-HT











All Bondtech DDX











All BMG / BMG-M











All BMG-X2 / BMG-X2-M











All Bondtech kits for Prusa











HextrudORT











Sherpa Mini











Voron Mini StealthBurner











Voron CW1











Voron CW2











Comments

Name updated
Replaced

Name updated
Replaced

Available now

Available now

Available now

SKU >

15119

15149

15165

15167

15169

Short Name >

DDX IDGA

OEM RIDGA

BMG IDGA

OEM RIDGA v2

OEM IDGA

Ballbearings

4x8x3 mm

4x8x3 mm

3x8x3 mm

5x8x2.5 mm

5x8x2.5 mm

BMG-HT











All Bondtech DDX











All BMG / BMG-M











All BMG-X2 / BMG-X2-M











All Bondtech kits for Prusa











HextrudORT











Sherpa Mini











Voron Mini StealthBurner











Voron CW1











Voron CW2











Comments

Name updated
Will be replaced later

Name updated
Being replaced now

Available now

Available now

Available now
