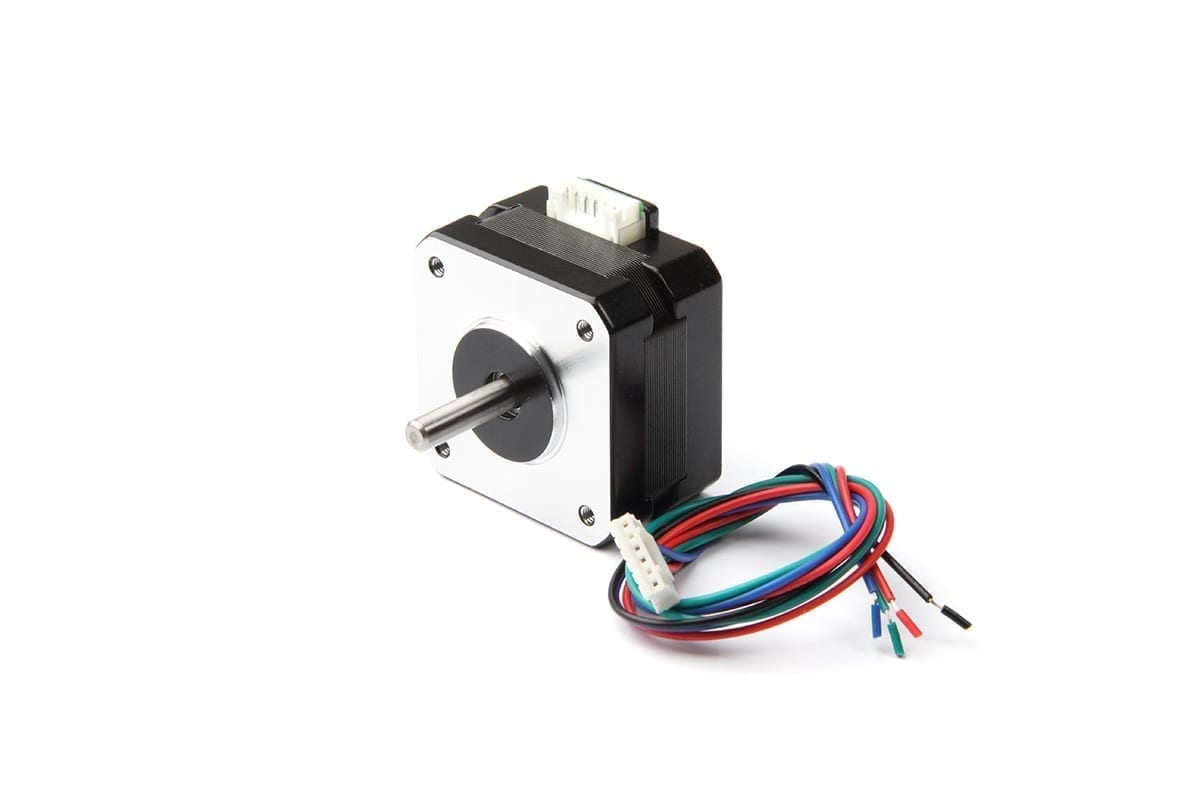

Nema17 High resolution 1.8 degree pancake stepper motor.
Delivers with a 300 mm JST-PH6 cable stripped without a second connector.
For common ratings, specifications and dimensions please see below or in the datasheet.
- Max Input current: 0.7 A per phase
- Step angle: 1.8 deg.
- Torque: 18 N/cm
- Output shaft diameter: 5.0 mm
- Hole for mounting: 31 mm, 4x M3
- Motor length: 25 mm
- Weight: 153 g
- Manufacturer Code : 42H25H-0704-002
|Freight Weight||203 g|
|Dimensions||10 × 8 × 7 cm|
Technical Data Sheet
