Nema17 Geared stepper







Bondtech Accessories


Nema17 Geared stepper

EAN13: 7350011410576 SKU: 13001A Categories: , ,

Nema17 Geared stepper

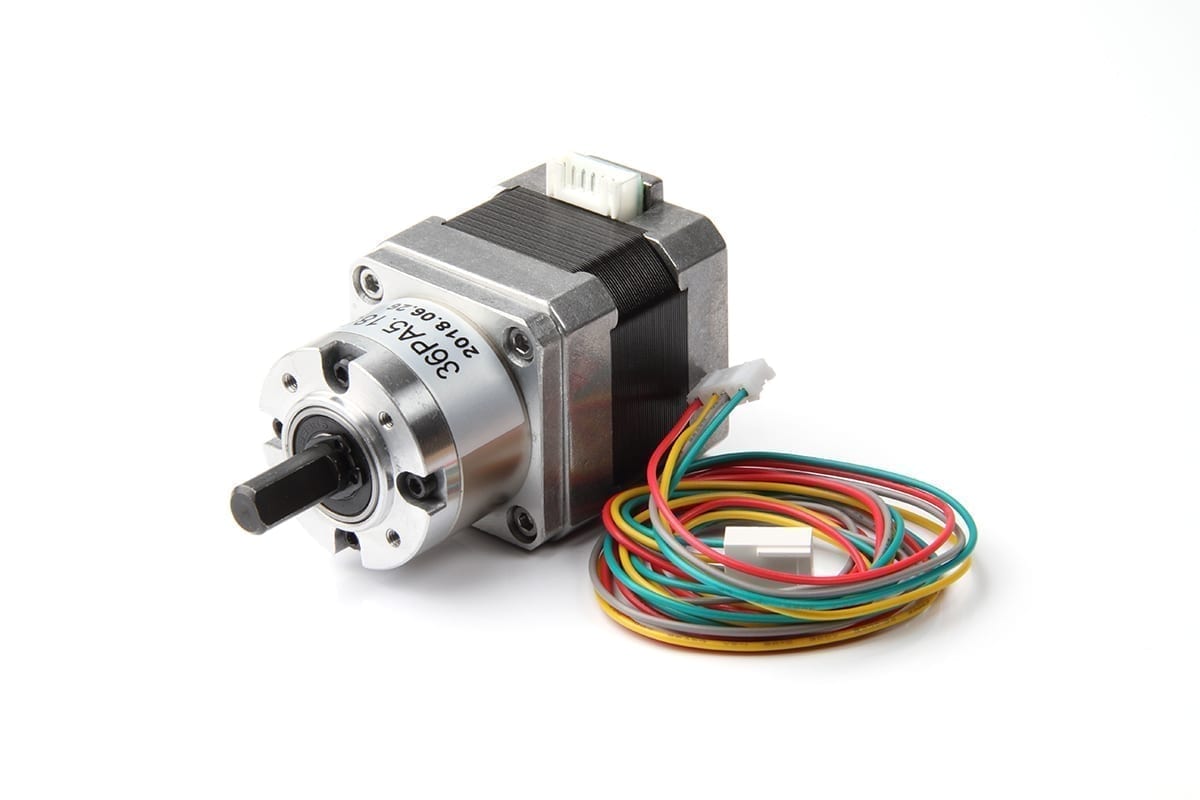

Nema17 geared stepper with a planetary gear reducer.

Delivered with a 700 mm long JST-PH6 to PC2510 cable with quick-fit connectors.

For best performance it should be driven with 24V, please adjust your stepper driver to output max 1.2A.

Additional cables also available, see to the right.

For common ratings, specifications and dimensions please see below or in the datasheet.



Only 1 left in stock (can be backordered)

Select Currency

Select Country

  • Motor-type: NEMA17
  • Weight: 406 g
  • Max Input current: 1.2 A
  • Step angle: 1.8 deg
  • Gear ratio: 5.18:1
  • Output shaft diameter: 8.0 mm
  • Hole circle for mounting: 28 mm, 4x M3
  • Motor length: 40 mm
Freight Weight 460 g
Dimensions 10 × 8 × 7 cm

Technical Data Sheet
