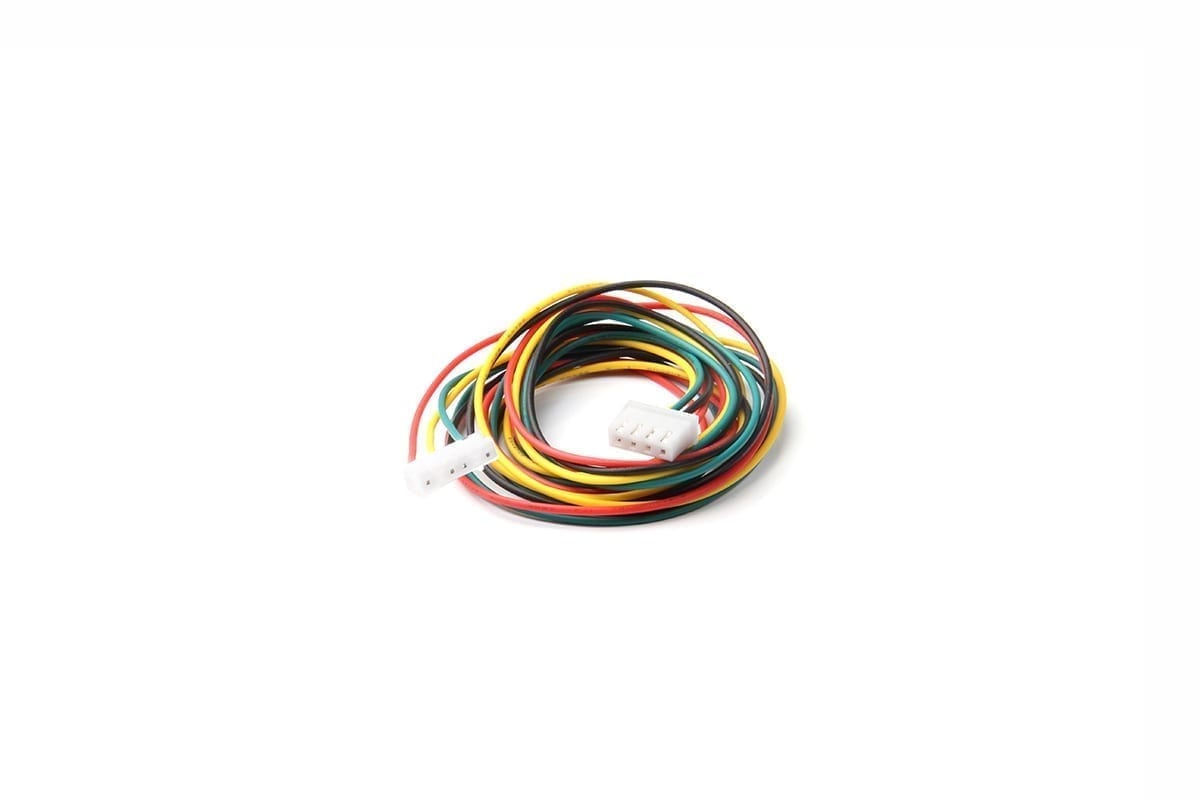

JST-XH4
700 mm, JST-XH4 4-pin connector to JST-XH6 6-pin connector.
This cable is by default wired for our 40 mm Geared Nema17 motor, please make sure that it follows the schematics for your application.
Specified wiring of this cable can be found down below.
Price:
€1.83
Out of stock
Chose Currency / Country
Select Currency
Select Country
Description
Controller side Motor side
PIN 1 —————– PIN 1
PIN 2 —————– PIN 4
PIN 3 —————– PIN 3
PIN 4 —————– PIN 6
Additional information
Freight Weight | 8.7 g |
---|---|
Dimensions | 8 × 6 × 1 cm |
