BMG Reverse Set for HextrudORT

BMG Reverse Set for HextrudORT

Original Bondtech OEM set of parts to use on the HextrudORT
from the HevORT project.

Includes a set with the Hardened Steel R.I.D.G.A. and BMG original 1.75mm secondary Drive Gear.

  • Precision cnc-machined.
  • Sharp teeth for maximum grip on the filament.
  • The perfect choice for a high-performance feeding system.
  • Extremely high wear resistance for use with abrasive filaments.

Price:

$34.90

Select Currency

Select Country

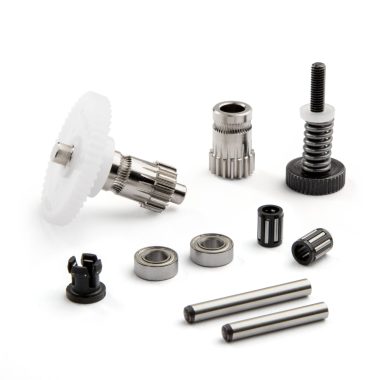

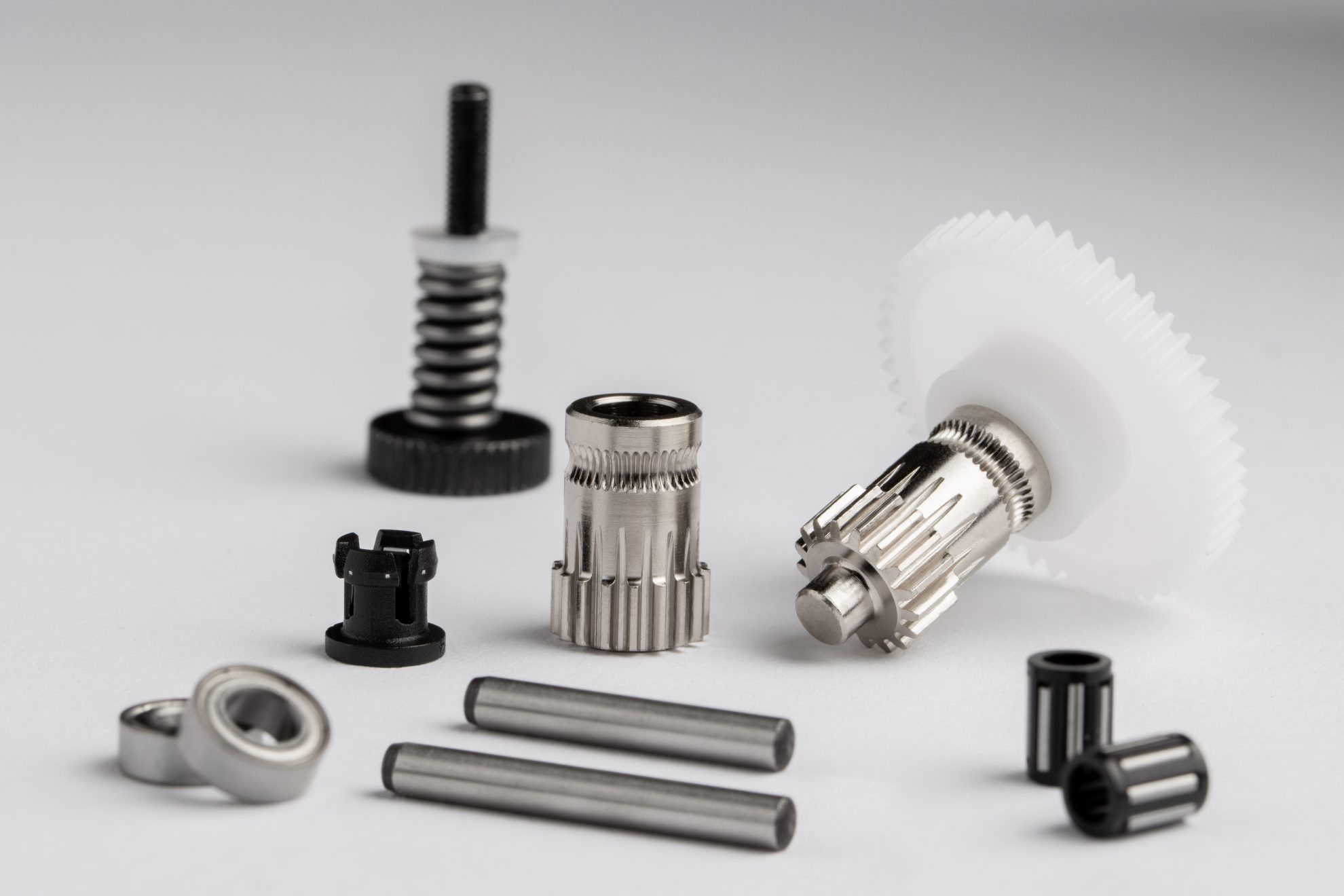

What is included

  • 1x R.I.D.G.A. – BMG Reverse Integrated Drive Gear Assembly
  • 1x 1.75/5.0mm BMG Secondary Drive Gear
    • with integrated needle bearings and one 3×20 mm shaft
  • 1x 3×24 mm shaft
  • 1x Thumbscrew Assembly
  • 1x 4 mm Push-fit Collar
  • 2x 4x8x3 Ball Bearing

The new HextrudORT extruder

Freight Weight 24 g
Dimensions 8 × 6 × 3 cm
Drivegear Type

1.75 / 5.0, 1.75 / 8.0, 3.0 / 8.0

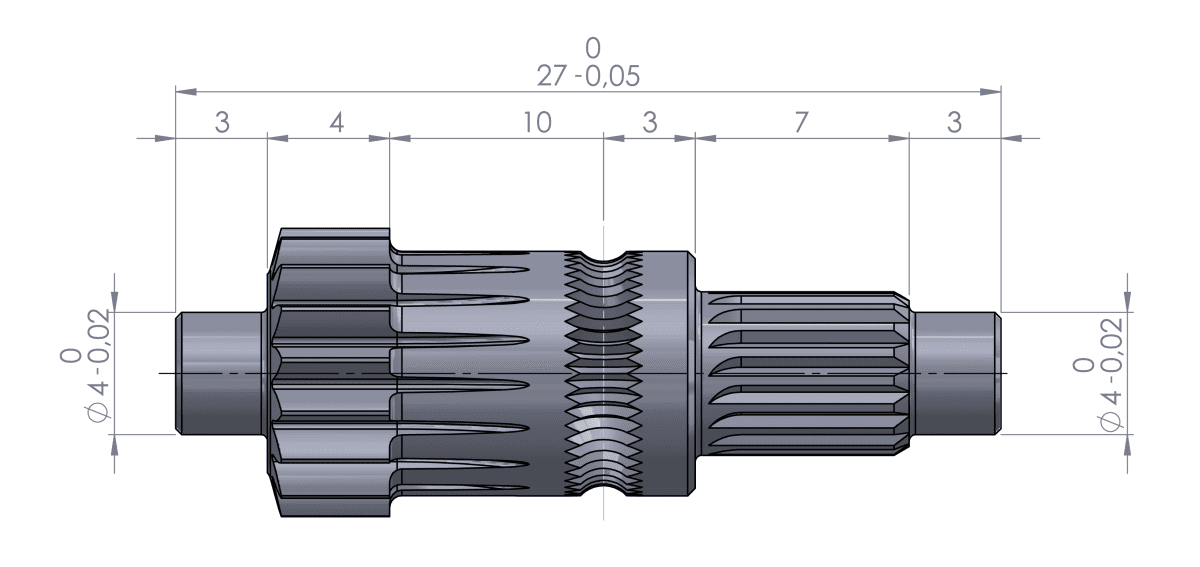

Technical Specification

Technical Specification

  • Shaft length: 27 -0/+0.05
  • Shaft length to support ball bearings : < 3mm - 3mm >
  • Filament teeth’s center to end of shaft : < 14mm - 13mm >
  • Number of drive gear teeth : 17
  • Drive gear teeth length : 4mm
  • Mainshaft/drive gear Material: Hardened Steel
    Materials Compatibility:

    • Flexible : yes;
    • Rigid : yes;
    • Abrasive : yes.
  • Number of main gear teeth : 50
  • Main gear teeth length : 3mm
