70cm Stepper Motor Cables
70cm stepper motor cables with JST-XH6 6-pin connector to plug on the Bondtech stepper motors.
- JST-PH6 to PC2510 has reached end of life and will not be re-stocked
- JST-PH6 TO Dupont No Lock has limited stock available and will not be re-stocked
We have non sleeved variants of these cables available for purchase.

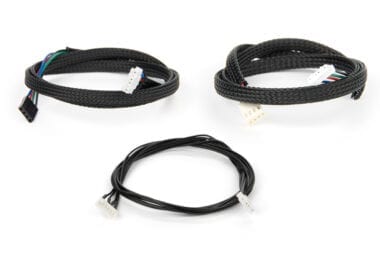

Available in 3 variations of cable interfaces to connect to controllers or other stepper motor cables.
Specific wiring of these cables can be found down below.
Price:
$2.50
Chose Currency / Country
Select Currency
Select Country
Description

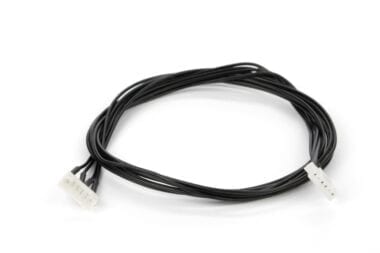

Extension Cable JST-PH6 to JST-XH6

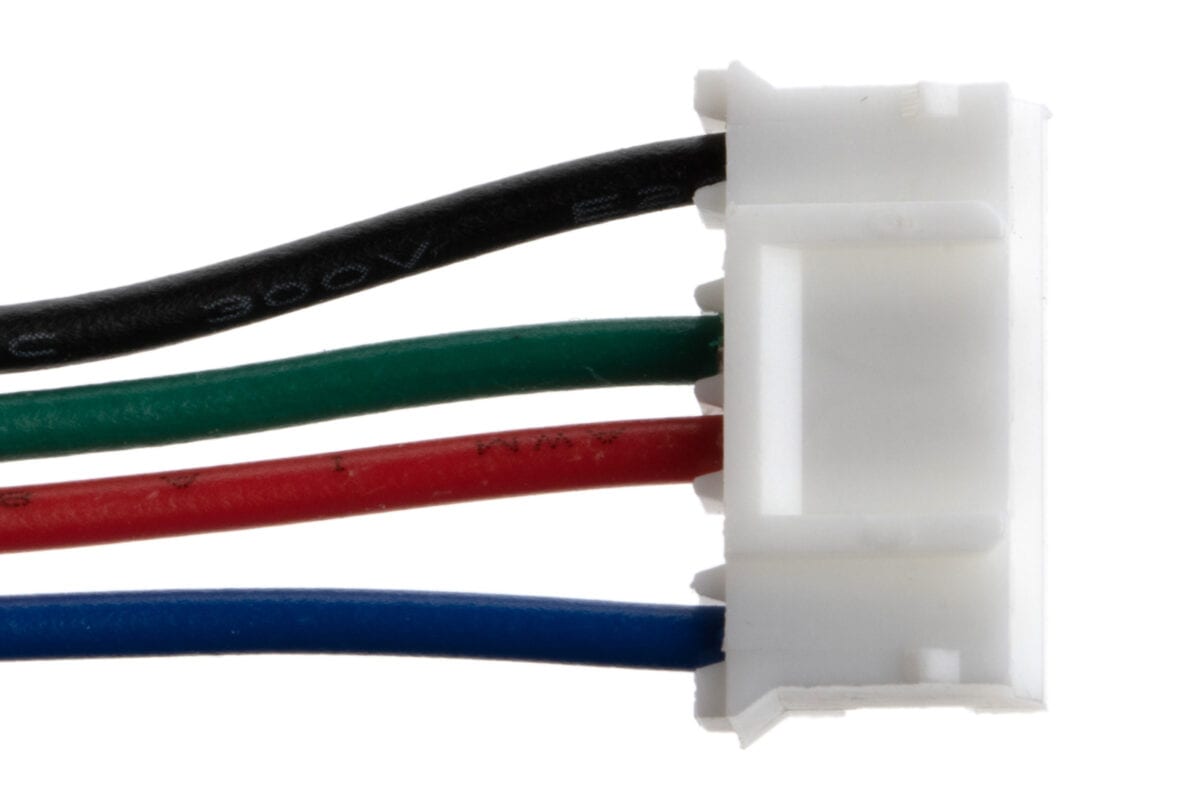

Stepper Motor side
PIN 1 – A
PIN 2
PIN 3 – B
PIN 4 – C
PIN 5
PIN 6 – D
Controller side
PIN 1 – B
PIN 2
PIN 3 – C
PIN 4 – A
PIN 5
PIN 6 – D
This configuration acts as an extension cable, and allows to connect our Nema17 25mm Pancake Stepper motors to the Creality stepper motor cables.
For different applications you may need to swap some wires. Please make sure that it follows the schematics for your application.

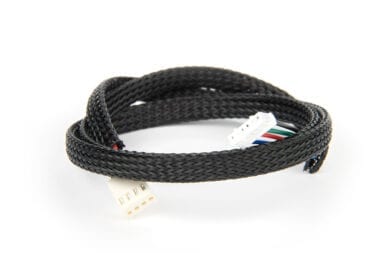

Sleeved Stepper Motor Cable JST-PH6 to PC2510
Stepper Motor side
PIN 1 – A
PIN 2
PIN 3 – B
PIN 4 – C
PIN 5
PIN 6 – D
Controller side
PIN 1 – D
PIN 2 – C
PIN 3 – B
PIN 4 – A
This is a stepper motor cable. To connect our Nema17 40mm geared stepper motors the 2 wires in the middle must be swapped.
For different applications you may need to keep or swap some wires. Please make sure that it follows the schematics for your application.

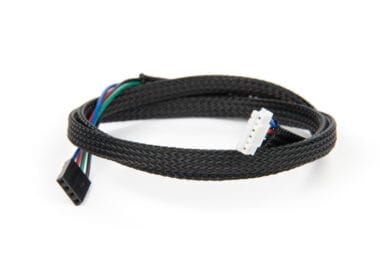

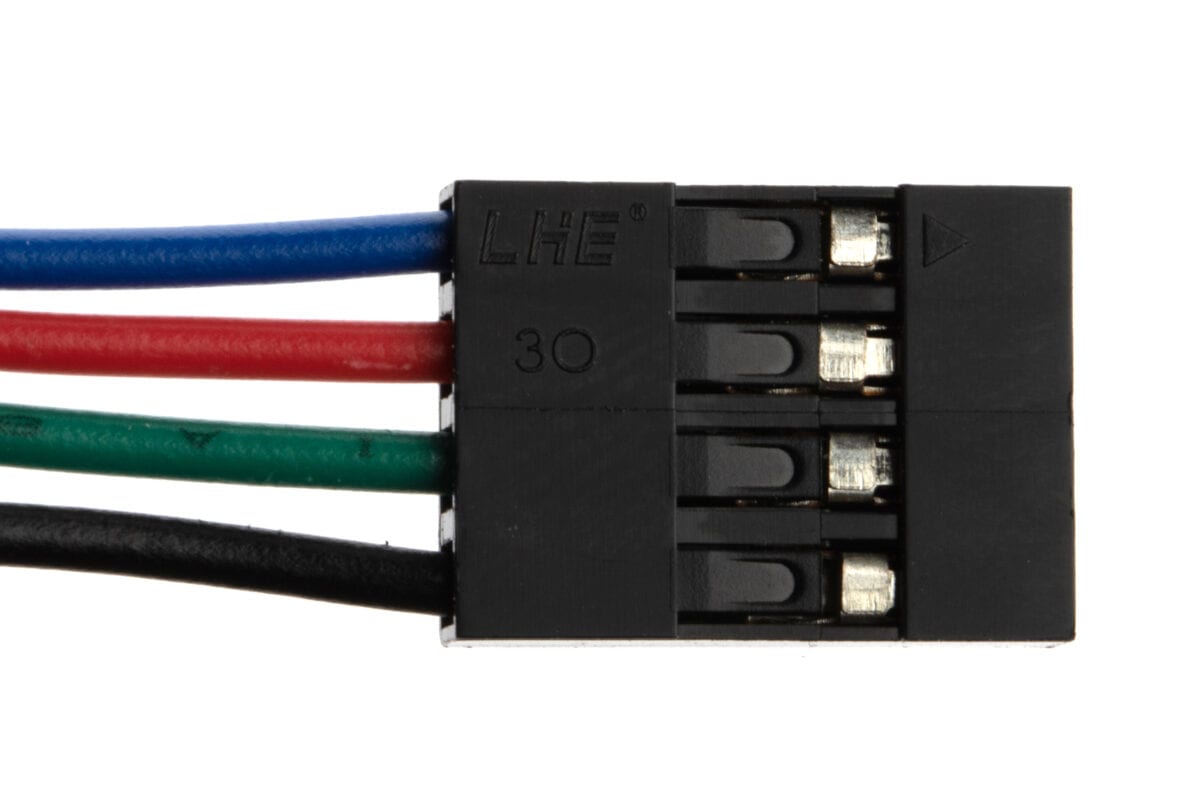

Sleeved Stepper Motor Cable JST-PH6 to Dupont No Lock
Stepper Motor side
PIN 1 – A
PIN 2
PIN 3 – B
PIN 4 – C
PIN 5
PIN 6 – D
Controller side
PIN 1 – A
PIN 2 – B
PIN 3 – C
PIN 4 – D
This is a stepper motor cable. To connect our Nema17 40mm geared stepper motors the 2 wires in the middle must be swapped.
For different applications you may need keep or swap some wires. Please make sure that it follows the schematics for your application.
Additional information
| Freight Weight | 50 g |
|---|---|
| Dimensions | 6 × 6 × 1 cm |
| Cable Interface | JST-PH6 to Dupont No Lock, JST-PH6 to JST-XH6, JST-PH6 to PC2510 |
Support Videos
Support Videos
The following videos are examples to help you detect stepper motor coils and how to connect the wires on the cables.
Part 1/3 How to identify the coils on a Creality stepper motor:
Part 2/3 How to identify the coils on a Bondtech stepper motor:
Part 3/3 Reversing feeding direction by swapping a coil’s wires:
