Motor Cable JST XHP-6 – B6B-XH-A

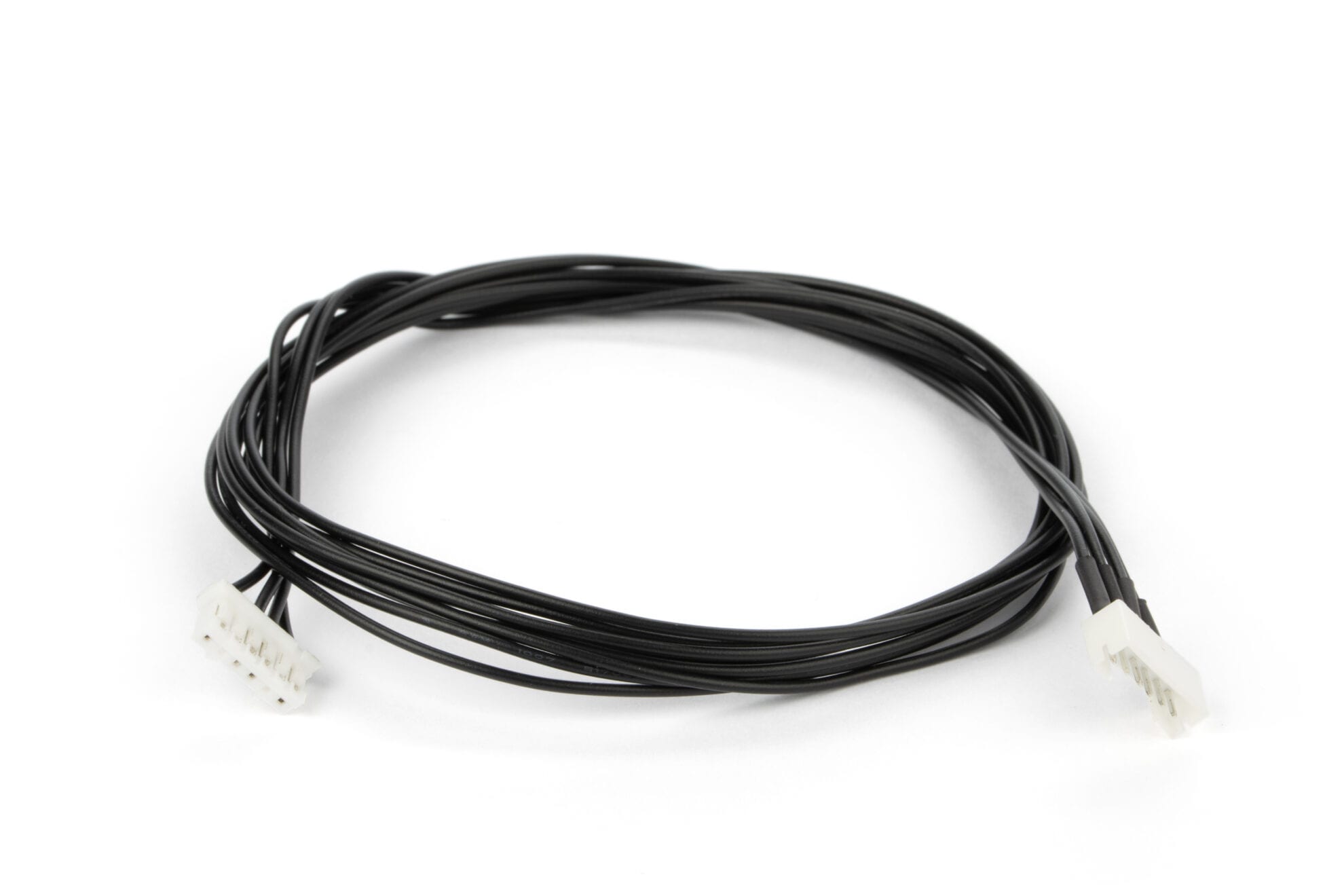

70cm stepper motor cables with JST-XH6 6-pin connector to plug on the Bondtech stepper motors.
Specific wiring of this cables can be found down below.
Price:
$4.50
In stock
Select Currency
Select Country
Extension Cable JST-PH6 to JST-XH6
Stepper Motor side
PIN 1 – A
PIN 2
PIN 3 – B
PIN 4 – C
PIN 5
PIN 6 – D
Controller side
PIN 1 – B
PIN 2
PIN 3 – C
PIN 4 – A
PIN 5
PIN 6 – D
This configuration acts as an extension cable, and allows to connect our Nema17 25mm Pancake Stepper motors to the Creality stepper motor cables.
This cable is used to connect the DDX Direct Dual eXtruder for Creality.
For different applications you may need to swap some wires. Please make sure that it follows the schematics for your application.
| Freight Weight | 50 g |
|---|---|
| Dimensions | 6 × 6 × 1 cm |
| Cable Interface | JST-PH6 to JST-XH6 |
Support Videos
The following videos are examples to help you detect stepper motor coils and how to connect the wires on the cables.
Part 1/3 How to identify the coils on a Creality stepper motor:
Part 2/3 How to identify the coils on a Bondtech stepper motor:
Part 3/3 Reversing feeding direction by swapping a coil’s wires:
