Drivegear kits

SKU: EXT-DGK.
Categories: , .

Drivegear kits

$27.00

Bondtech drivegear kit in hardneded and surface protected steel.
Precision cnc-machined.
Supersharp teeths for maximum grip on the filament.
The perfect choise for a high-performance feeding system.
Extremely high wear resistance for use with abrasive filaments.

Clear

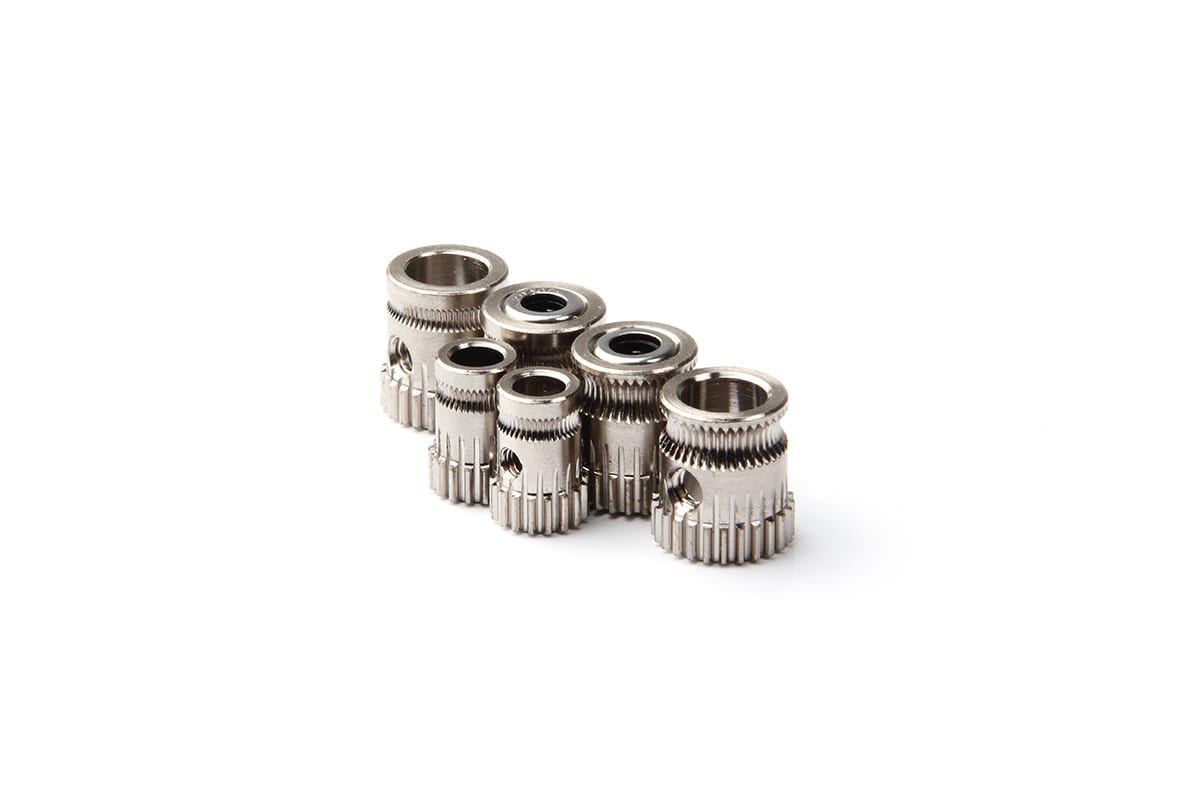

These drivegear kits come as a set consisting of a primary drive gear, a secondary drive gear, bearings and a shaft.

  • Gear set for filament size 1.75 mm, primary gear with inner diameter 5 mm, secondary gear with two needle bearings,M3x2 setscrew and one 3 x 20 mm shaft.
  • Gear set for filament size 1.75 mm, primary gear with inner diameter 8 mm, secondary gear with integrated needle bearings, M4x3 setscrew and one 4 x 22 mm shaft.
  • Gear set for filament size 2.85 - 3.0 mm, primary gear with inner diameter 8 mm, secondary gear with integrated needle bearings, M4x3 setscrew and one 4 x 22 mm shaft.

A Lithium based grease is recommended to use on the gear section and inside the needle bearings for low friction and to avoid wear. A small dab of grease is enough.

Weight0.5 g
Drivegear Type

1.75 / 5.0, 1.75 / 8.0, 3.0 / 8.0
