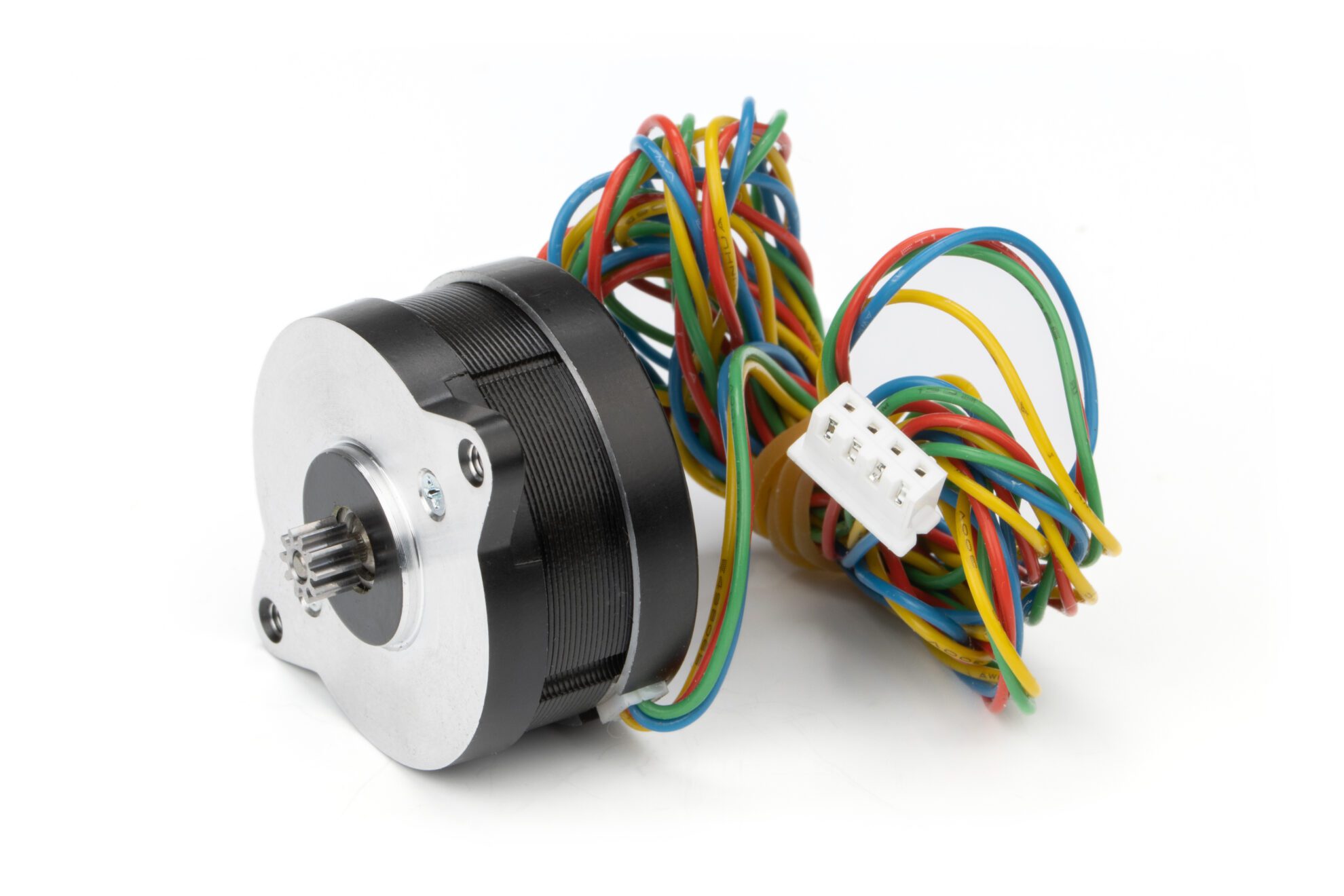

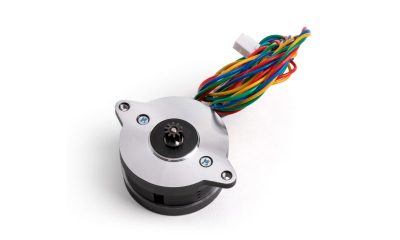

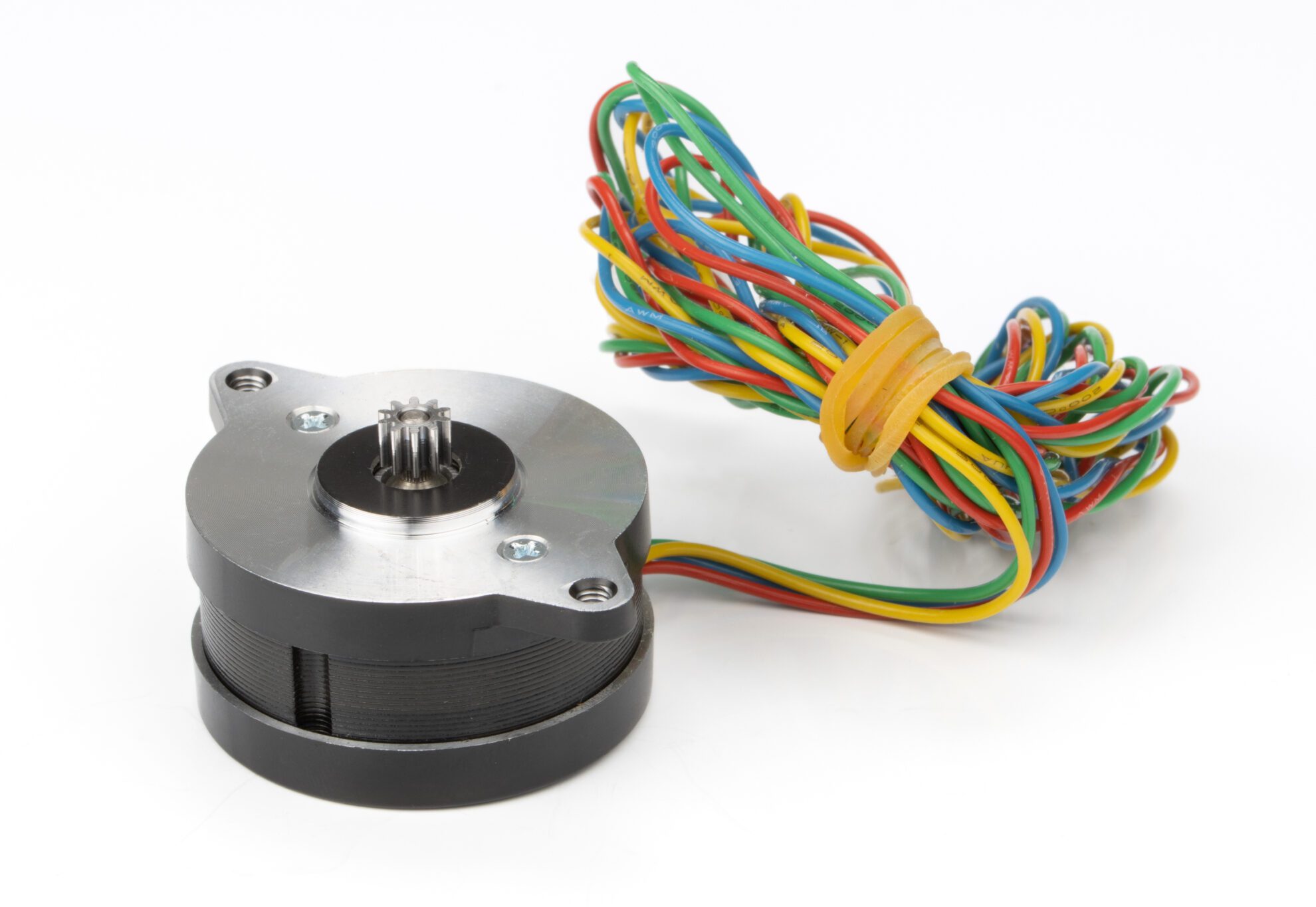

Nema14 20mm Round Stepper Motor 10T Gear
Price:
$24.00
Out of stock
Nema14 High resolution 1.8 degree pancake stepper motor.
Compatible with the following compact extruders:
- LGX Lite
- Orbiter
- HextrudORT
- Sherpa Mini
Ships with 1m long leads and JST-XH 4-pin connector
You may need
Select Currency
Select Country
Always check below if we have Product Alerts you should be aware of before buying.
Description
- Connector: JST-XH 4-pin connector

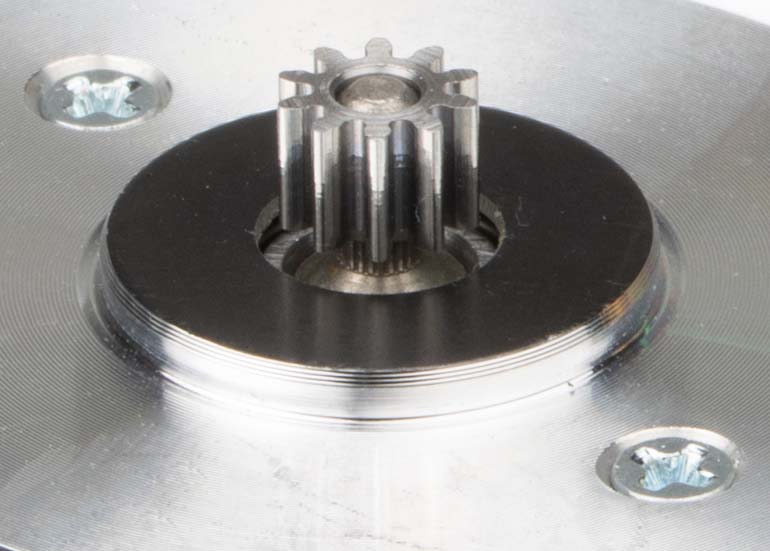

- Motor gear : 10 teeth
- Motor length: 20 mm
- Motor Diameter: 36mm
- Weight : 92g
- Max Current : 1.0 A / phase
- Leads Length : 1m
- Step Angle : 1.8°±5% degree
- Max Torque at : 1800 PPS
- Potential Flow Rate @ Max Torque : 120mm^3/s
- Class: H, rated peak temp 180℃
- Max operating Temperature / Current :
120℃ / 750 mA
For common ratings, specifications and dimensions please check the Technical Data Sheet.
Additional information
| Freight Weight | 140 g |
|---|---|
| Dimensions | 10 × 8 × 7 cm |
