SLS X-Carriage kit for Prusa i3 MK3S

EAN13: 7350011410743 SKU: 15058 Categories: , , Brand:

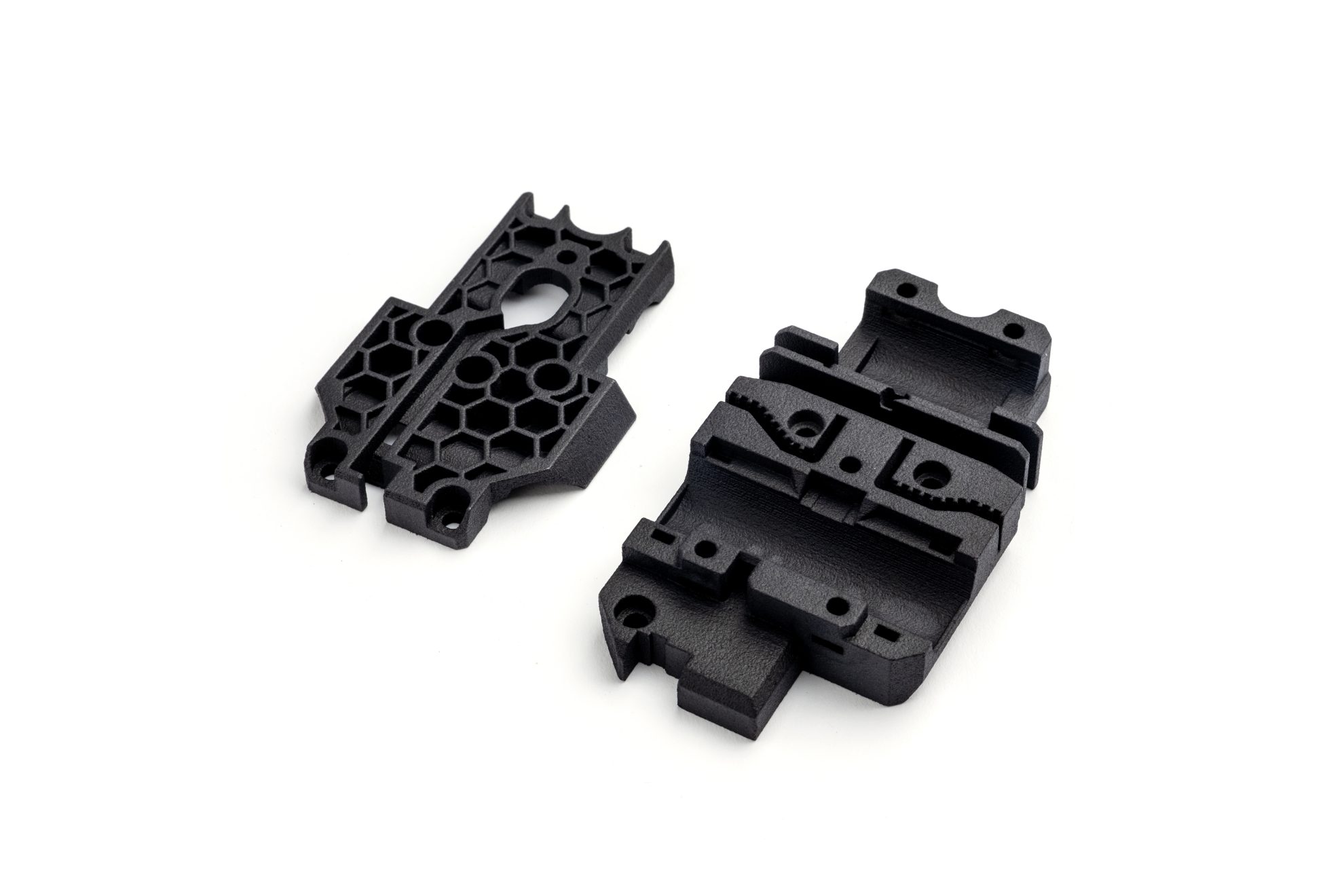

SLS X-Carriage kit for Prusa i3 MK3S

High Temperature X-Carriage

A X-Carriage kit is required to install our Bondtech Upgrade Kit for Prusa i3 MK3S.

This SLS version is for users that work with enclosed chambers and heat the air inside above 60°C.
The FFF version, made of HT-PLA would deform in such conditions.

To lower our ecological impact we are reducing our use of chemical dyes. This part is supplied with a wax protective coating to lower sensitivity to moisture and grease, while remaining fully functional.

Price:

$38.00

Only 13 left in stock (can be backordered)

Select Currency

Select Country

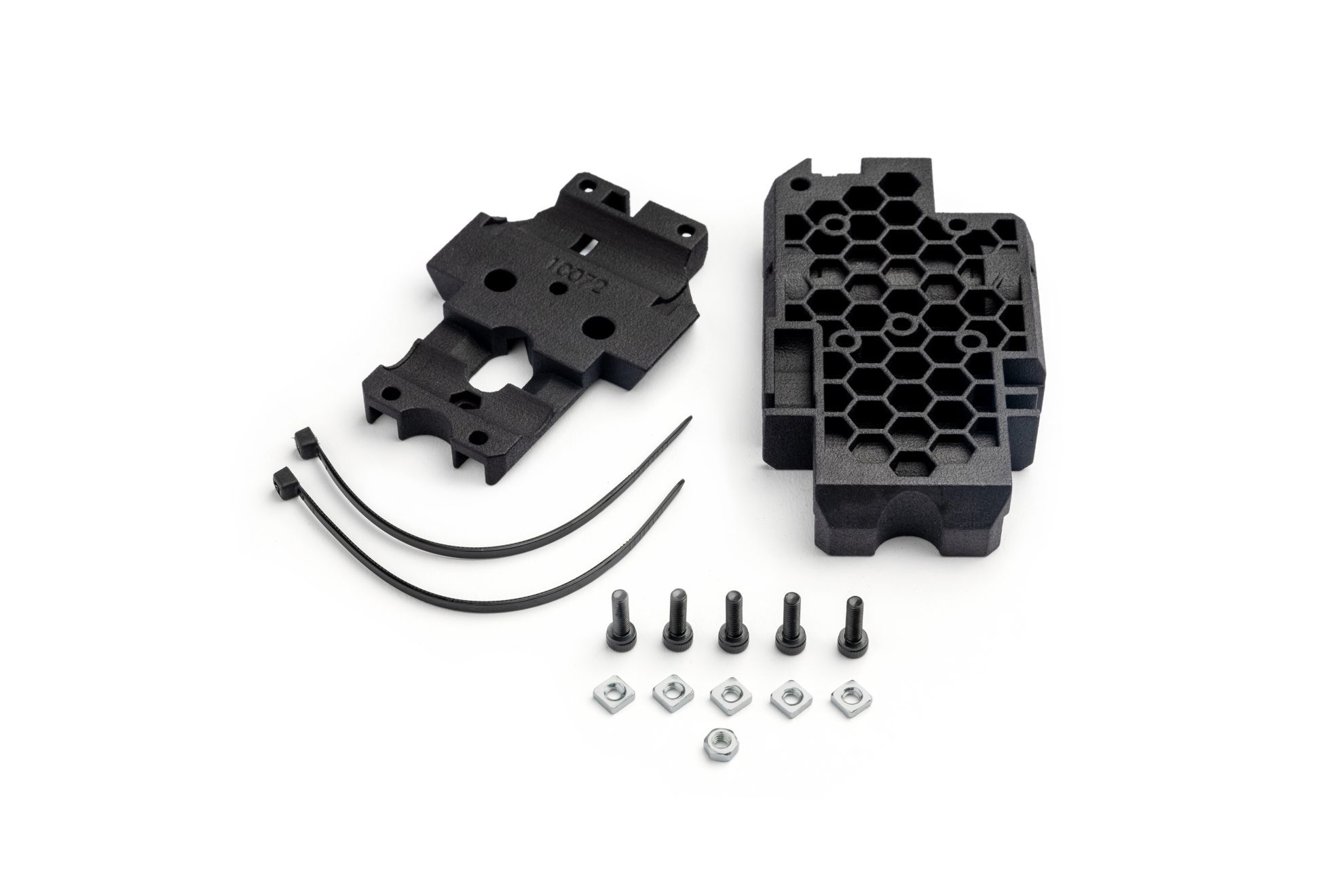

Contents Of The Kit

  • SLS X-Carriage Front
  • SLS X-Carriage Rear
  • 5x M3x10 Screws
  • 5x M3 square nut
  • 1x M3 nut
3D Printed In PA12

The 3D printed parts of this kit are printed using SLS technology with PA12 (Nylon), sandblasted and coated with wax.

STL Files Also Available As Free Download

The 3D printed parts of the X-Carriage can be downloaded from our server.
Click here to download the Front.
Click here to download the Rear.

Working Temperature Limits

Bear in mind the working temperature limit of this product does not extend to the Upgrade Kit itself. If you use this X-Carriage Kit and any Bondtech Upgrade Kit for Prusa inside a closed chamber, it will have the following set of working temperature limits:

  • Due to the sensor plastic parts made of HT PLA > up to 60°C (90-100°C when parts are annealed);
  • Due to the stepper motor > up to 80°C.
  • The PA12 parts themselves can withstand up to 100°C.
Freight Weight 56 g
Dimensions 12 × 8 × 3 cm
EAN code

7350011410743
