Hotend Upgrade Bundle for Raise3D Pro2 based on Copperhead

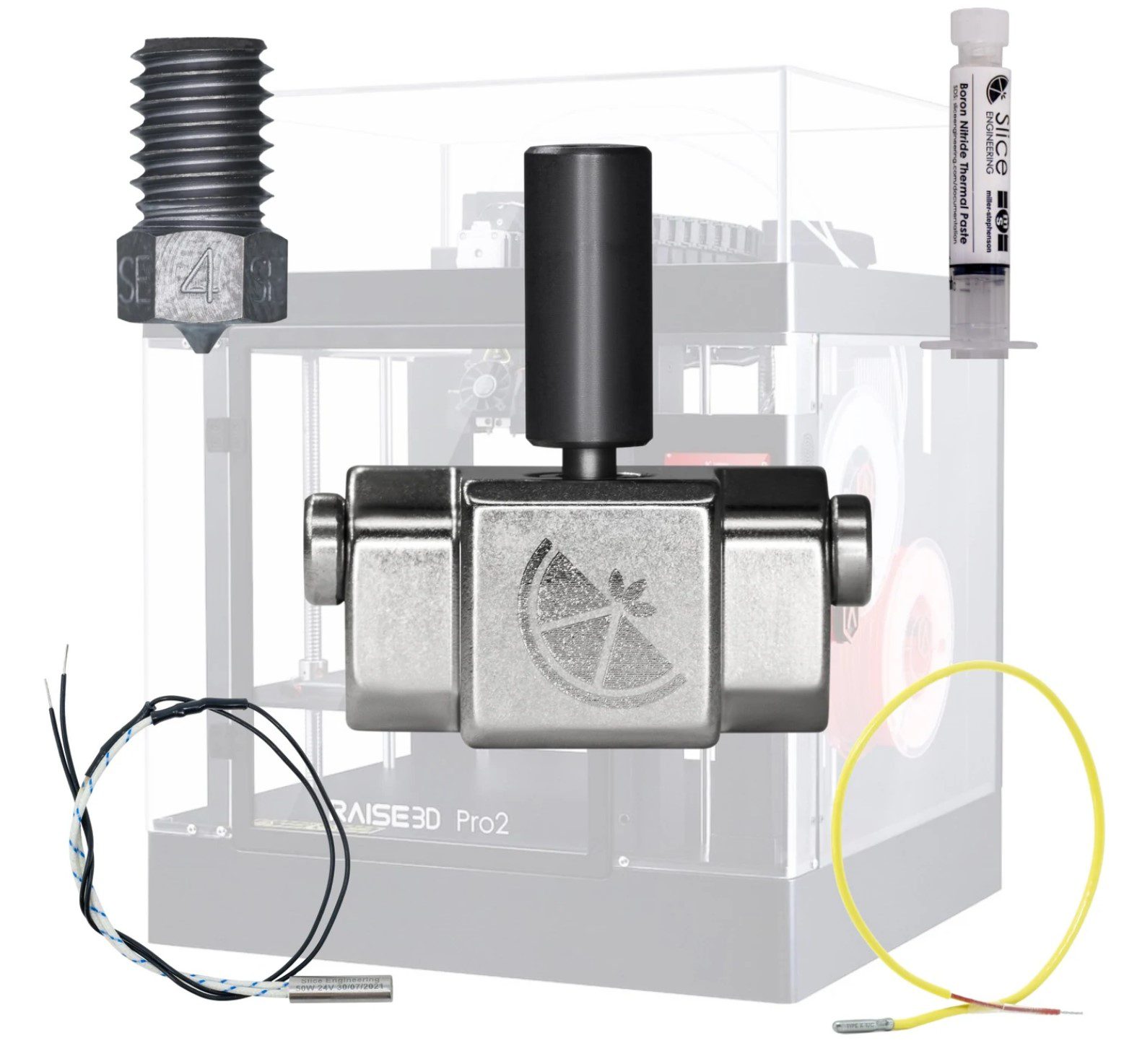

Bundle includes:

1. 2x Copperhead™ Hotend – Standard – G2
2. 2x Vanadium™ Nozzle – 0.4 mm
3. 1x Boron Nitride Paste
4. 2x Custom Industrial Heater – 50W 24V / 300 mm / bare leads
5. 2x Custom Thermocouple – Type K / 285 mm / bare Leads

It’s time to unlock the full power of your Raise3D Pro2, with the ubiquitous Copperhead®. We’ve built a reputation for outfitting 3D printers with premium engineering-grade components that drastically improve performance. The result is less down time, less wasted filament on failed prints, less tinkering, increased throughput, and higher resolution.

The Raise3d Pro2 Upgrade Bundle is more than just a streamlined all-in-one solution for the common problems facing PRO2 users, it’s the next step in your additive manufacturing evolution. Get back to just pressing print and watching your dreams become a reality.

Note: Installation instructions for upgrading your Raise3D Pro2 with this bundle can be found here.

How To Change A Nozzle

These are the steps an user would take when changing the nozzle on the Pro2 upgrade:

1. Lower the bed and move the printhead to a comfortable position.
2. Heat the desired hotend and retract the filament about 20 mm.
3. While the hotend is hot, use a 12 mm or adjustable wrench to hold the hot block while using a 6 mm wrench to remove the nozzle. A 7 mm wrench is needed for other RepRap style nozzles.
4. While the hotend is still hot, use the 12 mm wrench to hold the hot block while using our nozzle torque wrench to secure the new nozzle into the hot block. If our nozzle torque wrench is not being used, it is important to achieve a torque near 1.5 Nm.

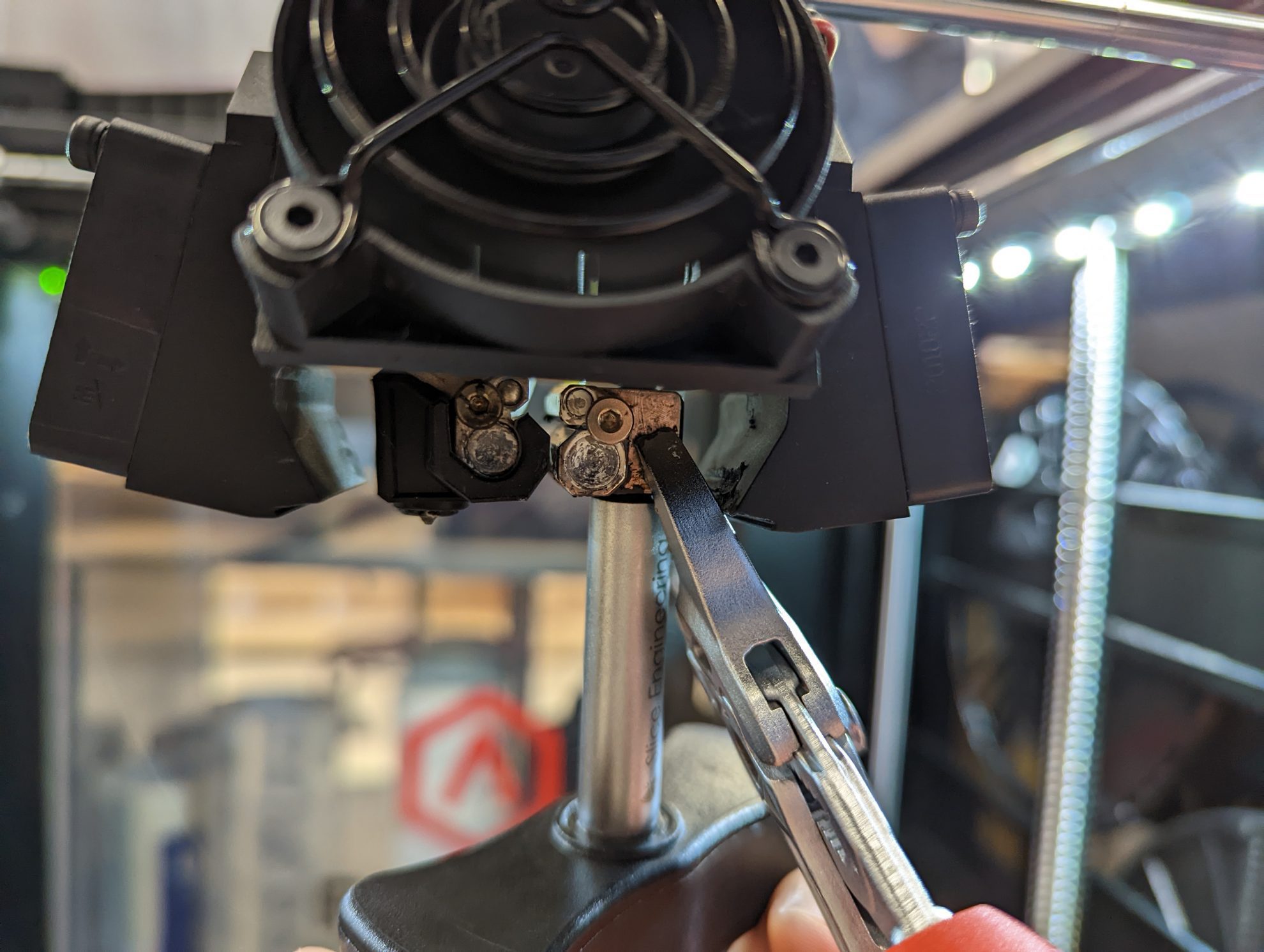

Below is a picture showing how an user would hold the wrenches for this procedure:

In the picture the left hand Copperhead block is using a Copperhead Silicone Boot.
