Bondtech Hotend Fix for Raise3D Pro2

EAN13: 7350011414642 SKU: 15148 Categories: , , , Tags: , , , , , , , , Brand:

Bondtech Hotend Fix for Raise3D Pro2

Your Raise3D Pro2 is failing on those big PLA prints you bought it for? We have the fix.
The Raise3D Pro2 can actually be a very good 3D printer if you use this.

Raise3D Pro2‘s common heat-creep, clogs and under-extrusion problems have a very simple fix. Upgrade the hotends with bimetallic Copperhead and CHT technology.

Price:

$139.90

Only 16 left in stock (can be backordered)

Select Currency

Select Country

Bondtech Hotend Fix for Raise3D Pro2 Advantages

  • Affordable with a great value for cost;
  • Heat creep is minimized by Copperhead’s thermal performance;
  • Better layer bonding from the Bondtech CHT nozzles…
  • … and higher flow with PLA and other non-abrasive materials;
  • Compatible with RepRap nozzles;
  • Easy and quick to install process…
  • … that includes a gauging tool to achieve optimal hotend setup.

Why Was The Bondtech Hotend Fix for Raise3D Pro2 Created

Many users contact us to buy extruder upgrades for the Raise3D Pro2.
These frequently repeated reports were evaluated by our Engineering team.
We found out most issues reported come from the hotend, not from the extruder.

The Raise3D Pro2 has a serious heat creep problem.

Print jobs using low Glass Transition Temperature materials are the most affected.
The longer PLA or TPU prints go over 2 hours, the higher the probability of failing due to under-extrusion or even clogging. Prints fail, or the parts made are very fragile.

For this serious problem we designed a simple and effective solution.

  • The solution's core is the Copperhead Heat Break, that enhances heat dissipation and separates hot and cold side of the heat break more effectively;
  • A new heat block was designed and machined by Bondtech to provide compatibility with the stock heaters, thermistors and silicone socks while enabling the Copperhead heat breaks and wide standard RepRap nozzles;
  • To wrap it up, a pair of Bondtech CHT nozzles increase the flow capacity and improve layer adhesion, or enable the possibility of running the nozzles at lower temperatures.


Using Engineering grade or composite/abrasive materials?

If so, the PRO 2 Upgrade Bundle is the best choice for you.
Click the image or the button below to open the product page.

Freight Weight 60 g
Dimensions 10 × 8 × 4 cm

Product Video

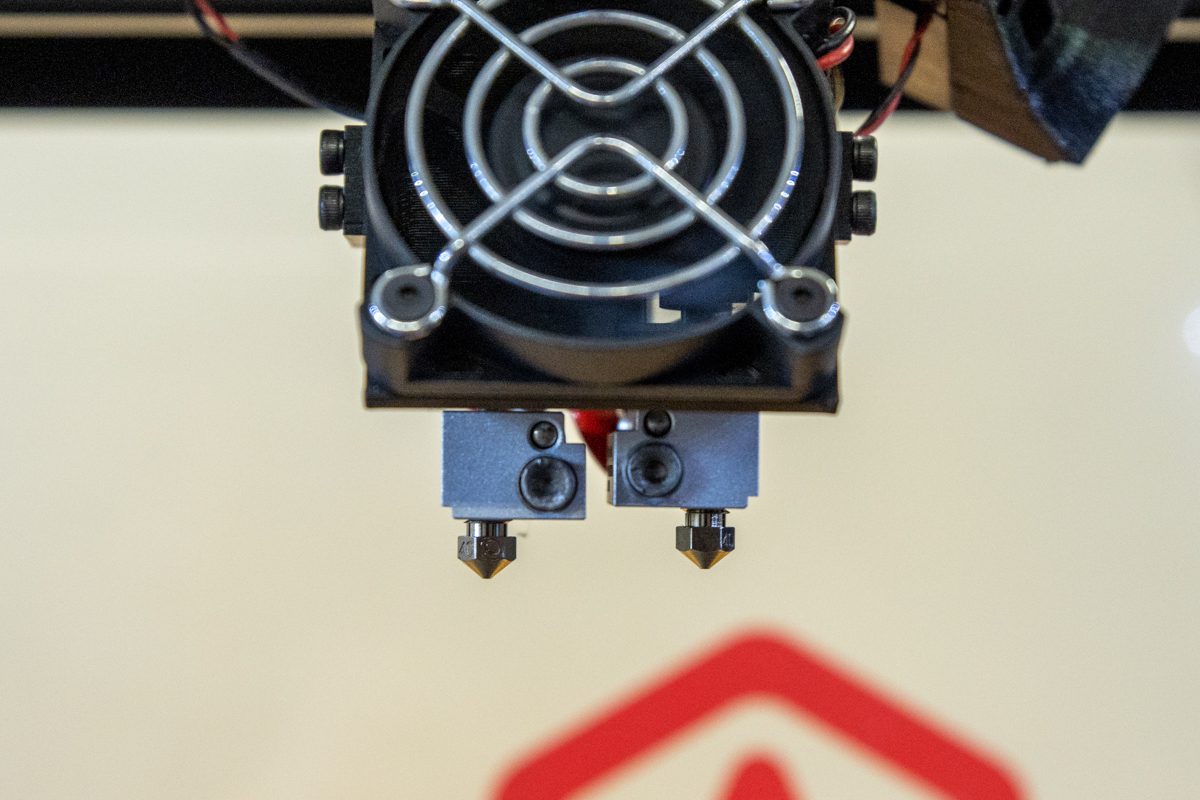

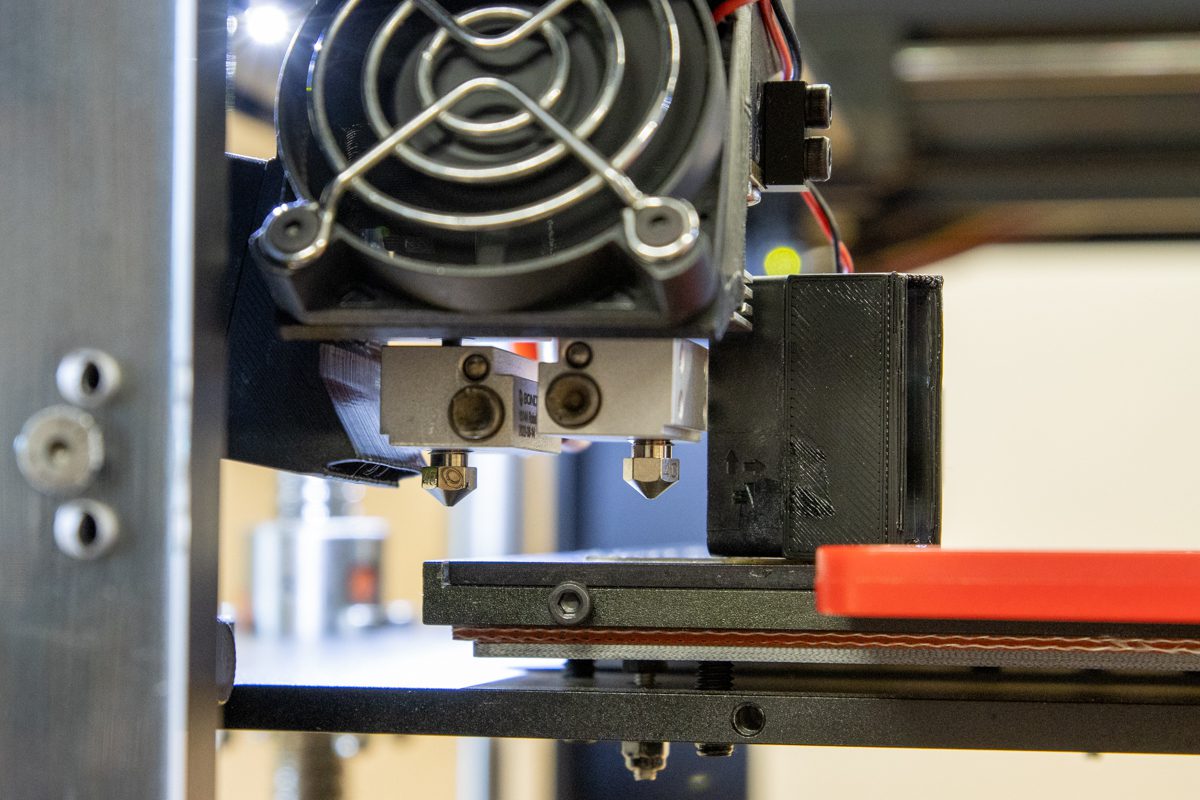

Before And After Installing The Bondtech Hotend Fix

SETUP GUIDE

Setting Up the Bondtech Hotend Fix for Raise3D Pro2

The guide below shows how to install the Bondtech Hotend Fix For Raise3D Pro2.

The whole process is divided into 3 stages. Click each tab below to reveal the steps on each stage. This guide assumes you know how to operate the Pro2. If you don't, please refer to Raise3D Pro2's Documentation.

When we illustrate how to execute a step on extruder 1, the same procedure needs to be mirrored on extruder 2.

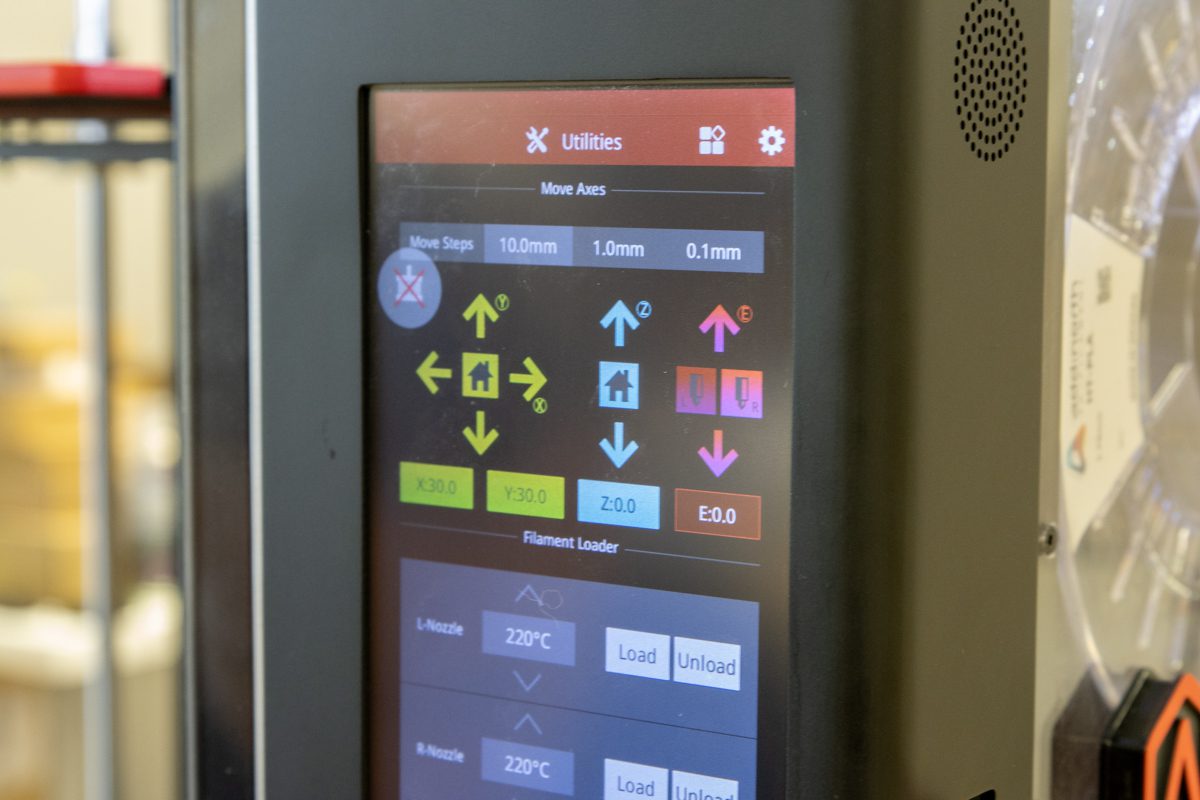

Step 1. Unload Filament

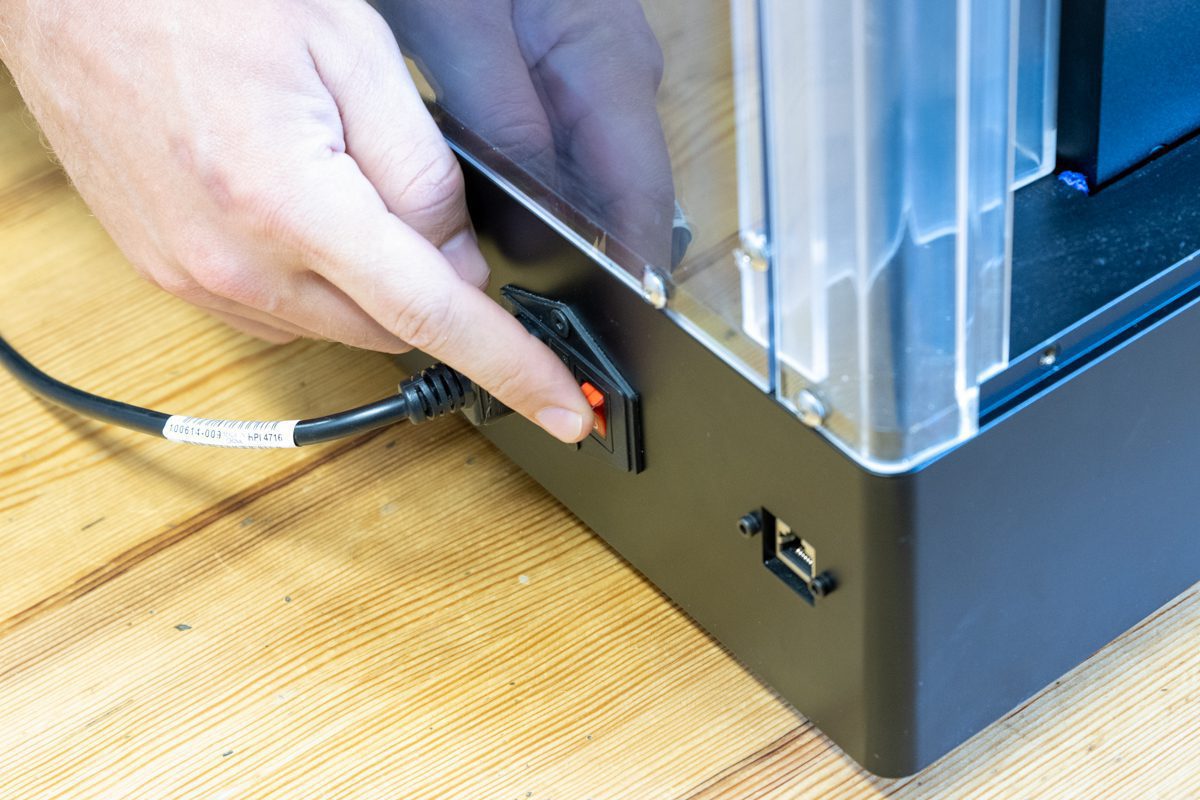

Turn your printer ON

Turn your printer ON

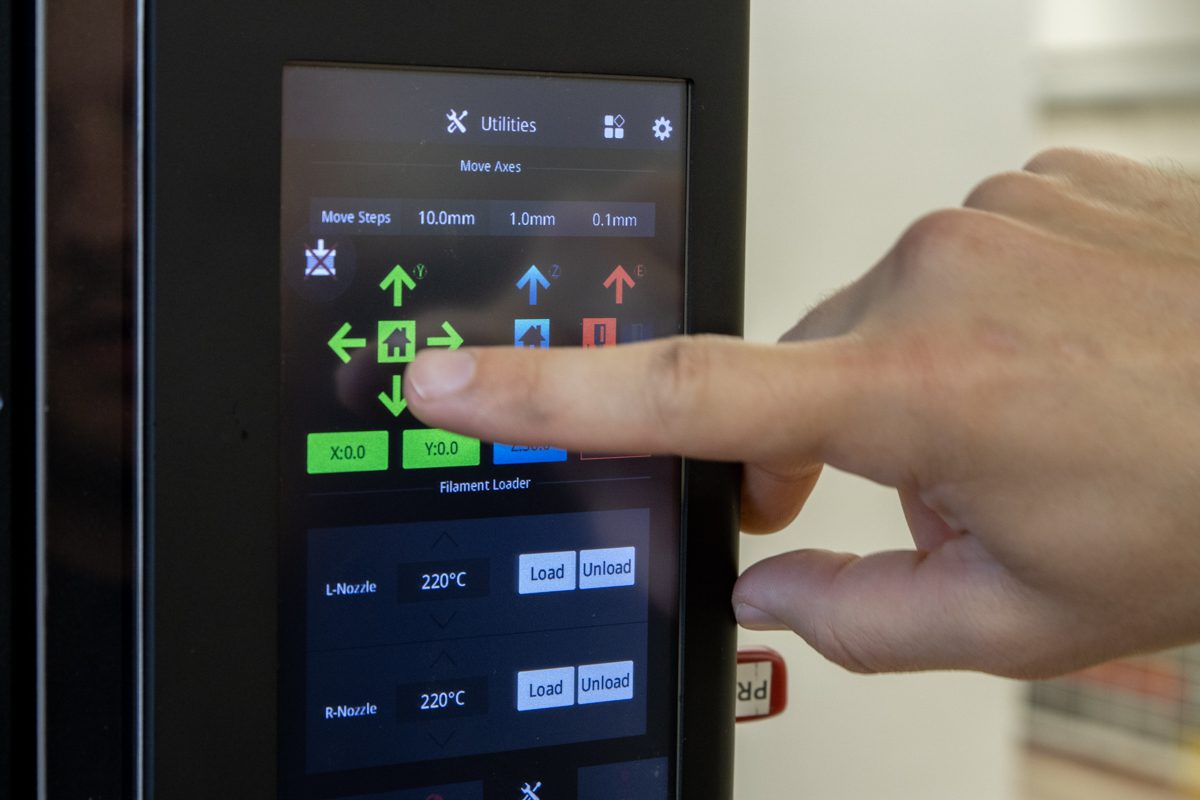

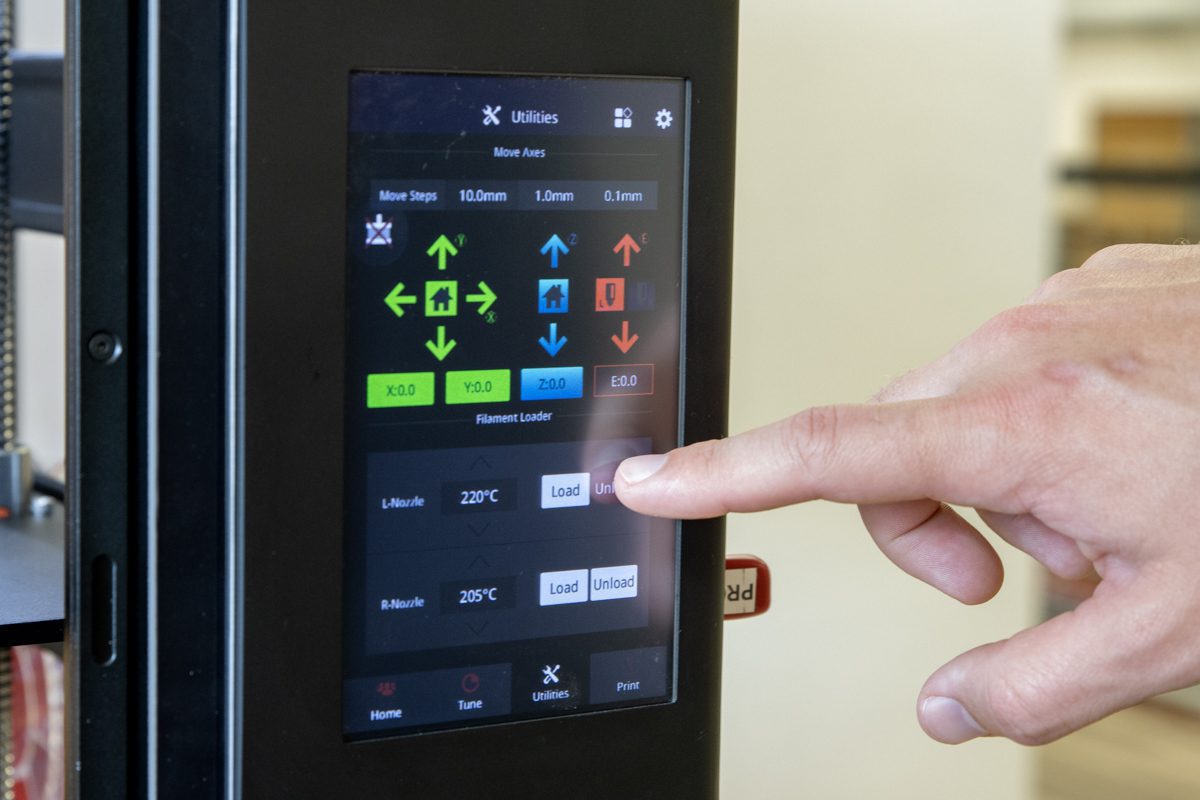

Unload filament on both extruders

Unload filament on both extruders

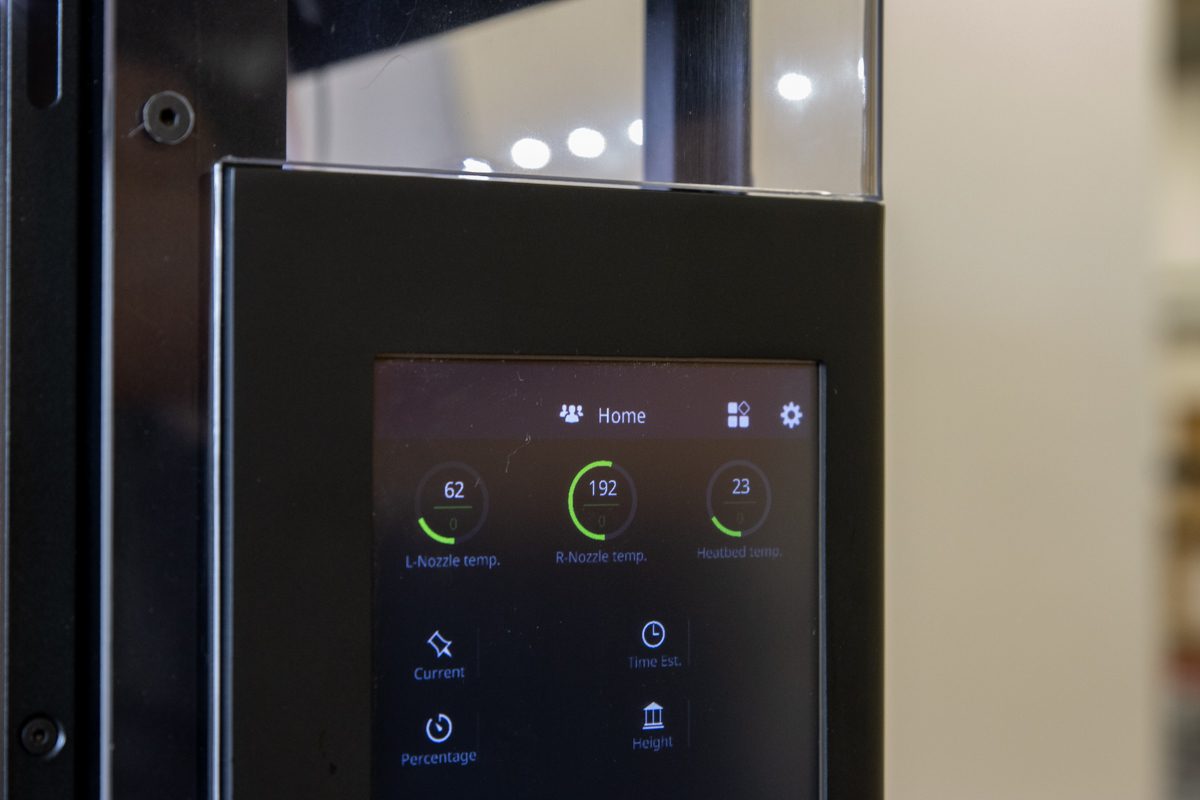

Cool down hotends before continuing

Cool down hotends before continuing

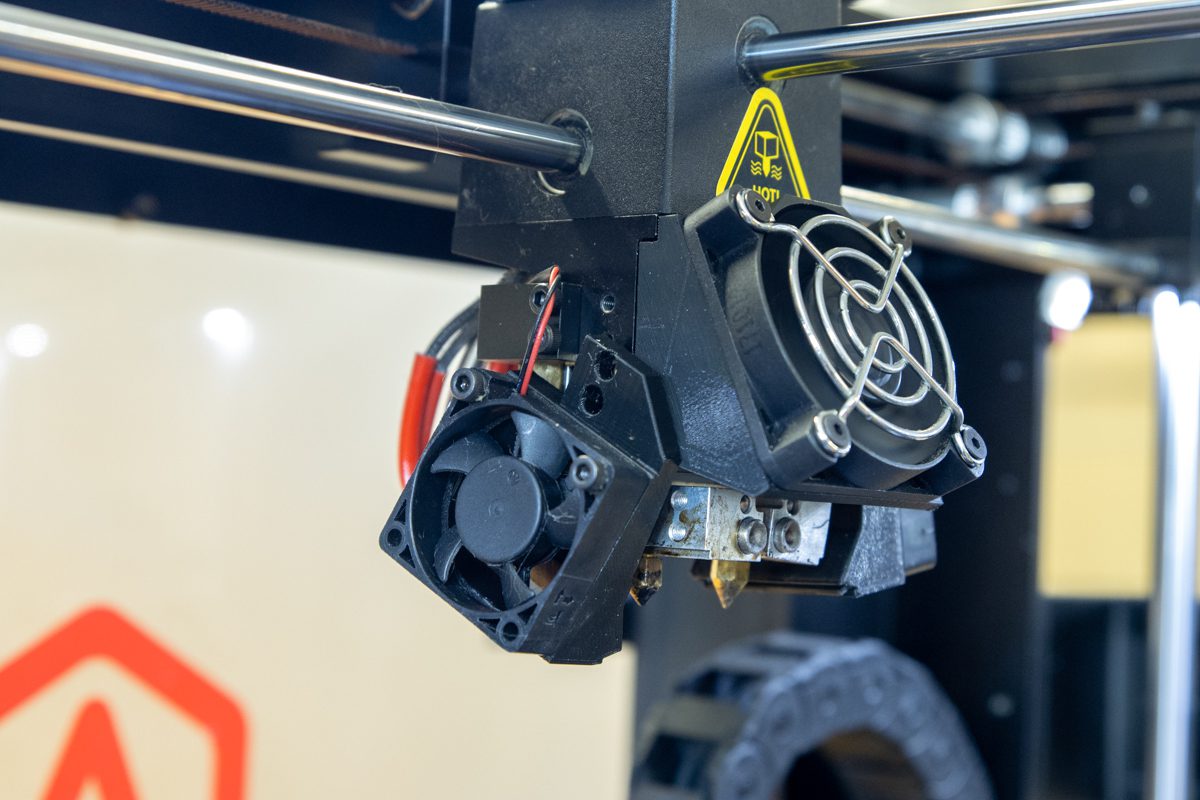

Step 2. Remove Fan Shrouds

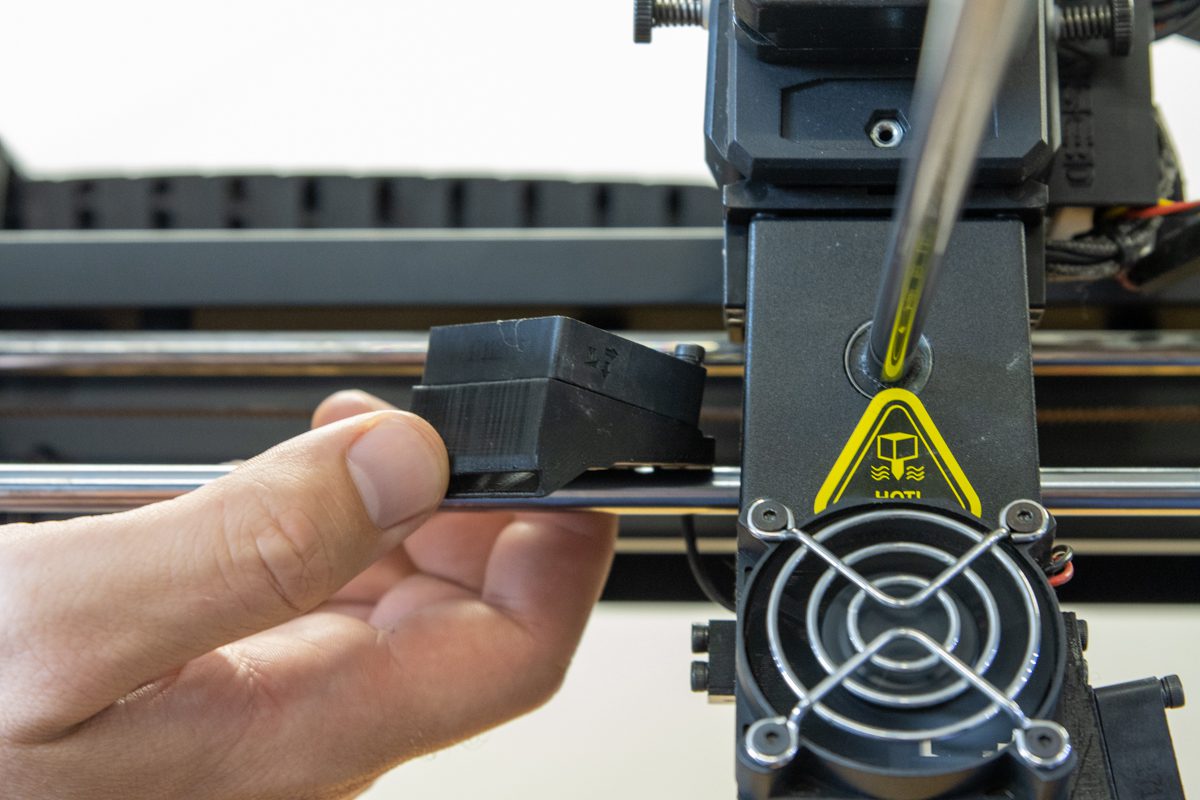

Remove and save this screw and the one above

Remove and save these 2 screws

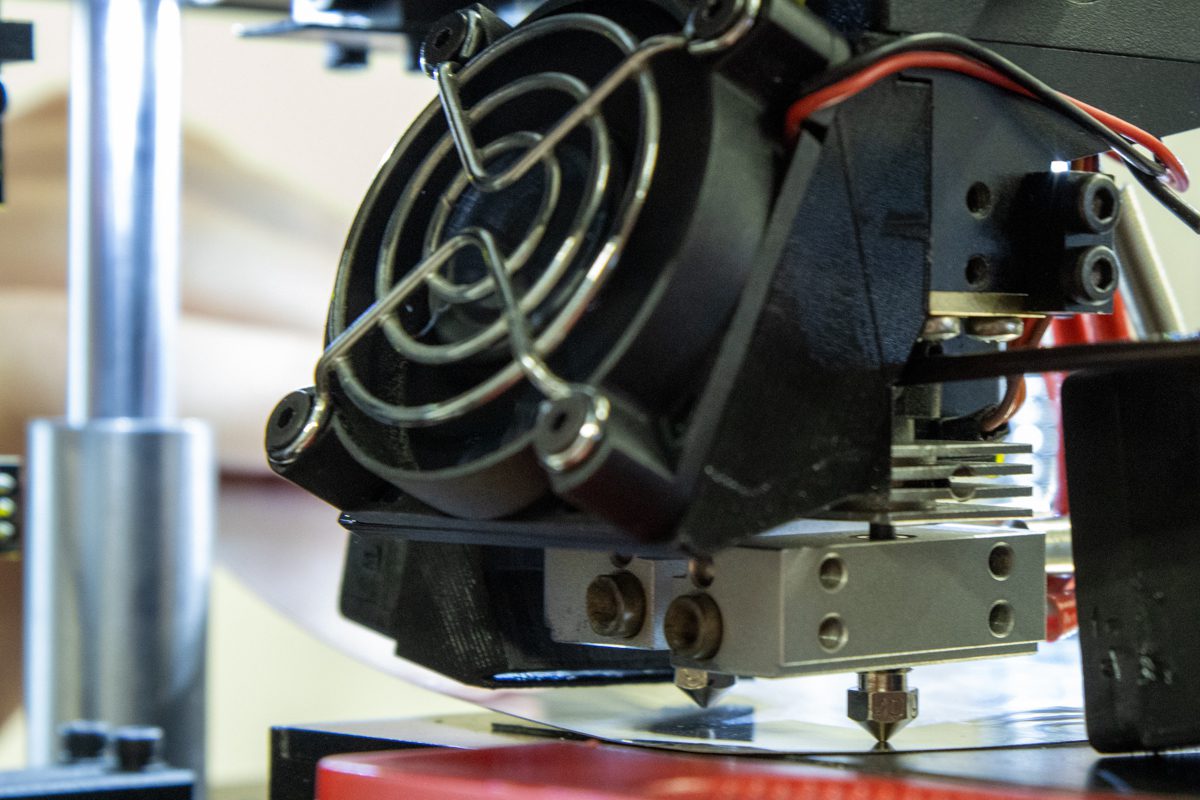

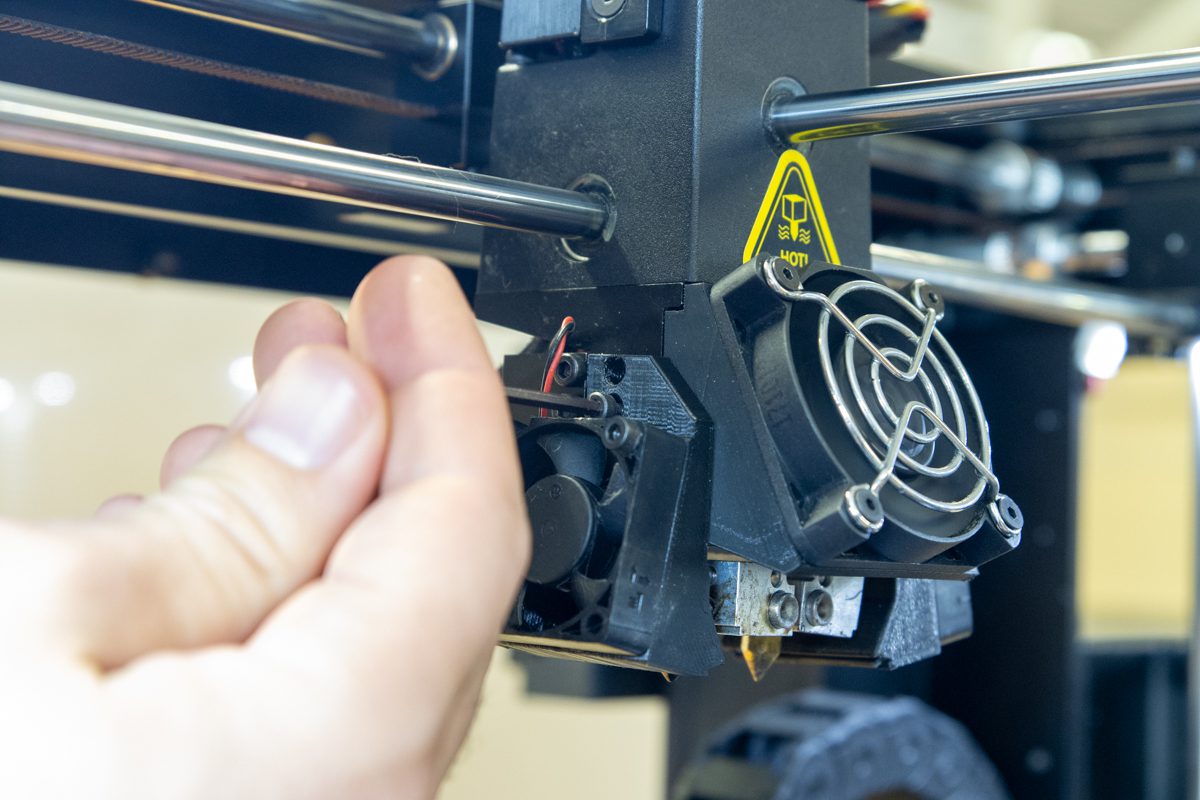

Release the fan and fan shroud

Release the fan and fan shroud

Tuck it away to give you clearance

Tuck it away to give you clearance

Step 3. Release The Heaters And Thermistors

Release the cartridges' set screws

Check if the cartridges are loose

Check if the cartridges are loose

Keep them in place for now

Keep them in place for now

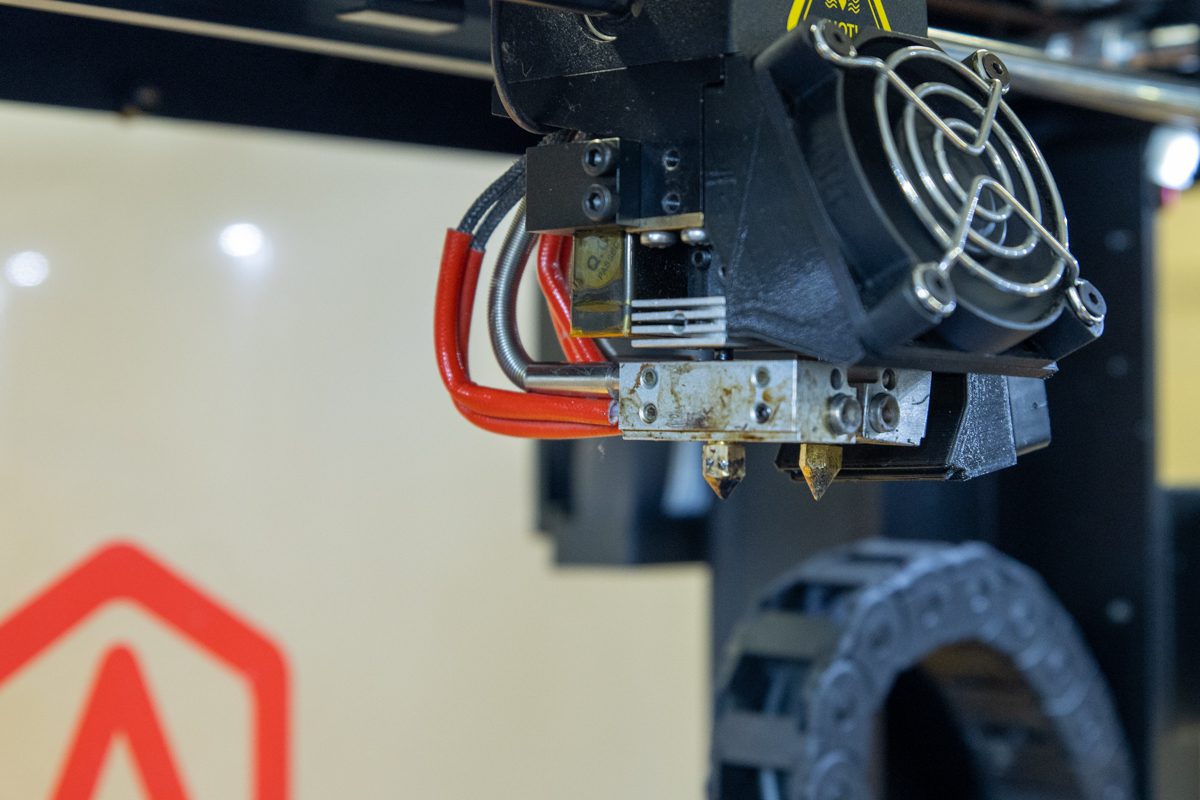

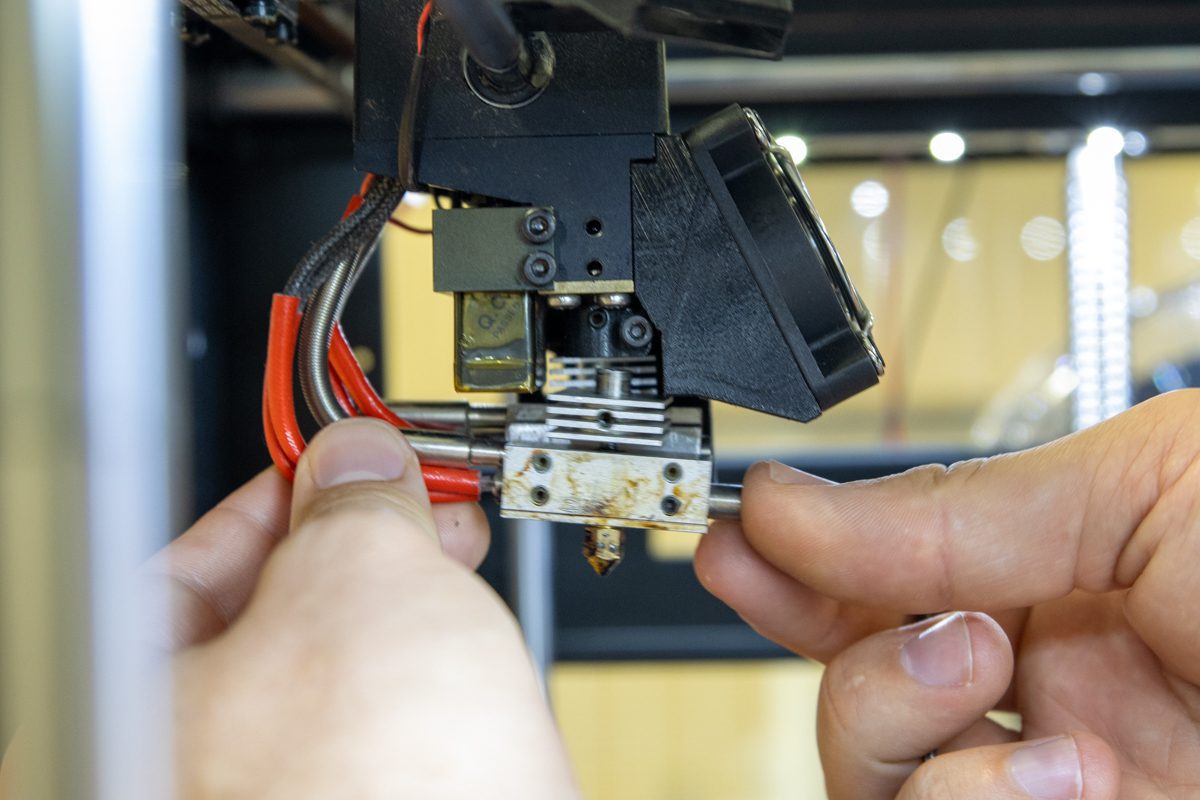

Step 4. Remove The Hotends

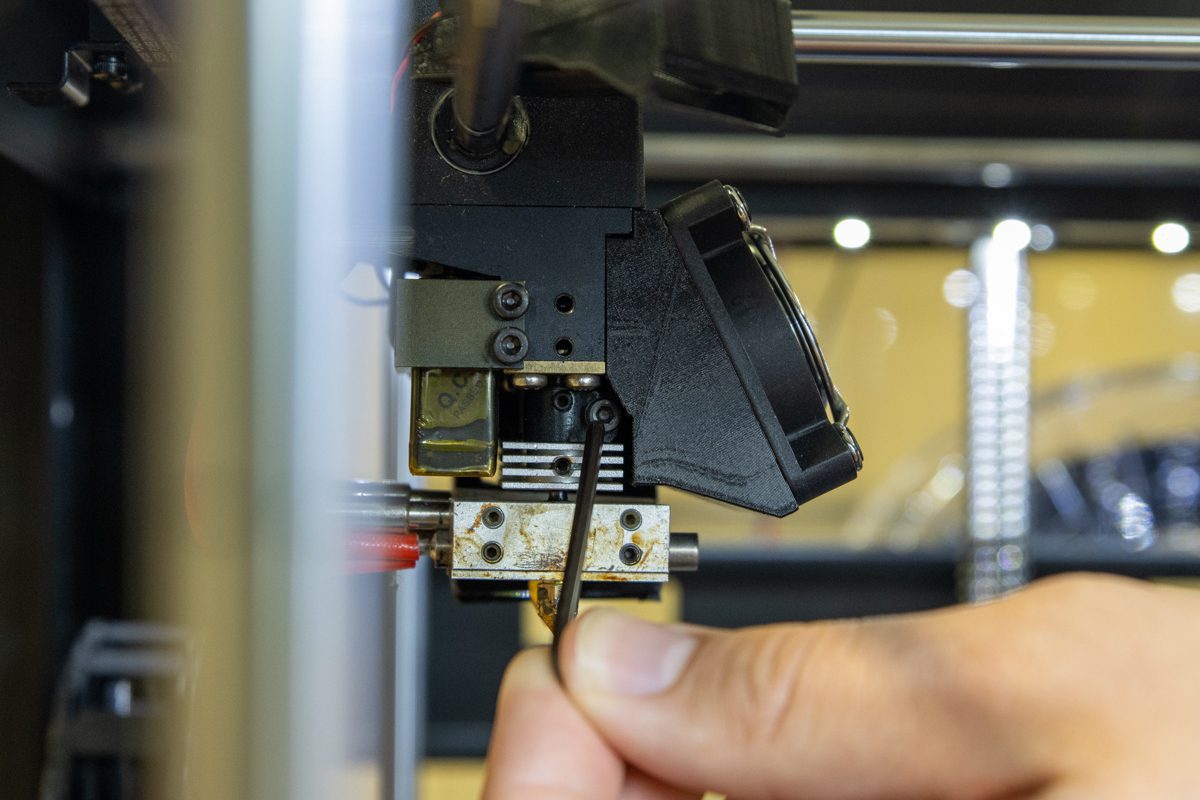

Release the hotends' holding screws

Hold the hotend

Hold the hotends

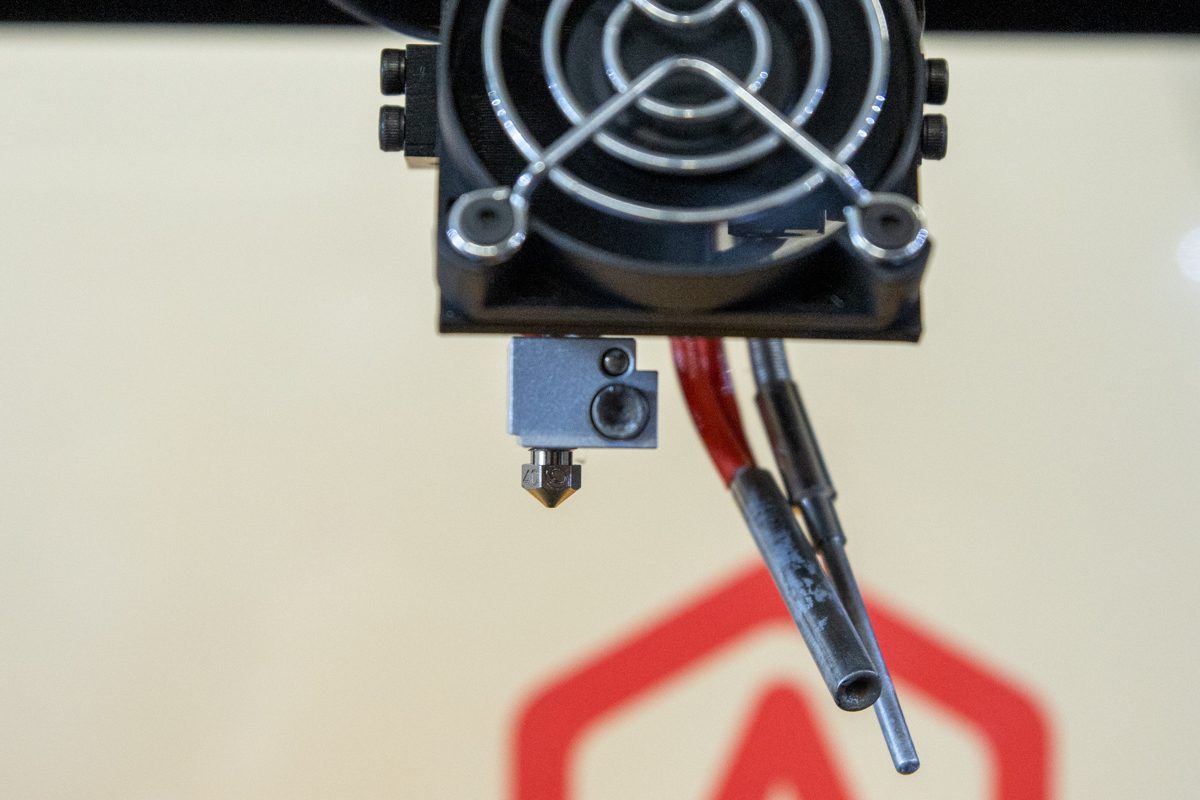

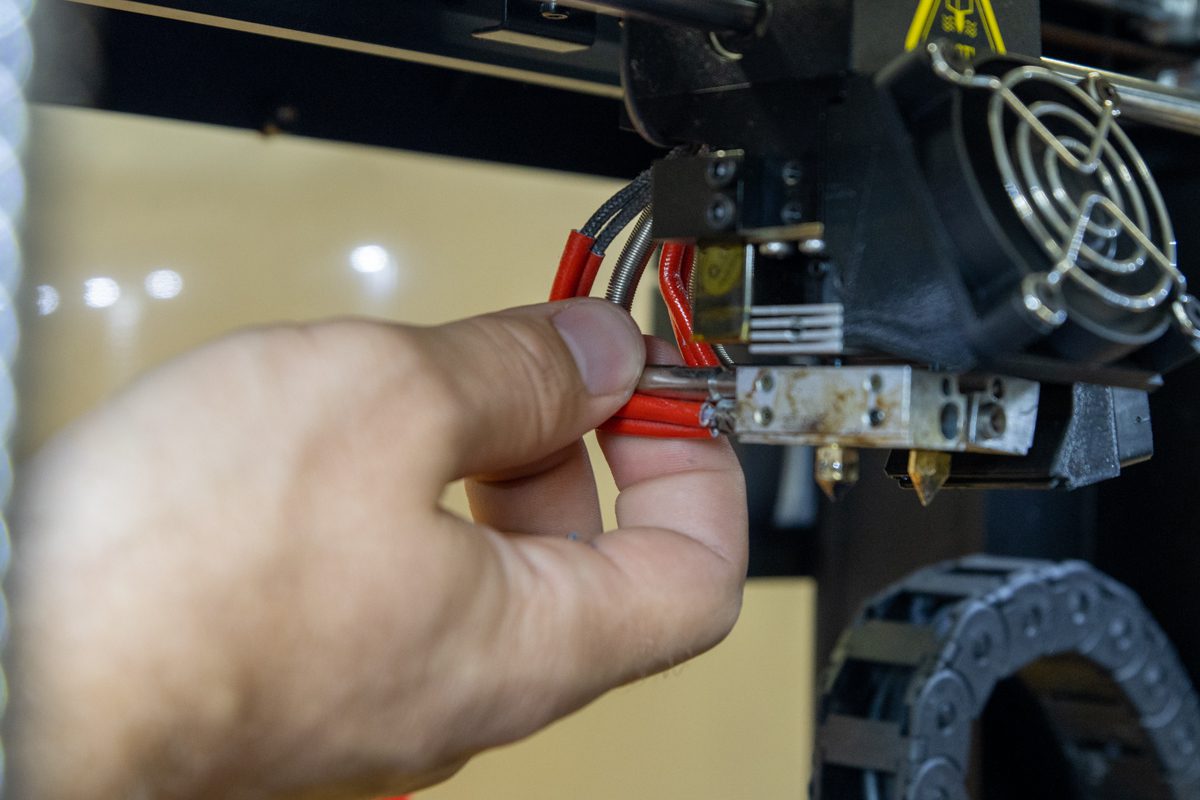

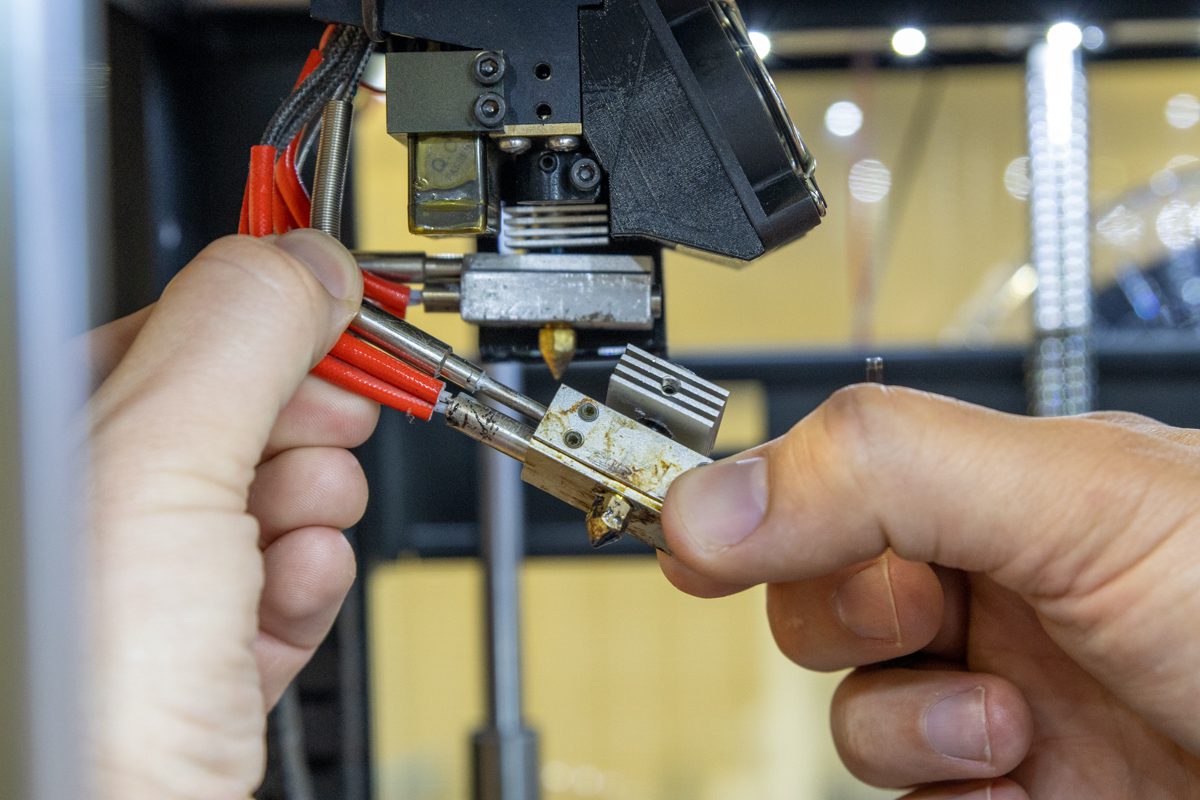

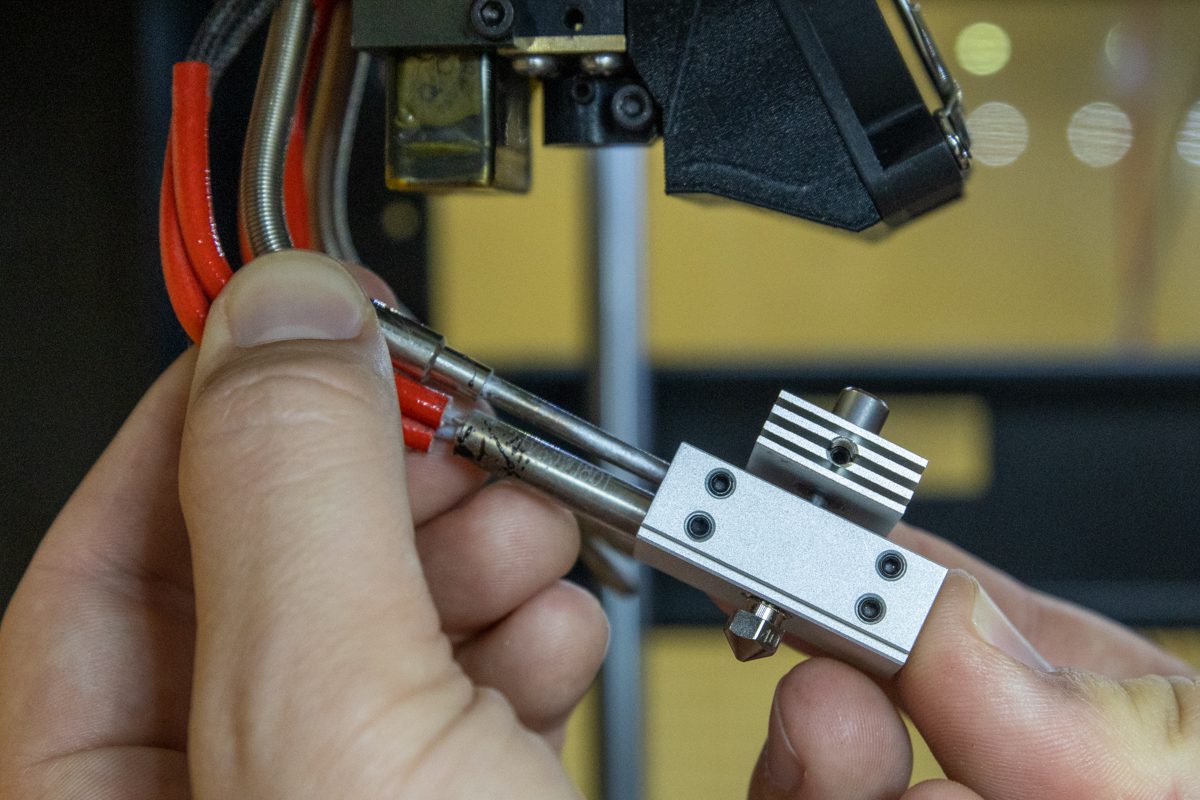

Remove the cartridges from the hotends

Remove the cartridges from the hotends

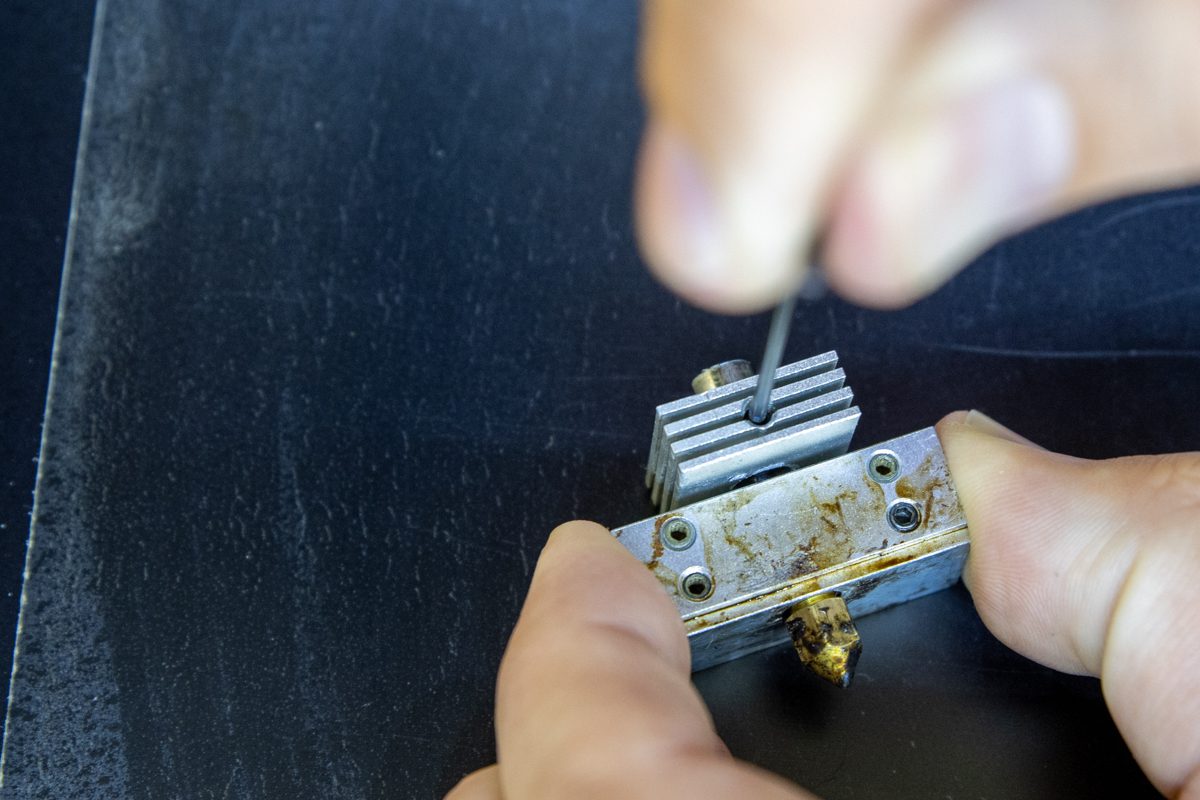

Step 5. Separate The Heatsinks

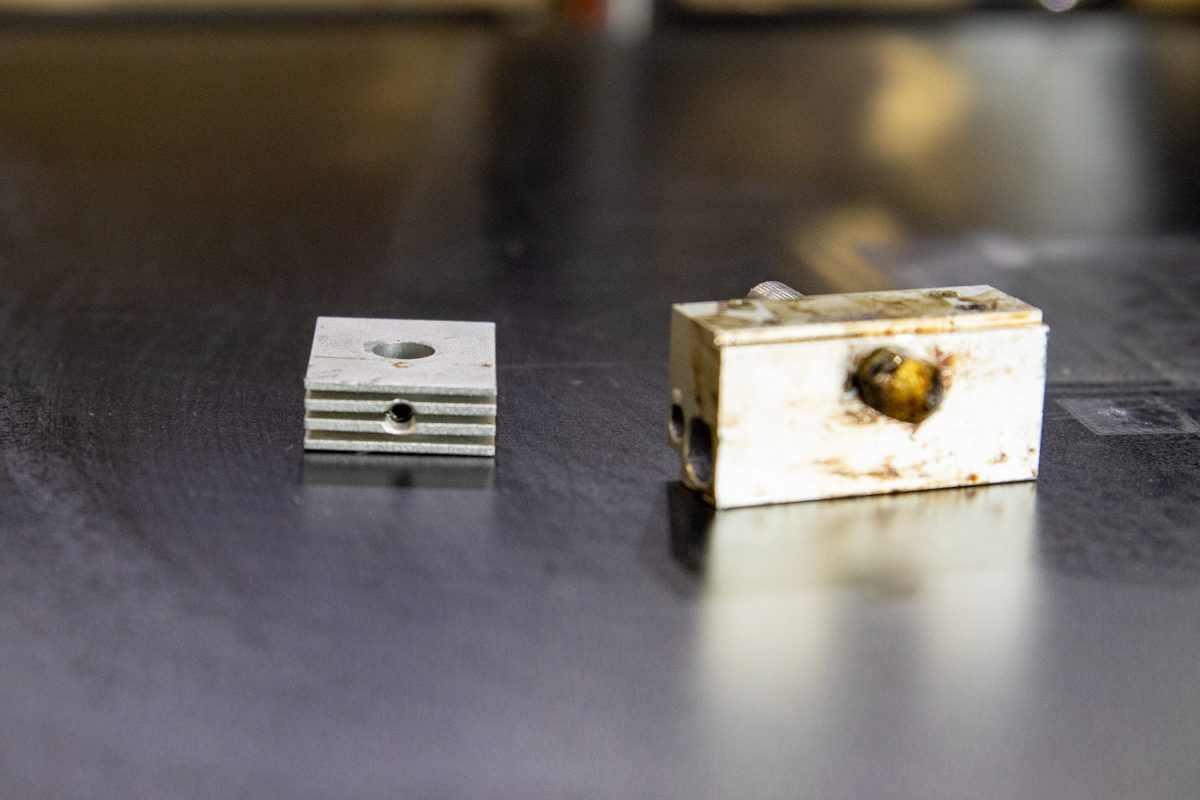

From the stock hotends

Remove and save the heat sink's set screw

Remove the heat sink's set screw

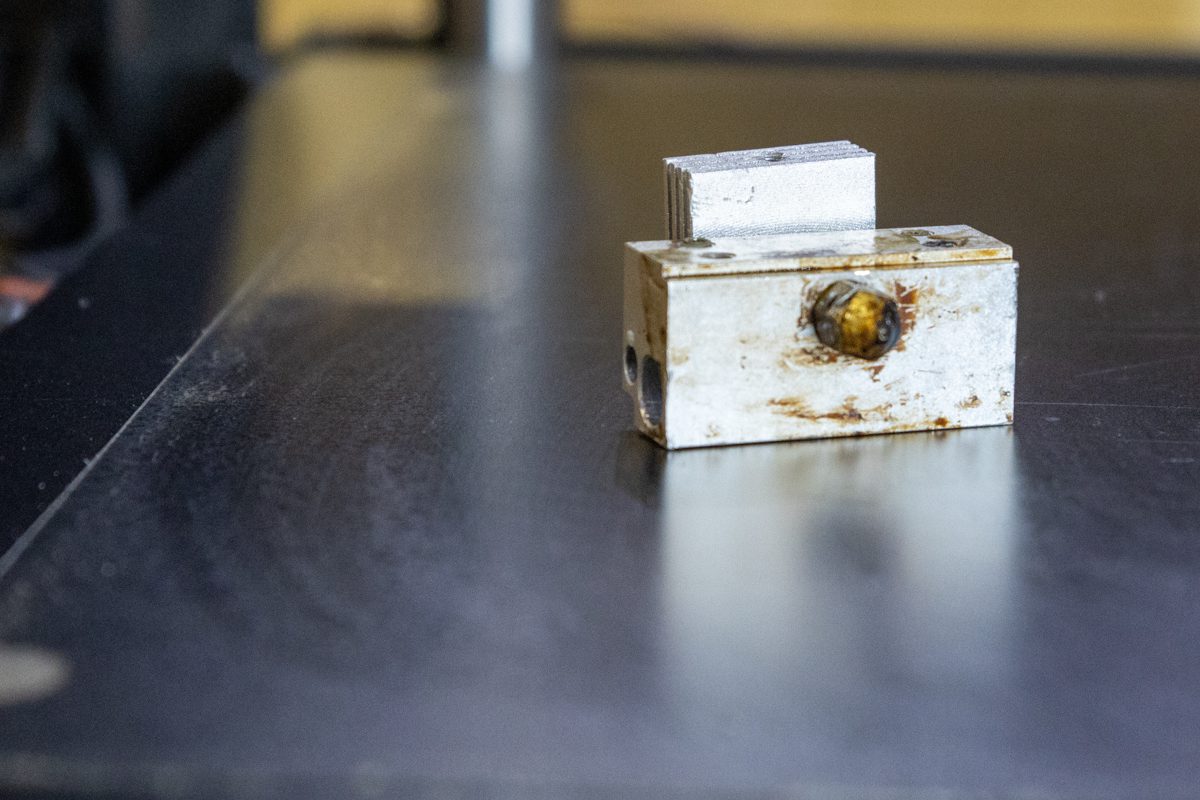

Reserve the heat sinks and set screws

Reserve the heat sinks and set screws

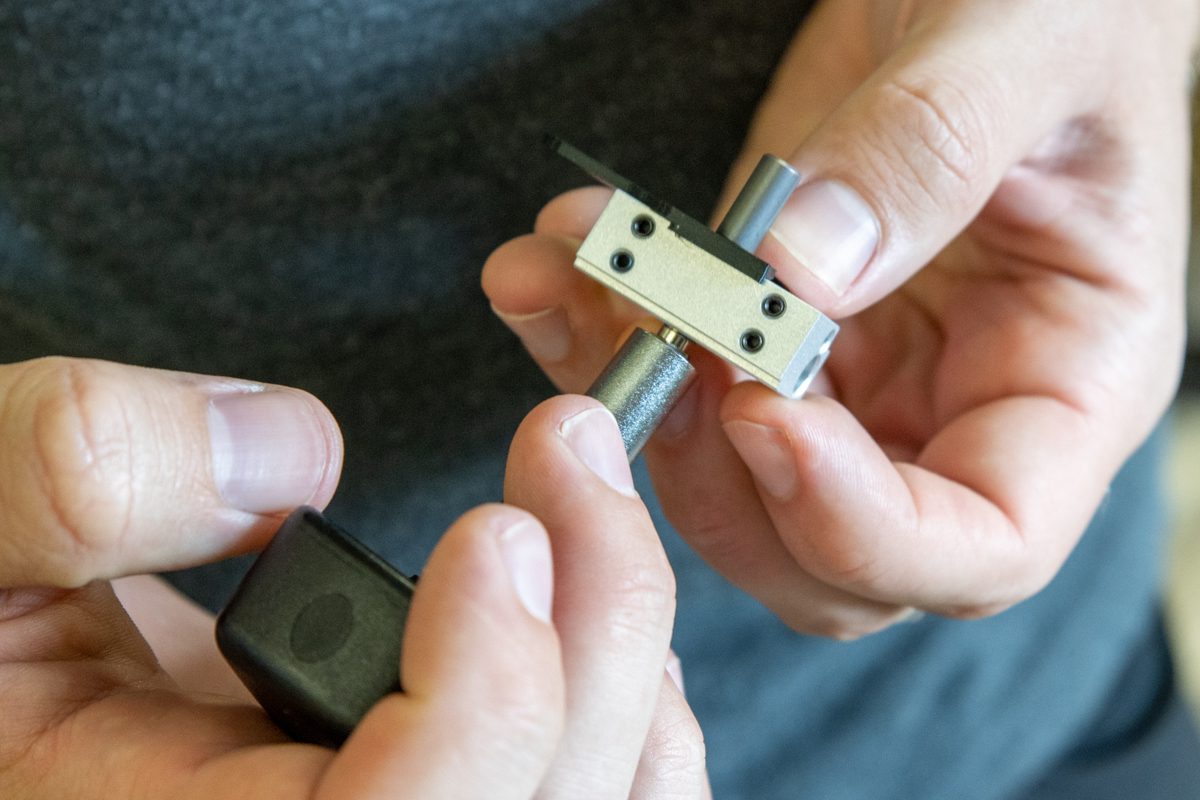

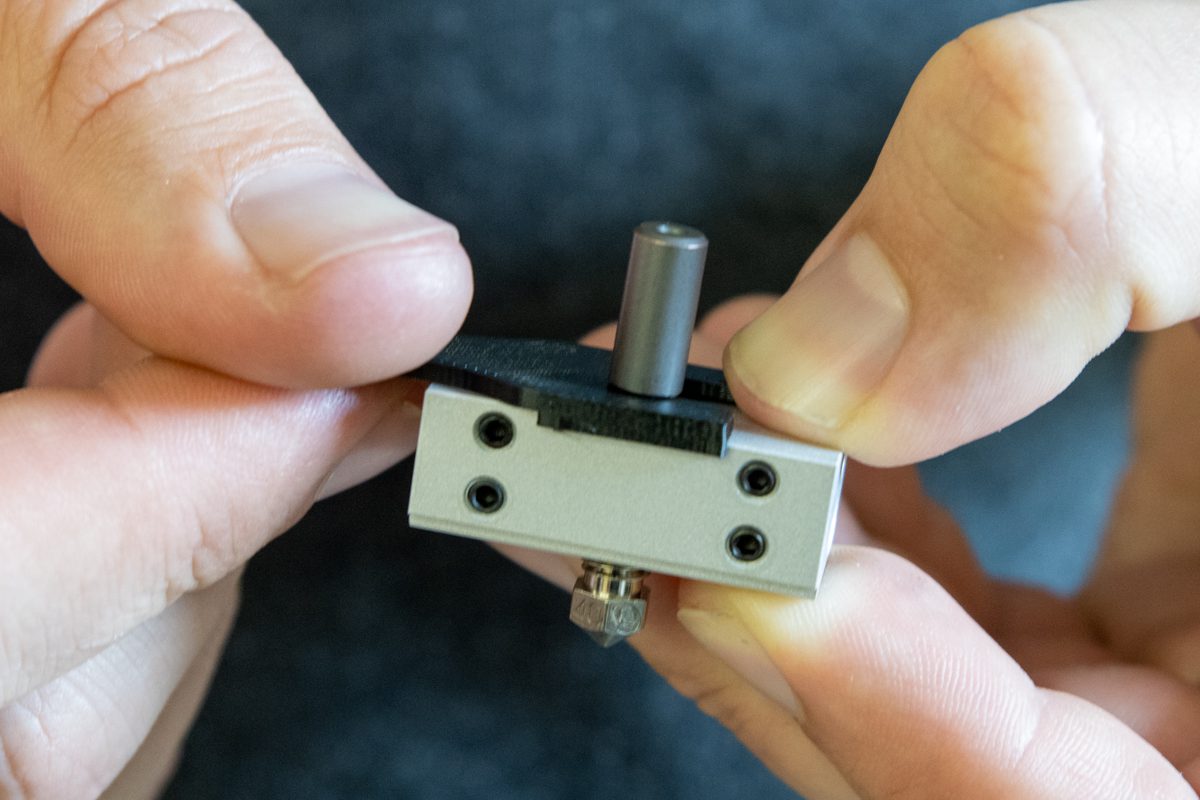

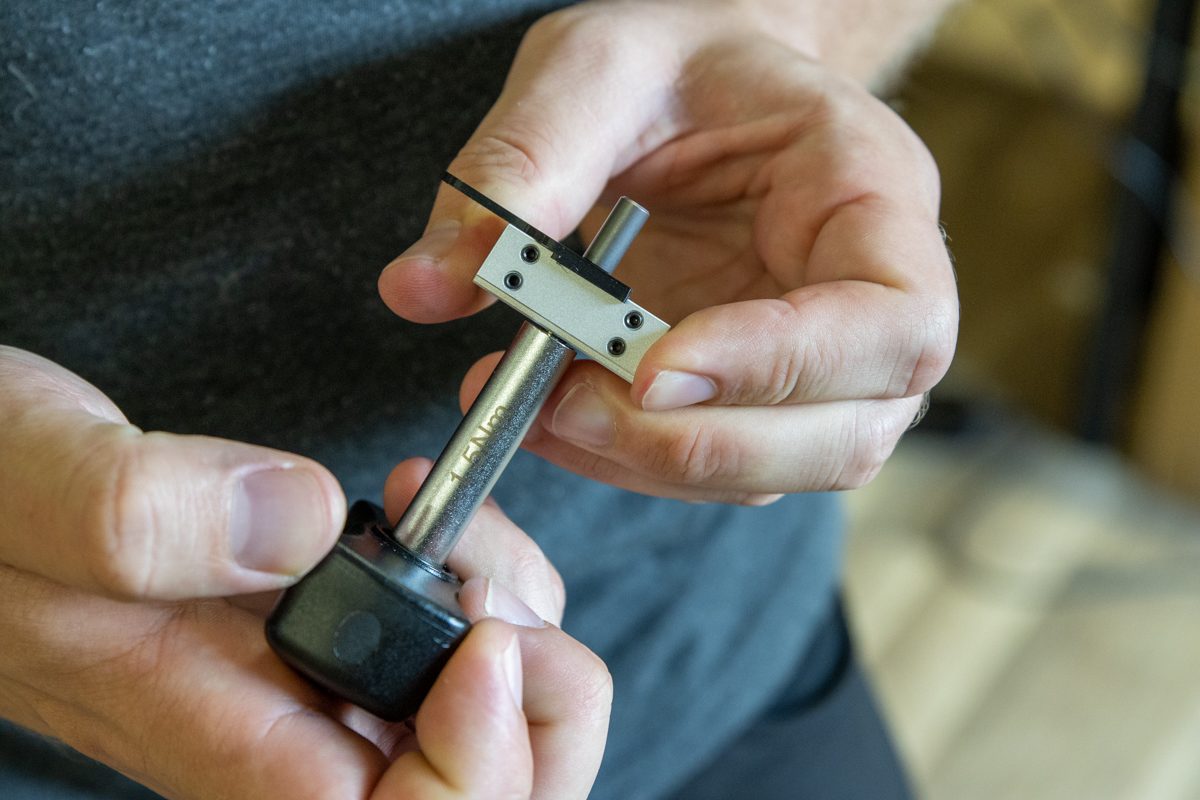

Step 1. Prepare The Hotend Fix For Installation

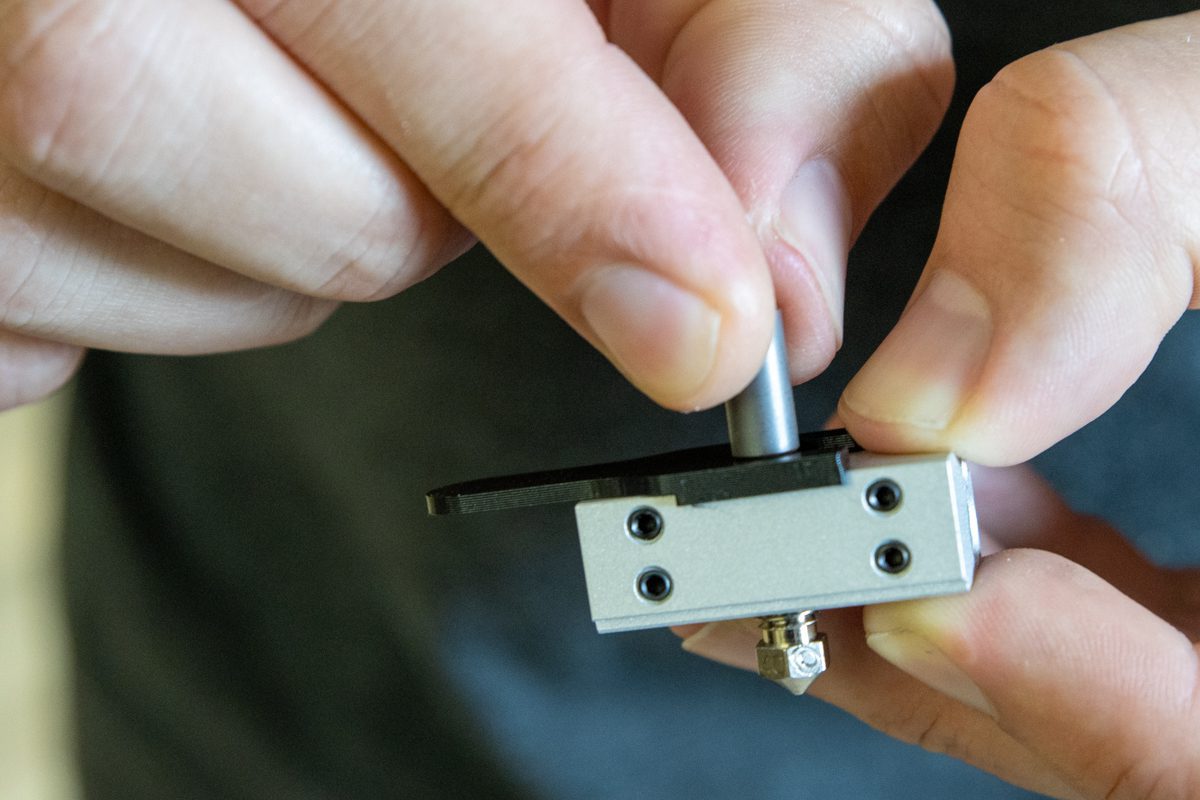

Push it until it touches the heat sink's throat.

Push it until it touches the heat sink

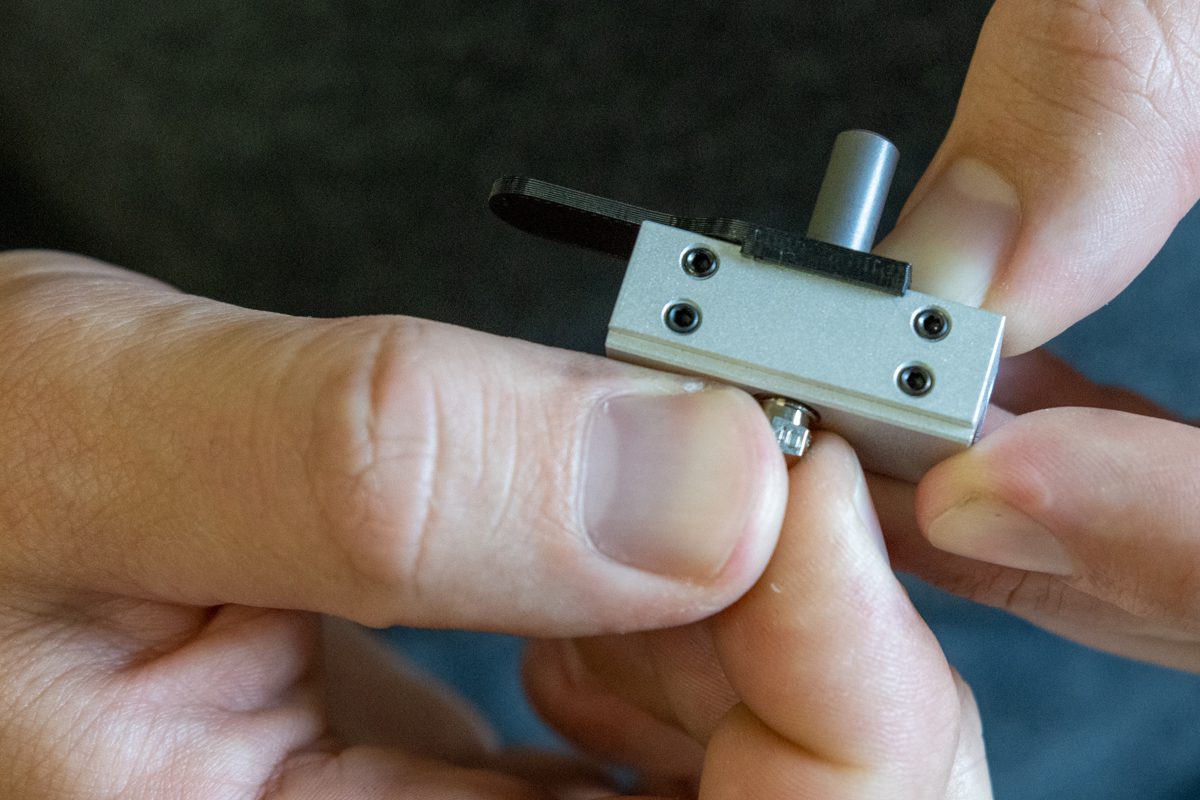

Tighten the heat break

Step 2. Cold Tighten The Nozzle

Tighten the nozzle by hand

Tighten the nozzle by hand

Use a 1.5Nm Toque Wrench

Use a 1.5Nm Toque Wrench

Tighten until the Torque Wrench snaps

Tighten the nozzle until it snaps

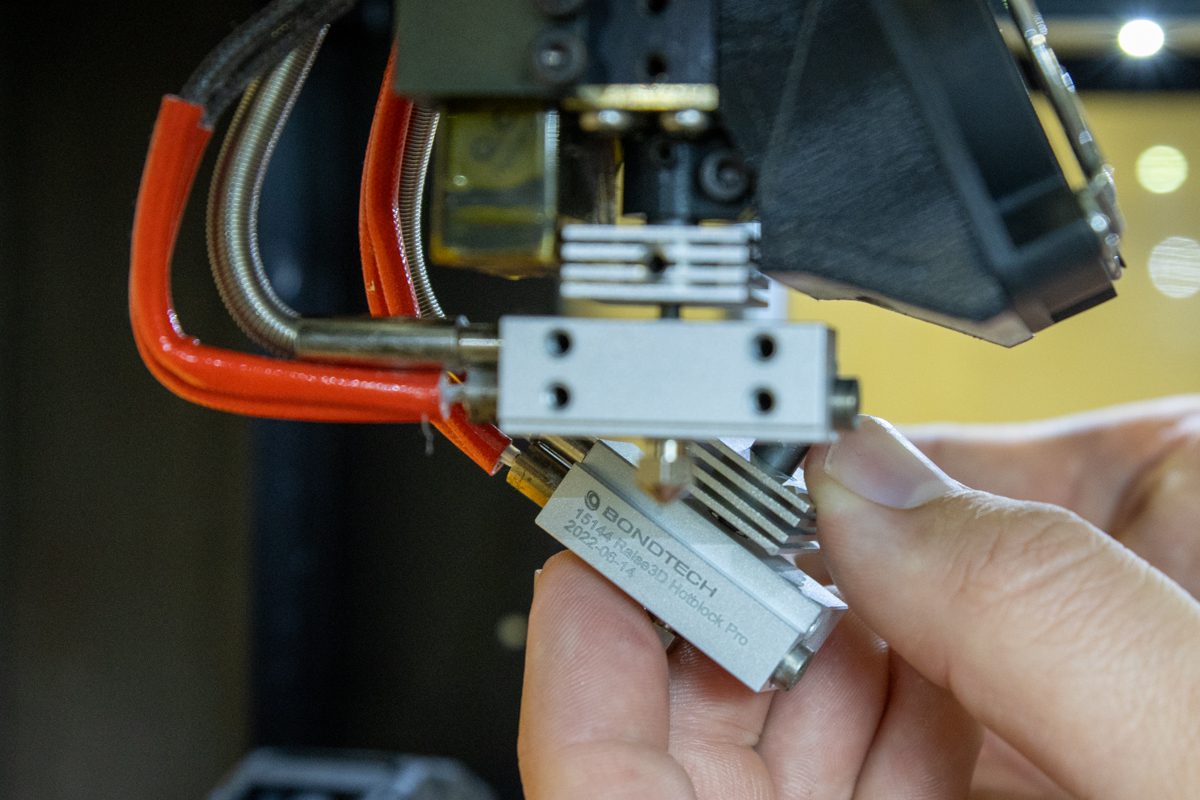

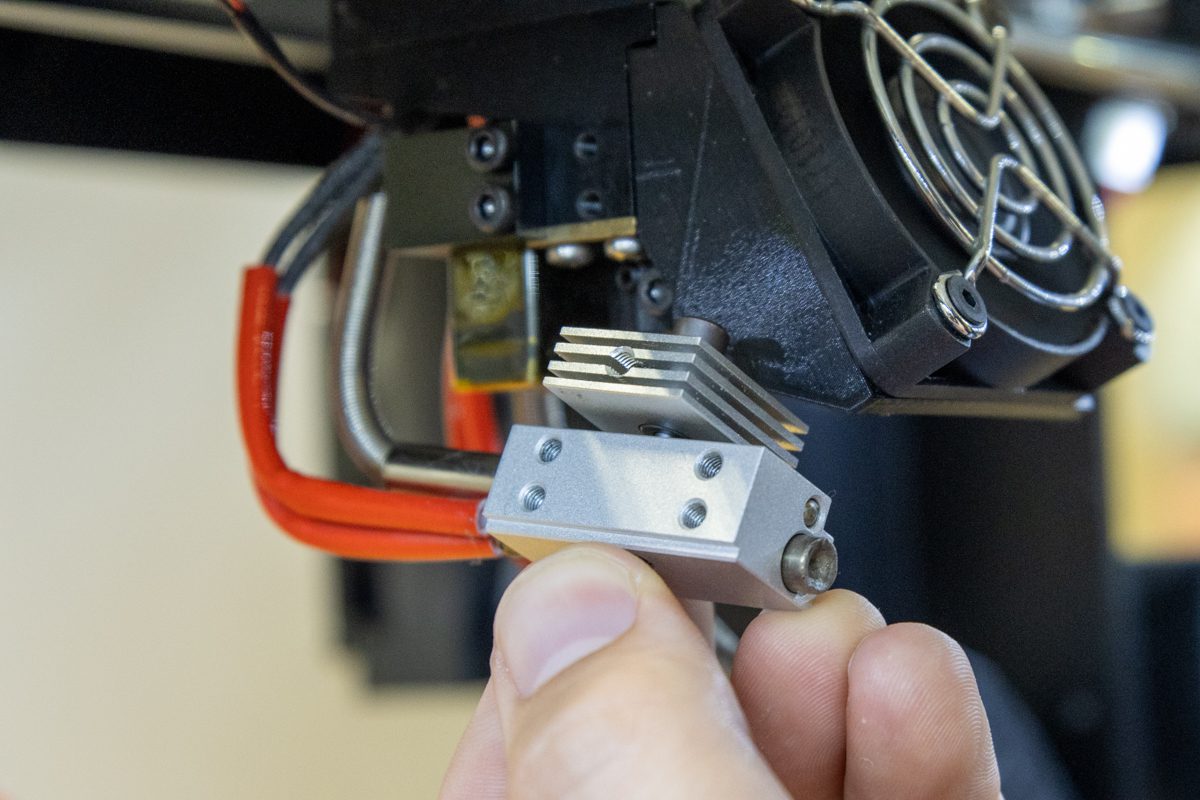

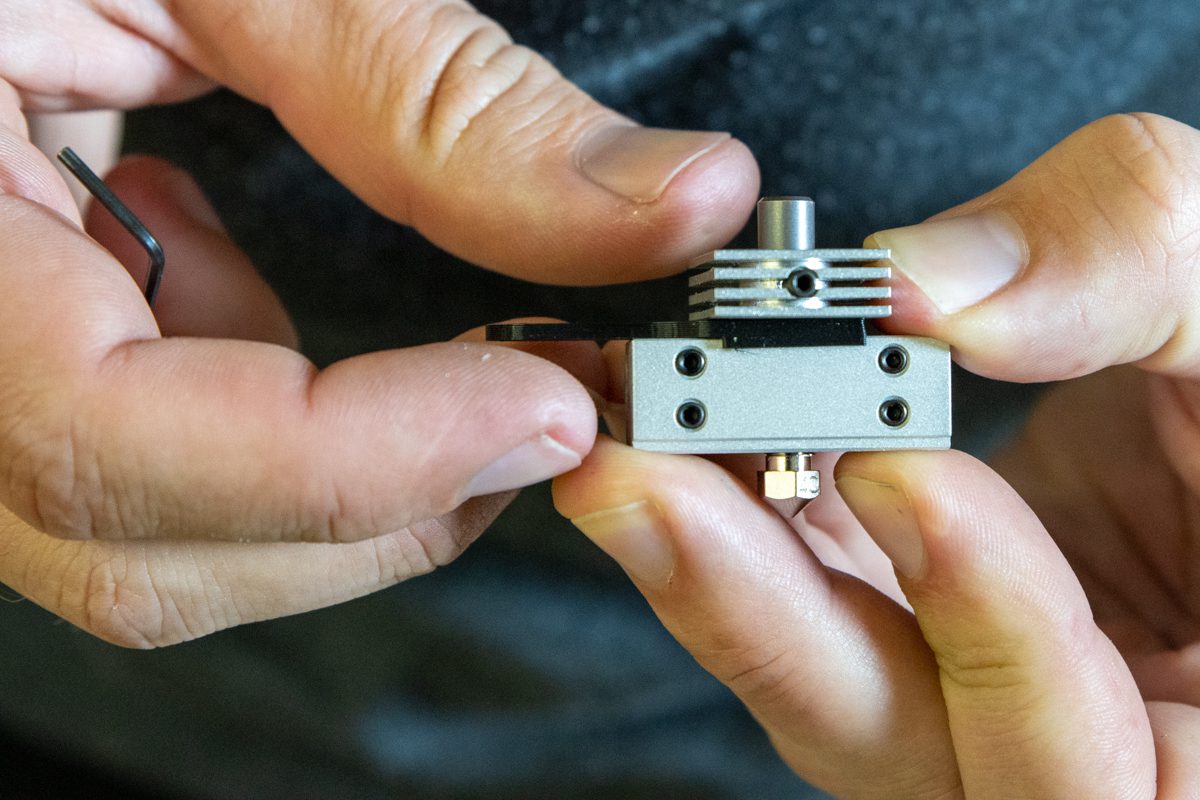

Step 3. Apply The Heat Sink To The Hotend Fix

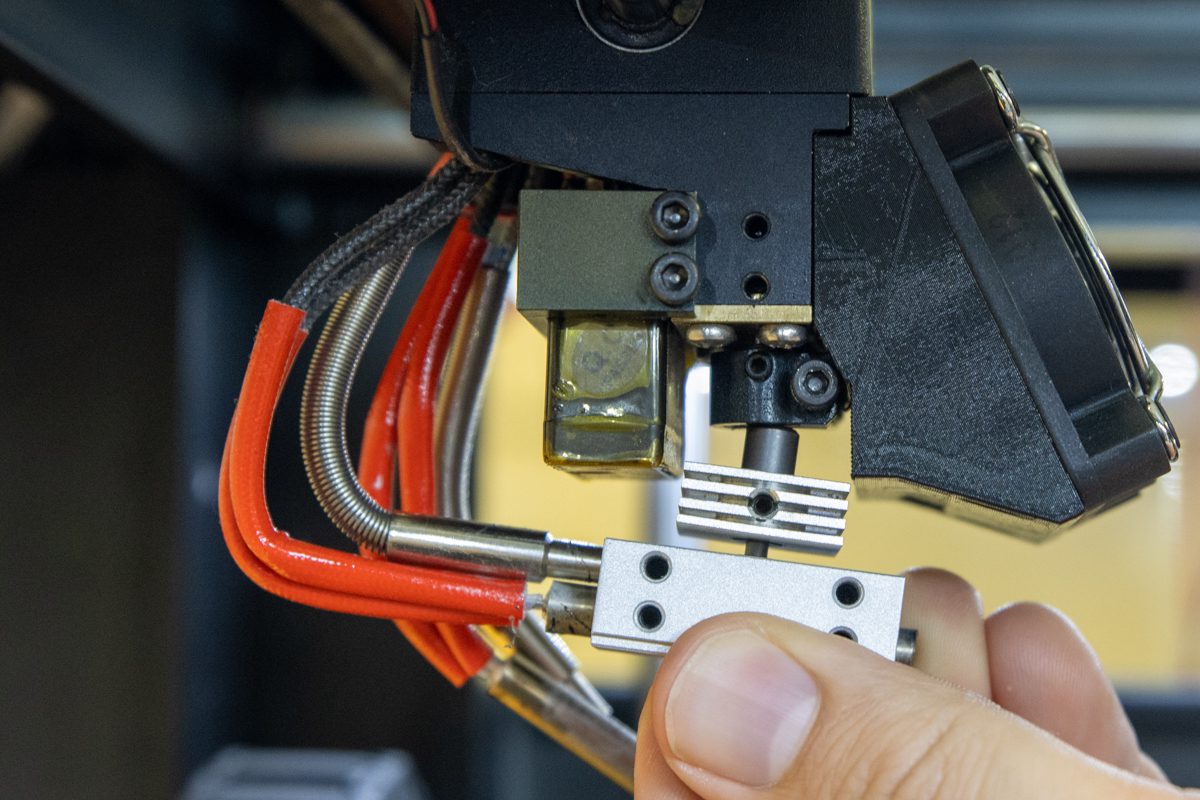

Slide the heat sink on the heat break

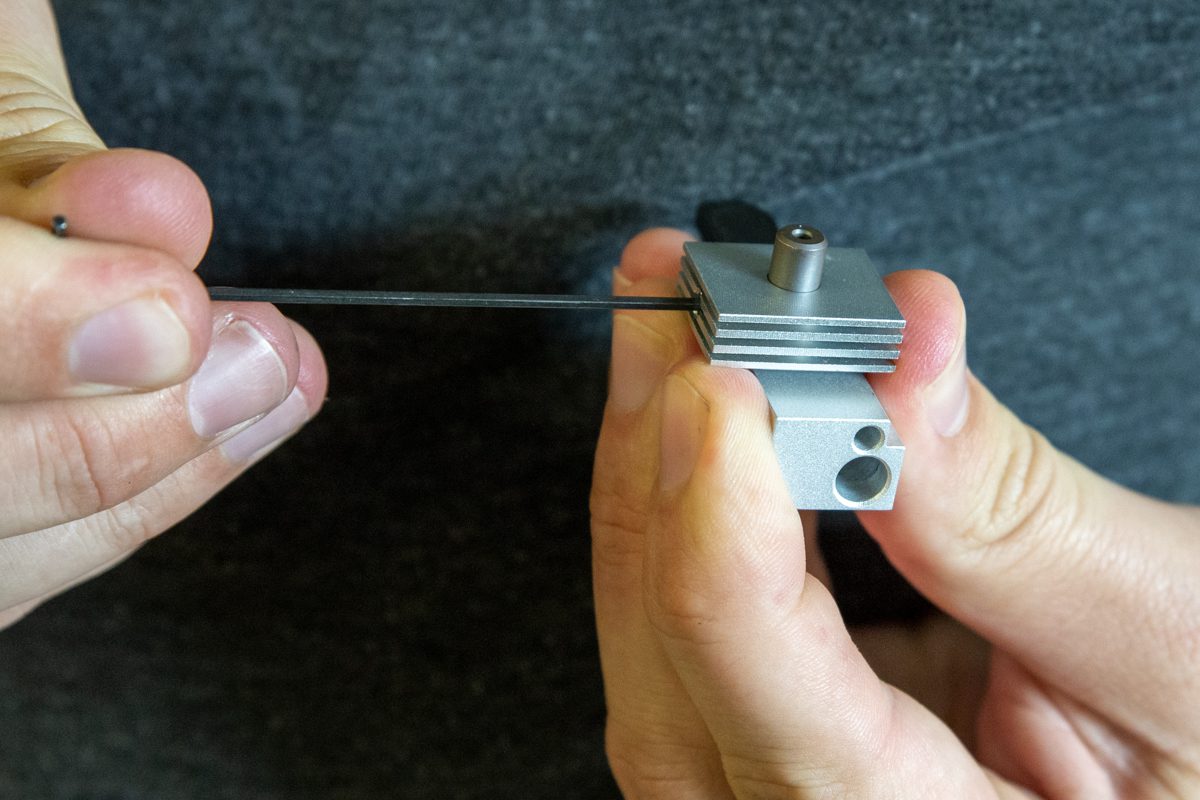

Tighten the heat sink's set screw.

Tighten the heat sink's set screw

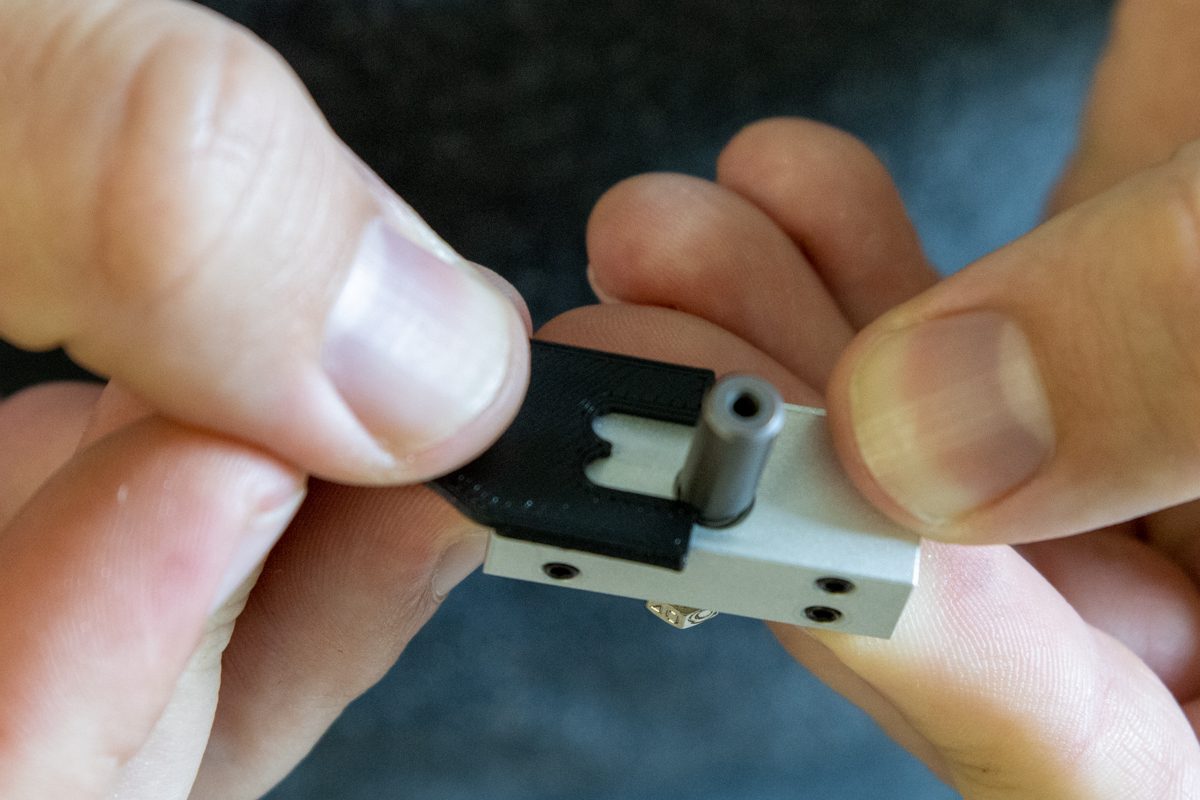

Remove the spacer after all elements are in place.

Remove the spacer after

Step 4. Insert Heater and Thermistor

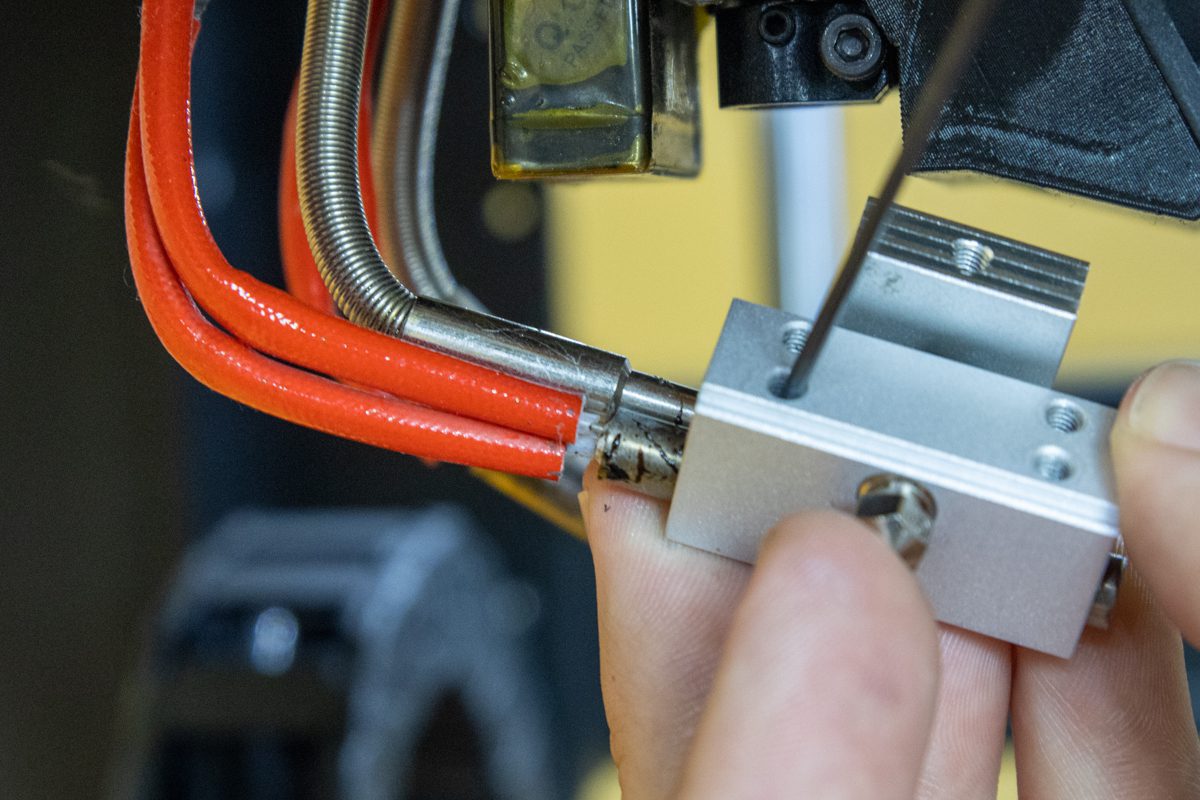

Insert heaters and thermistors in the heat blocks

Insert heaters and thermistors

Align the cartridges. Tighten the set screws

Check heater and thermistor's outstanding

Step 5. Install The Hotend Onto The Extruder

Insert the hotend back in place all the way up.

Insert the hotend back in place

Tighten the 2 set crews, one on each hotend.

Tighten the set crew.

Verify the alignment

Using Silicone Socks

Using the Hotend Fix with a silicone sock is more stable and leads to better performance. Still, you have the choice not to use them.

Case you do or you don't, perform a new PID tunning to improve the thermal reaction of the heaters and thermistors.

Case you want to use them, after inserting the first hotend is the time to apply the silicone sock to extruder 1. After placing extruder 2, it gets too tight to add the silicone socks later.

This guide will continue without the silicone socks on. The procedures are exactly the same with or without, but without's easier to show.

Step 1. Hot Tighten The Nozzles

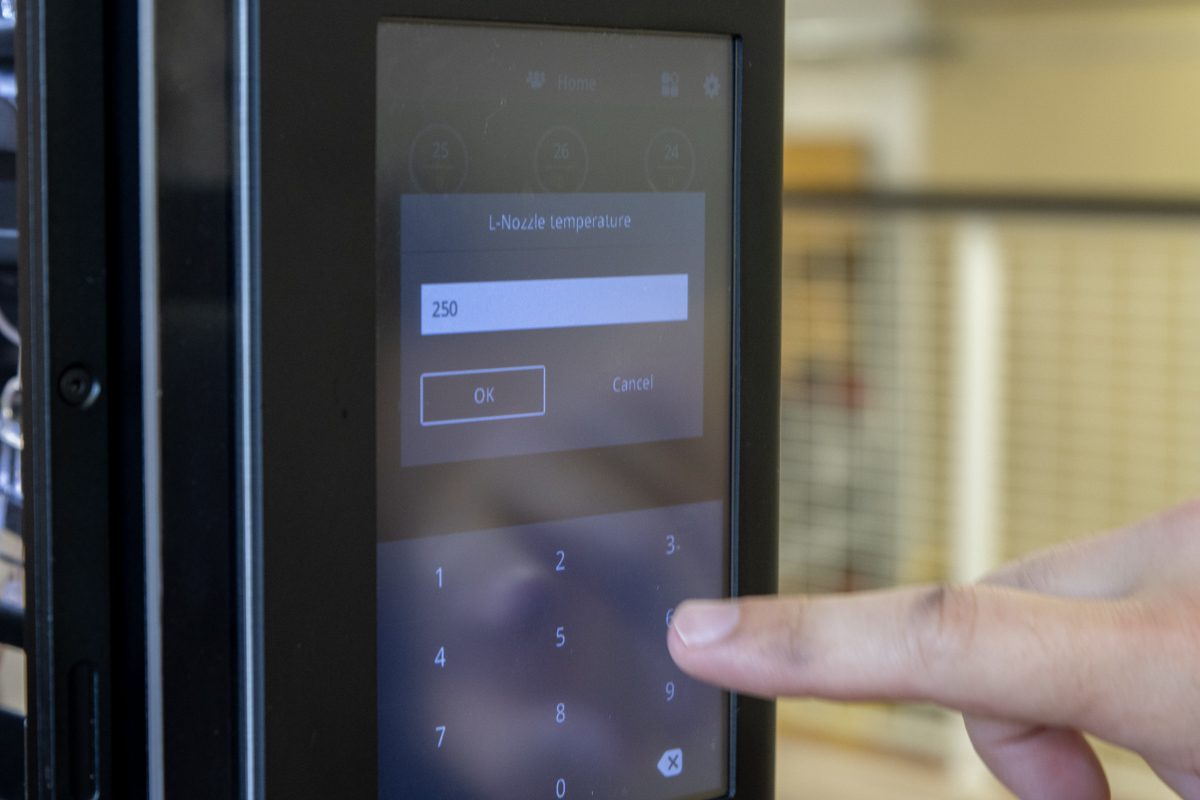

Heat up each nozzle up to 250C.

Heat up the nozzle up to 250C

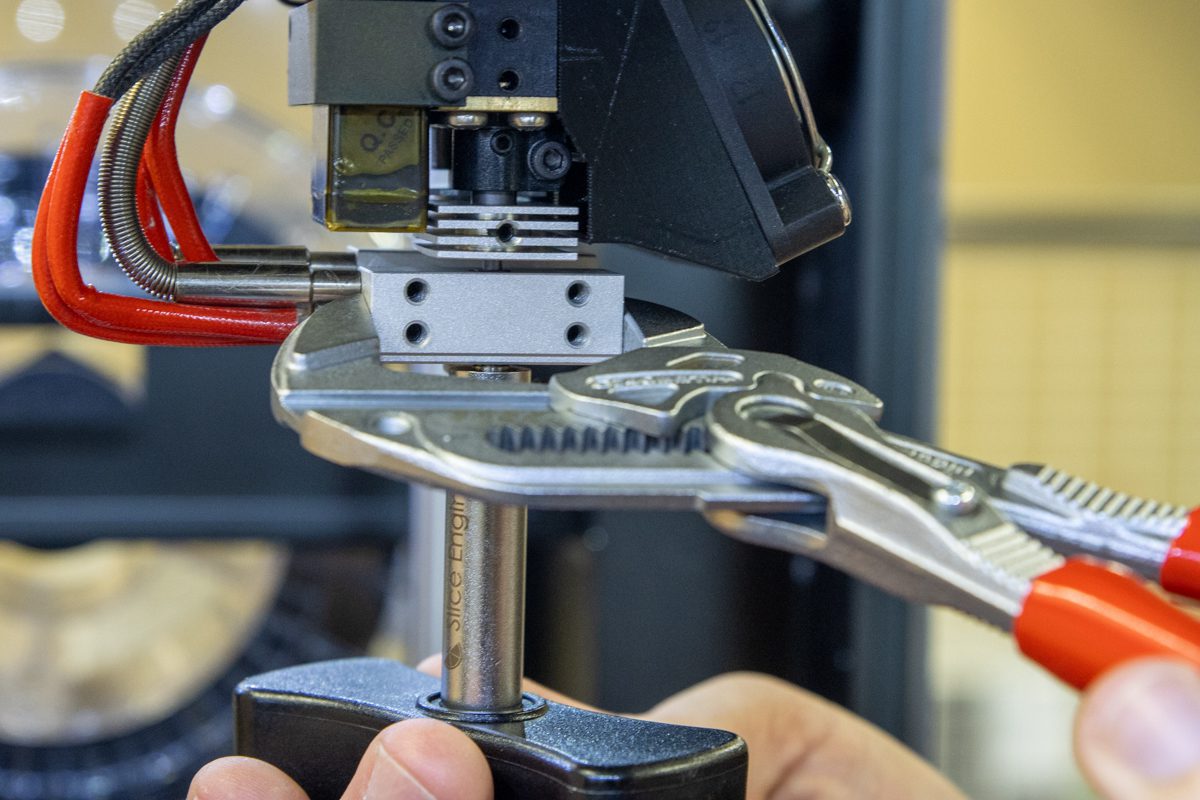

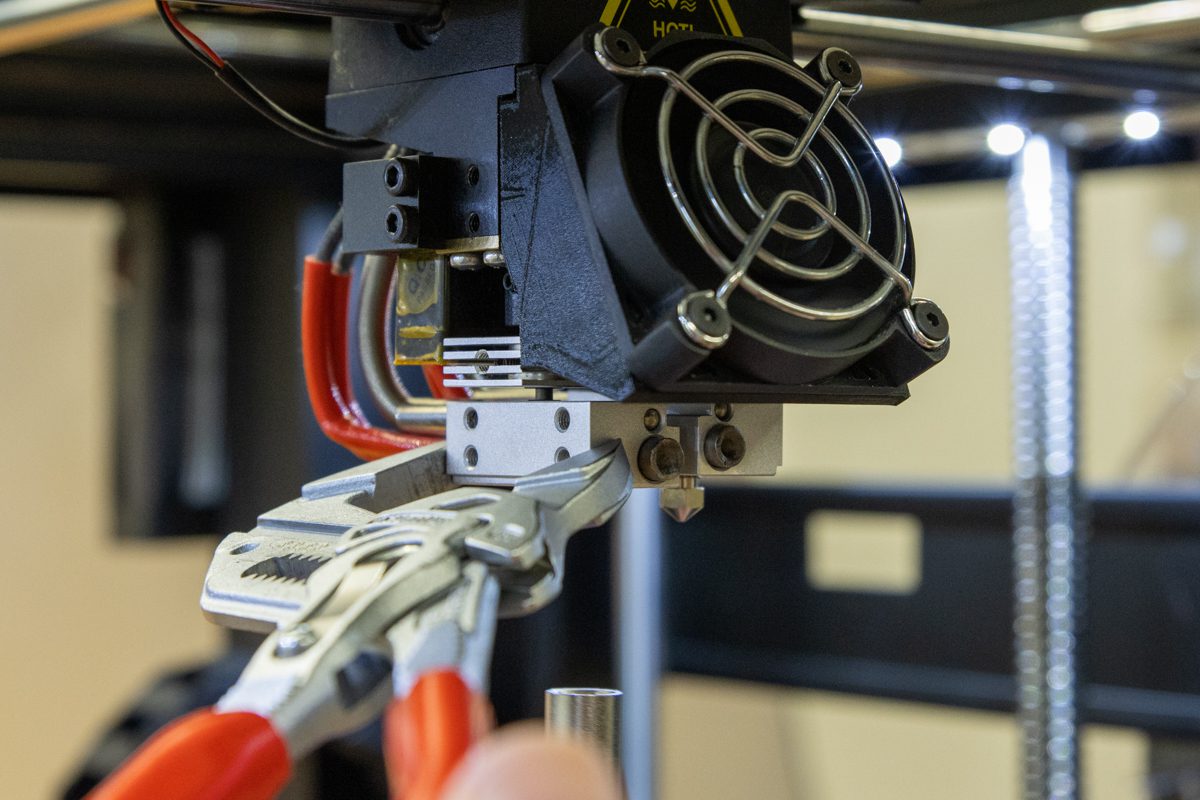

Use a wrench to hold the heatblock.

Use a wrench to hold the heatblock

Tighten the nozzle with a torque wrench

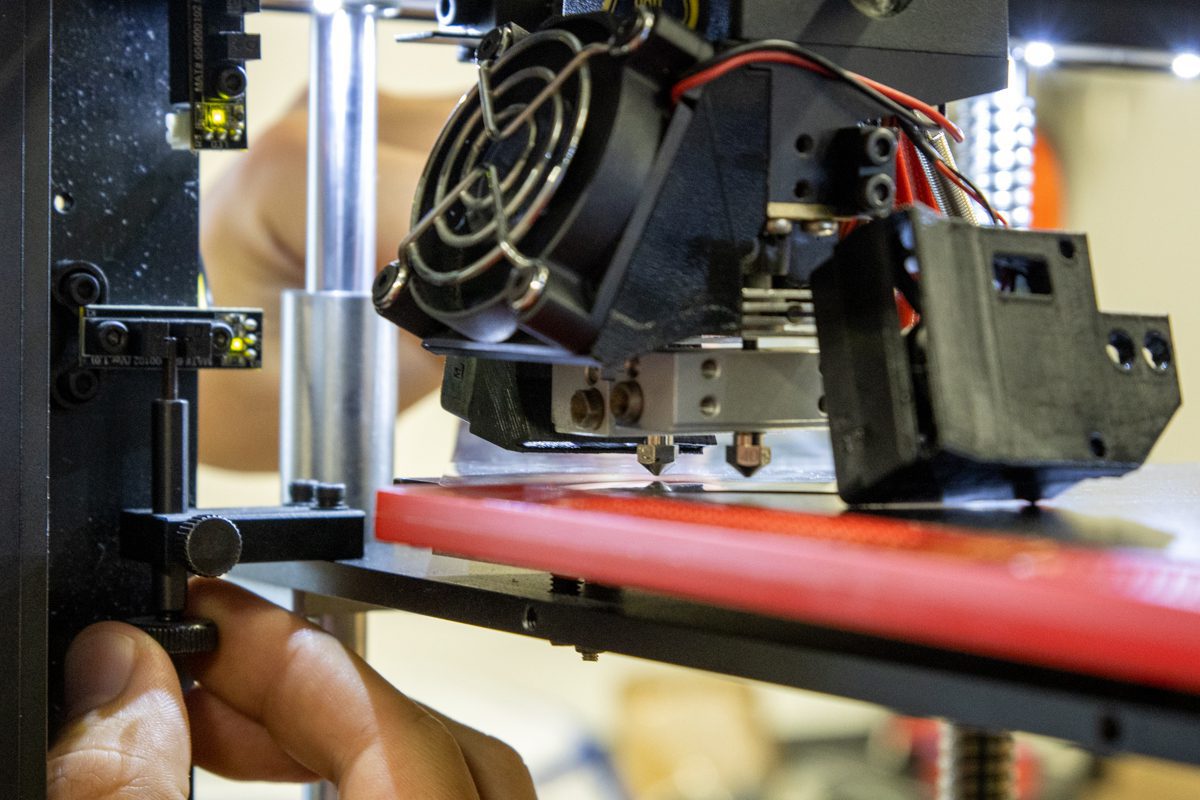

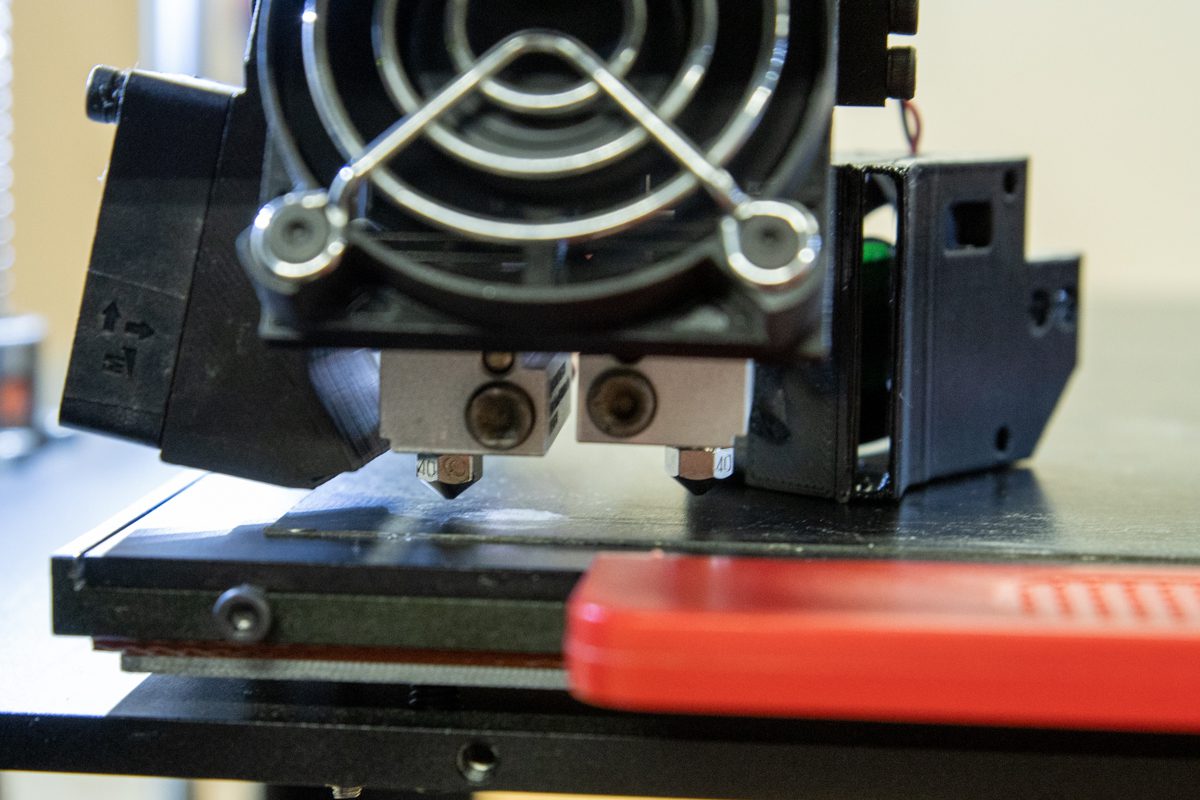

Step 2. Z-offset Re-adjustment

Check Raise3D Pro2's Documentation for more detailed information on how to re-adjust the Z-offsets.

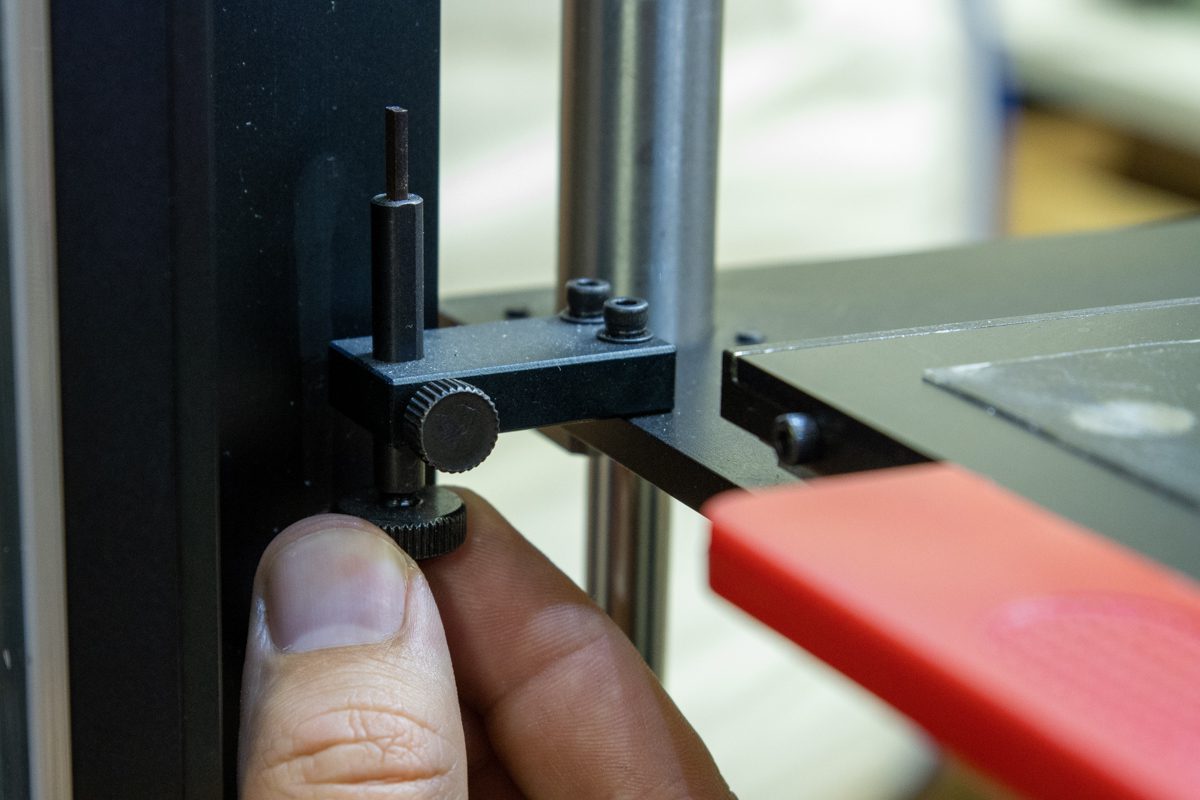

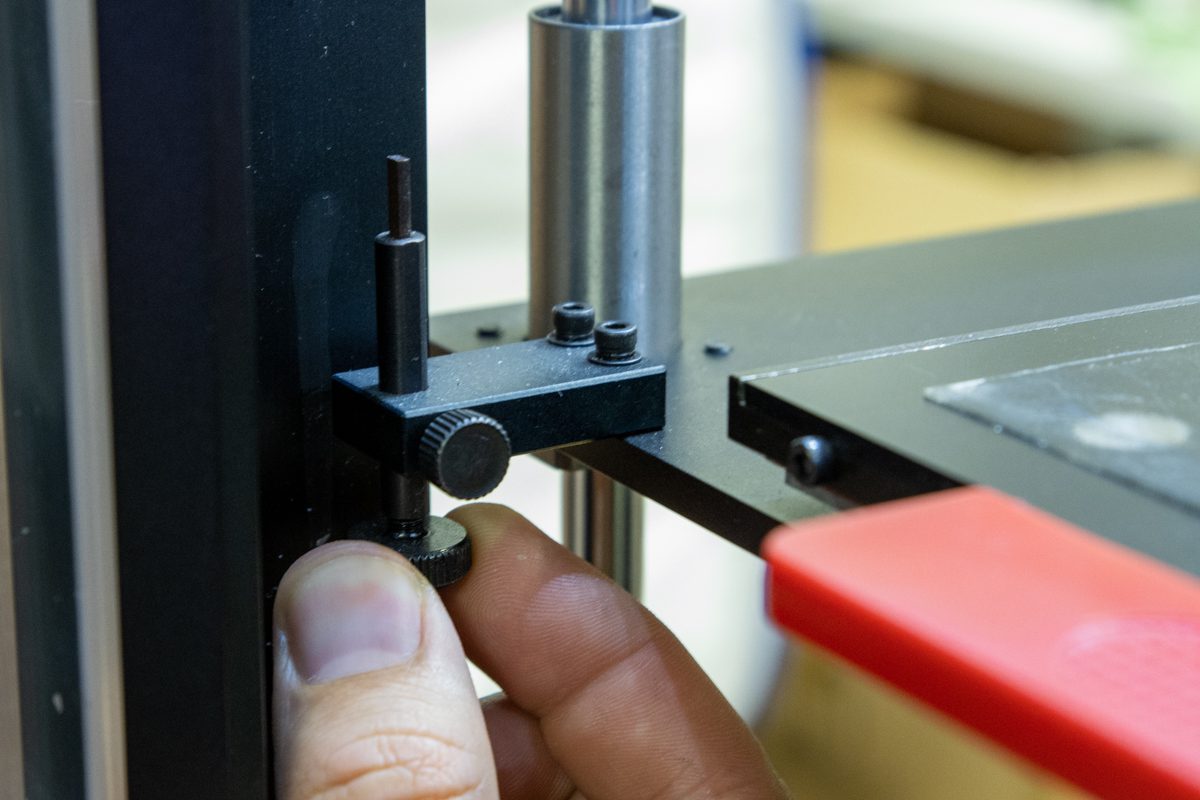

Raise the end-switch screw all the way up.

Raise the end-switch screw to the top

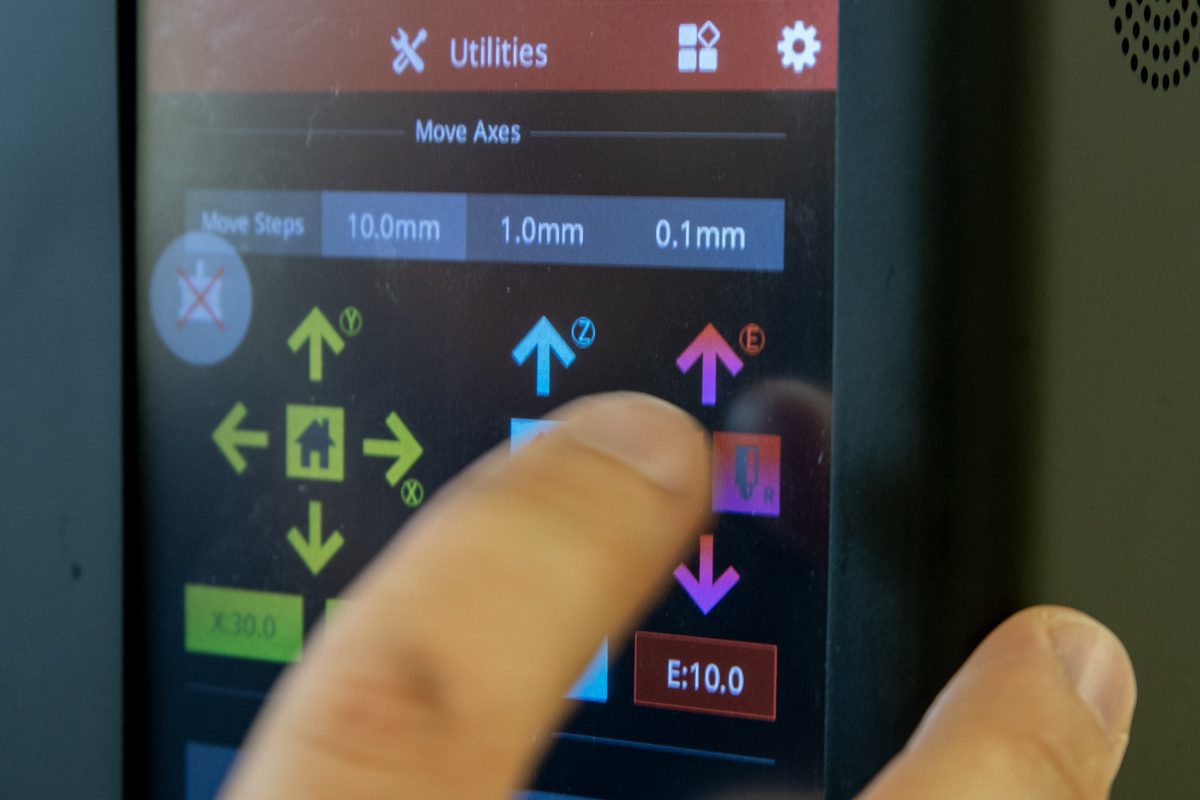

Home the tool heads.

Home the tool heads on X, Y and Z axis

Extruders will rest above the print bed

Move the tool head to X=20 and Y=20

Home Z-axis to lower extruder 1 down

Fine tune the process using the feeler gauge.

Fine tune the process using the feeler gauge

Lower Extruder 2 to set its Z-offset.

Lower Extruder 2 to set its Z-offset

Drop hotend 2 on the feeler gauge

Step 3. PID Tunning

Either you will use the Silicone socks or not, before starting using the Pro2, perform a PID tunning on both hotends.

Check Raise3D Pro2's Documentation for more detailed information on how to perform, a PID tunning.

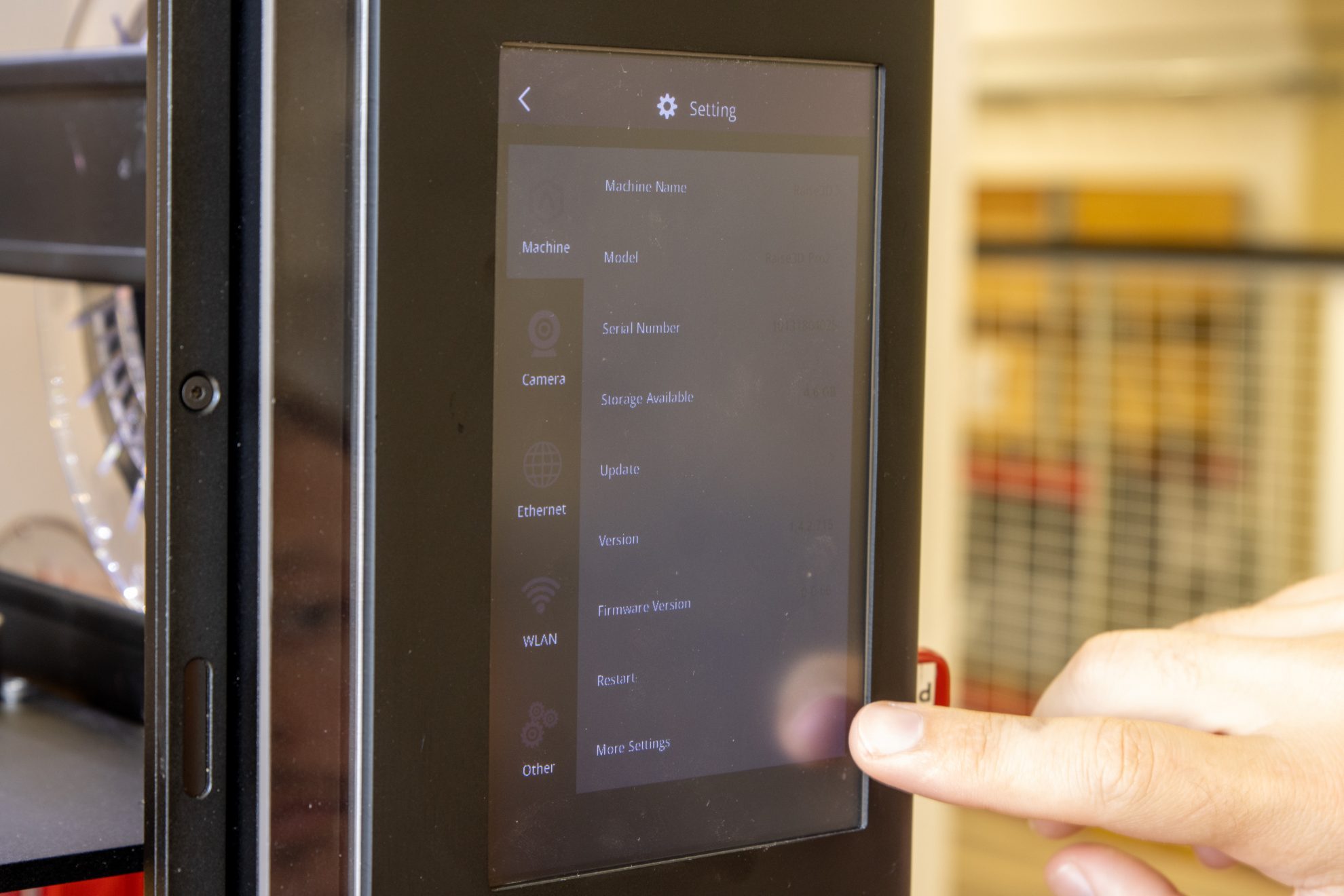

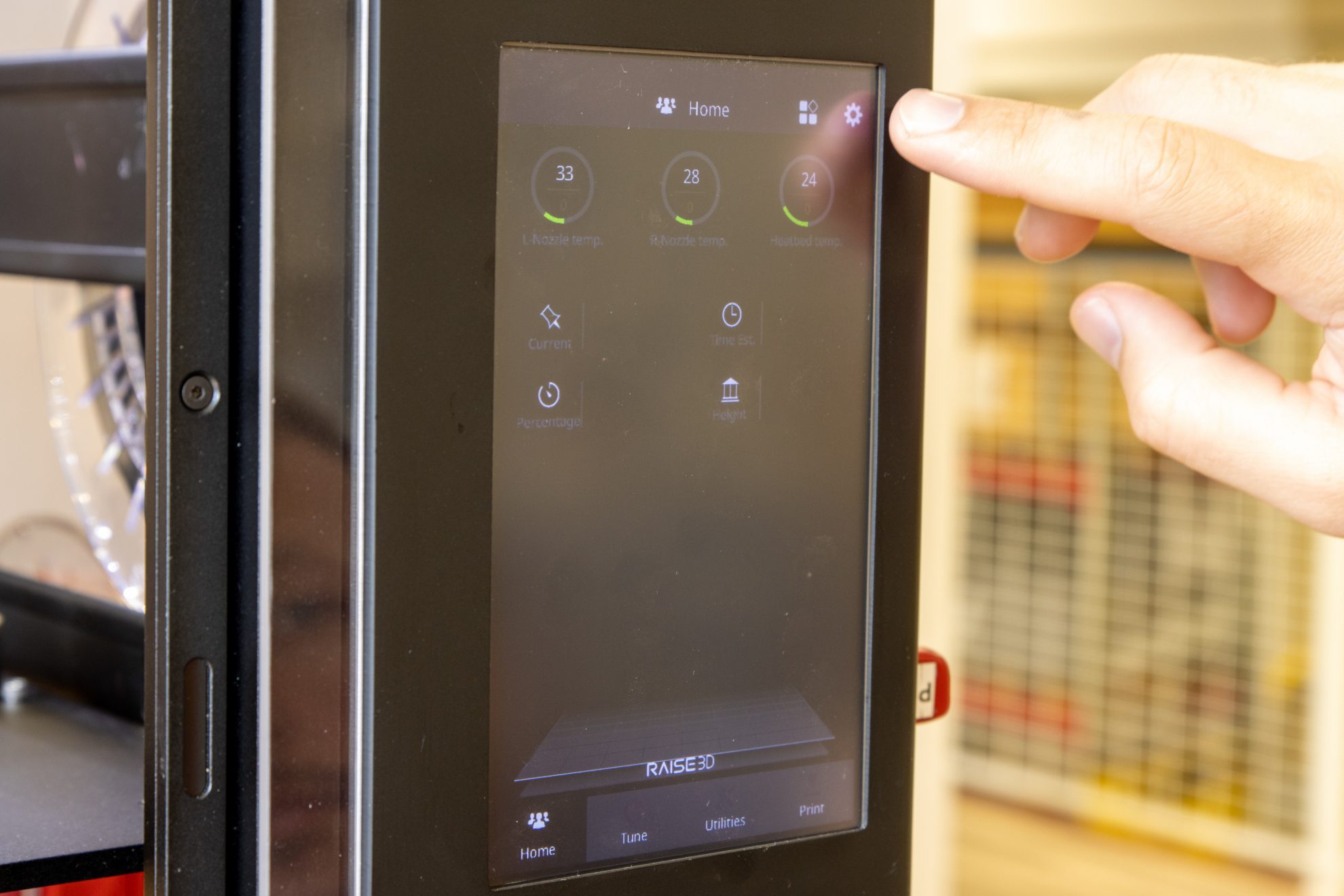

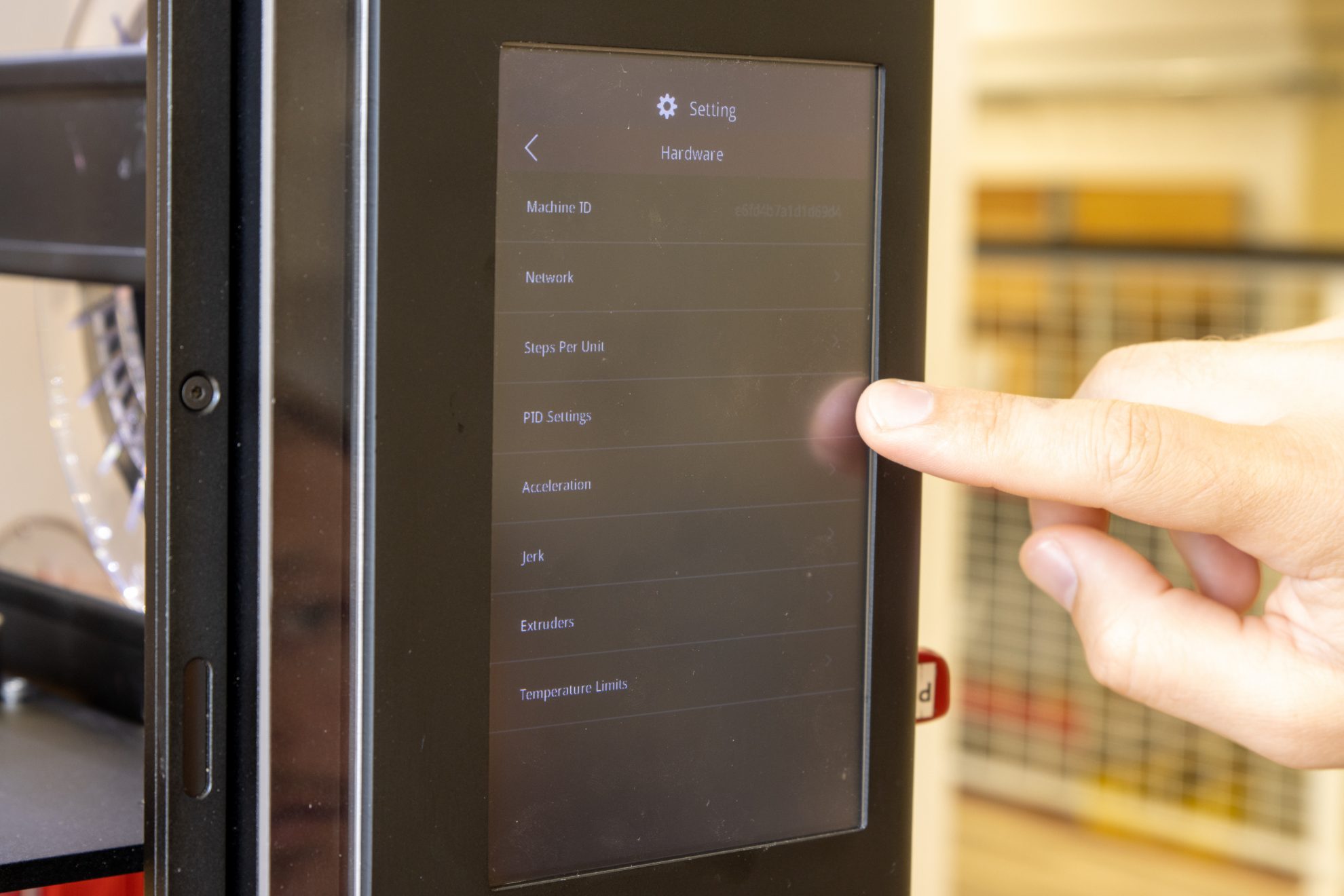

Go to Settings

Go to Settings

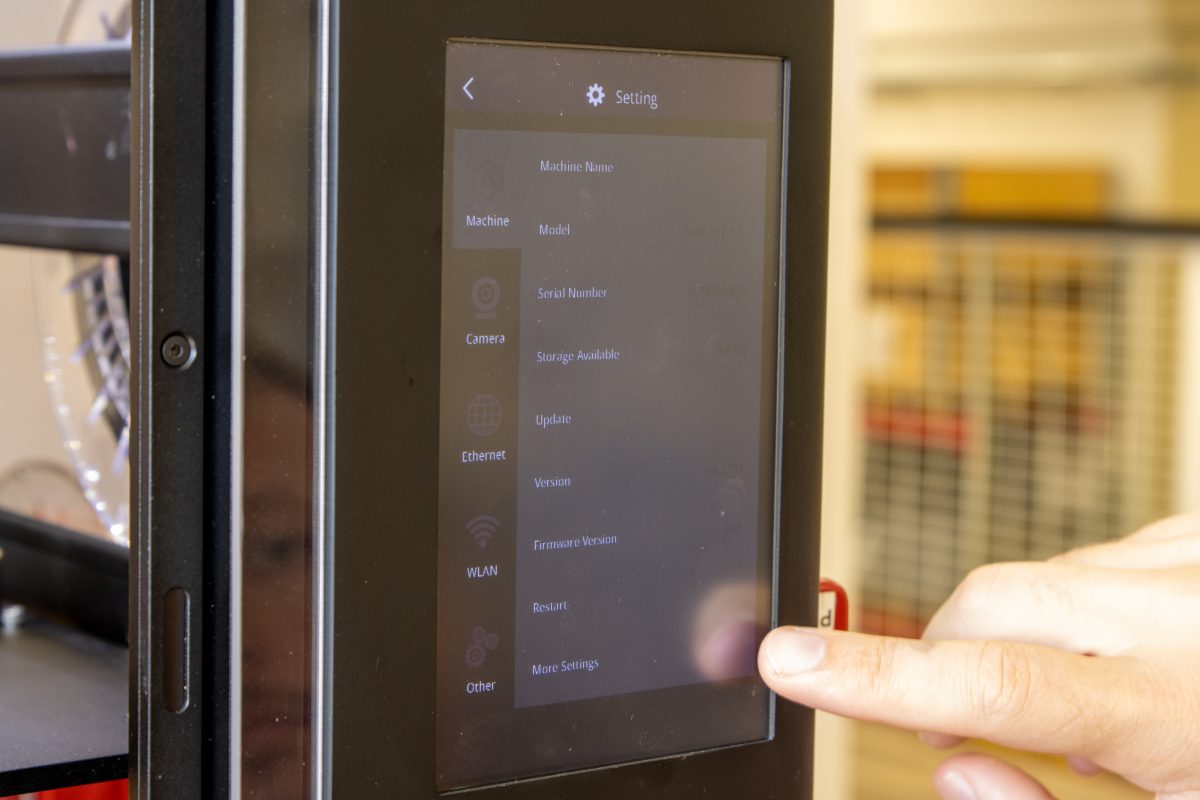

Go to More Settings

Go to More Settings

Go to PID Settings

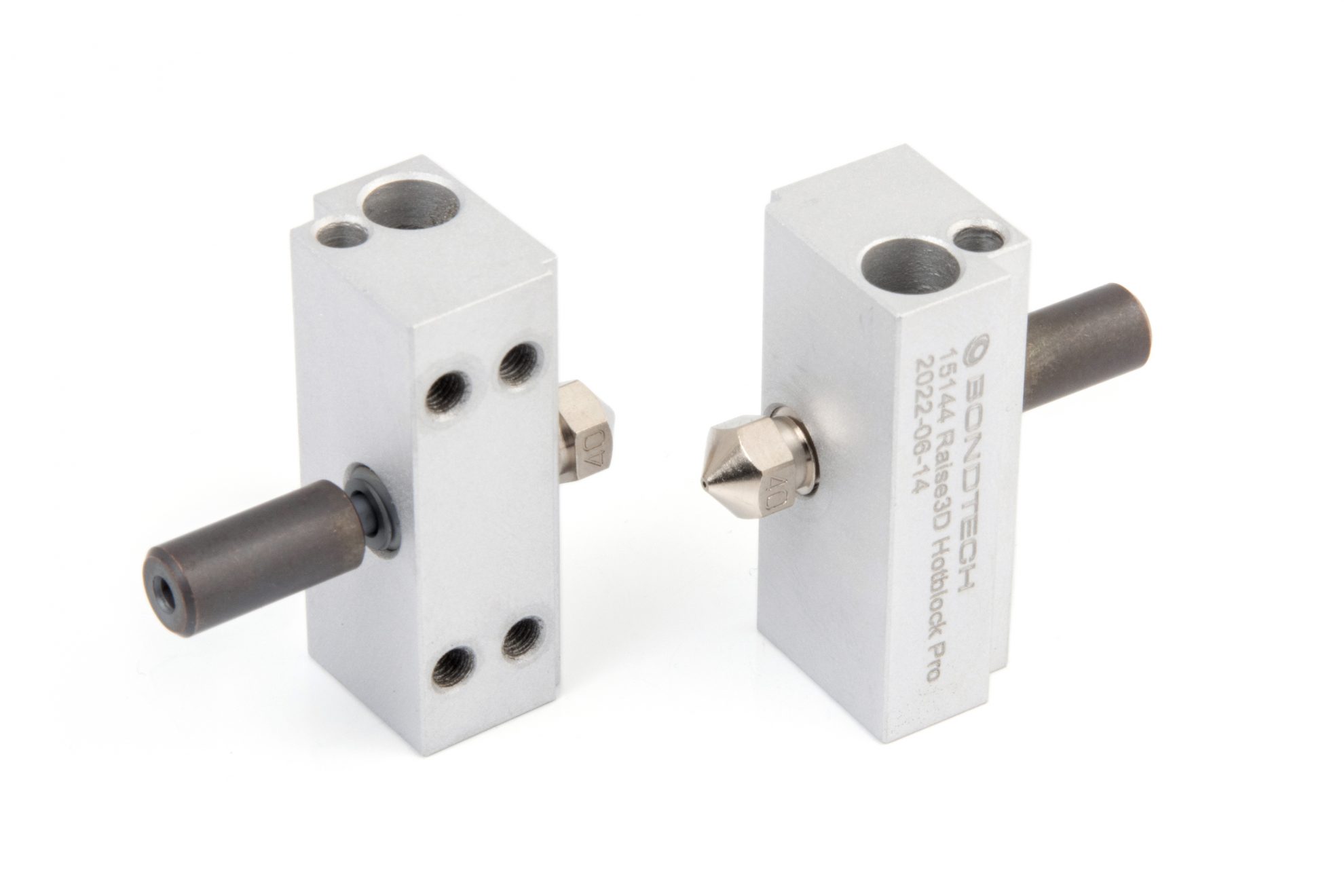

This Set Includes

  • 2x Copperhead Bi-metallic Standard G2 Heat-break
  • 2x Bondtech Coated Brass CHT 0.4 Nozzle
  • 2x Raise3D Hotblock Pro by Bondtech
  • 8x M3x3 set screw

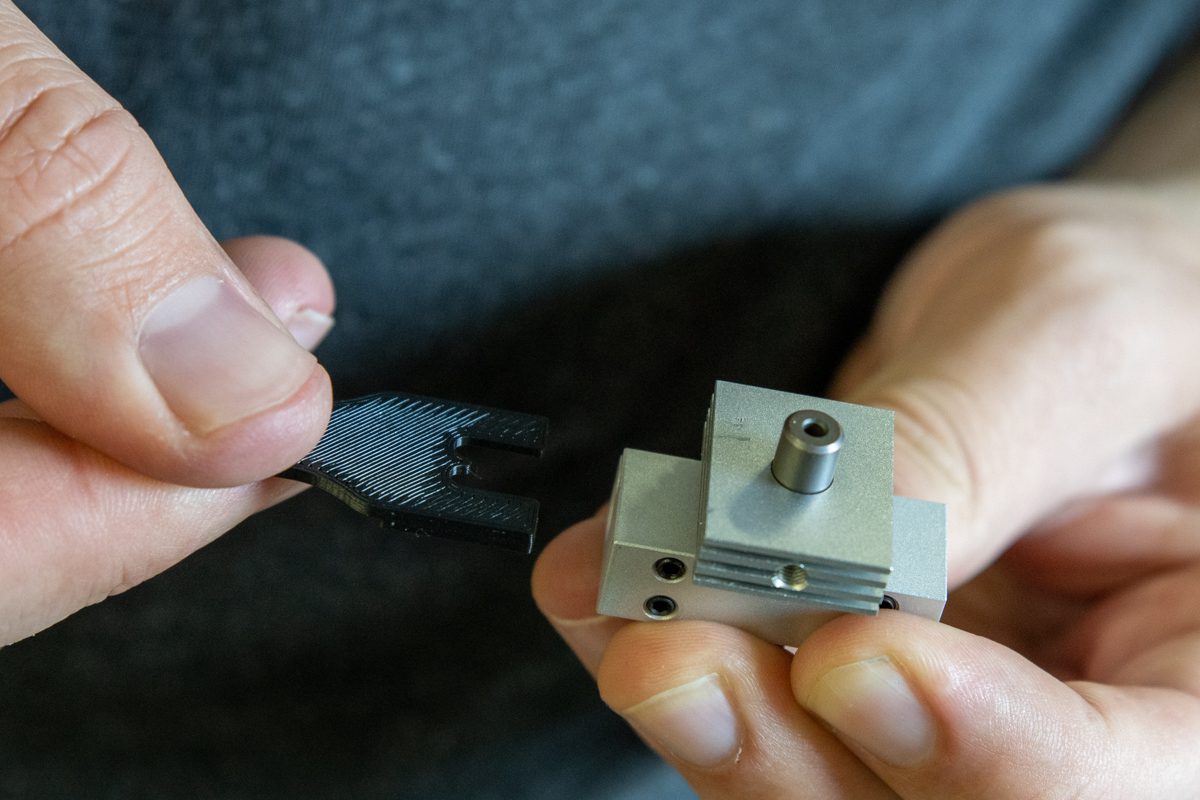

  • 1x Spacer for Raise3D Hotblock Pro

Nozzles for fixed Pro2
