Set With LGX Accessories For Sidewinder X1, X2 and Genius

Bondtech

/

Shop

/

Accessories

/

LGX Accessories For Artillery Sidewinder and Genius

LGX Accessories For Artillery Sidewinder and Genius


Price:

$54.90

Only 10 left in stock

This set is compatible with…

…the following 3D printers:

  • Artillery SideWinder X1;
  • Artillery SideWinder X2;
  • Artillery Genius.

…the following Bondtech print heads:

  • LGX extruder and Copperhead screw mount hotend
  • LGX extruder and Mosquito hotend
  • LGX extruder and Mosquito Magnum hotend
  • LGX extruder and LGX ACE Magnum+ hotend

Always check below if we have Product Alerts you should be aware of before buying.

This LGX Accessories set is supplied with:

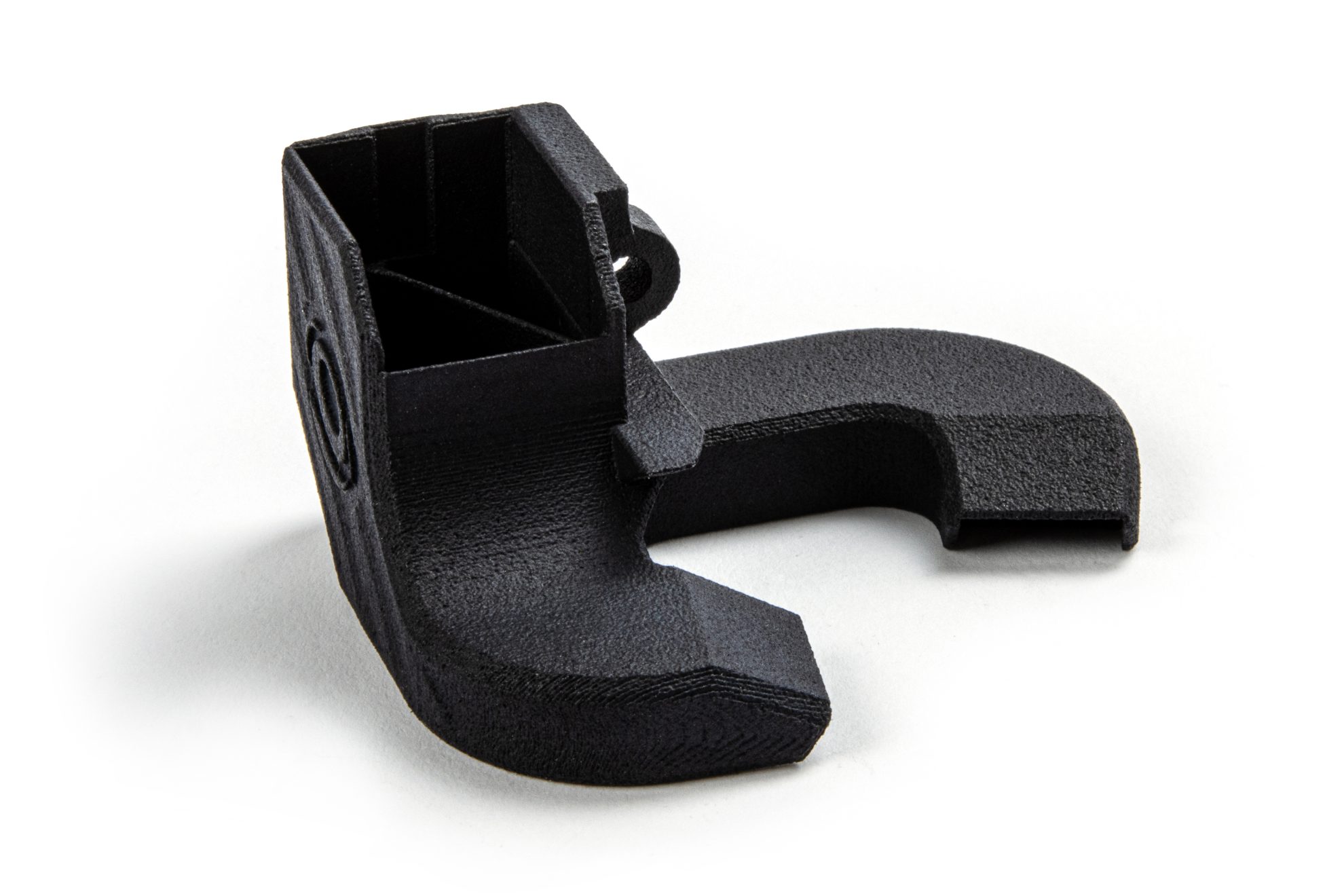

  • 1x LGX PA12 Fan Shroud;
  • 1x LGX PA12 Fan Mount
  • 1x ALU Mount Plate
  • 1x 5015 24V radial fan
  • Mounting hardware
    • 6x M3x6 Allen screw Low Head
    • 1x M3x25 Allen screw Low Head
    • 1x M3x10 Allen screw Cylindrical
    • 1x M3x25 Allen screw Cylindrical
    • 2x M3 Square nuts
    • 1x M3 T-slot nut for 2020 profile

Freight Weight 115 g
Dimensions 10 × 8 × 7 cm

SETUP GUIDE

This setup Guide is based on the LGX for Artillery and Mosquito.

Setting Up the LGX extruder on the Artillery Sidewinder X2

The guide below shows how to install the LGX on the Artillery Sidewinder X2. The same process can be implemented on the Sidewinder X1 and Genius.

The whole process is divided into 3 stages. Click each tab's arrow below to reveal the steps on each stage. This guide assumes you know how to operate the Artillery Sidewinder. If you don't, please refer to the manufacturer's documentation.

You may click the guide's pictures to view bigger resolution versions.

Click the Step ?/4 titles to see the photos and descriptions.

On the Artillery Sidewinder X1

Using the hex key can be helpful to push out the heater.
BE VERY CAREFUL AND DO NOT PULL IN THE CORDS SINCE THEY CAN BREAK EASILY.

On the Artillery Sidewinder X2

Step 1. Stripping down the printer

Use the list and video below to strip down the Artillery Sidewinder X1. The process is very close to stripping down the X1 or Genius.

  1. Unload filament and let hotend cool down.
  2. Turn off printer.
  3. Remove ribbon cable.
  4. Remove Breakout board
  5. Remove LED chip
  6. Detach printhead from X-carriage.
  7. Detach breakout board.
  8. Remove spacer plate
  9. Unplug connectors from breakout board.
  10. Detach bed levelling sensor.
  11. Detach 4010 hotend cooling fan.
  12. Remove hotend from heat sink.
  13. Remove heater and thermistor from hotblock.

Using the hex key can be helpful to push out the heater.
BE VERY CAREFUL AND DO NOT PULL IN THE CORDS SINCE THEY CAN BREAK EASILY.

Unload filament. Let the hotend cool down.

Turn off the printer.

Disassembly
Remove ribbon cable lock

Remove ribbon cable lock

Disassembly
Remove ribbon cable

Remove ribbon cable

If you have a loose LED chip that can be removed, please remove it.

Detach printhead from X-carriage

Detach printhead from X-carriage

Detach printhead from X-carriage

Disassembly
Remove this screw holding the board.

Remove breakout board

Disassembly
Remove this screw holding the board.

Detach breakout board

Disassembly

Remove spacer plate

Disassembly
Unplug connector : stepper motor

Unplug connectors from breakout board.

Disassembly
Unplug connector : stepper motor

Unplug connectors from breakout board.

Disassembly
Unplug connector : Z sensor

Unplug connectors from breakout board.

Disassembly
Unplug connector : heater

Unplug connectors from breakout board.

Disassembly
Unplug connector : thermistor

Unplug connectors from breakout board.

Disassembly
Unplug connector : stepper motor cable

Unplug connectors from breakout board.

Disassembly
Detach Z sensor by removing these 2 screws.

Detach Z sensor.

Detach 4010 cooling fan.

Disassembly
Unscrew the thermistor set screw.

Remove hotend from heatsink.

Disassembly
Pull the hotend out of the heatsink.

Remove hotend from heatsink.

Disassembly
Unscrew the thermistor set screw.

Remove thermistor from hot block.

Disassembly
Remove the thermistor form the hot block.

Remove thermistor from hot block.

Disassembly
Unscrew the thermistor set screws.

Remove heater from hot block.

Disassembly
Remove the heater form the hot block.

Remove heater from hot block.

BE VERY CAREFUL AND DO NOT PULL IN THE CORDS SINCE THEY CAN BREAK EASILY.

What to re-use and what not

NOT REQUIRED : breakout board spacer; silicone sock , hotend; 4020 part cooling fan; extruder; stepper motor; mounting plate.

Stock printhead parts not re-used.

REQUIRED : Z-sensor, breakout board cover; breakout board; 4010 cooling fan; heater; thermistor; stepper motor cable.

Stock printhead parts to re-use.

Check if you have all the necessary tools and items for this step

Tools you will need:

  • Torque Wrench to tighten the studs;
  • Phillips screwdriver;
  • 2.0 mm hex key;

LGX accessories you should have:

  • 4x M3x18 mm Stud with 5mm Hex with M3x4 thread;
  • 1x M3x30 mm Low Head screws;

LGX for Artillery accessories you should have:

  • 1x Aluminum Mount;

Step 2.1 Install the LGX studs

Remove the screws at the back of the stepper motor

Replace them with the studs supplied

Replace them with the studs supplied

Use the wrench to tighten the studs to the motor

Use the wrench to tighten the studs to the motor

Step 2.2 Separate the LGX from the stepper motor

Unscrew the LGX's bottom and top right front screws

Remove the LGX's front screws except the top left

Remove the LGX's front screws except the top left

Separate the LGX extruder from the stepper motor

Separate the LGX extruder from the stepper motor

Step 2.3 Install Aluminum mount plate

Place the mount plate on the stepper motor

Place the mount plate on the stepper motor

Align the holes of the LGX and mount

Align the holes of the LGX and mount

Use a longer M3x30 low head screw on the top right corner

Remove the LGX interface plug and set it aside

Remove the LGX interface plug and set it aside

Step 3.0 Be sure to have all the necessary tools and items

Tools you will need:

  • Hobby knife;
  • Torque Wrench to limit the tightening Torque to 1.5Nm;
  • 2.5mm hex key.

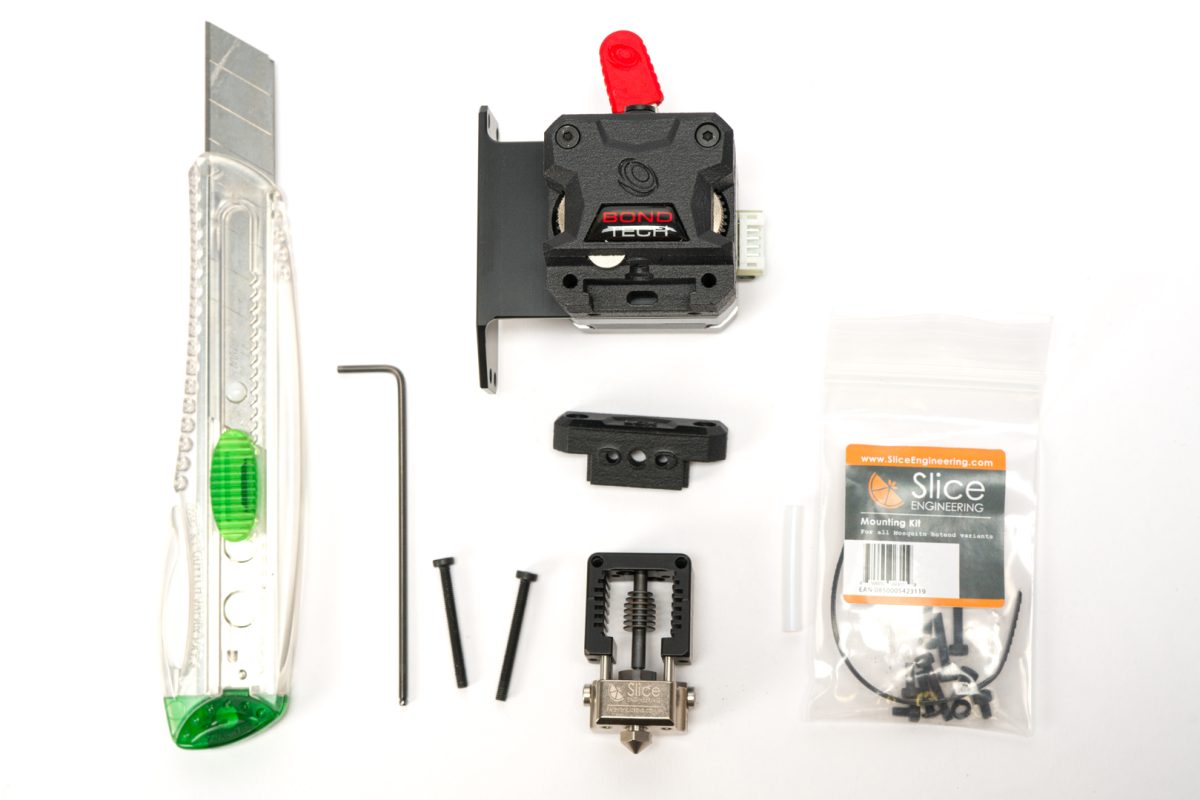

Mosquito components you should have + nozzle:

  • Mosquito hotend (with nozzle);
  • 2x M2.5x6 screws (from Mosquito mounting hardware kit);

LGX components you should have:

  • 2x M3x28 screws (from LGX);

Other components you should have:

  • PTFE Tube

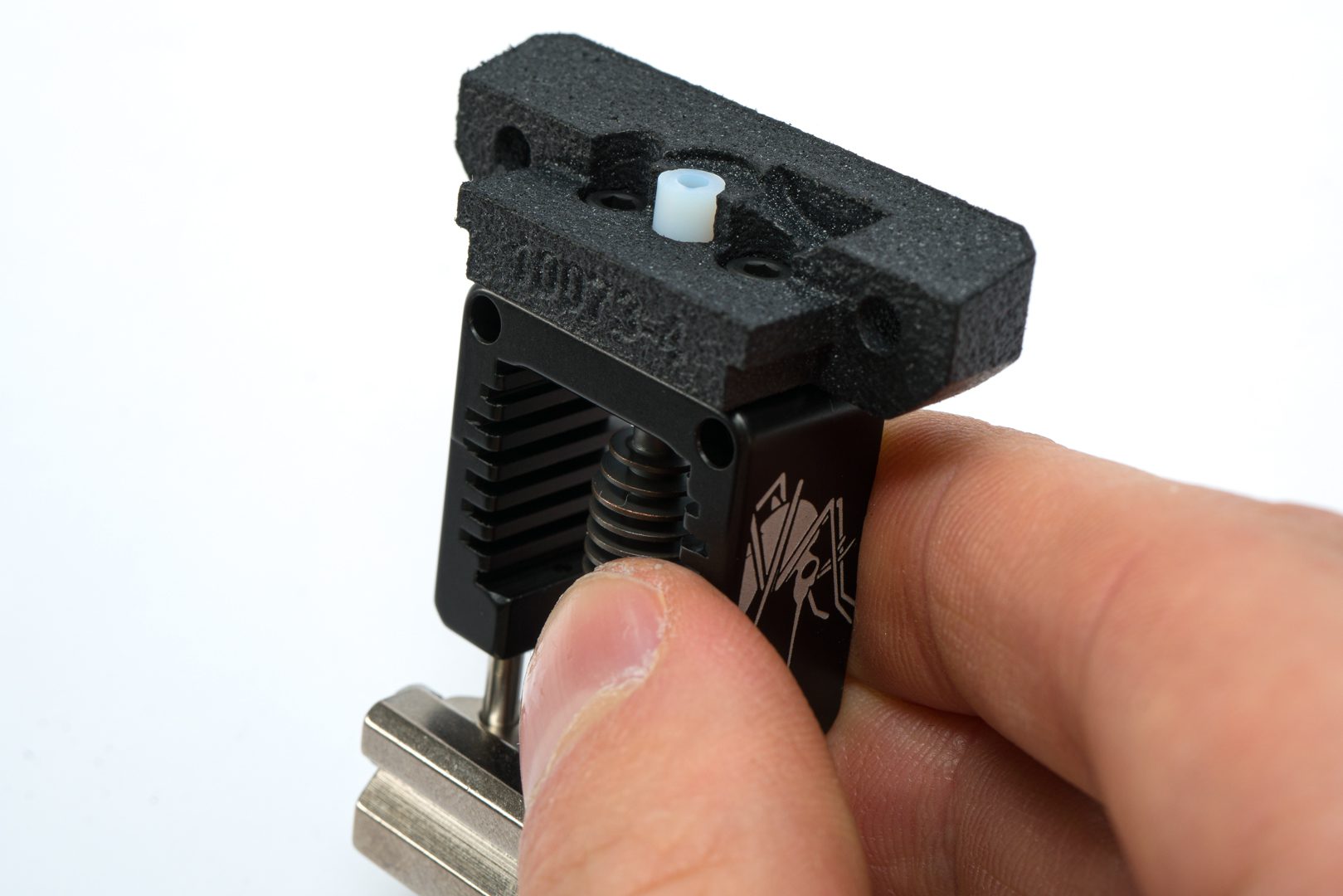

Step 3.1 Attach hotend to interface plug

Fit the top pf the Mosquito in the LGX interface plug mounting pattern

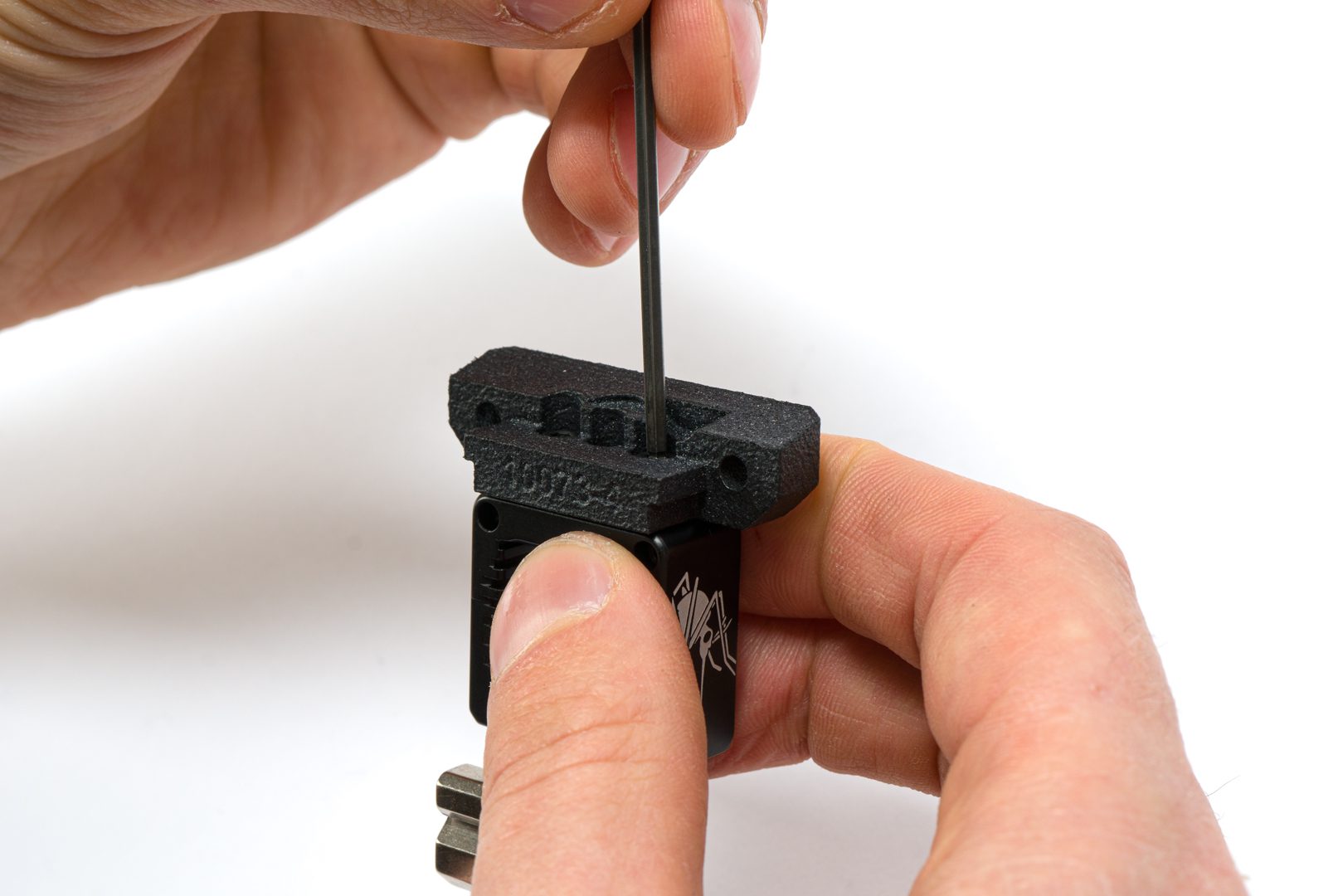

Attach them together using the 2 M2.5x6 screws

Attach them together using the 2 M2.5x6 screws

Tighten the screws to prevent any wiggling motion

Tighten the screws to prevent any wiggling motion

Step 3.2 Install the PTFE tube

Insert the PTFE tube through the interface plug all the way down

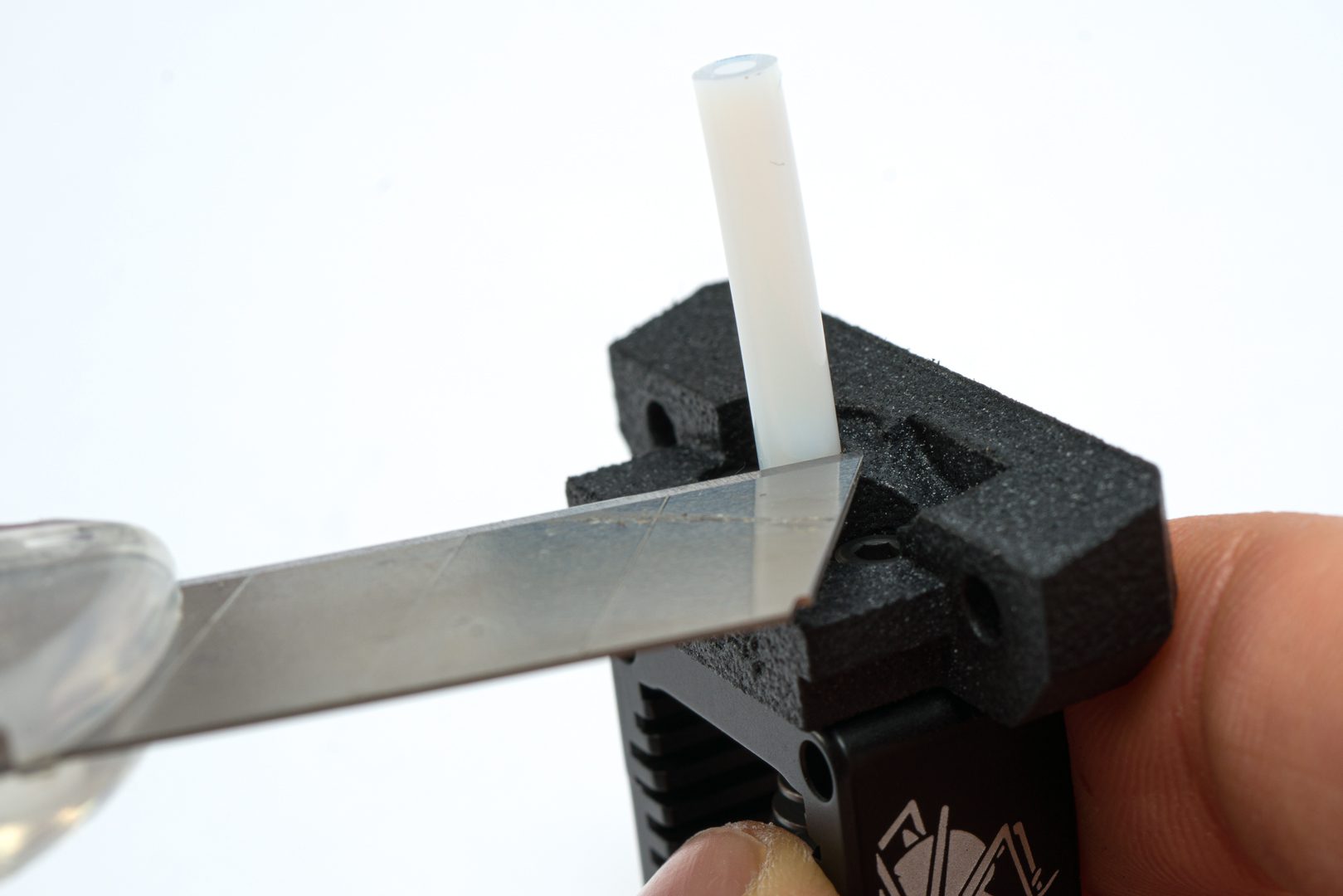

Use the hobby knife to cut the PTFE tube

Use the hobby knife to cut the PTFE tube

Cut it flush with the interface plug's top surface

Cut it flush with the interface plug's top surface

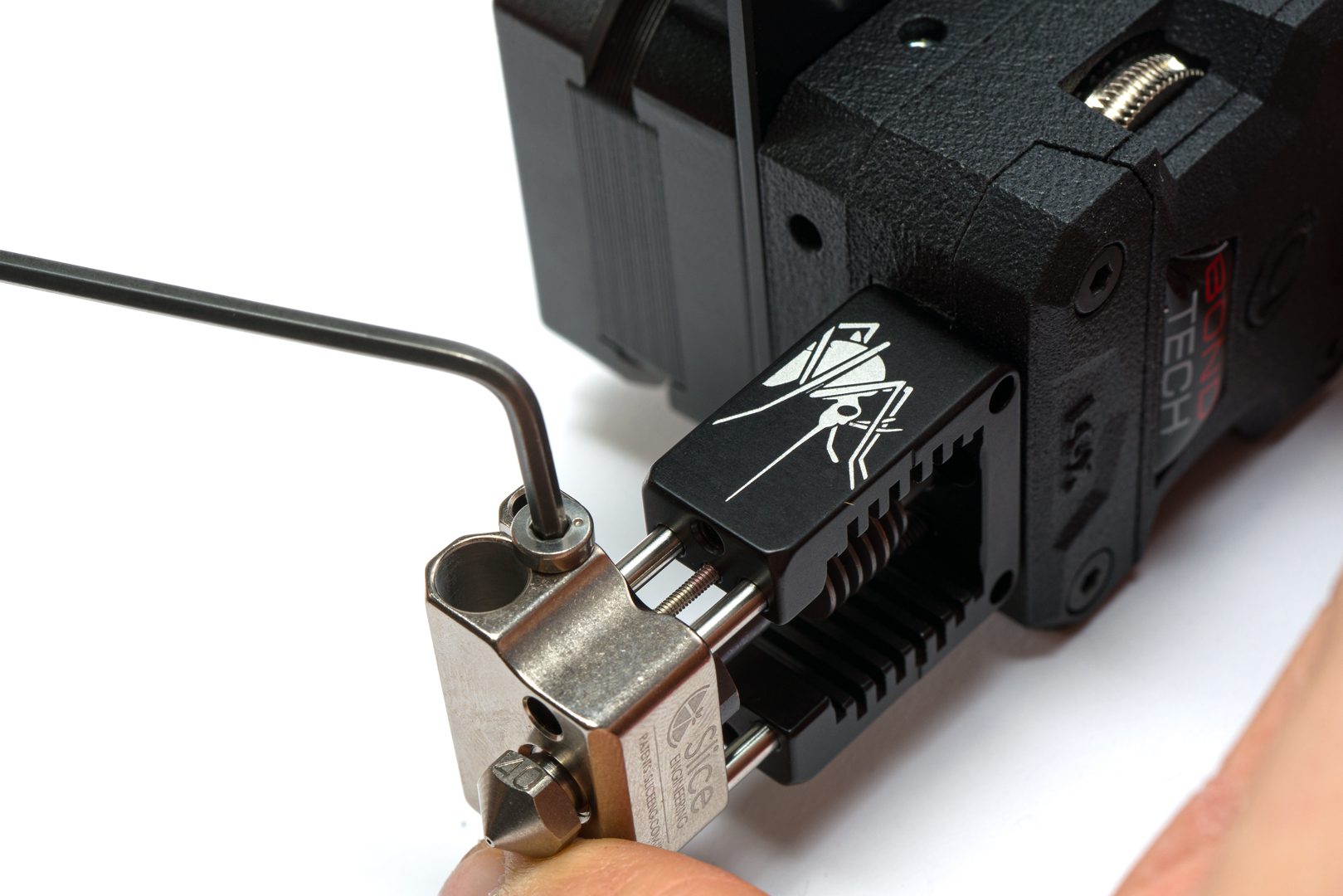

Step 3.3 Install hotend on LGX

Fit the interface plug into the LGX and place the M3x28 screws

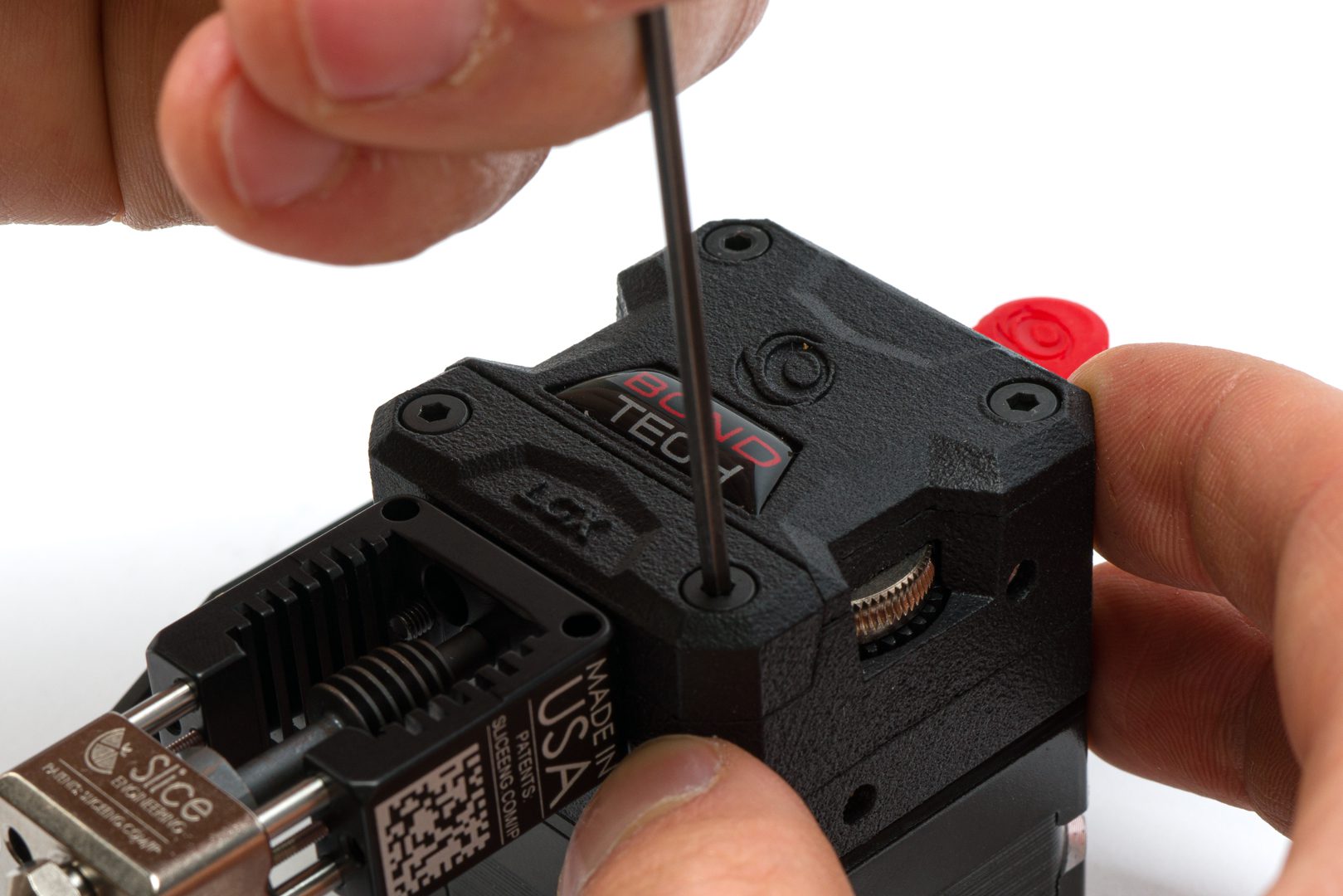

Tighten the screws using the 2.5mm hex key

Tighten the screws using the 2.5mm hex key

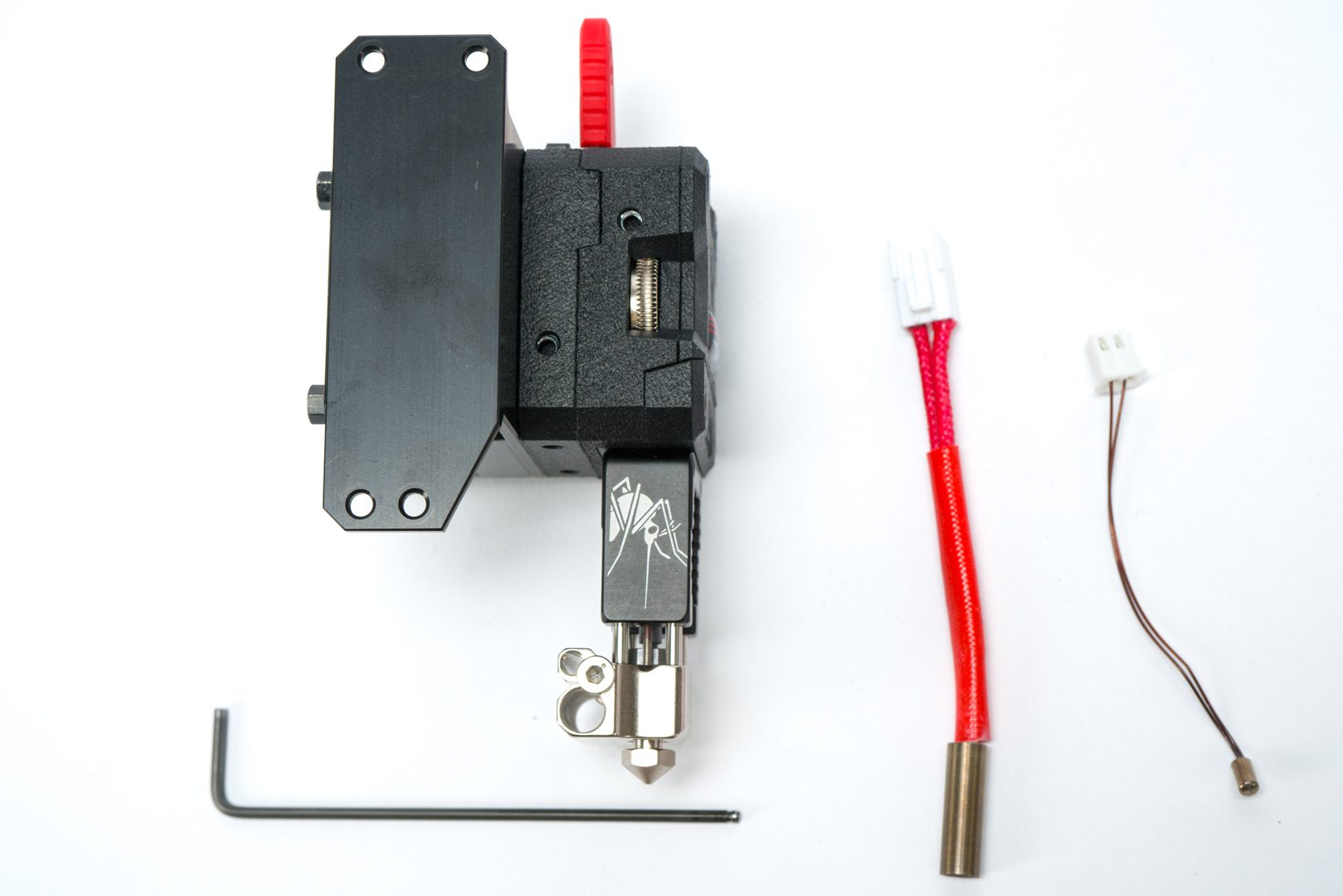

Step 3.4 Install Heater and Thermistor

Install the Bondtech heater and stock thermistor

Install the Bondtech heater and stock thermistor

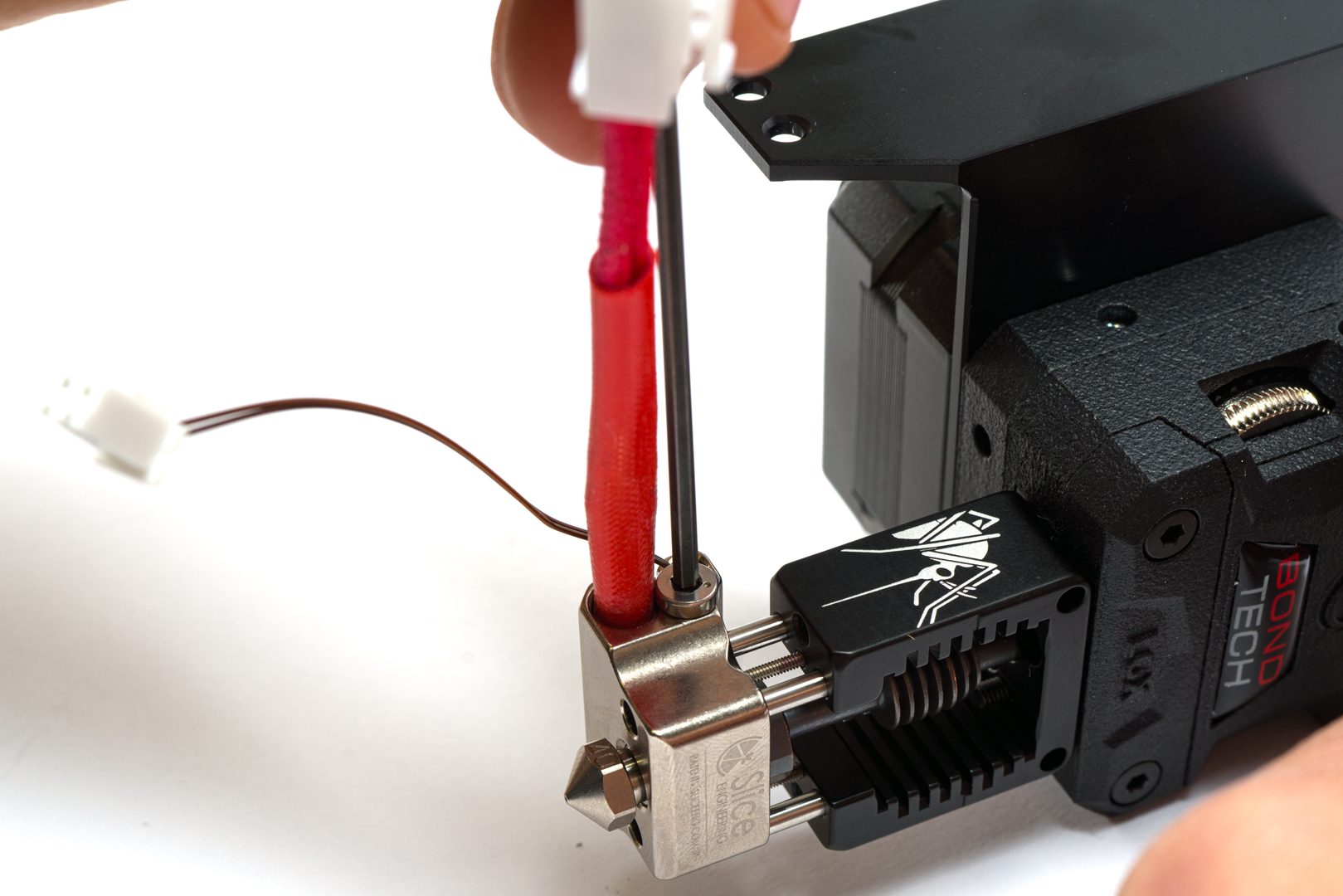

Remove the cartridge retention screw

Remove the cartridge retention screw

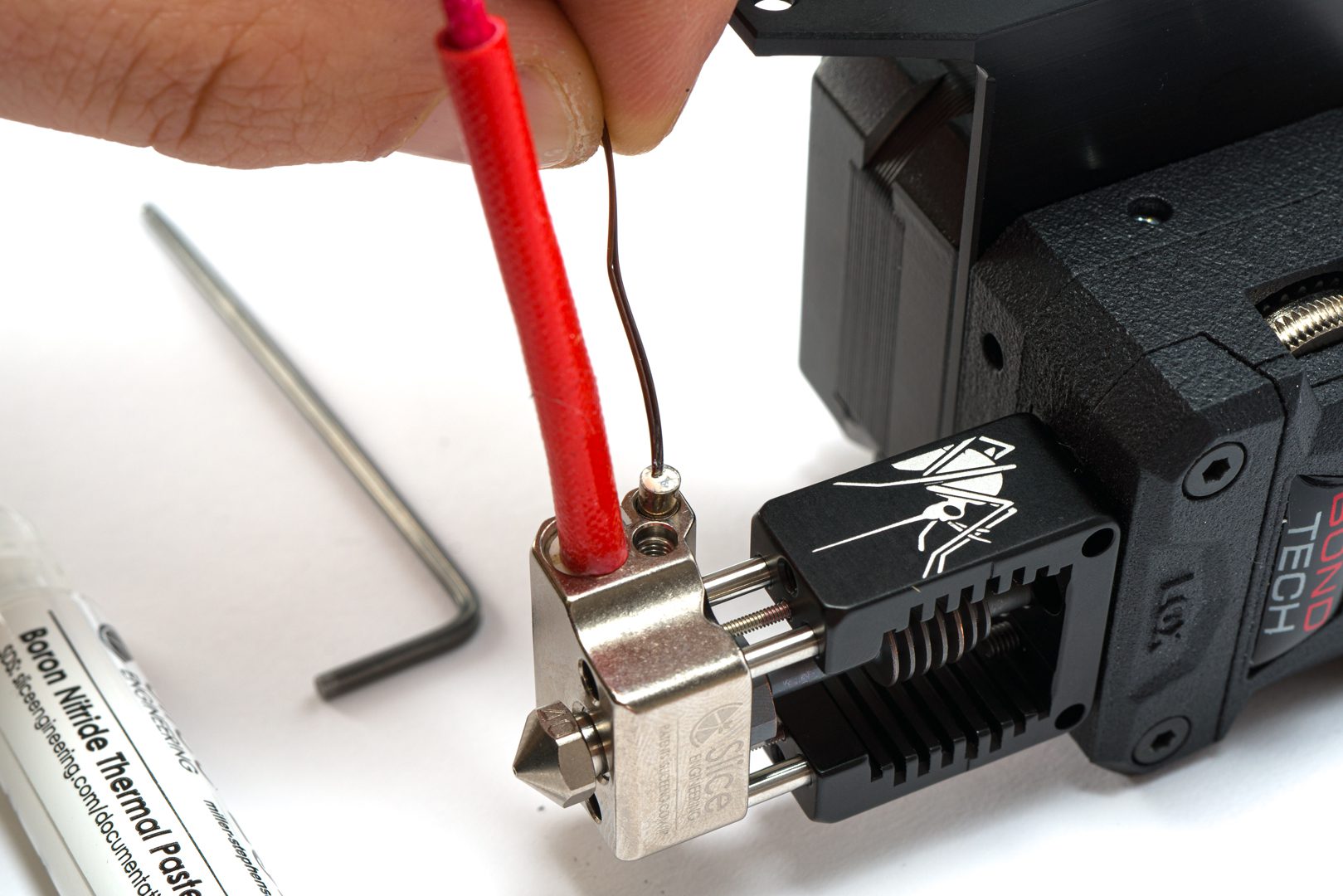

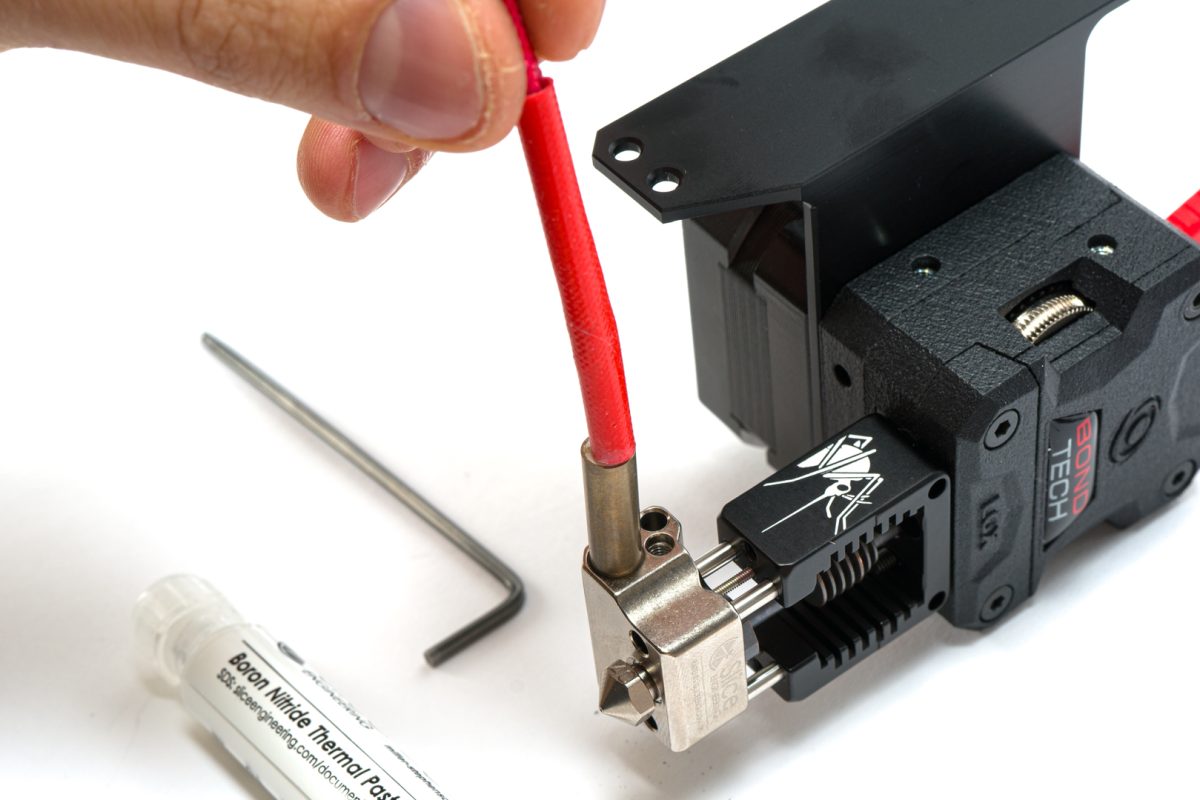

Coat the heater cartridge with Boron Nitride Paste and insert it in the heater hole

Coat the thermistor cartridge with Boron Nitride Paste and insert it in the thermistor hole

Tighten the retention screw

Tighten the retention screw

Step 4.0 Verify You have these items

To move forward verify you have the following

tools :

  • 2.0 hex key;
  • 2.5 Hex Key.

Accessories :

  • Mounting hardware;
  • Fan mount;
  • Fan Shroud;
  • 5015 fan.

Step 4.2 Assembling the fan mount on the fan shroud

Take the fan mount and fan shroud

Take the fan mount and fan shroud

Fit the fan mount in the fan shroud

Fit the fan mount in the fan shroud

Use the M3x30 screw to attach them together

Use the M3x25 screw to attach them together

Use the 2.5 the key to tighten the screw

Use the 2.5 the key to tighten the screw

Assembly stays like this

Assembly stays like this

Step 4.3 Installing the square nuts

Use 2 square nuts

Use 2 square nuts

Insert one in the anterior top pocket

Insert one in the anterior top pocket

Insert another in the anterior side pocket

Insert another in the anterior side pocket

Square nuts stay like this

Square nuts stay like this

Step 4.4 Mounting the LGX

Mind the markings near the fan mount holes:

  • C for Copperhead;
  • M for Mosquito;
  • + for Magnum+

Depending on your hotend, align its mounting holes with the LGX mounting pattern

Tighten the fan mount to the LGX using 2 M3x6 screws

4.5 installing the bed levelling sensor

Take the Artillery levelling sensor and one M3x6 screw

Align the mounting holes with the Artillery logo facing away from the fan mount

Tighten the screw using the 2.5mm hex key and this orientation

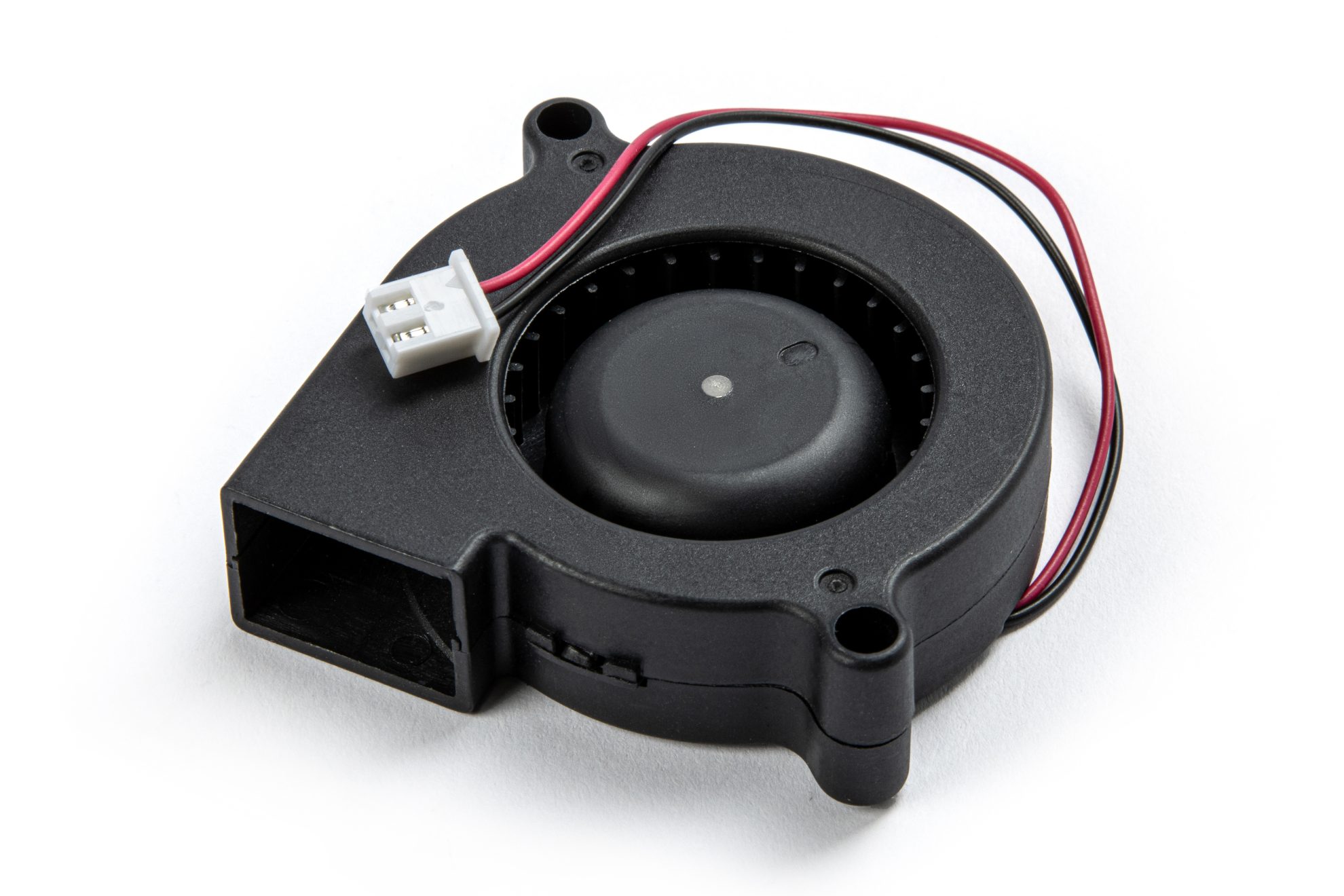

Step 4.6 Installing the 5015 radial fan

Aling the 5015 fan with the fan shroud and press it in

Rotate the fan to align it with the fan mount hole

Insert the M3x25 Low Head socket screw

Insert the M3x25 Low Head socket screw

Use the 2.5mm hex key to tighten the screw

Use the 2.5mm hex key to tighten the screw

Radial fan installed.

Radial fan installed.

Step 4.7 Modifying the stepper motor cable

Take the stock stepper motor cable. Mind the middle wires twisted.

Use a sharp tip to lift the connector gripping teeth

Remove the 2 middle wires

Remove the 2 middle wires

Untwiste them, but them back in and press the gripping teeth back down

Cable should look like this after the modification

Plug the cable on to the LGX stepper motor

Plug the cable on to the LGX stepper motor

Step 4.8 Install the Mosquito Fan

Take the assembly so far and Mosquito 25mm fan and its 2 mounting screws

Place the fan in place aligning the top holes with the Mosquito heat sink holes

Tighten the screws, but not too much

Tighten the screws, but not too much

When your LGX for Artillery includes the GX ACE Magnum+, use the stock axial fan

Use the stock axial fan

Use the stock axial fan

Tighten it to the heat sink

Tighten it to the heat sink

Using both stock screws

Using both stock screws

Step 4.9 Connect the breakout board

Take the stock breakout board and notice the connector labels

Connect the thermistor

Connect the thermistor

Connect the hotend fan

Connect the hotend fan

Connect the heater

Connect the heater

Connect the part cooling fan

Connect the part cooling fan

Orient the breakout board towards the back of the LGX

Connect the stepper motor cable

Connect the stepper motor cable

Step 4.10 Install the breakout board

Use the 2 stock breakout board screws and a 2.0mm hex key

Align the board with 2 of the LGX studs following this orientation

Screw it in place using both screws

Screw it in place using both screws

Check the alignment and orientation

Check the alignment and orientation

Tighten the screws to prevent the breakout board to wiggle

Finishing Up The Mechanical Installation

You 've asembled your LGX for Artillery Set. Now it's time to install it on your Artillery.

These are the following steps to finish up the mechanical installation:

  1. Use 3x M3x6 Low head screws to secure the LGX Printhead to the X-carriage on the same position as stock. Install all 3 screws and tighten it after you set the extruder vertical.
  2. If your printer has the loose LED chip, now it’s time to put it back.
  3. Install back the Breakout board cover
  4. Hide excessive cables behind the cover
  5. Carefully insert the ribbon cable
  6. If you use ribbon cable securer, put it back in place.

Step 4.11 Attaching ALU mount to x-carriage plate

Use 3 M3x6mm screws to hold the ALU mount onto the x-carriage

Top right holding point

Top right holding point

Bottom holding point

Bottom holding point

Top left holding point

Top left holding point

Step 4.12 Installing breakout board cover

If your printer has the loose LED chip, now it’s time to put it back.

Insert a breakout board cover screw in the top right hole and align it with the top right LGX stud

Secure the cover by tightening the screw onto the stud

Insert the second screw and tighten both

Insert the second screw and tighten both

Step 4.13 Re-connecting the flat cable

The flat cover will connect to the breakout board plug

Mind the vertical orientation of the pins

Mind the vertical orientation of the pins

Plug the cable in

Plug the cable in

Position the cable clip back in place

Position the cable clip back in place

Make sure it stays aligned and in position

Make sure it stays aligned and in position

Check the position of the levelling probe is slightly above the nozzle tip

The LGX for Artillery is installed

The LGX for Artillery is installed!

Step 5.1 Prepare 3D printer to be used with the LGX upgrade kit

FOR MODELS WITHOUT BED LEVELLING SENSOR

Have the printer powered on with steppers disabled while doing this step.

Lower the bed with the 4 bed levling knobs/screws under the bed and place as low as possible. Do not force the screws, just lower the bed until it is in the bottom.

Place the printhead in the center of the buildplate and rotate the Z-screws so the nozzle is just above the bed, use a 2.0mm hex key for reference.

Use a 2.0mm hex key and remove the Z-endstop sensor screw

use the M3x10 screw and the M3 T-nut that comes with the kit and install it into the sensor

Install the sensor to the frame and place it in a position so the sensor barely triggers (light up with a red led or touch depending on what sensor is used) as low as possible from the X frame. Secure the sensor when you find the right spot, it could be good to tighten loose, adjust up or down until you find the right spot. Tighten but not too hard while you have it in the right place.

If the sensor does not get secure to the frame with the T-nut, unscrew the screw a bit and then tighten it again.

LEVEL THE BED

Perform the Bed Leveling sequence. In the printer menu, go to
TOOLS > LEVEL

In the LEVEL menu, press FIRST. When the printer have moved to the first position, use a paper and move the paper side to side when you raise the bed. when you feel a slight resistance on the paper, you are in the right height.

Continue with all 4 corners, repeat at least 1 time

For printer without bed leveling sensor, If the bed can't go high enough to level the bed, lower the bed to the bottom again, then lower the Z-endstop 1-2mm and try the Bed Leveling Sequence again.

ADJUST STEPPER MOTOR CURRENT :

  • Use a multimeter and set the multimeter to read Voltage DC;
  • On the mainboard, turn the extruder Stepper driver potentiometer counterclockwise 1/4 turn, be very careful to not touch any other component;
  • Measure the negative input (with the black end) on the main board negative input and the potentiometer as positive end (red);
  • You may need to lower the sensitivity on the multimeter tool to get the correct reading, it should be set to 0.5-0.6V, adjust the potentiometer further if needed.

Step 5.2 Slicer Settings and e-steps value

ADD TO START GCODE :

  • Open the slicer software you use;
  • Select your Artillery 3D printer upgraded with LGX;
  • Access its machine settings;
  • Edit the start g-code;
  • Add the following command to the top of the code:
    M92 E400; sets e-steps value for LGX extruder
    M500; save settings to EEPROM


SLICER SETTINGS :

  • Adjust retraction speed to be between 25-40mm/s;
  • Adjust retraction distance to be the same as yout nozzle diameter,e.g. 0.4mm when using a 0.4mm nozzle;

SILICONE BOOT :

With this Bondtech LGX Kit, you will get a 5015 part cooling fan. It is much stronger than stock. It is recommended to use a silicone boot for the hotend.

If the part cooling fan is cooling the hot block too much, the hotend may not have power to keep up the temperature. If you don't have the silicone boot, you may also lower the cooling percentage on the slicer settings of your profiles.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Select Currency

Select Country

Select Currency

Select Country

Select Currency

Select Country
